Charging Systems: Generator: Components: Disassembly

Remove the generator cover using a screwdriver or equivalent.

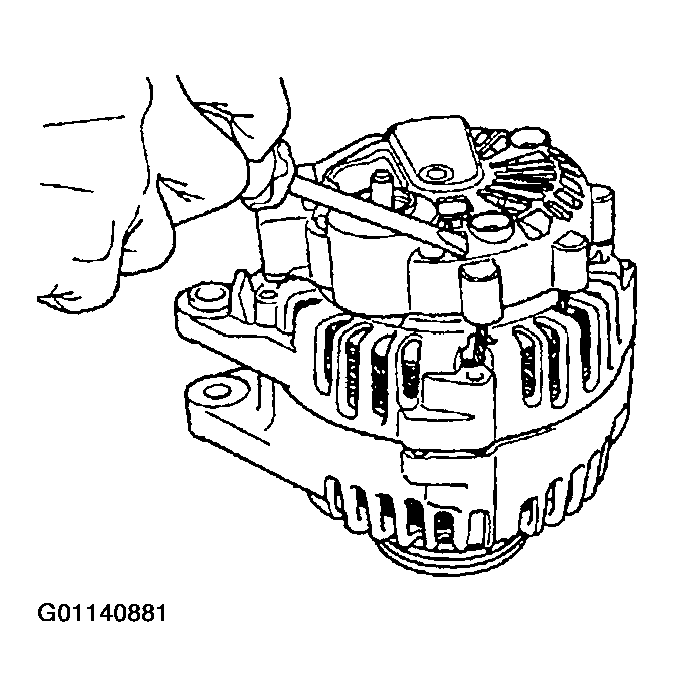

Fig 1: Removing The Generator Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 3 mounting bolts, detach the brush holder assembly.

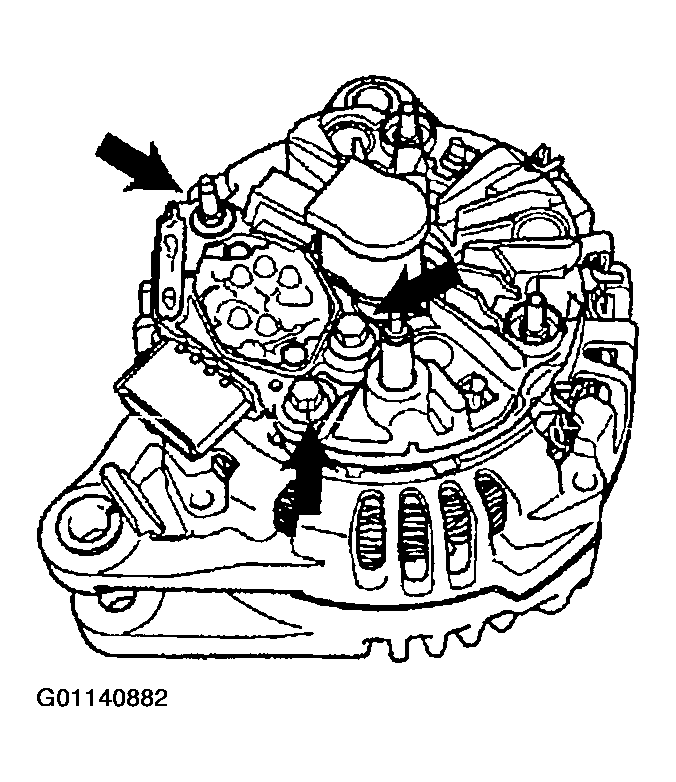

Fig 2: Detaching The Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley, and spacer.

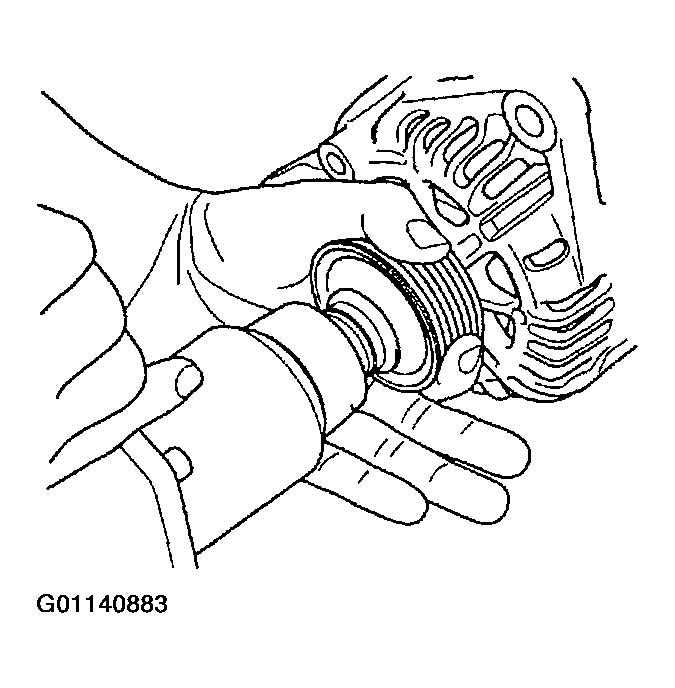

Fig 3: Removing The Nut, Pulley, & Spacer
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Put on gloves to protect hands during working.

CAUTION: Cutting the stator coil lead line connecting to the rectifier may damage the generator because the rectifier and the stator coil lead line are soldered together. So, do not disassemble further.

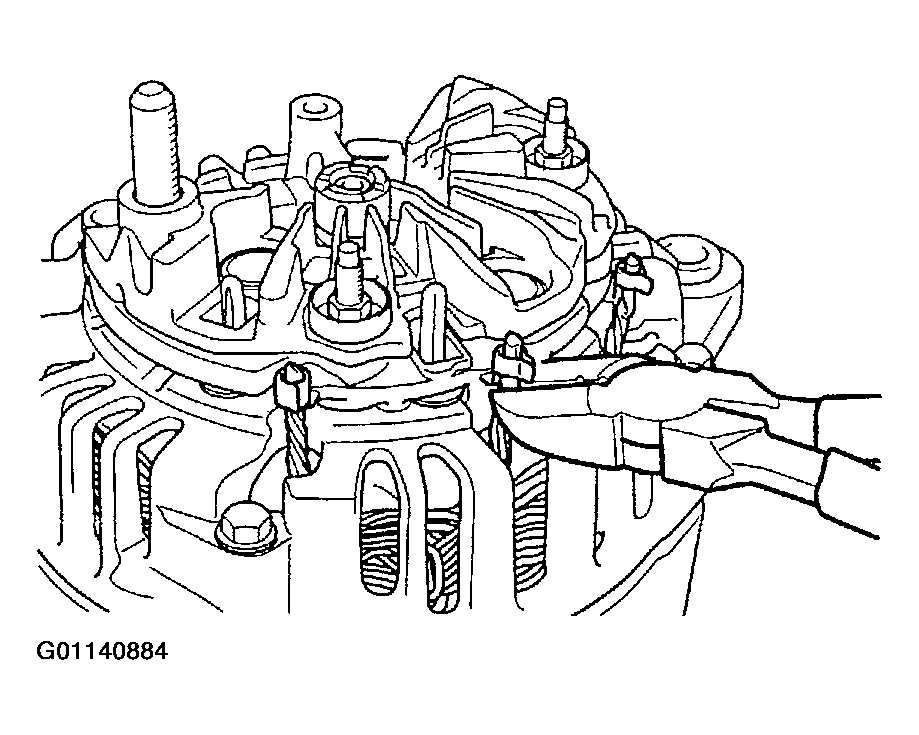

Fig 4: Cutting The Stator Coil Lead Line
Courtesy of KIA MOTORS AMERICA, INC.
