Home >> Kia >> 2003 >> Sorento EX, RWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator >> Components >> Notes

Charging Systems: Generator: Components: Notes

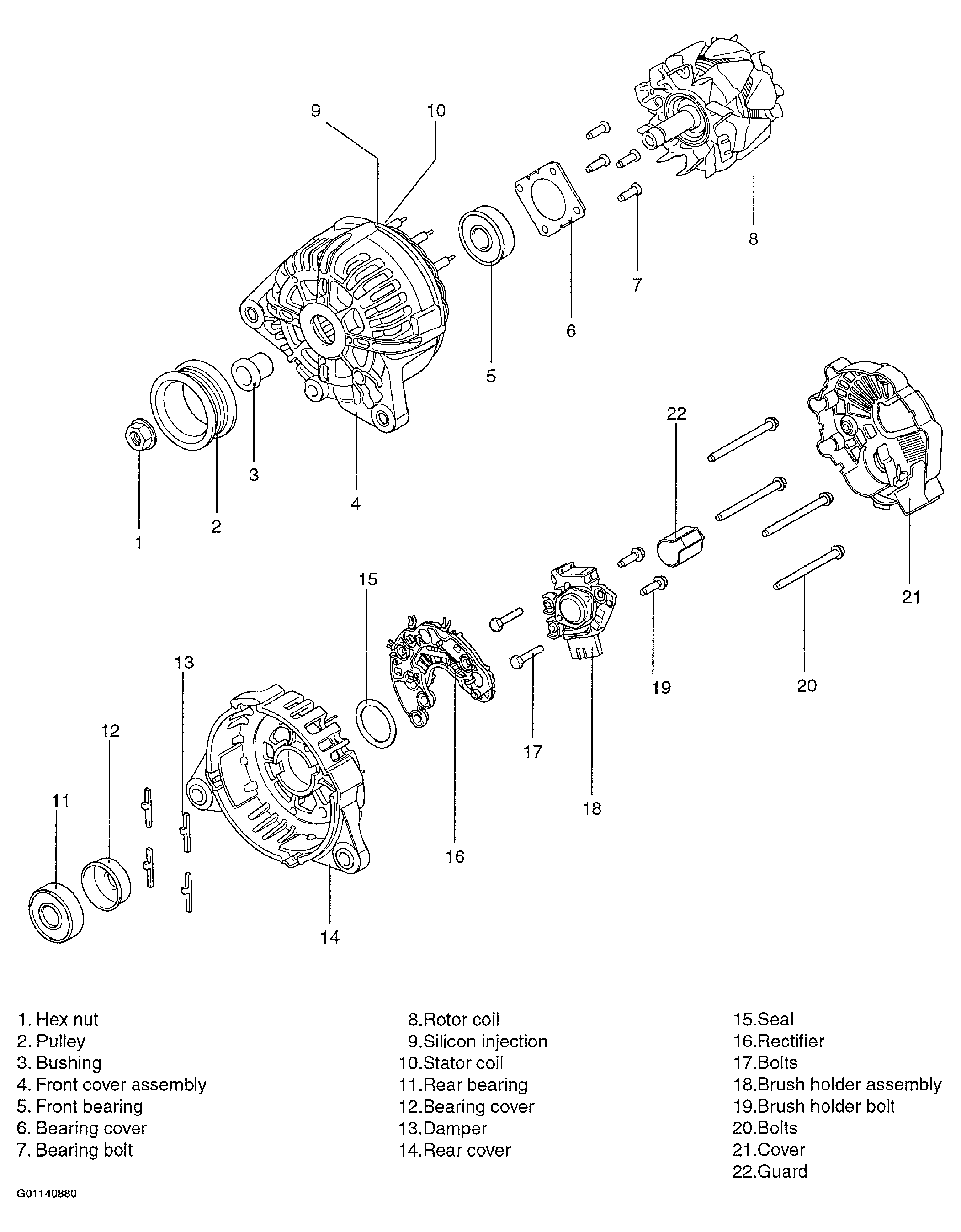

Fig 1: Exploded View Of Generator Components
G01140880Courtesy of KIA MOTORS AMERICA, INC.
