Charging Systems: Specifications

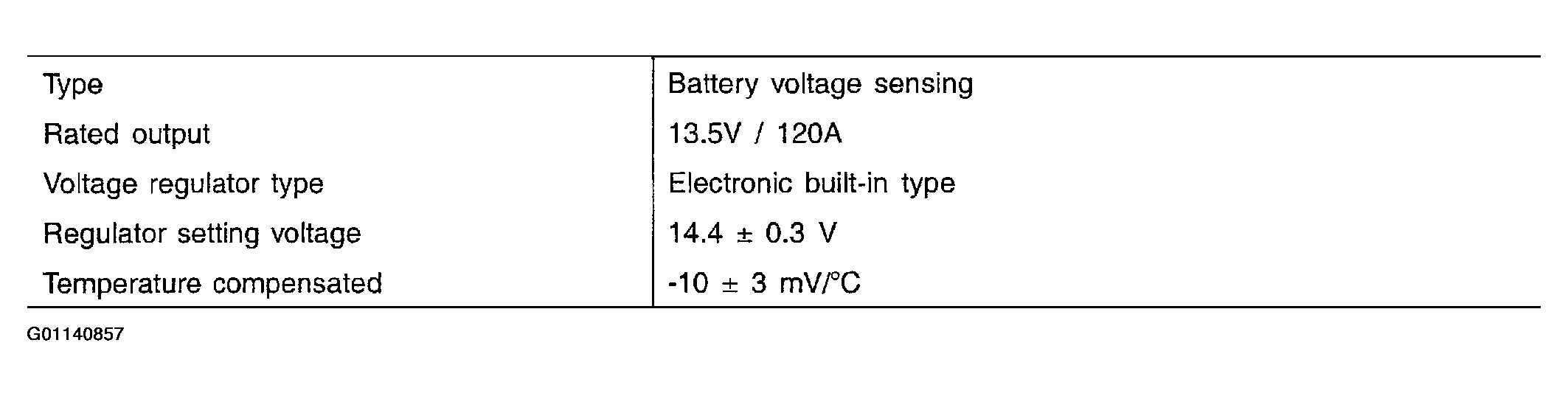

Fig 1: Illustrating Generator Specifications

Courtesy of KIA MOTORS AMERICA, INC.

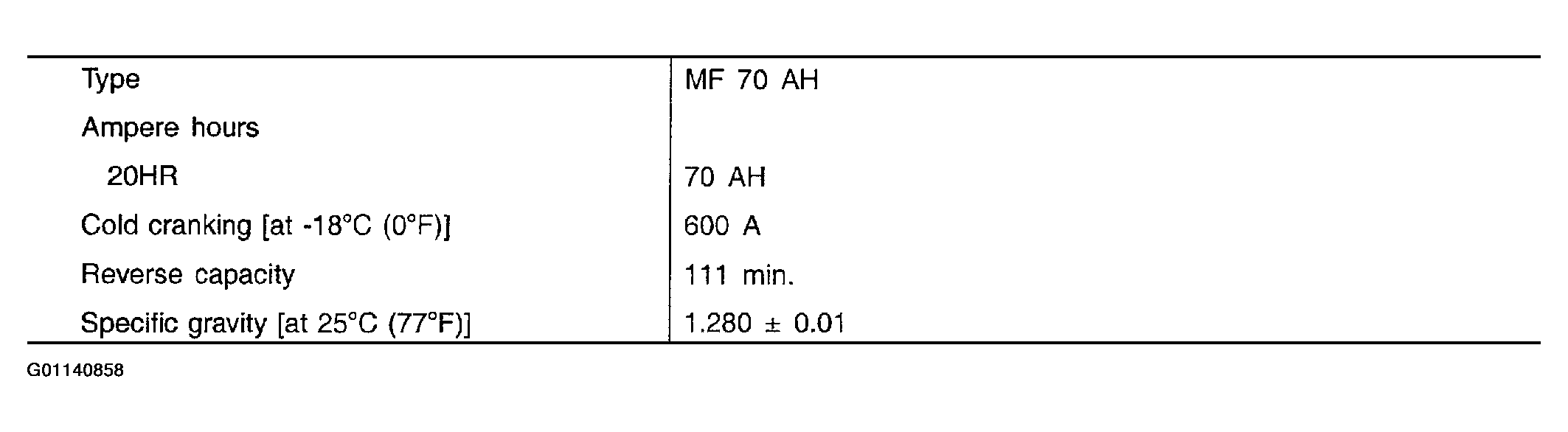

Fig 2: Illustrating Battery Specifications

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: COLD CRANKING AMPERAGE is the amperage a battery can deliver for 30 seconds and maintain a terminal voltage of 7.2 or greater at a specified temperature. REVERSE CAPACITY RATING is the amount of time a battery can deliver 25A and maintain a minimum terminal voltage of 10.5 at 26.7°C (80°F).
