Power Door Mirrors: Installation

  1. Position outside rearview mirror assembly on door.
  2. Install three retaining bolts.

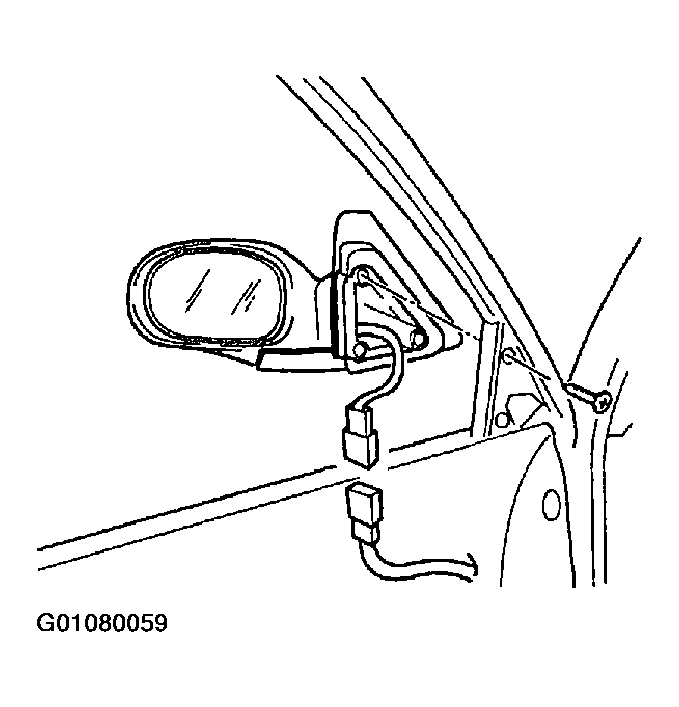

    Fig 1: Installing Retaining Bolts & Connecting Harness Connector
    G01080059Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect harness connector.
  4. Install speaker garnish.

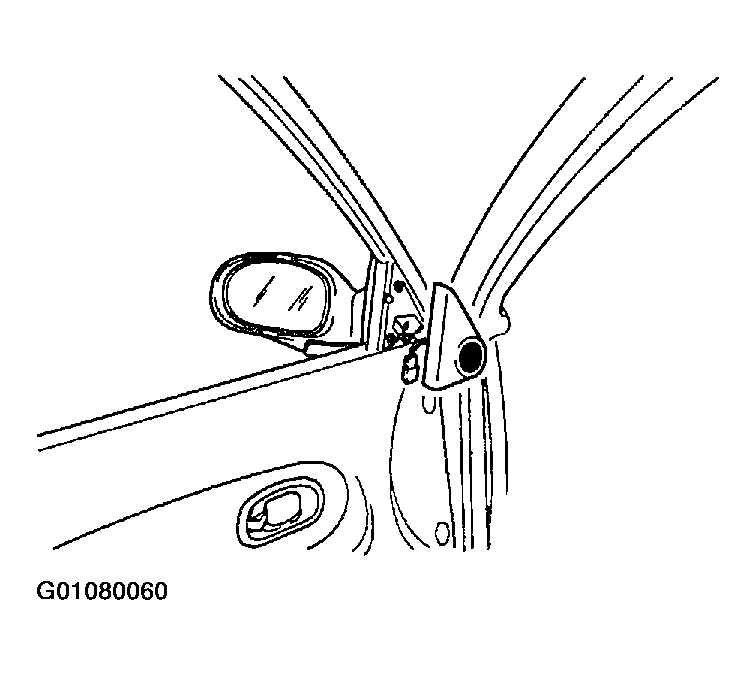

    Fig 2: Installing Speaker Garnish
    G01080060Courtesy of KIA MOTORS AMERICA, INC.
  5. Connect negative battery cable.
