When Abs Is Not Operated

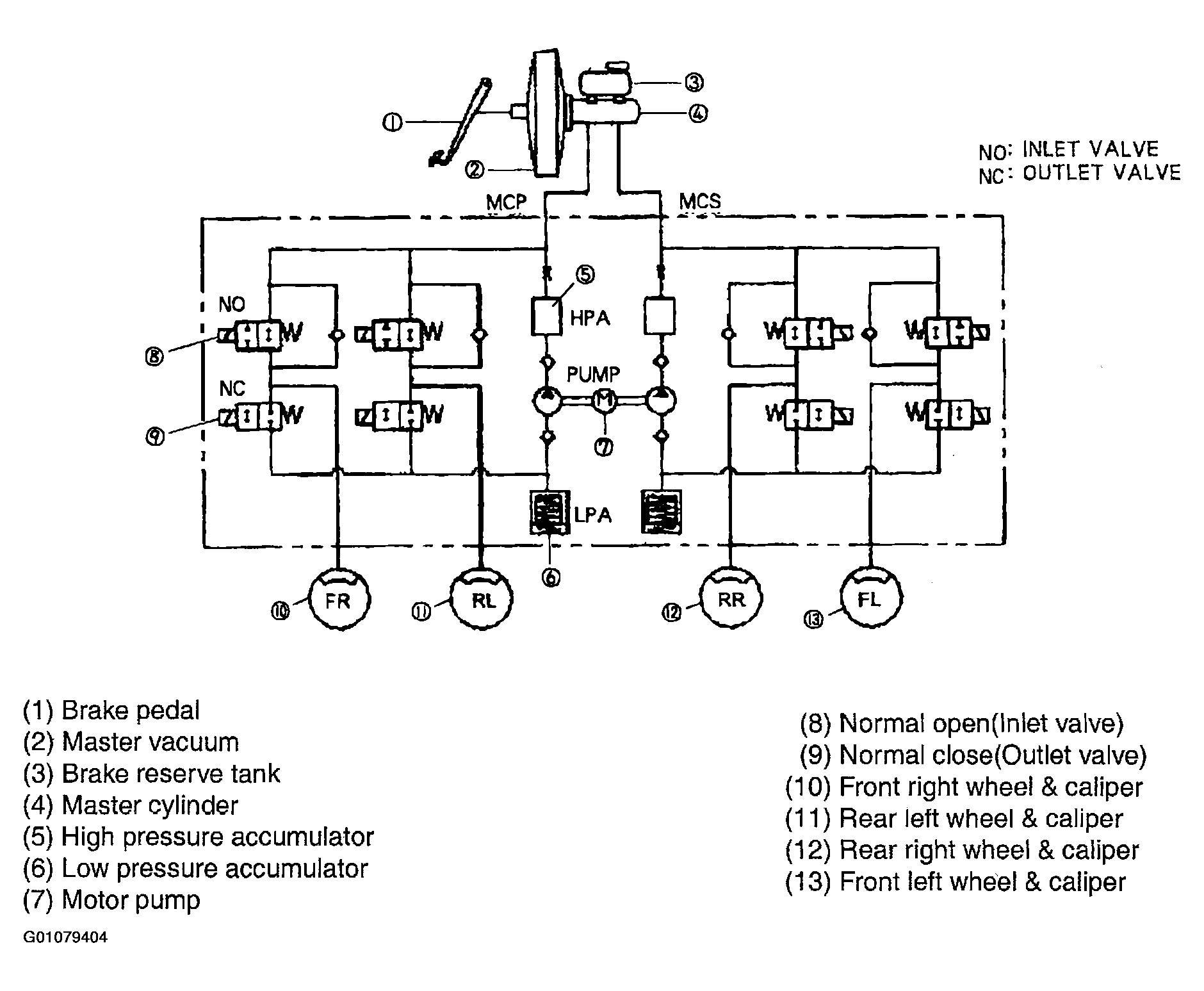

Fig 1: Illustrating When ABS Is Not Operated

Courtesy of KIA MOTORS AMERICA, INC.

Operating condition

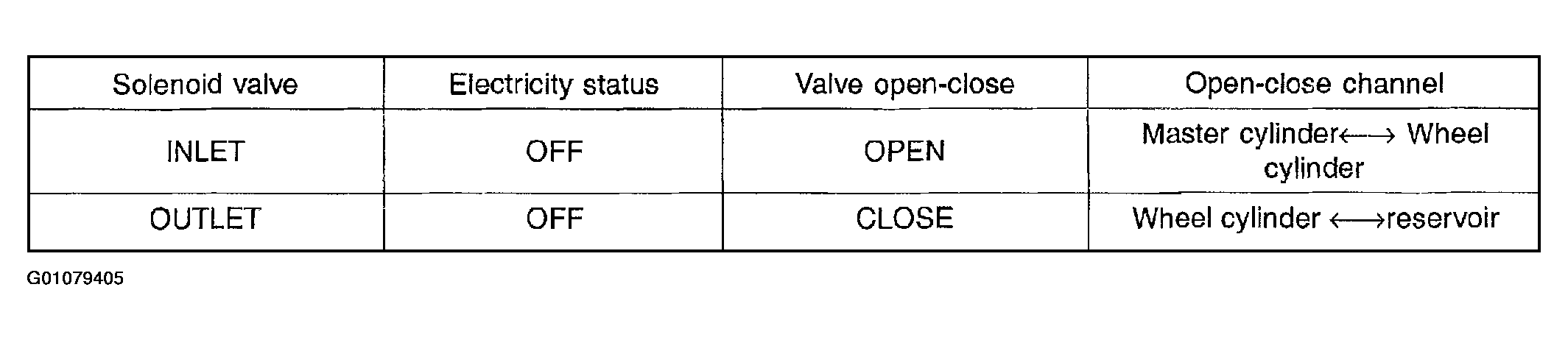

Fig 2: When ABS Is Not Operated Chart (Solenoid Applications)

Courtesy of KIA MOTORS AMERICA, INC.

In ordinary brakes, each solenoid valve is turned OFF when electricity is turned on from ABS ECU to the solenoid valve IN, OUT.

As for solenoid valve at this time, IN is opened and OUT is closed by spring action. If brake pedal is pushed down, master cylinder liquid pressure passes the solenoid valve and arrives at wheel cylinder, and the brake acts.

Afterwards if brake pedal is released, the liquid pressure passes IN and check valve to return to master cylinder, then brake is released.
