Instrument Panel: Removal: Console

  1. Remove knob from shift lever.
  2. Remove slide boots.
  3. Remove three screws from center panel trim. Refer to CENTER PANEL TRIM .

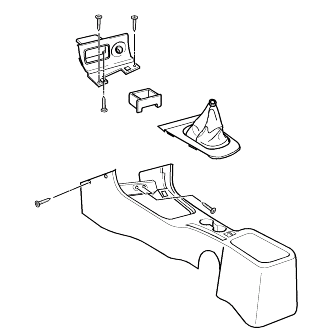

  4. Remove two mounting screws from left side of console. Refer to Figure.
  5. Repeat for right side.
  6. Remove one mounting bolt at in console.
  7. Remove console box at rear side of console.
  8. Remove console.
