Home >> Kia >> 2003 >> Spectra Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 1.8L 4-Cylinder Engine >> General >> Troubleshooting Guide >> Engine

Troubleshooting Guide: Engine

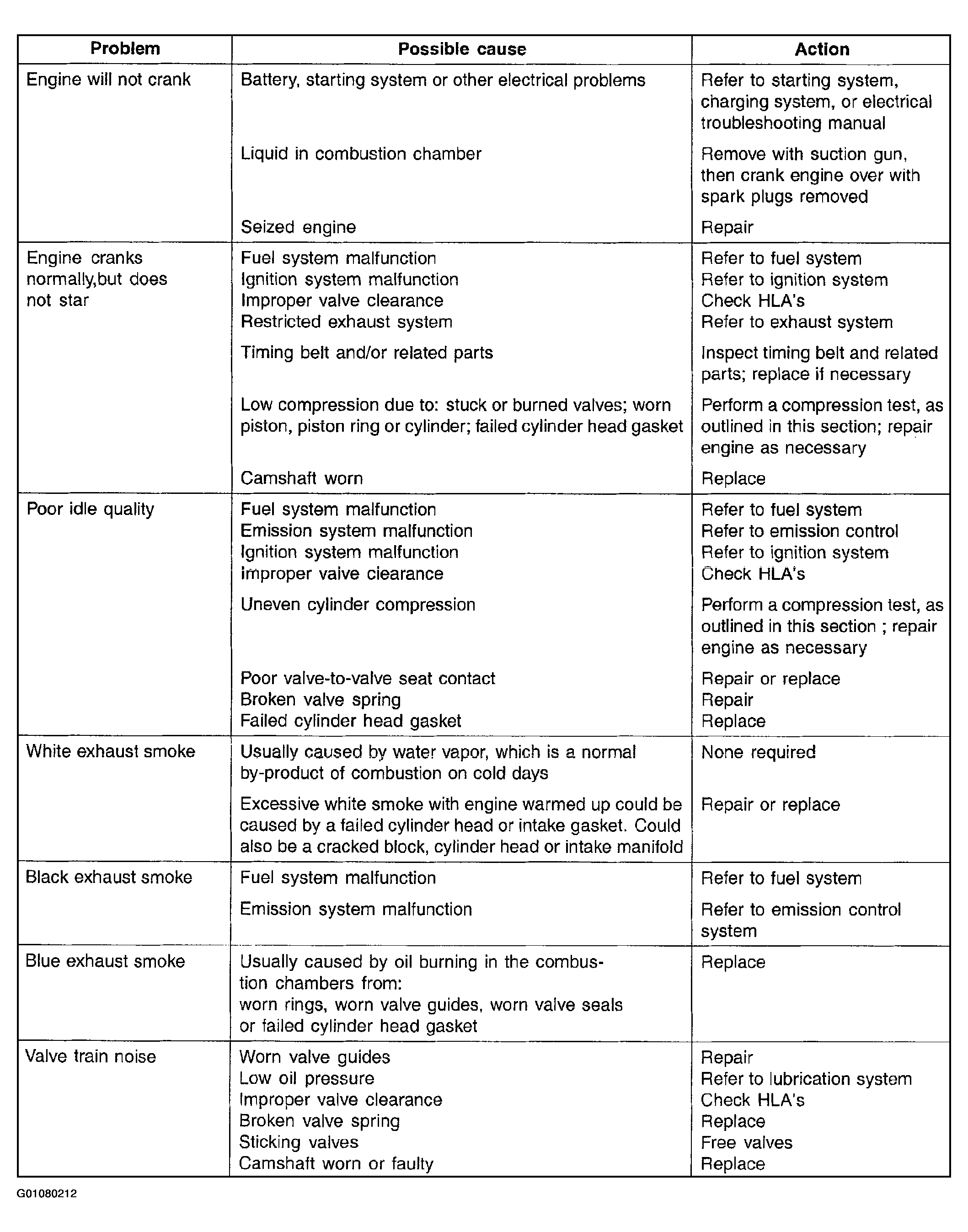

Fig 1: Engine Troubleshooting Chart (1 Of 3)
G01080212Courtesy of KIA MOTORS AMERICA, INC.

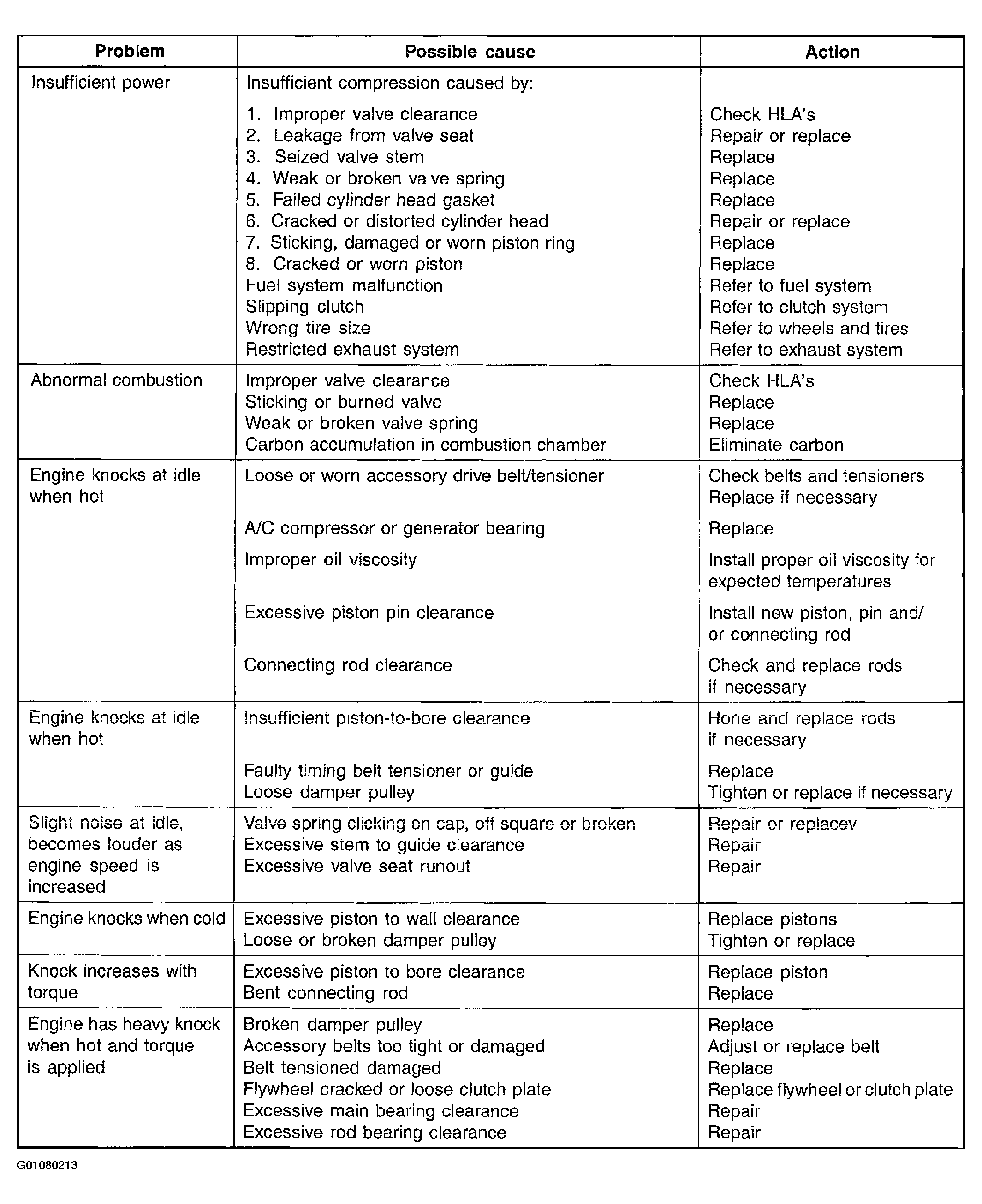

Fig 2: Engine Troubleshooting Chart (2 Of 3)
G01080213Courtesy of KIA MOTORS AMERICA, INC.

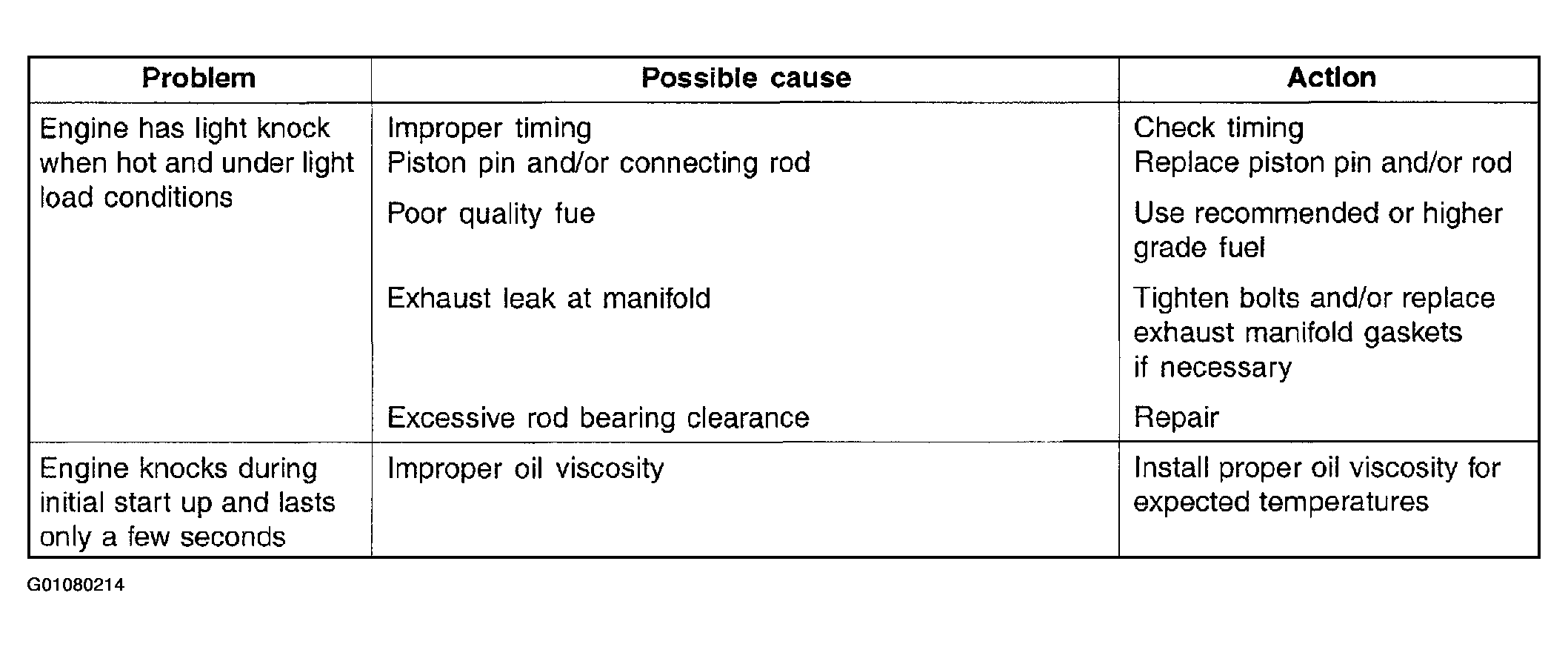

Fig 3: Engine Troubleshooting Chart (3 Of 3)
G01080214Courtesy of KIA MOTORS AMERICA, INC.
