Timing Belt: Replacement

Install tensioner pulley.
NOTE: Replace tensioner spring whenever timing belt is replaced.

Fig 1: Installing Tensioner Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Pull tensioner pulley to its furthest point and tighten lock bolt.
Check that timing mark on timing belt pulley is aligned with timing mark on engine.

Fig 2: Aligning Crankshaft Timing Mark
Courtesy of KIA MOTORS AMERICA, INC.
Check that "I" mark on intake camshaft pulley is aligned with mark on cylinder head cover and "E" mark on exhaust camshaft pulley is aligned with mark on cylinder head cover.

Fig 3: Aligning Camshaft Timing Marks
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If existing timing belt is being reused, install belt in proper rotation direction marked prior to removal.

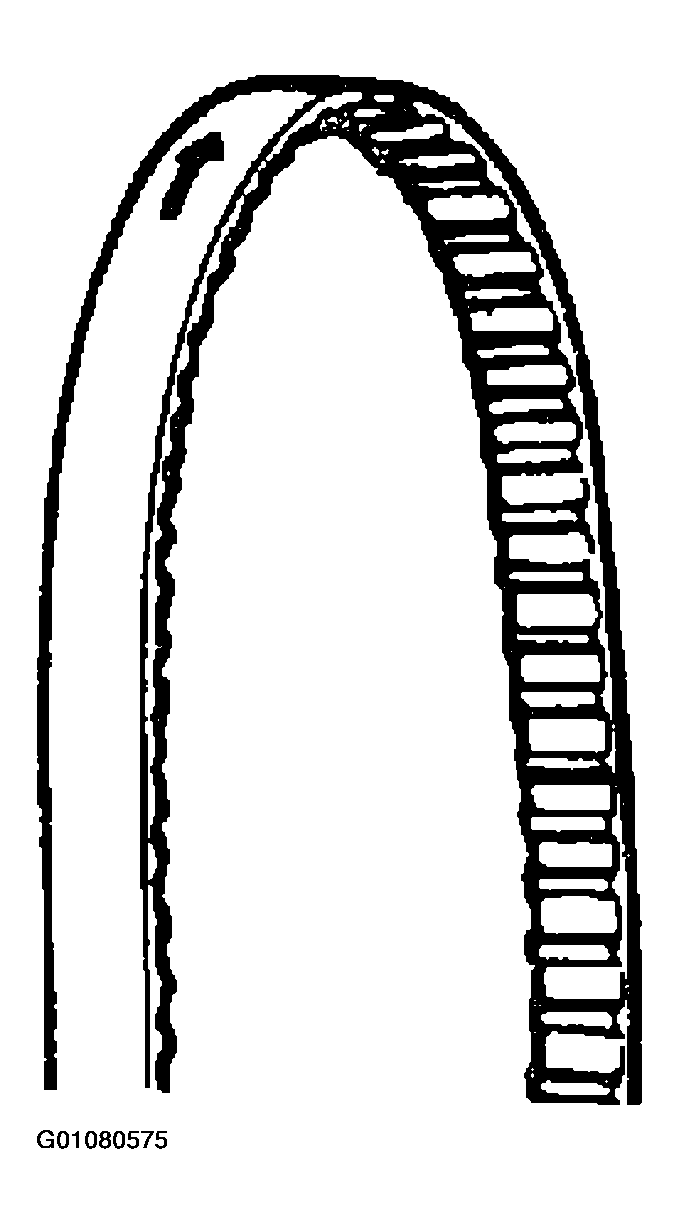

Fig 4: Identifying Timing Belt Rotation Direction
Courtesy of KIA MOTORS AMERICA, INC.
Install timing belt onto timing belt pulley first, then idler pulley, exhaust camshaft pulley, intake camshaft pulley, and tensioner pulley in that order.
Check that there is no looseness in belt between idler pulley and exhaust camshaft pulley or between intake and exhaust camshaft pulleys.

Fig 5: Illustrating Proper Timing Belt Position
Courtesy of KIA MOTORS AMERICA, INC.
Loosen tensioner pulley lock bolt and allow tensioner spring to apply tension to timing belt.
NOTE: Do not add additional tension.
Tighten tensioner pulley lock bolt to specified torque.
Tightening torque: 28~38 lb.ft (38~51 N.m, 3.9-5.2 kg.m)
Rotate crankshaft two full revolutions (clockwise only) and align timing mark on timing belt pulley with timing mark on engine block.

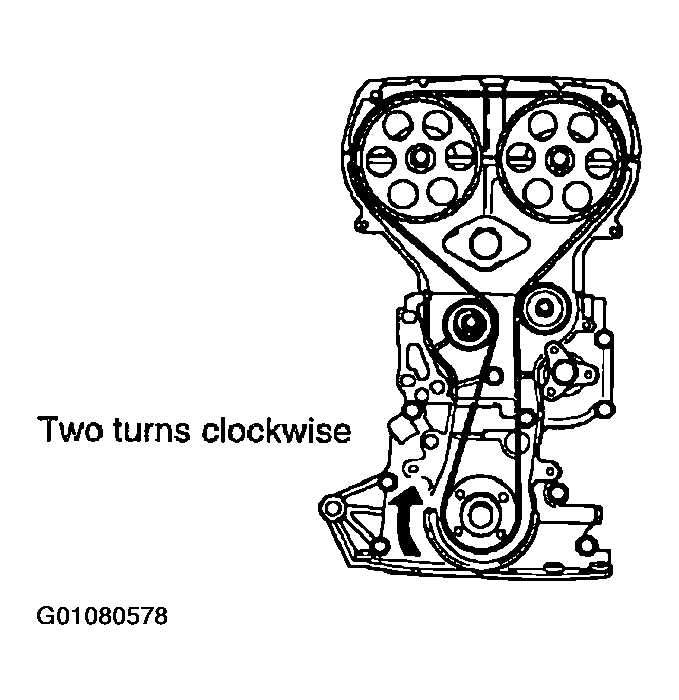

Fig 6: Identifying Engine Rotation Direction
Courtesy of KIA MOTORS AMERICA, INC.
Check that "I" mark on intake camshaft pulley "E" mark on exhaust camshaft pulley are aligned with marks on cylinder head cover.

Fig 7: Aligning Camshaft Timing Marks
Courtesy of KIA MOTORS AMERICA, INC.
If they are not aligned, remove timing belt and start process from tensioner installation.
Measure timing belt deflection by applying moderate pressure midway between camshaft pulleys. If deflection is not correct, repeat from tensioner installation.
1. Deflection pressure: 22 lb. (98 N, 10 kg)
2. Deflection: 0.36~0.45 in. (9.0~11.0 mm)

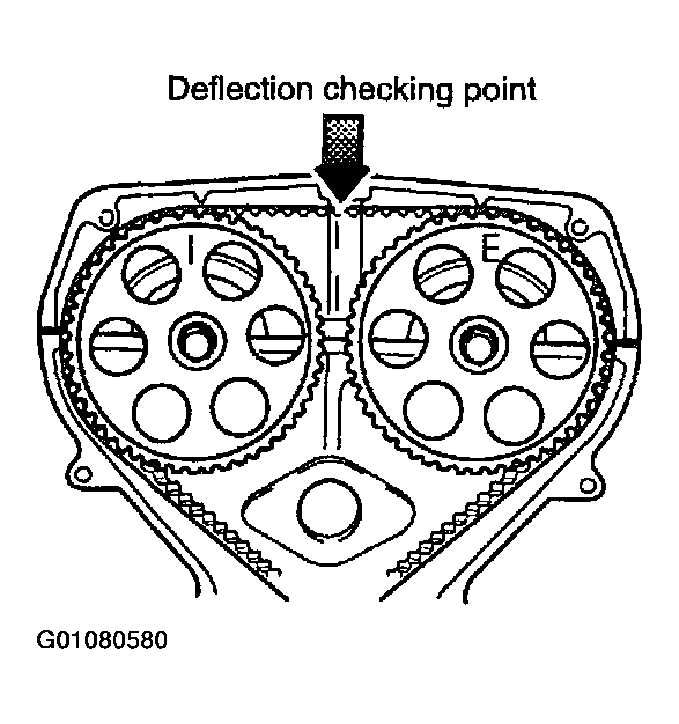

Fig 8: Measuring Timing Belt Deflection
Courtesy of KIA MOTORS AMERICA, INC.
Install lower and upper timing belt covers in that order.
Tightening torque: 70~96 lb.ft (7.9~10.7 N.m, 0.8~1.1 kg.m)

Fig 9: Installing Lower And Upper Timing Belt Covers
Courtesy of KIA MOTORS AMERICA, INC.
Install timing belt guide plate and crankshaft pulley.
Tightening torque: 9.0~12.6 lb.ft (12.3~17.2 N.m, 1.3~1.8 kg.m)

Fig 10: Installing Timing Belt Guide Plate And Crankshaft Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Install water pump pulley.
Tightening torque: 9.0~12.6 lb.ft (12.3~17.2 N.m, 1.3~1.8 kg.m)

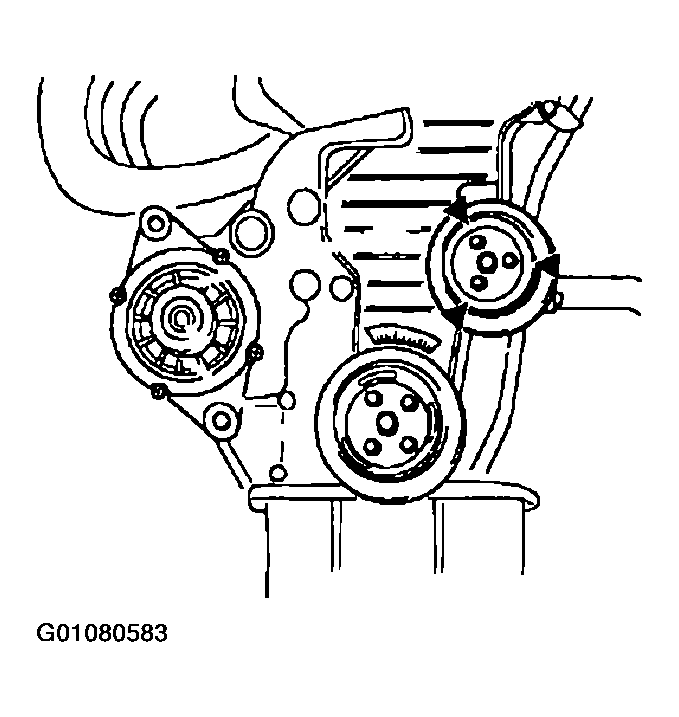

Fig 11: Installing Water Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Install generator belt and adjust the tension.
Install P/S and/or A/C drive belt and adjust the tension.
Connect negative battery cable.

Fig 12: Connecting Negative Battery Cable
Courtesy of KIA MOTORS AMERICA, INC.
