| A/C Compressor Bracket Bolt |
| 12-mm |
14-18 (19-25) |
| 14-mm |
28-38 (38-51) |
| A/C Compressor Mounting Bolt |
29-38 (39-52) |
| Automatic Transaxle Linkage Nut |
24-34 (32-46) |
| Camshaft Timing Belt Pulley Bolt |
36-45 (49-61) |
| Connecting Rod Nut |
35-37 (47-50) |
| Crankshaft\Timing Belt Pulley Bolt |
116-123 (157-167) |

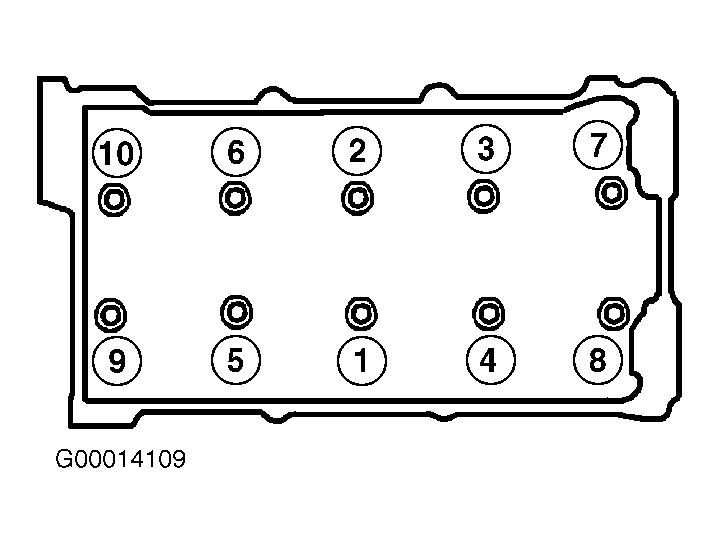

| Cylinder Head Bolts |
| Step 1 |
36 (49) |
| Step 2 |
Loosen Bolts In Sequence |
| Step 3 |
29 (39) |
| Step 4 |
Plus Torque Angle 90 Degrees |
| Step 5 |
Plus Torque Angle Additional 90 Degrees |
| Engine Ground Strap-To-Engine Bolts |
28-38 (38-52) |
| Engine Hanger Bolt |
28-38 (38-52) |

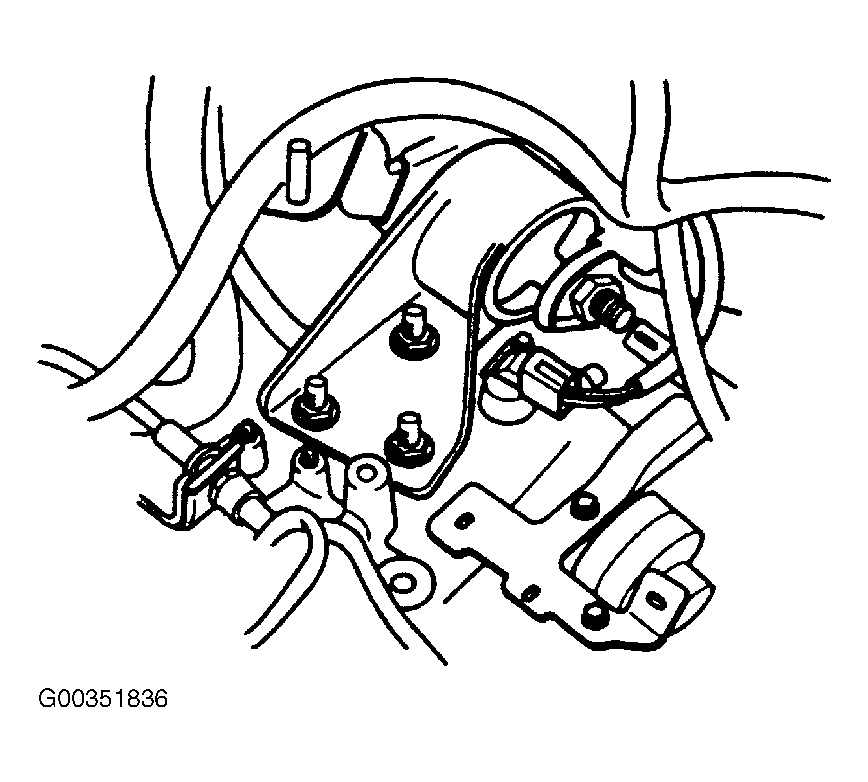

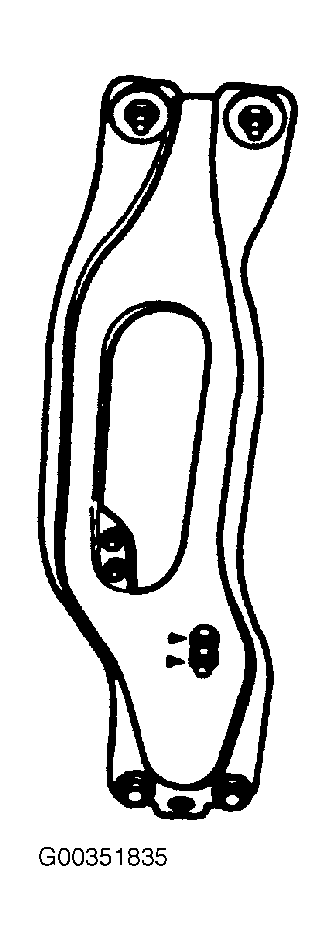

| Engine Mount Bolts/Nuts |
| No. 1 |
49-69 (67-93) |
| No. 2 |
28-38 (38-52) |
| No. 3 |
63-86 (85-117) |
| No. 4 |
| Bolt |
47-66 (64-89) |
| Nut |
50-69 (68-93) |
| Exhaust Manifold Heat Shield Bolt |
14-18 (19-25) |
| Exhaust Manifold-To-Head Bolt/Nut |
28-34 (38-46) |
| Flywheel\Drive Plate Bolt |
72-76 (97-103) |
| Front Exhaust Pipe Nuts |
| Clamp Nuts |
15-20 (20-27) |
| Converter Hanger Nuts |
51-69 (69-94) |
| Pipe-To-TWC Warmup Converter Nuts |
30-41 (40-55) |
| Intake Manifold Bolt |
14-18 (19-25) |
| Intake Manifold Support Bracket Bolt |
27-38 (37-52) |

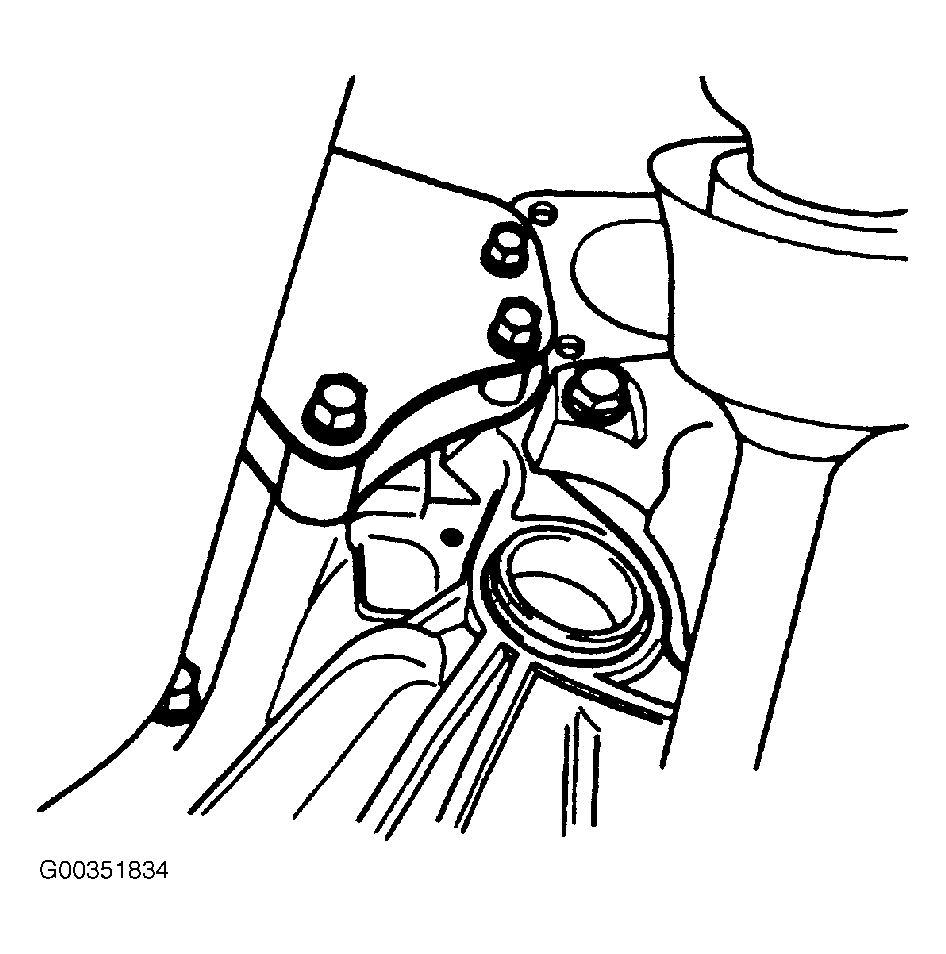

| Joint Shaft Support Bracket Bolts |
32-46 (43-62) |

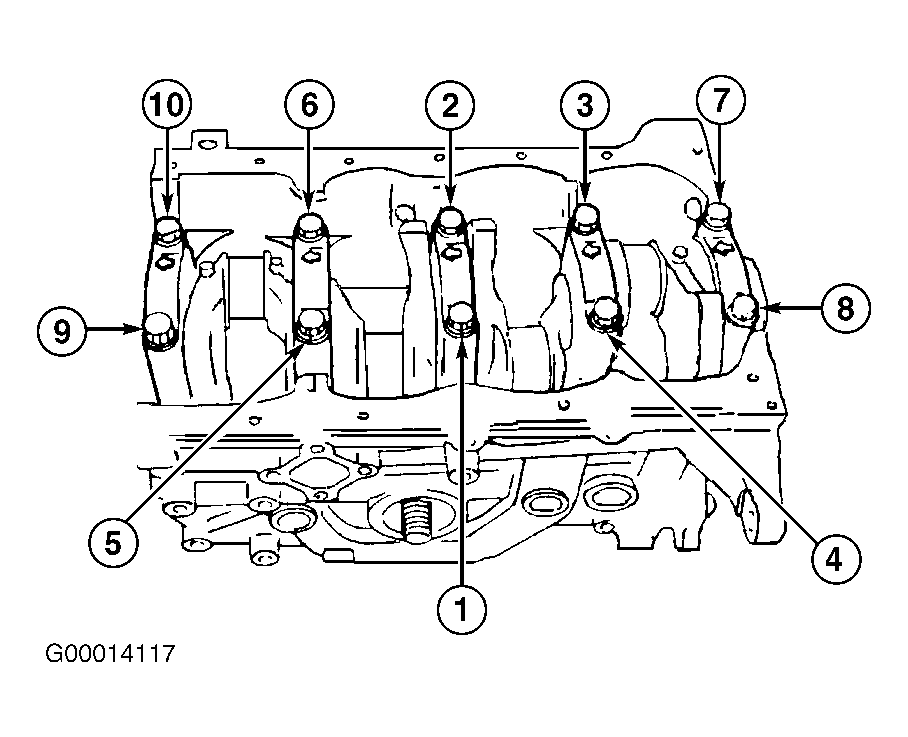

| Main Bearing Cap Bolts |
| Step 1 |
29 (39) |
| Step 2 |
Loosen To Zero |
| Step 3 |
15 (20) |
| Step 4 |
Plus Torque Angle 90 Degrees |
| Step 5 |
Plus Torque Angle Additional 60 Degrees |
| Oil Pan Bolts |
14-17 (19-23) |
| Oil Pump Bolt |
14-19 (19-26) |
| Pinch Bolts |
32-38 (43-52) |
| Power Steering Pump Mounting Bolt |
28-38 (38-52) |
| Rear Seal Cover Long Bolt |
30-41 (40-55) |
| Stabilizer Control Link Bolts |
32-45 (43-61) |
| Starter Bolt |
27-38 (37-52) |
| Tensioner Pulley Lock Bolt |
28-38 (38-52) |
| Thermostat Housing Bolt |
14-19 (19-26) |
| Water Pump Bolt |
14-19 (19-26) |
| INCH Lbs. (N.m) |

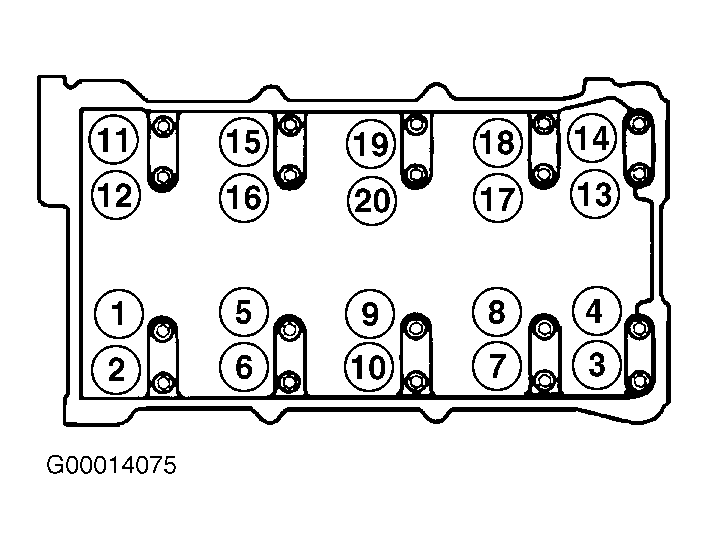

| Camshaft Bearing Cap Bolts |
97-124 (11-14) |
| Center Cover Bolt |
44-80 (5-9) |
| Crankshaft Pulley Bolt |
106-150 (12-17) |
| Cylinder Head Cover Bolt |
71-89 (8-10) |
| Engine Ground Strap-To-Frame Bolt |
71-106 (8-12) |
| Oil Pressure Switch Connection |
106-159 (12-18) |
| Oil Strainer Bolt |
71-106 (8-12) |
| Rear Seal Cover Short Bolt |
71-97 (8-11) |
| Timing Belt Cover Bolt |
71-97 (8-11) |
| Timing Belt Guide Plate Bolt |
106-150 (12-17) |
| Water Pump Pulley Bolt |
106-150 (12-17) |
