Lower Arm: Installation

Apply general-purpose grease to new tire dust boot.
Press the dust boot onto the ball joint with an suitable tool.

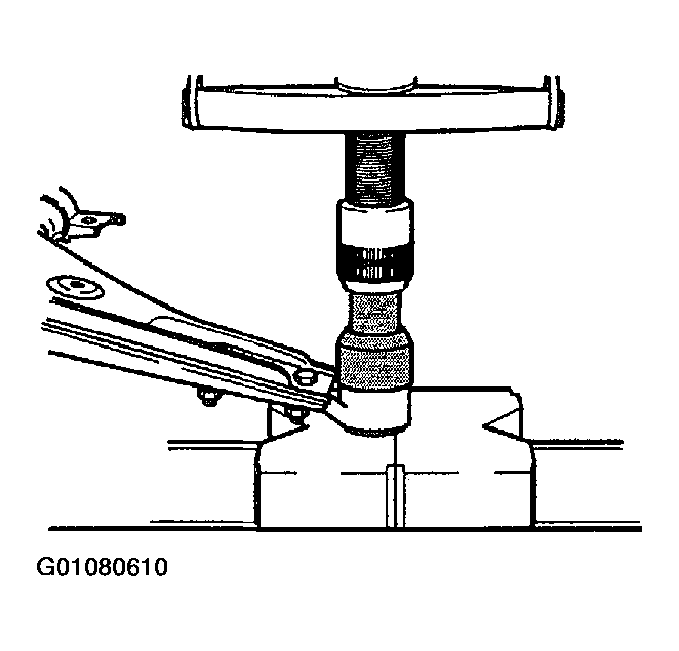

Fig 1: Pressing The Dust Boot
Courtesy of KIA MOTORS AMERICA, INC.
Install the ball joint to the lower arm and tighten two ball joint mounting nuts and bolts.
Tightening torque: 69~86 lb.ft (93~117 N.m, 9.5~11.9 kg.m)
Install rear control arm bushing with a washer and tighten retaining nut.
Tightening torque: 69~86 lb.ft (93~117 N.m, 9.5~11.9 kg.m)
Tighten the three mounting bolts.
1. Tightening torque:
  1. 69~86 lb.ft (93~117 N.m, 9.5~11.9 kg.m)
  2. (A) 40~50 lb.ft (54~68 N.m, 5.5~6.9 kg.m)
Put the ball joint into the knuckle and tighten the lower arm ball joint pinch bolt and nut.
Tightening torque: 32~40 lb.ft (43~54 N.m, 4.4~5.5 kg.m)
Tighten the pivot bolt after installing the front control arm bushing.
Tightening torque: 69~86 lb.ft (93~117 N.m, 9.5~11.9 kg.m)
Recheck caster and camber and readjust if necessary. See SPECIFICATIONS & PROCEDURES .
