Home >> Kia >> 2003 >> Spectra Base, Automatic >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Strut Assembly >> Components

Rear Strut Assembly: Components

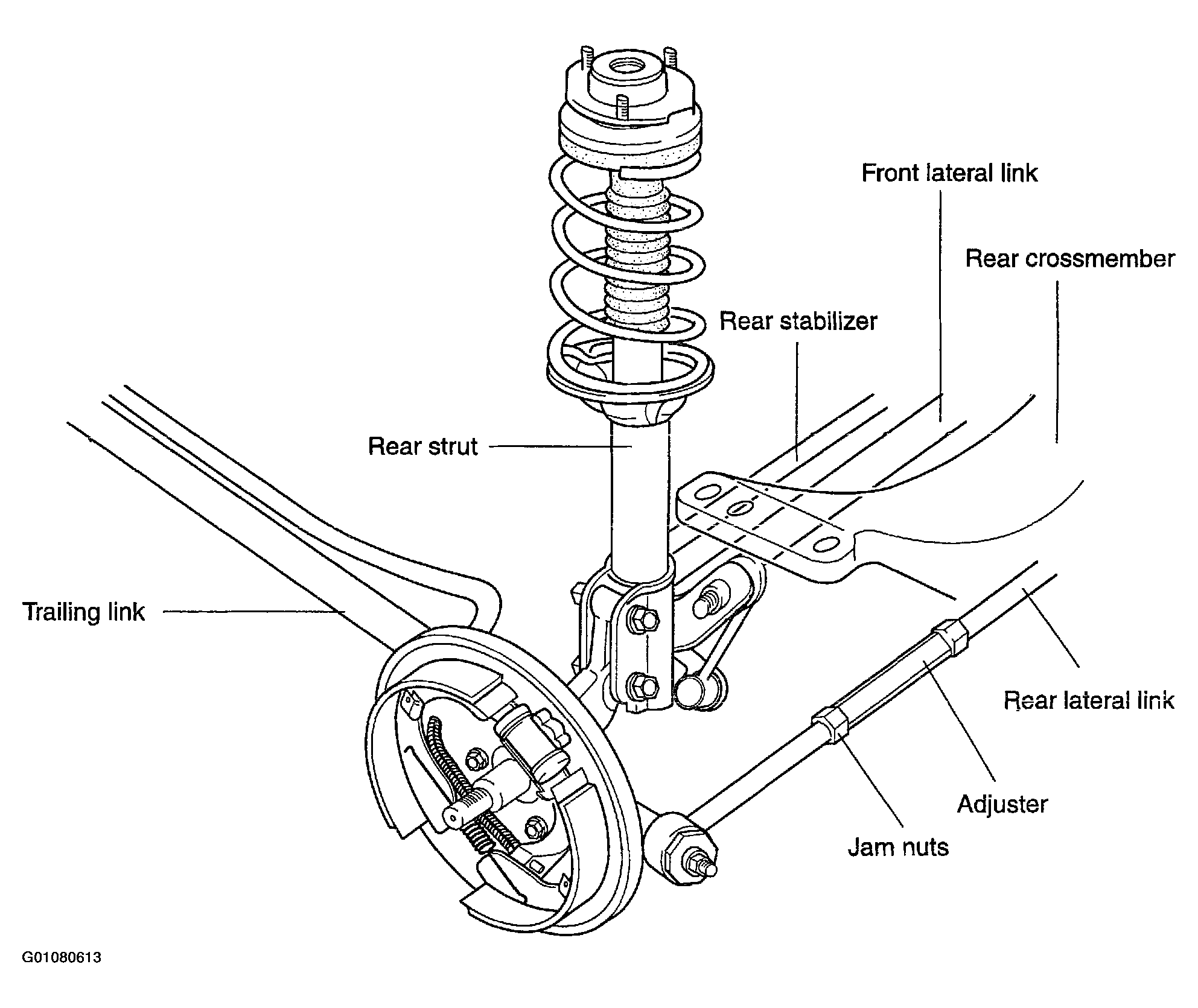

Fig 1: Illustrating Rear Suspension System Components
G01080613Courtesy of KIA MOTORS AMERICA, INC.

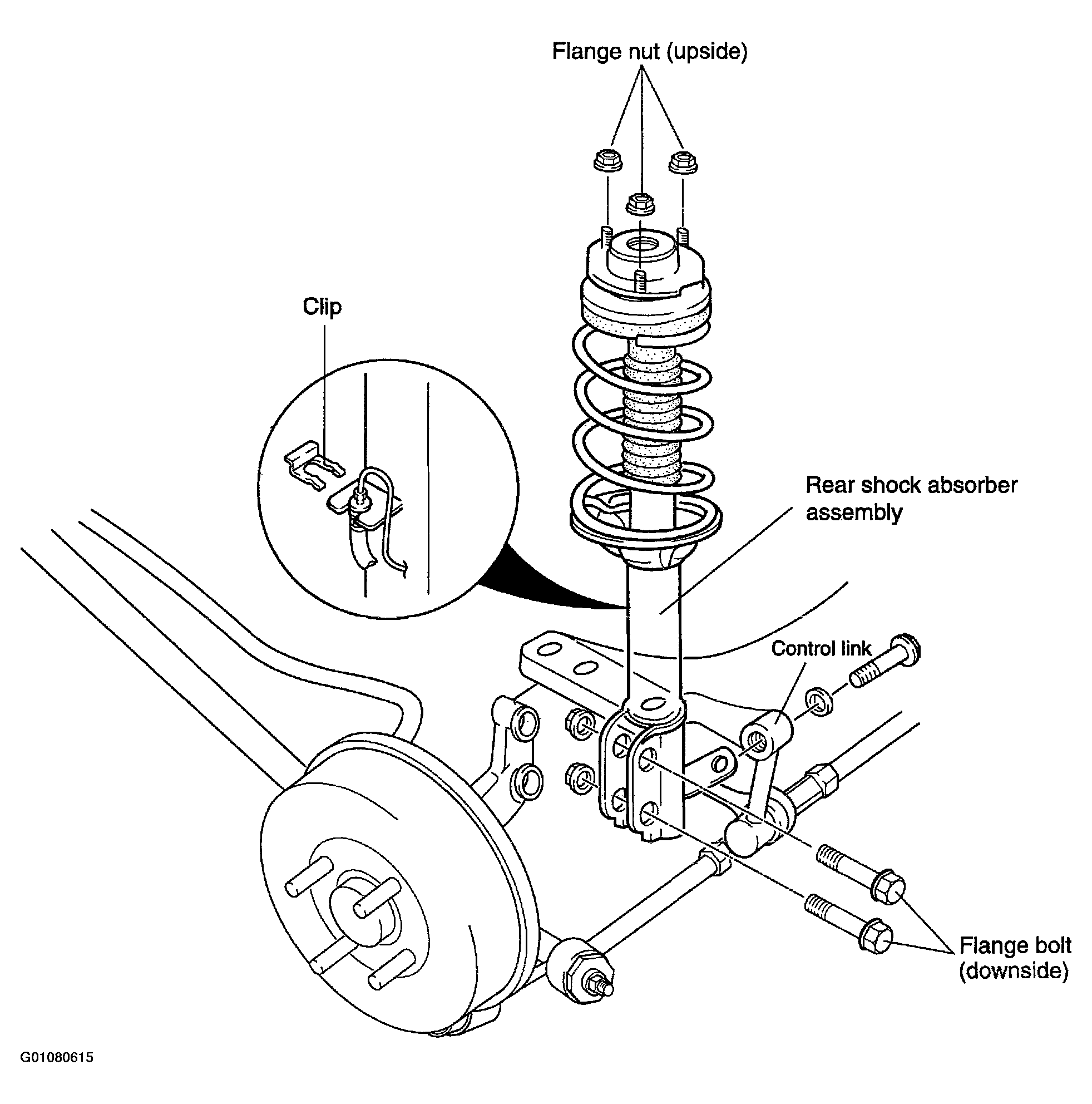

Fig 2: Illustrating Rear Strut Assembly Components
G01080615Courtesy of KIA MOTORS AMERICA, INC.
