Charging Systems: Description

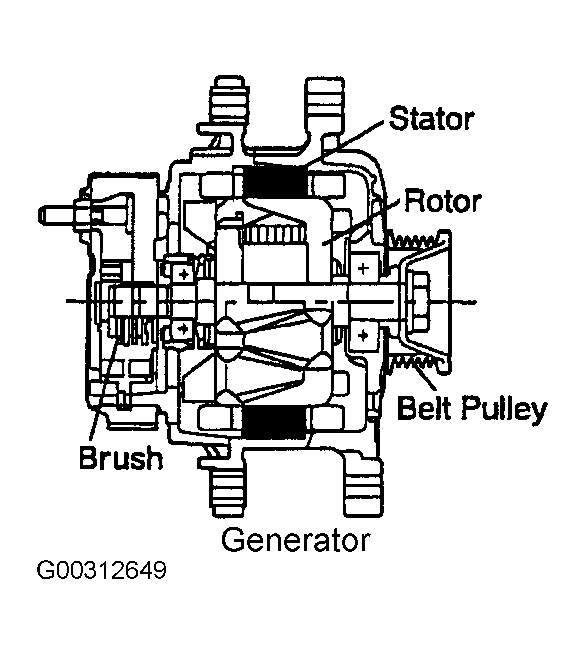

The charging system includes a battery, a generator with a built-in regulator and the charging indicator light and wire. The generator has six built-in diodes (three positive and three negative), each rectifying AC current to DC current. Therefore, DC current appears at generator "B' terminal. See Fig 1.
