Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Ground Points

G00262840

Courtesy of KIA MOTORS AMERICA, INC.

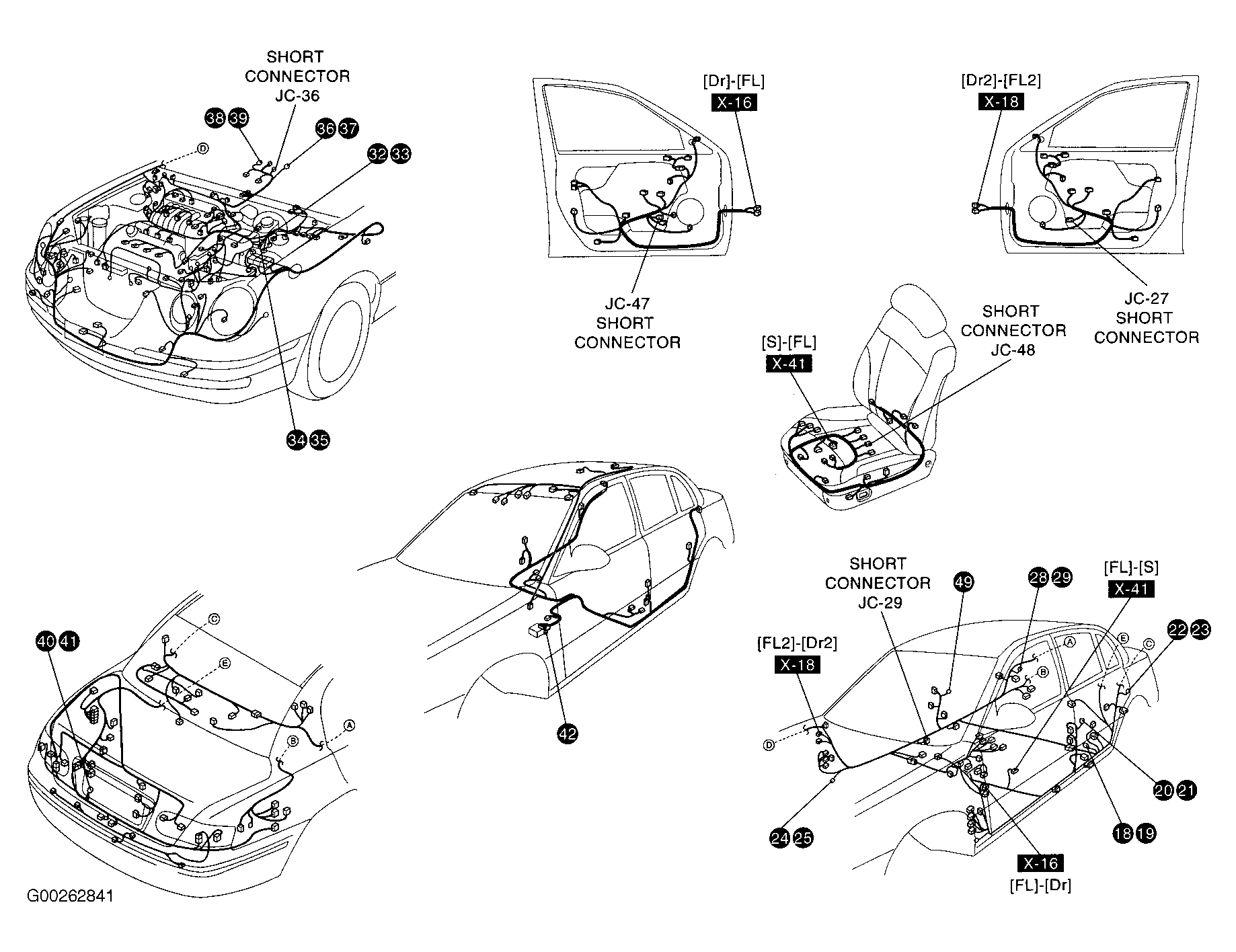

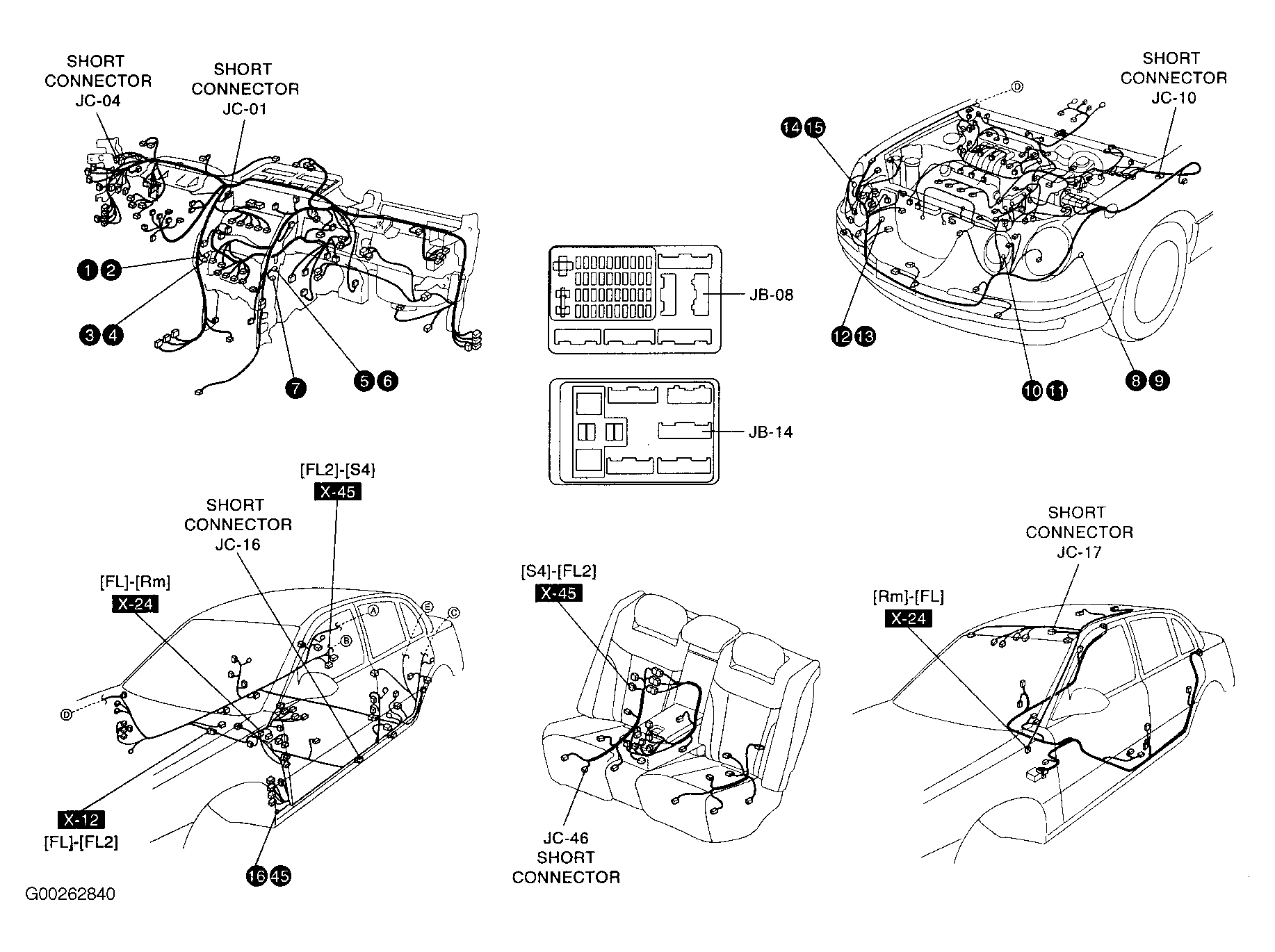

Fig 2: Ground Points

G00262841

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Starting & Charging System

G00262842

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Engine/Transaxle Control System

G00262843

Courtesy of KIA MOTORS AMERICA, INC.

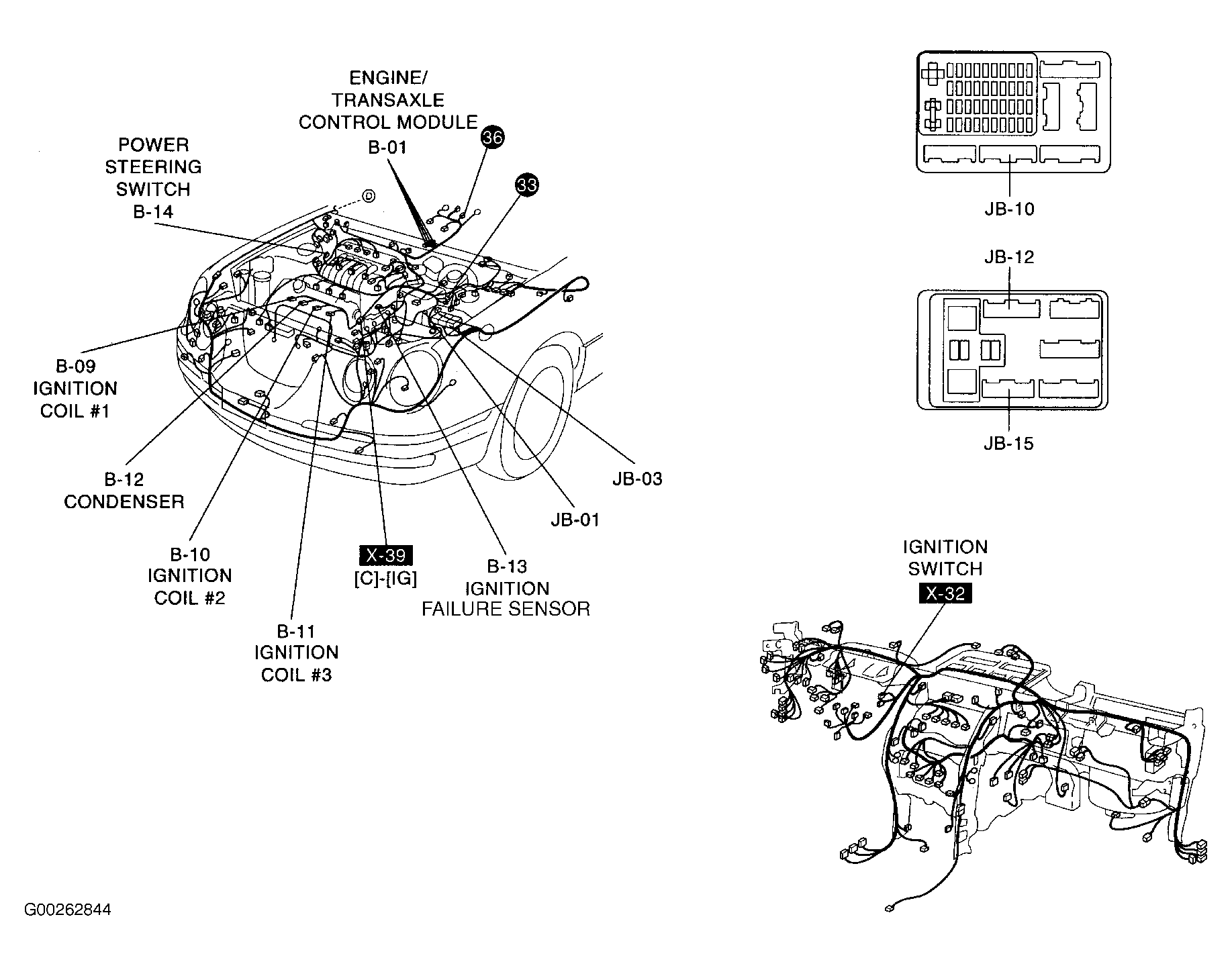

Fig 5: Engine/Transaxle Control System

G00262844

Courtesy of KIA MOTORS AMERICA, INC.

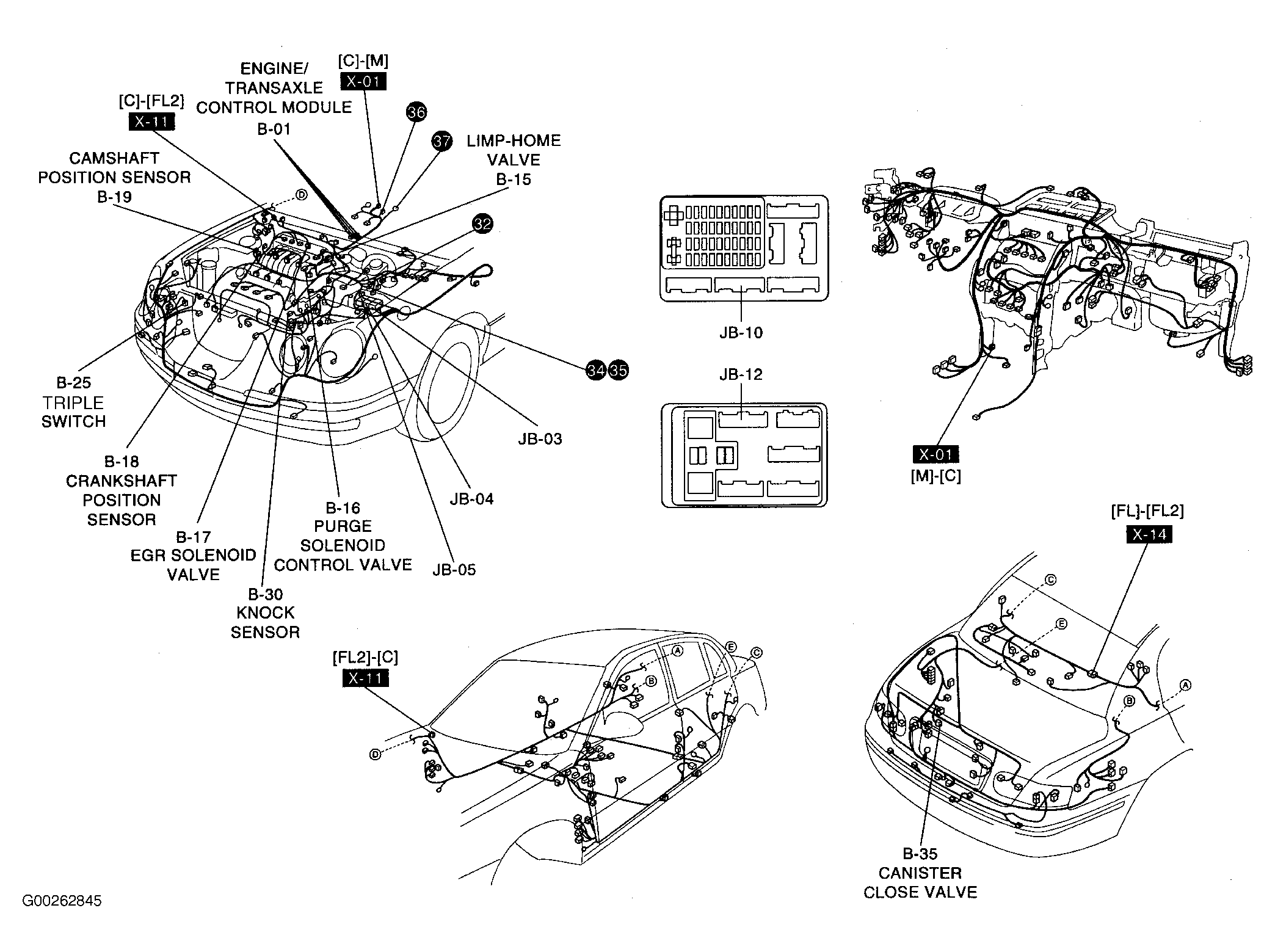

Fig 6: Engine/Transaxle Control System

G00262845

Courtesy of KIA MOTORS AMERICA, INC.

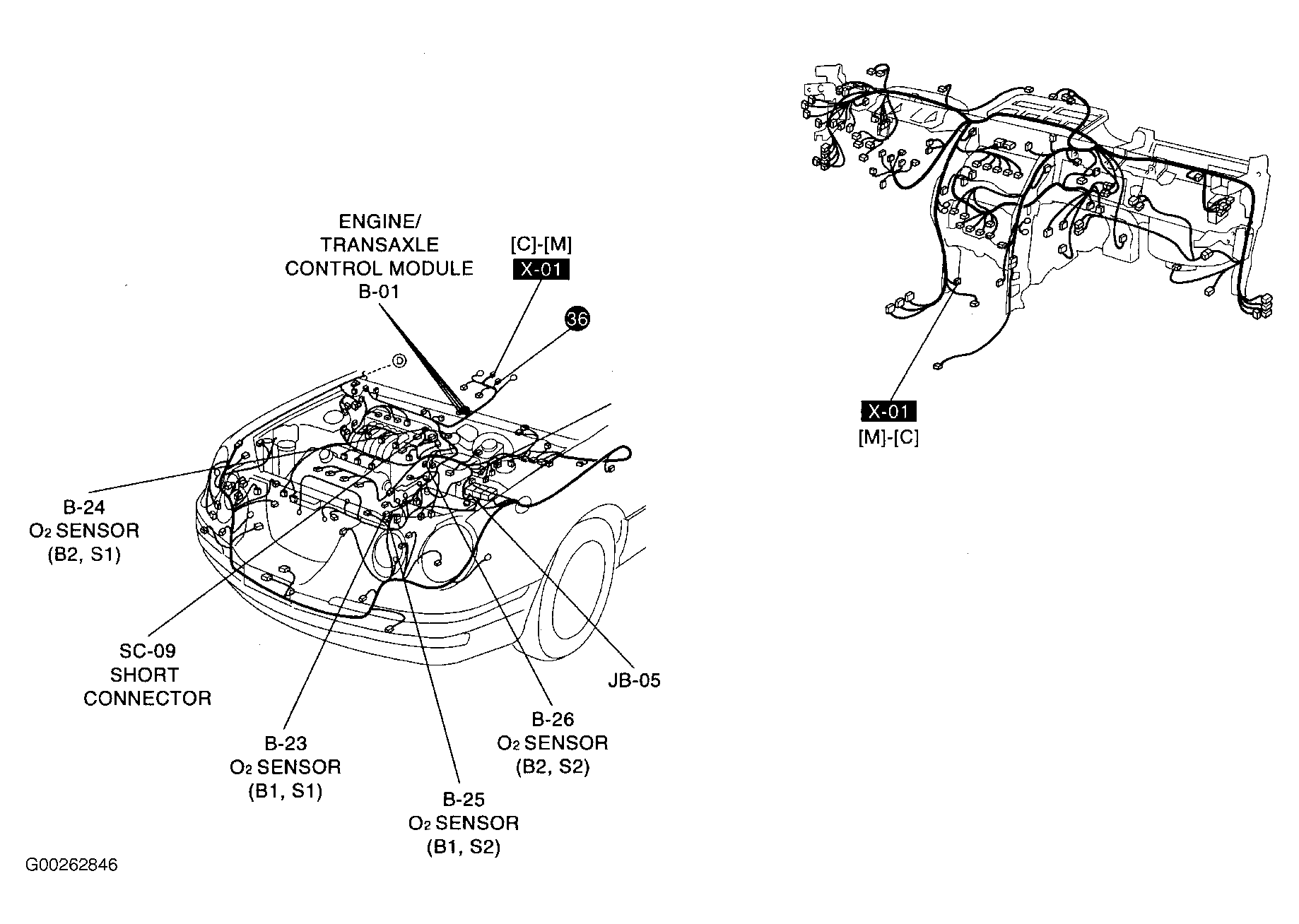

Fig 7: Engine/Transaxle Control System

G00262846

Courtesy of KIA MOTORS AMERICA, INC.

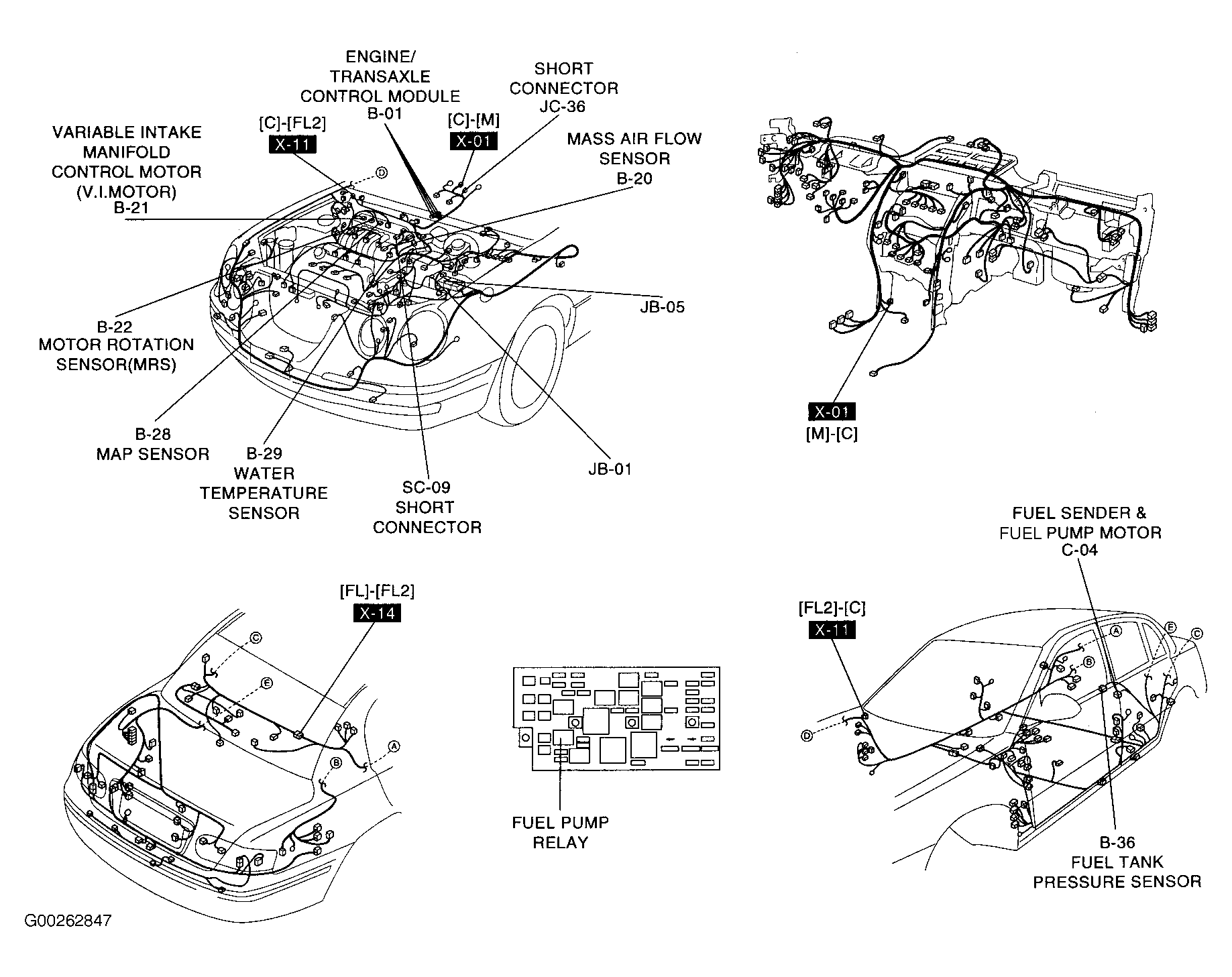

Fig 8: Engine/Transaxle Control System

G00262847

Courtesy of KIA MOTORS AMERICA, INC.

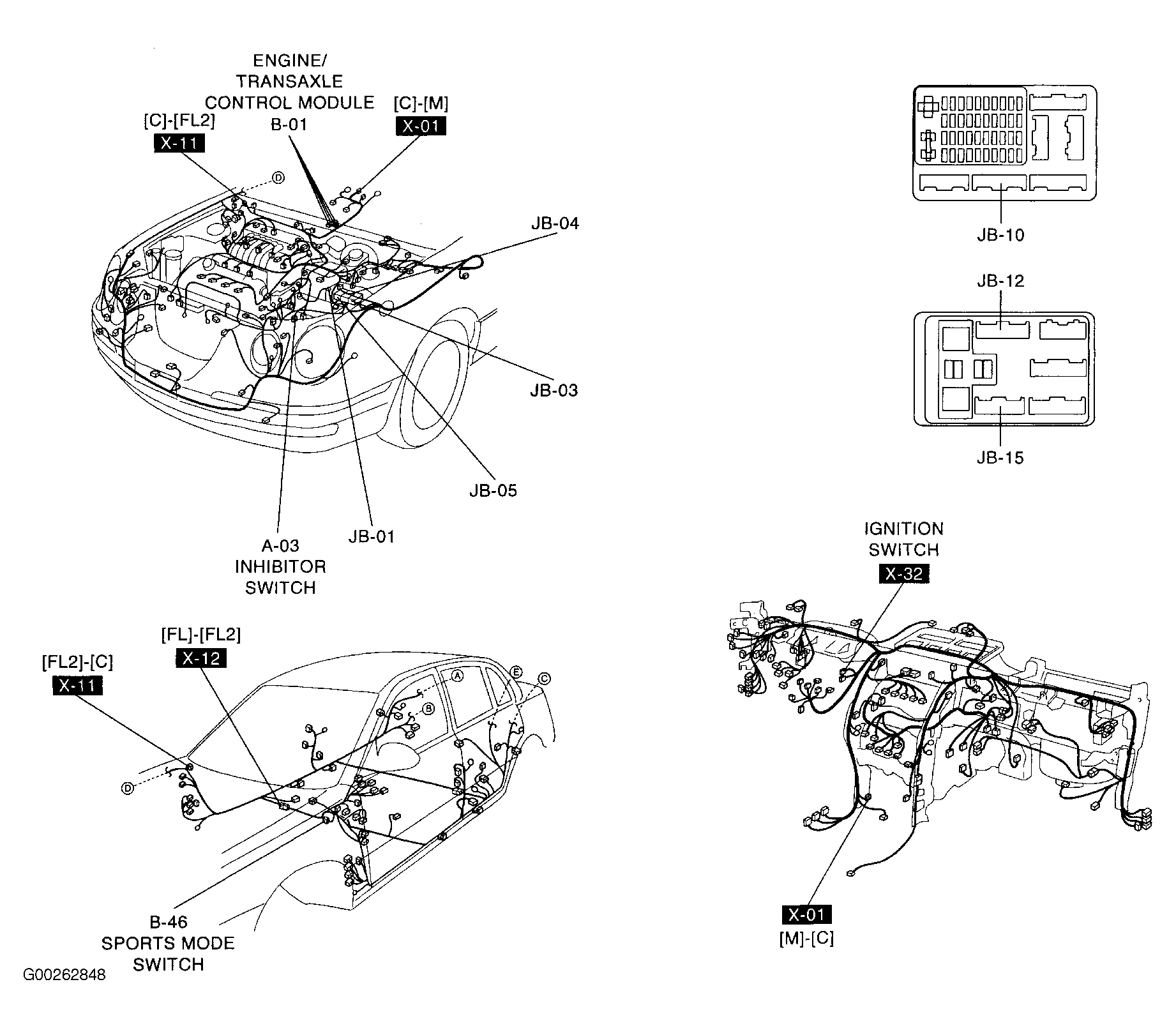

Fig 9: Engine/Transaxle Control System

G00262848

Courtesy of KIA MOTORS AMERICA, INC.

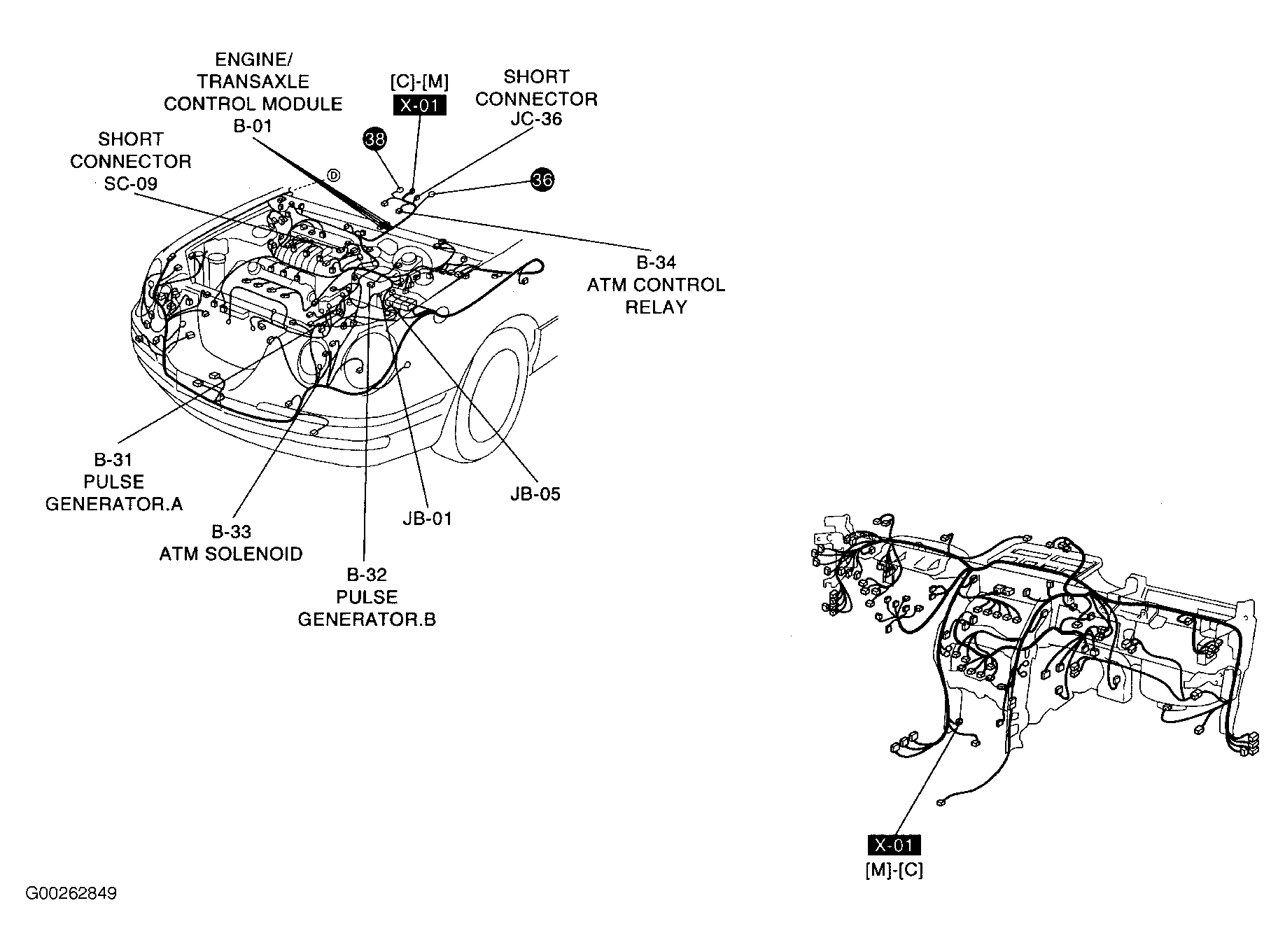

Fig 10: Engine/Transaxle Control System

G00262849

Courtesy of KIA MOTORS AMERICA, INC.

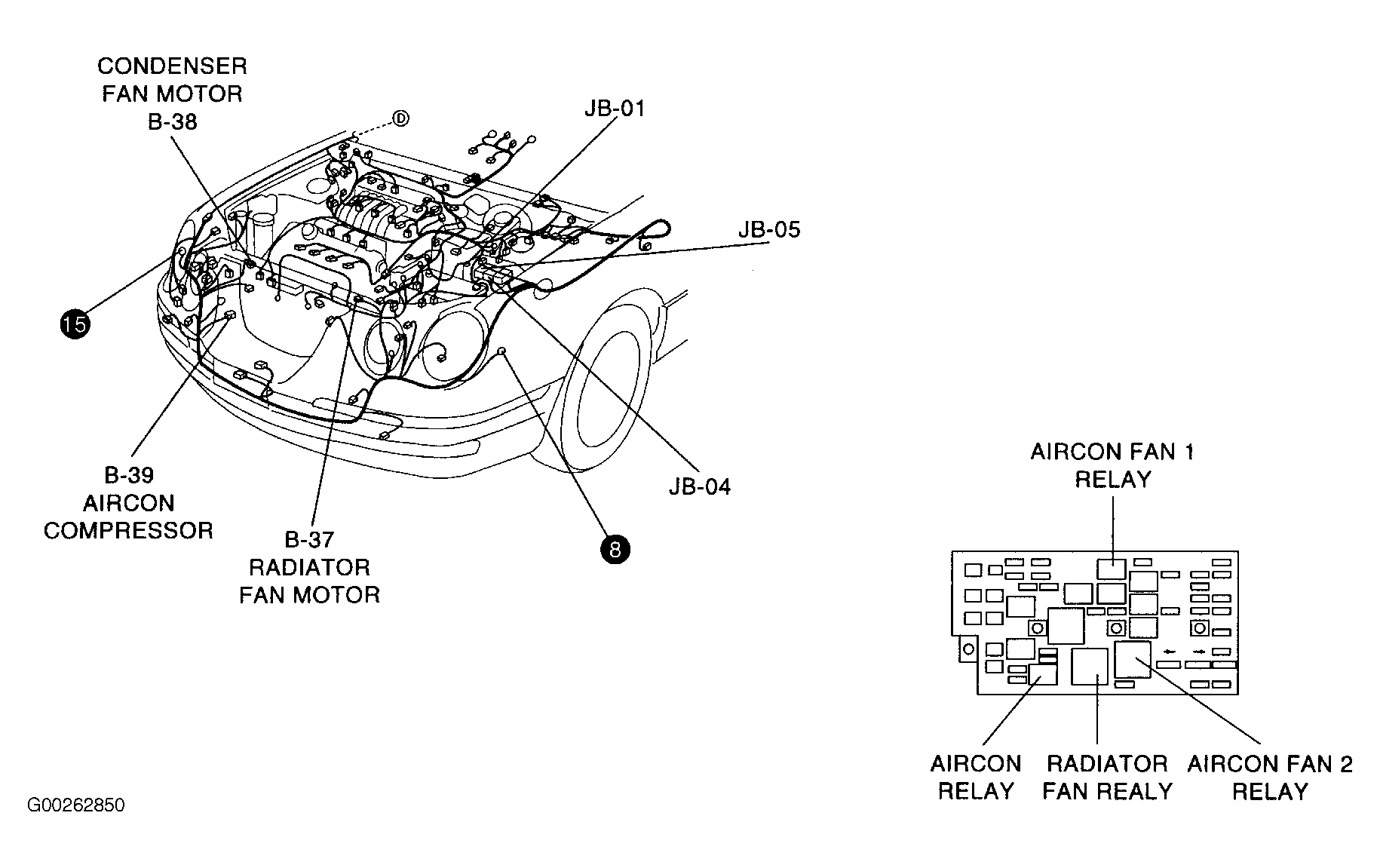

Fig 11: Cooling System

G00262850

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Electronic Throttle System

G00262851

Courtesy of KIA MOTORS AMERICA, INC.

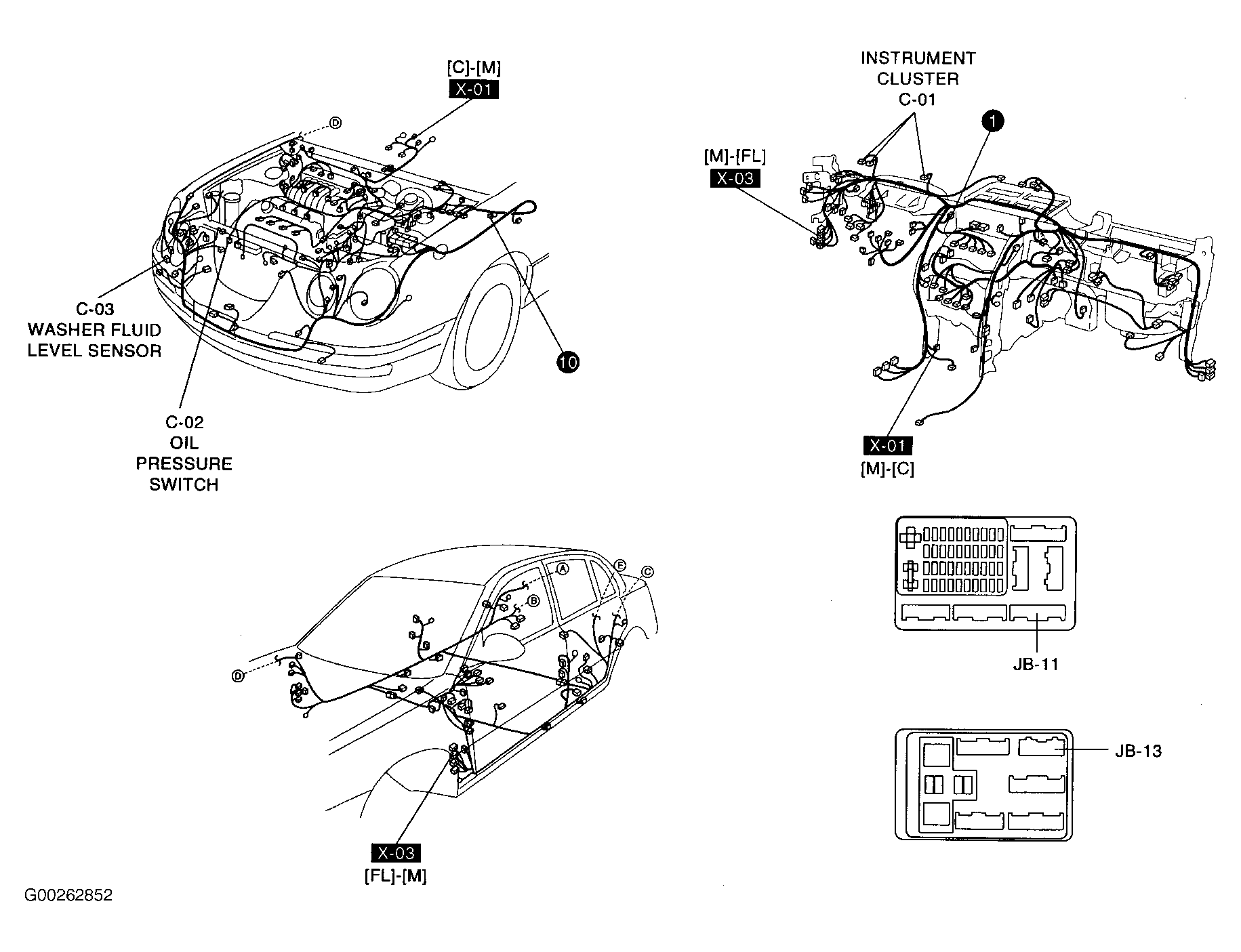

Fig 13: Instrument Cluster & Warning Lamps

G00262852

Courtesy of KIA MOTORS AMERICA, INC.

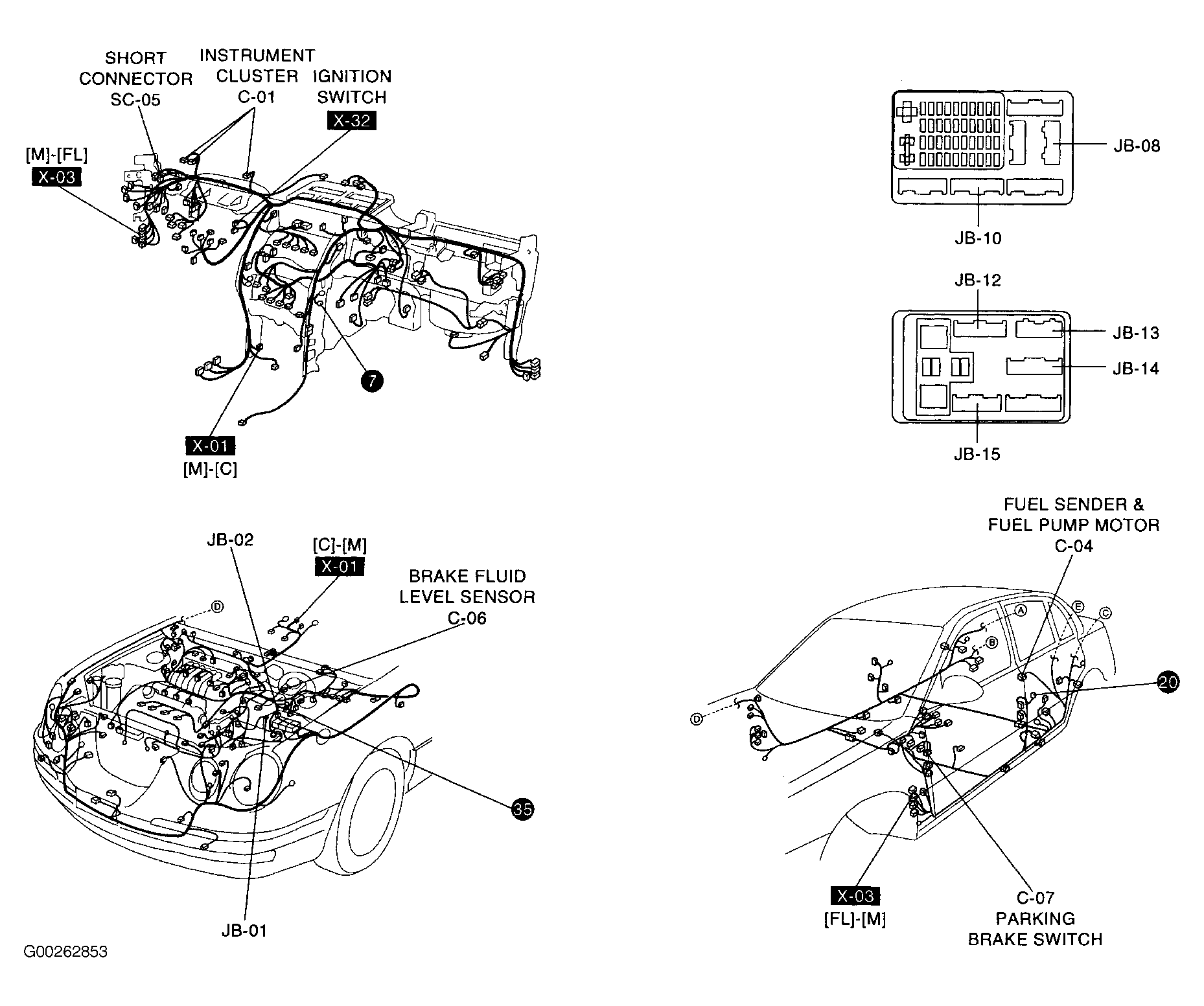

Fig 14: Instrument Cluster & Warning Lamps

G00262853

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Trip Computer

G00262854

Courtesy of KIA MOTORS AMERICA, INC.

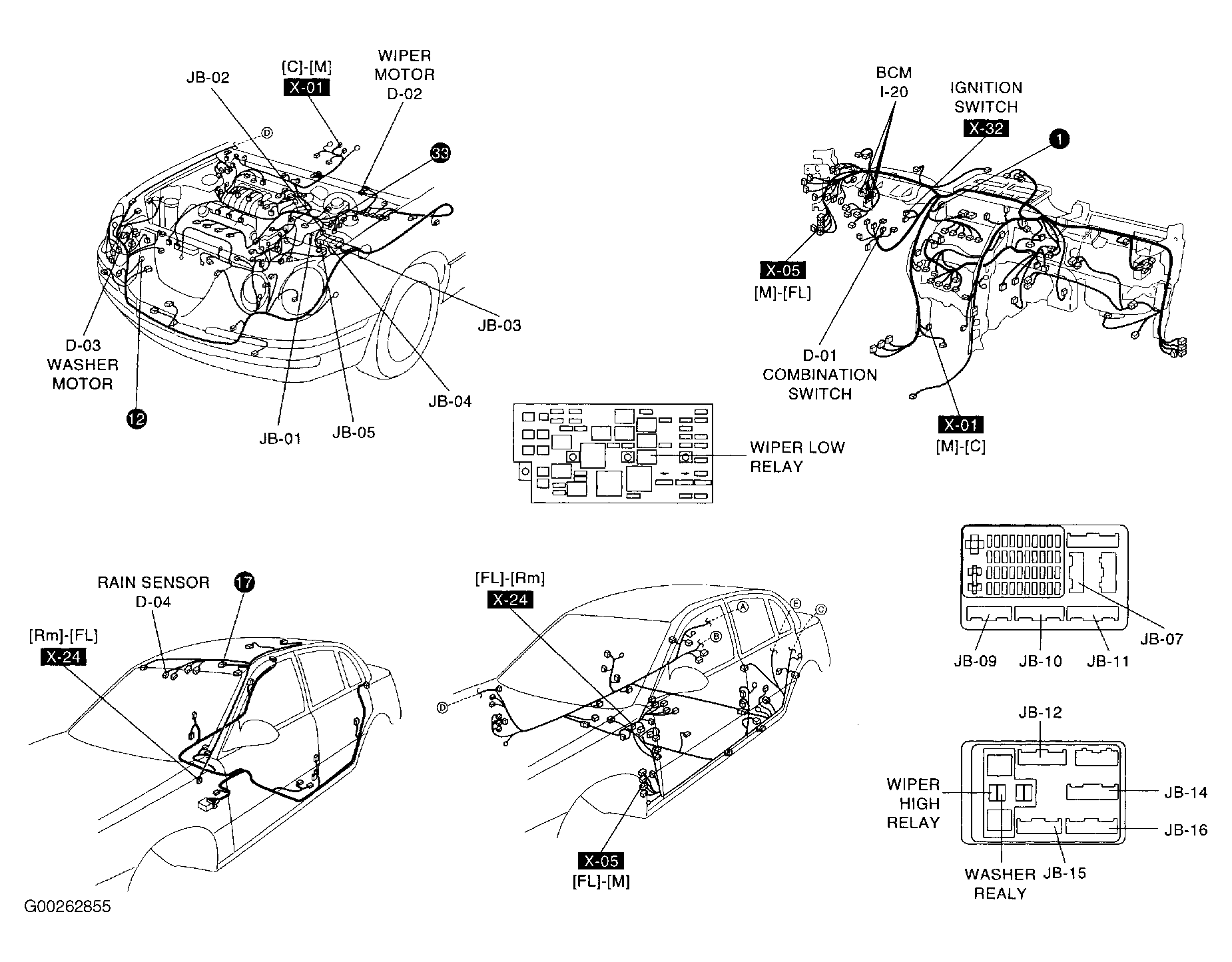

Fig 16: Wiper/Washer System

G00262855

Courtesy of KIA MOTORS AMERICA, INC.

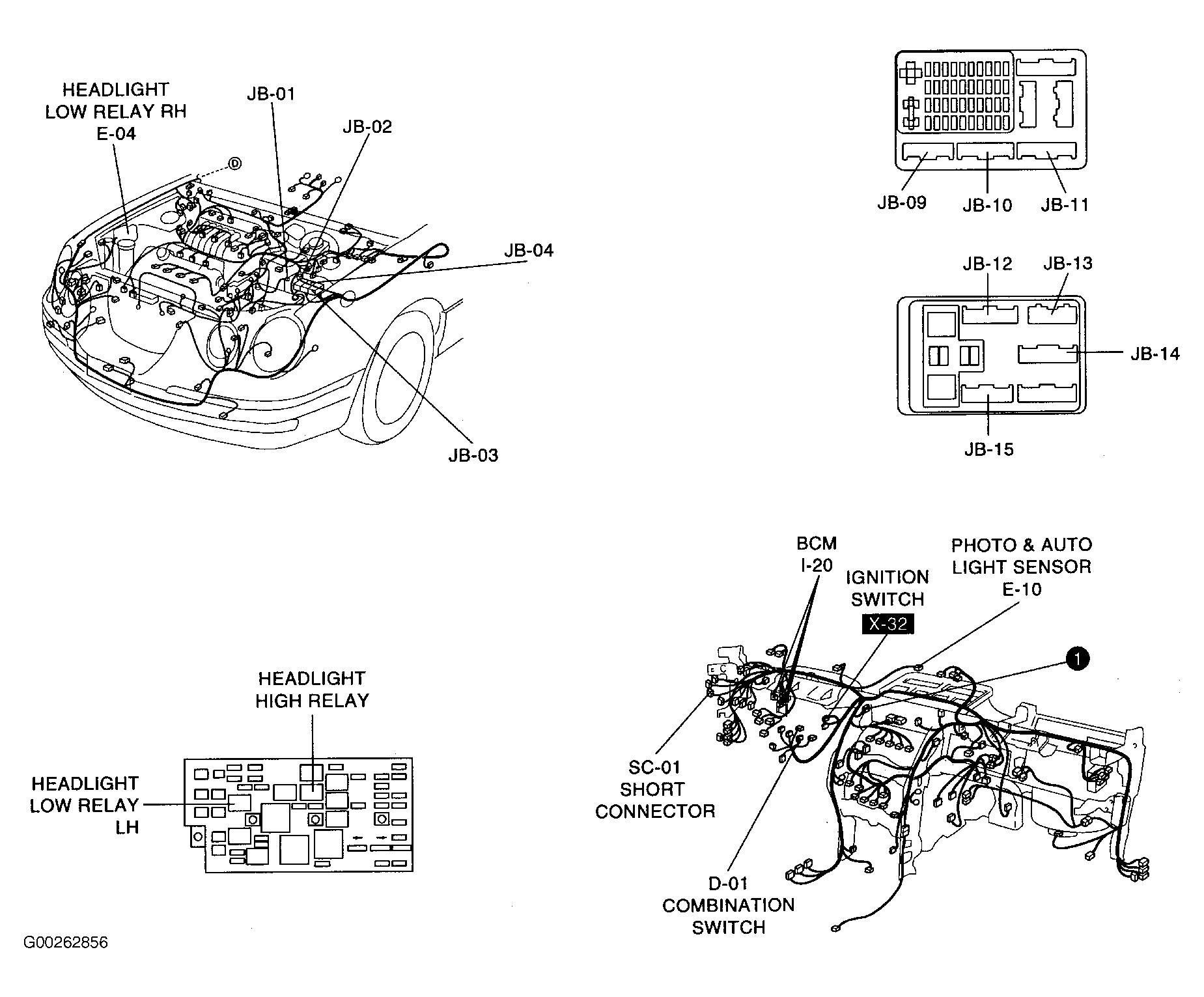

Fig 17: Headlights

G00262856

Courtesy of KIA MOTORS AMERICA, INC.

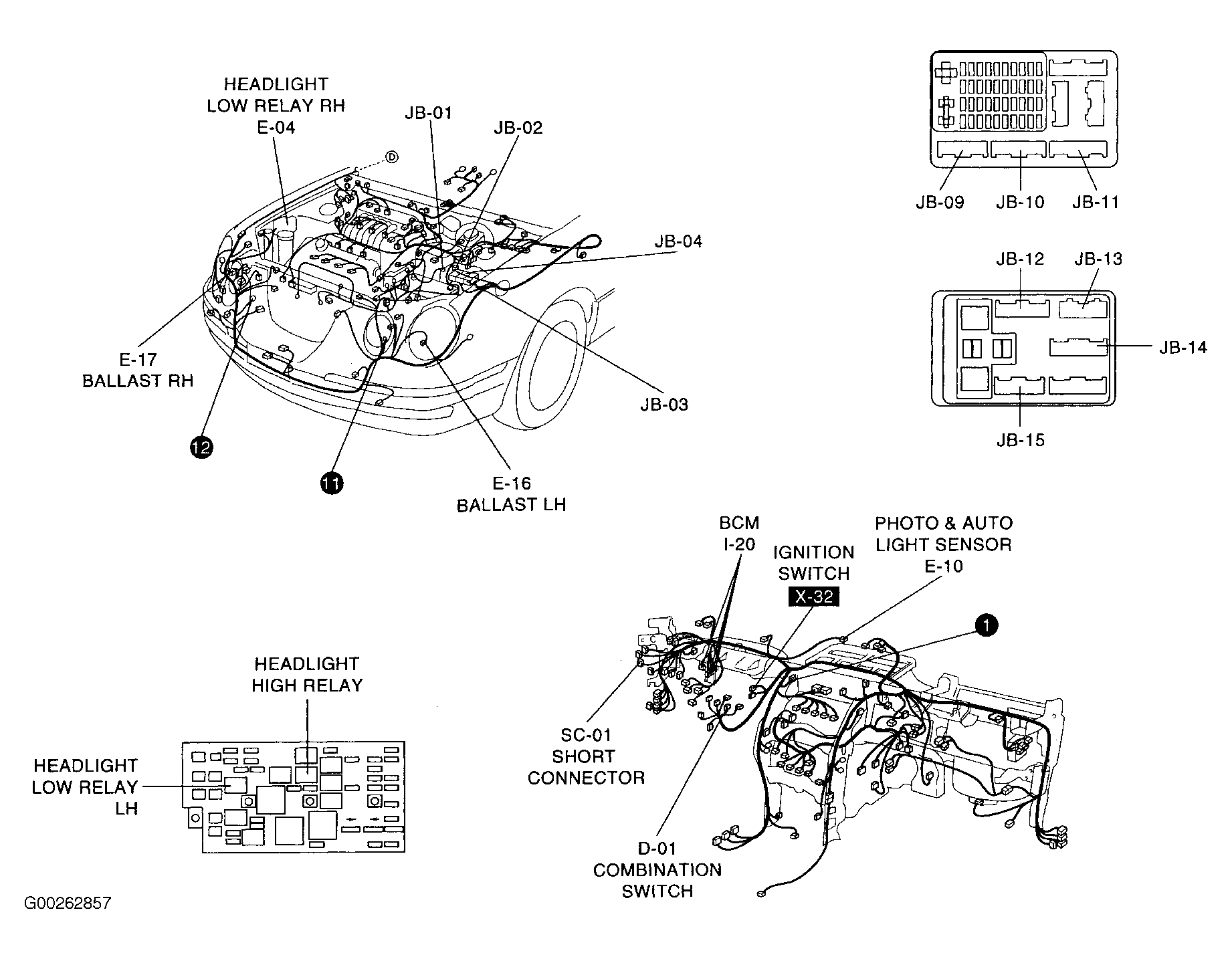

Fig 18: Headlights (HID)

G00262857

Courtesy of KIA MOTORS AMERICA, INC.

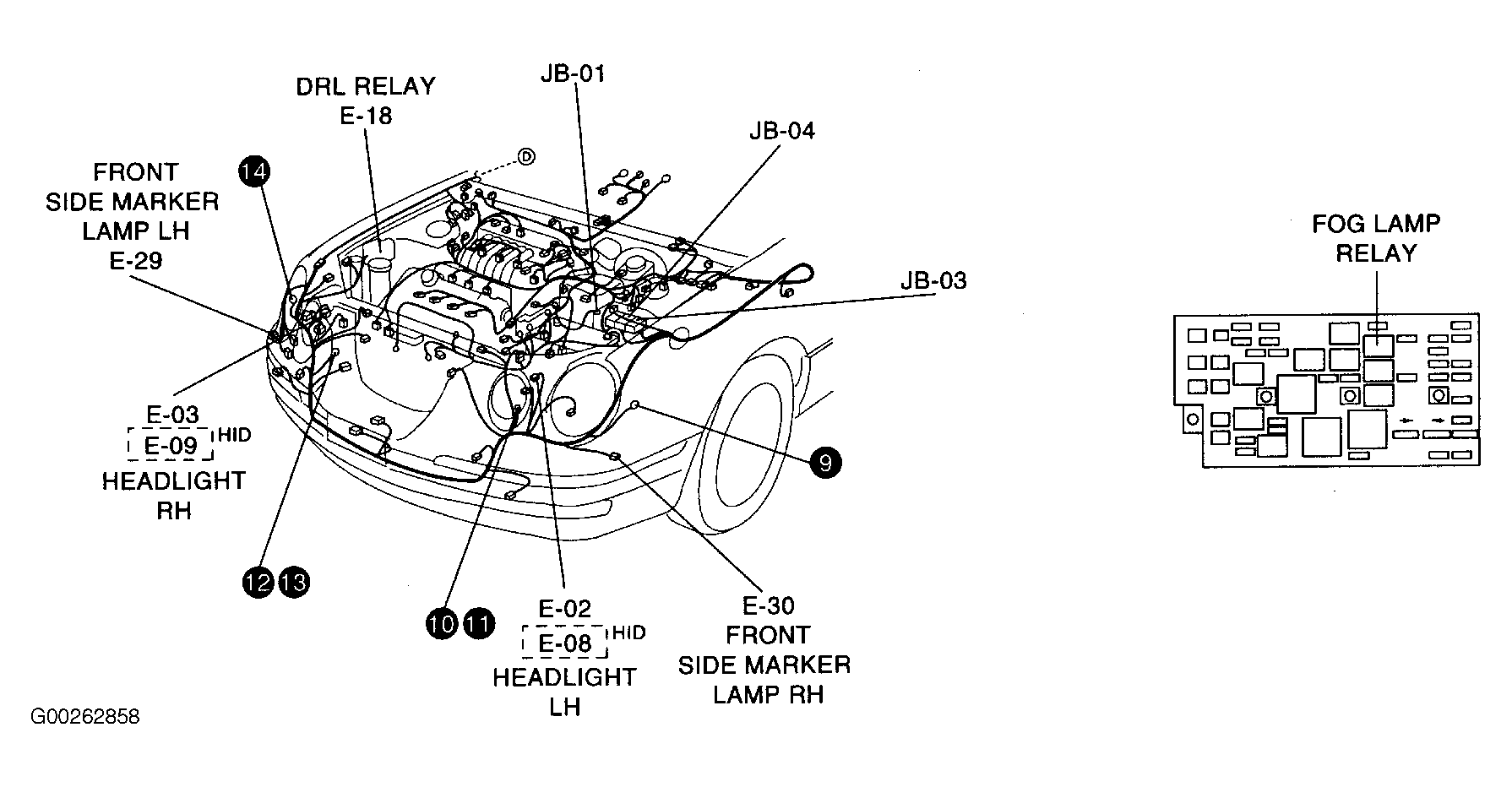

Fig 19: Headlights, Fog Lights

G00262858

Courtesy of KIA MOTORS AMERICA, INC.

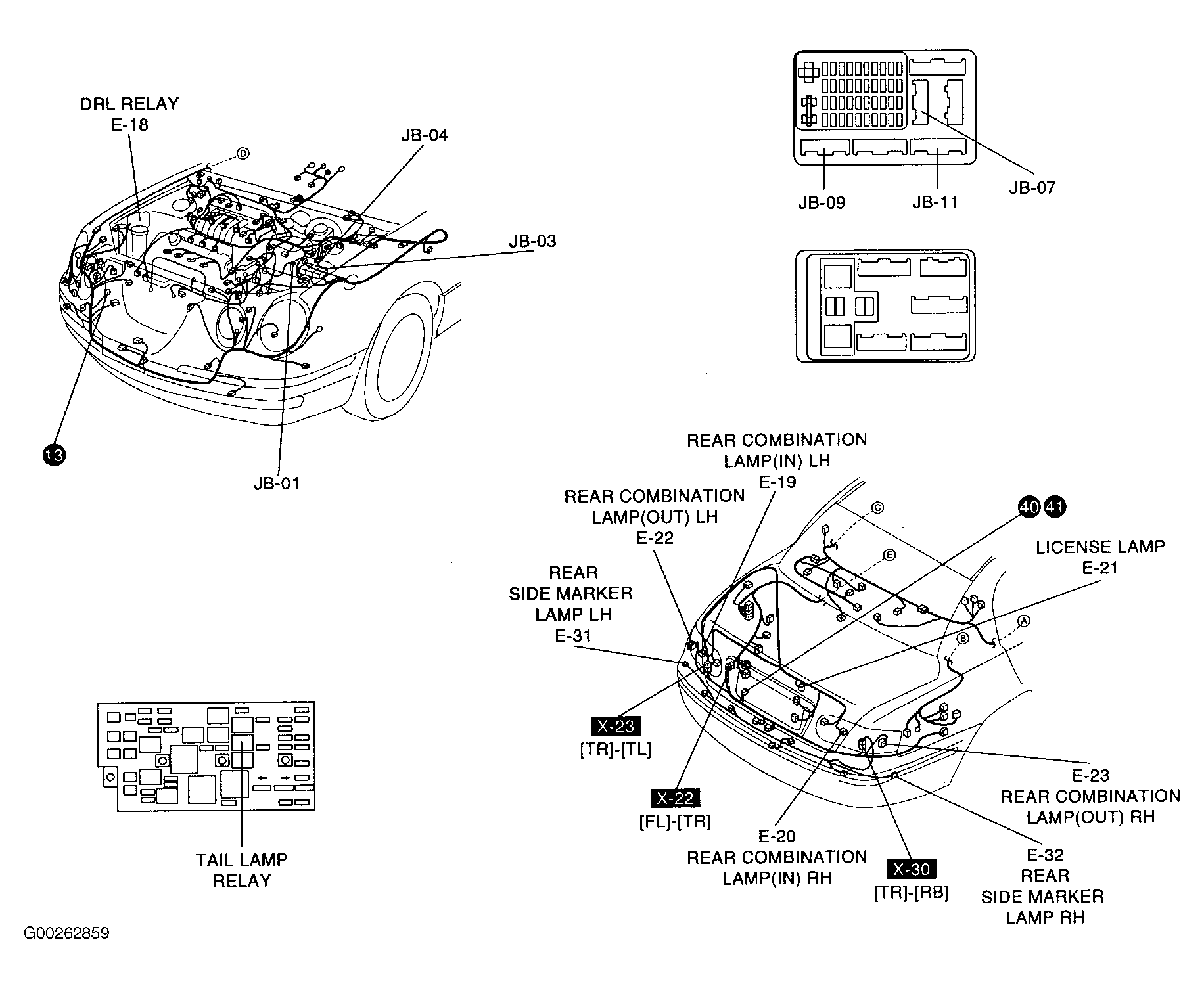

Fig 20: Tail Lights

G00262859

Courtesy of KIA MOTORS AMERICA, INC.

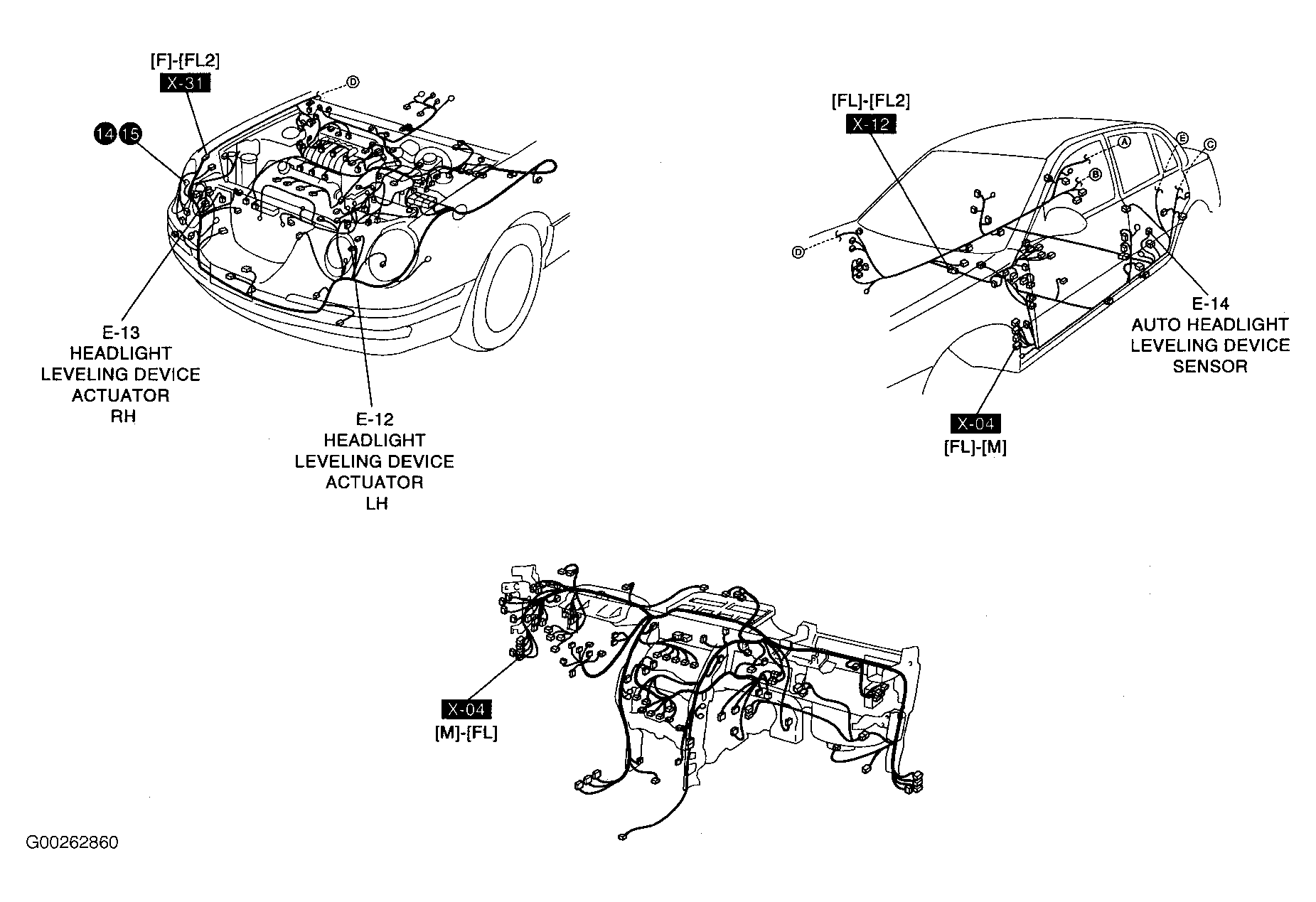

Fig 21: Headlight, Leveling Device (HLLD)

G00262860

Courtesy of KIA MOTORS AMERICA, INC.

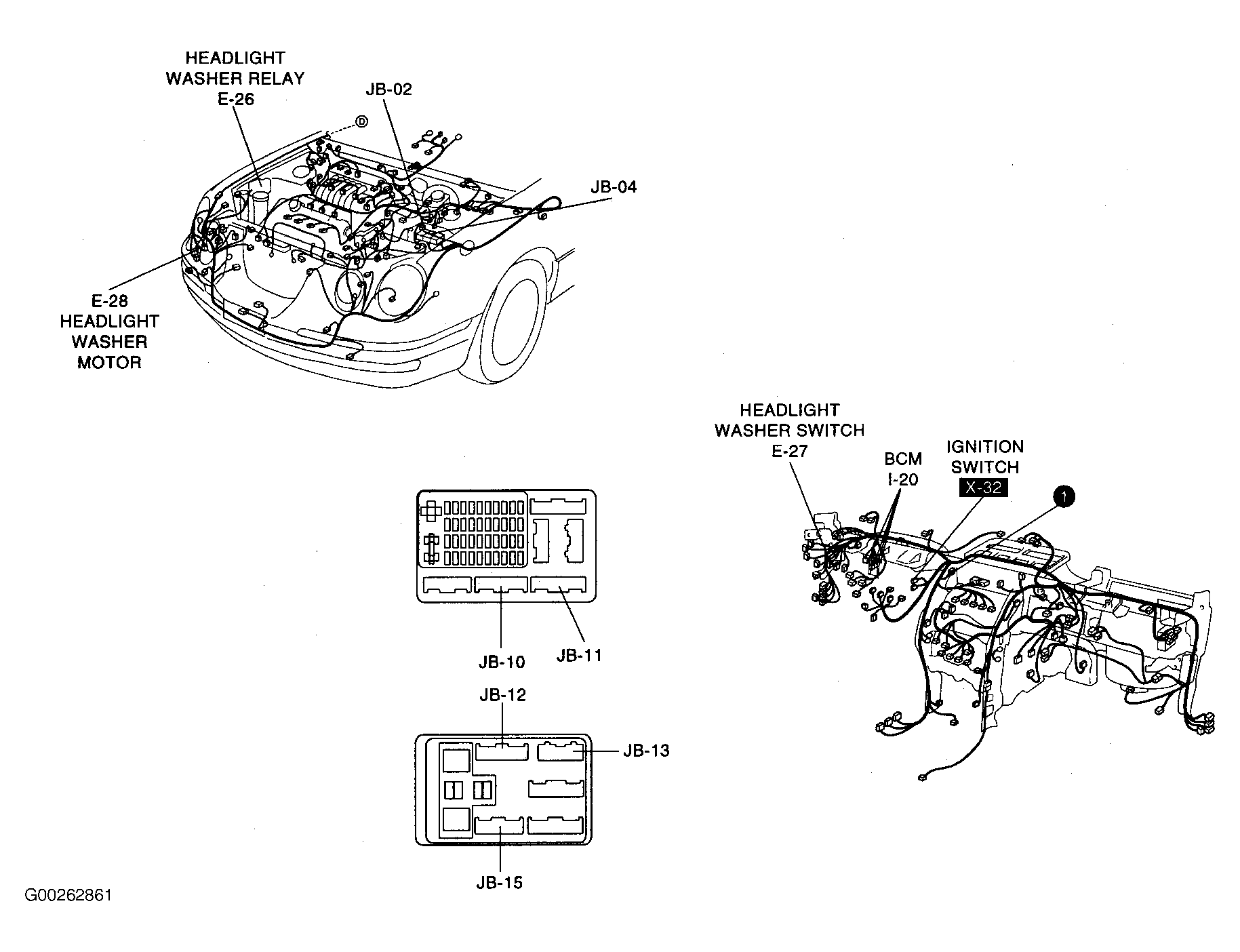

Fig 22: Headlight Washer (Canada)

G00262861

Courtesy of KIA MOTORS AMERICA, INC.

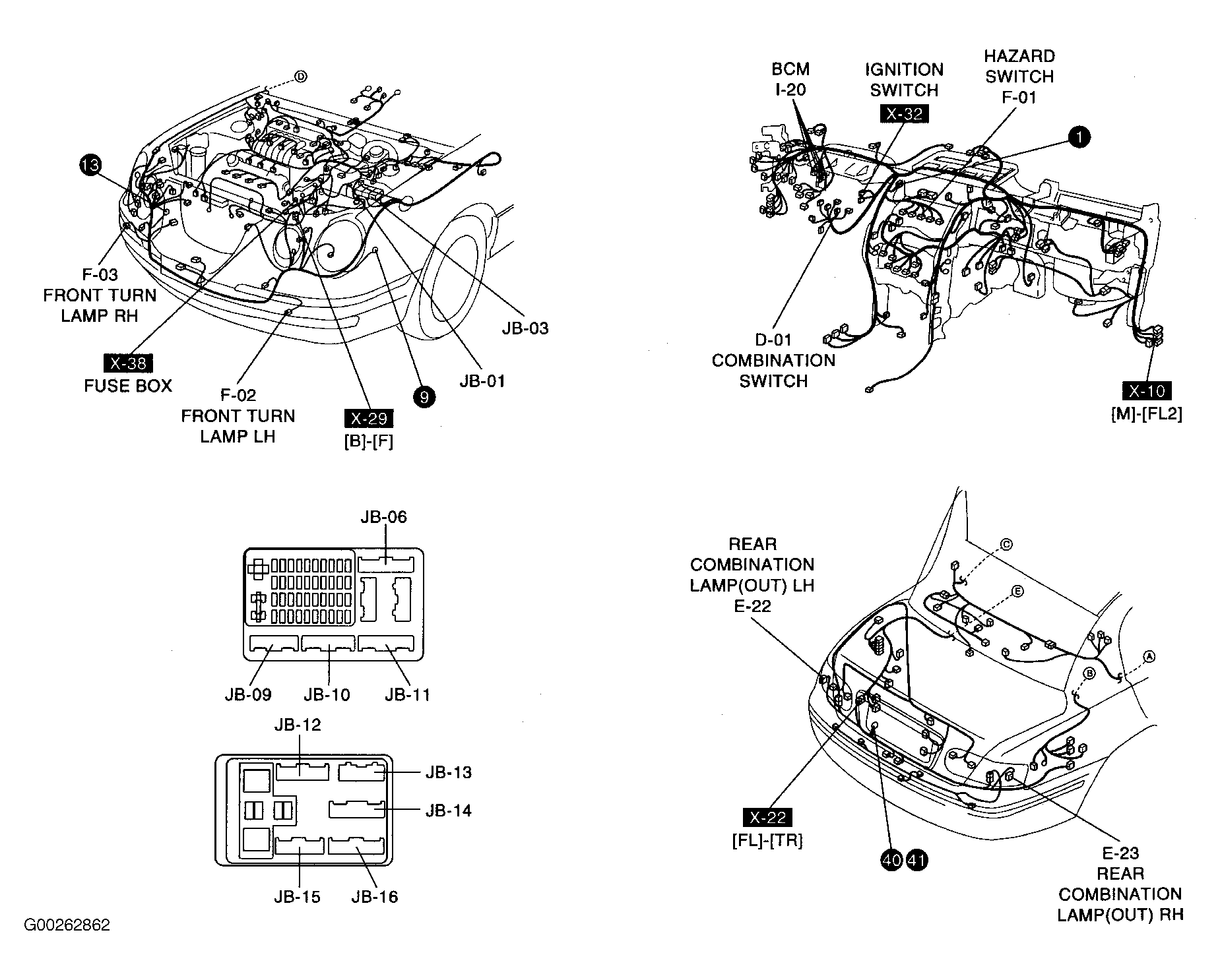

Fig 23: Turn & Hazard Flasher Unit

G00262862

Courtesy of KIA MOTORS AMERICA, INC.

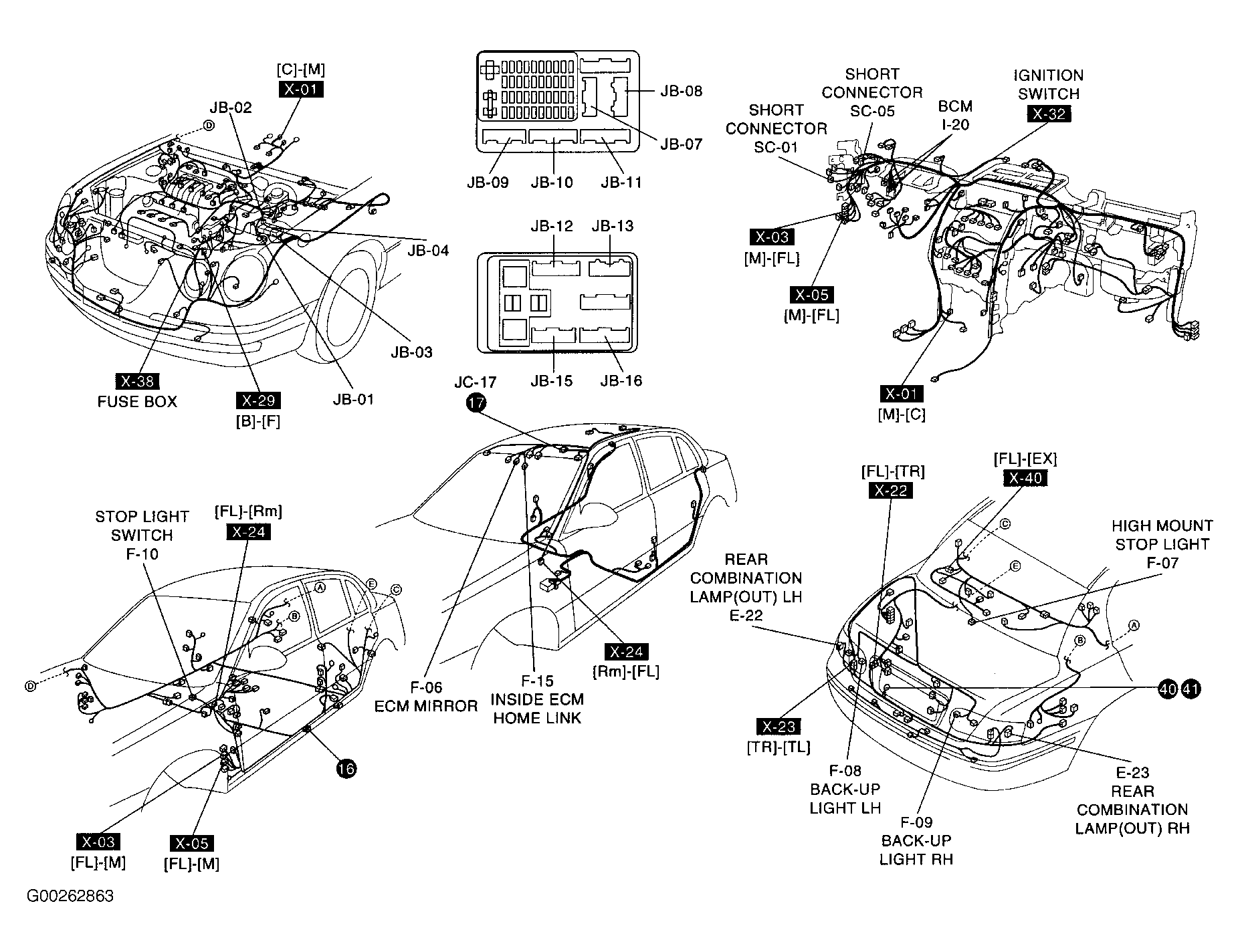

Fig 24: Stop Lights, Back-Up Lights, ECM Mirror, Inside ECM Home Link

G00262863

Courtesy of KIA MOTORS AMERICA, INC.

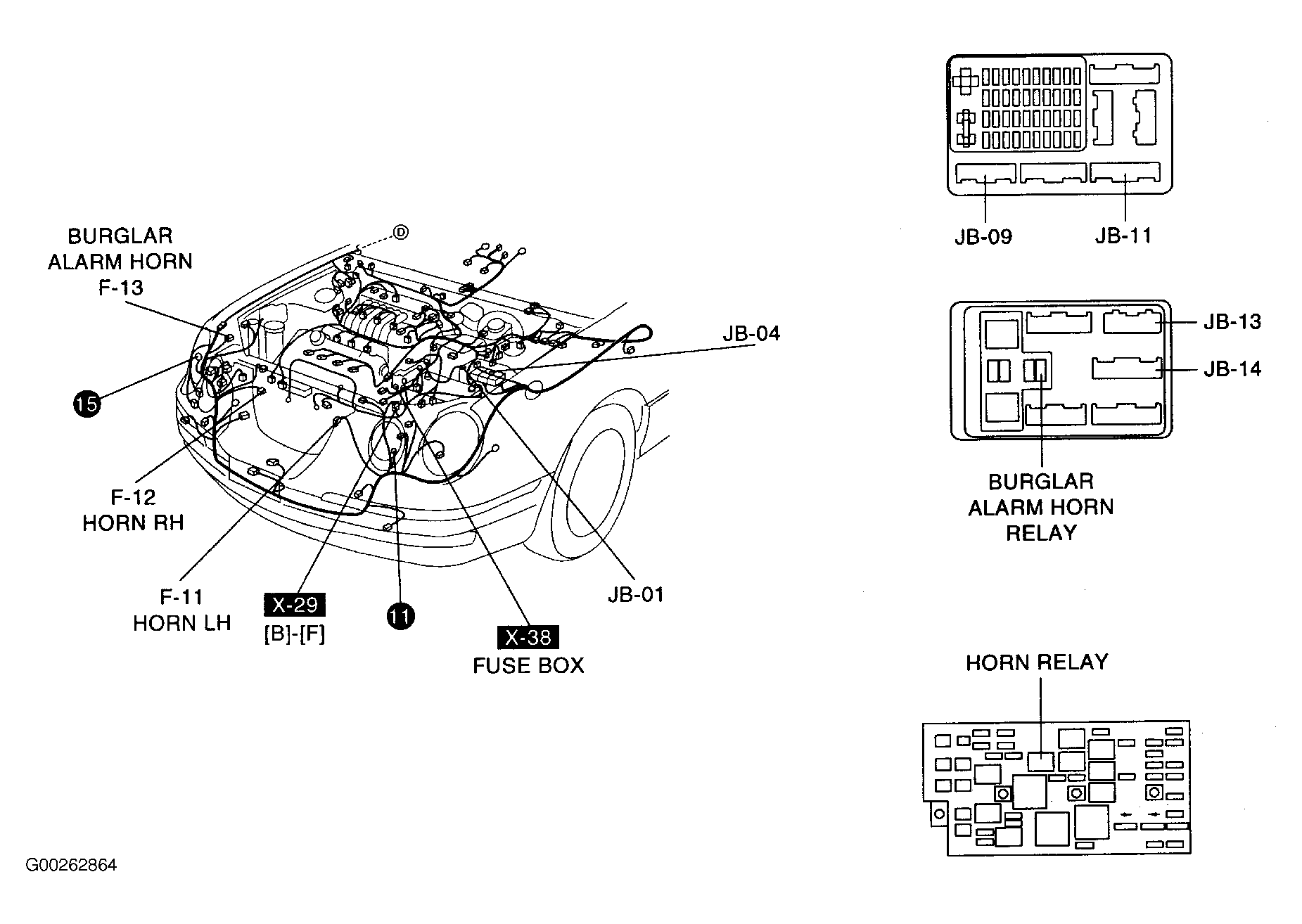

Fig 25: Horns

G00262864

Courtesy of KIA MOTORS AMERICA, INC.

Fig 26: Heater & A/C System

G00262865

Courtesy of KIA MOTORS AMERICA, INC.

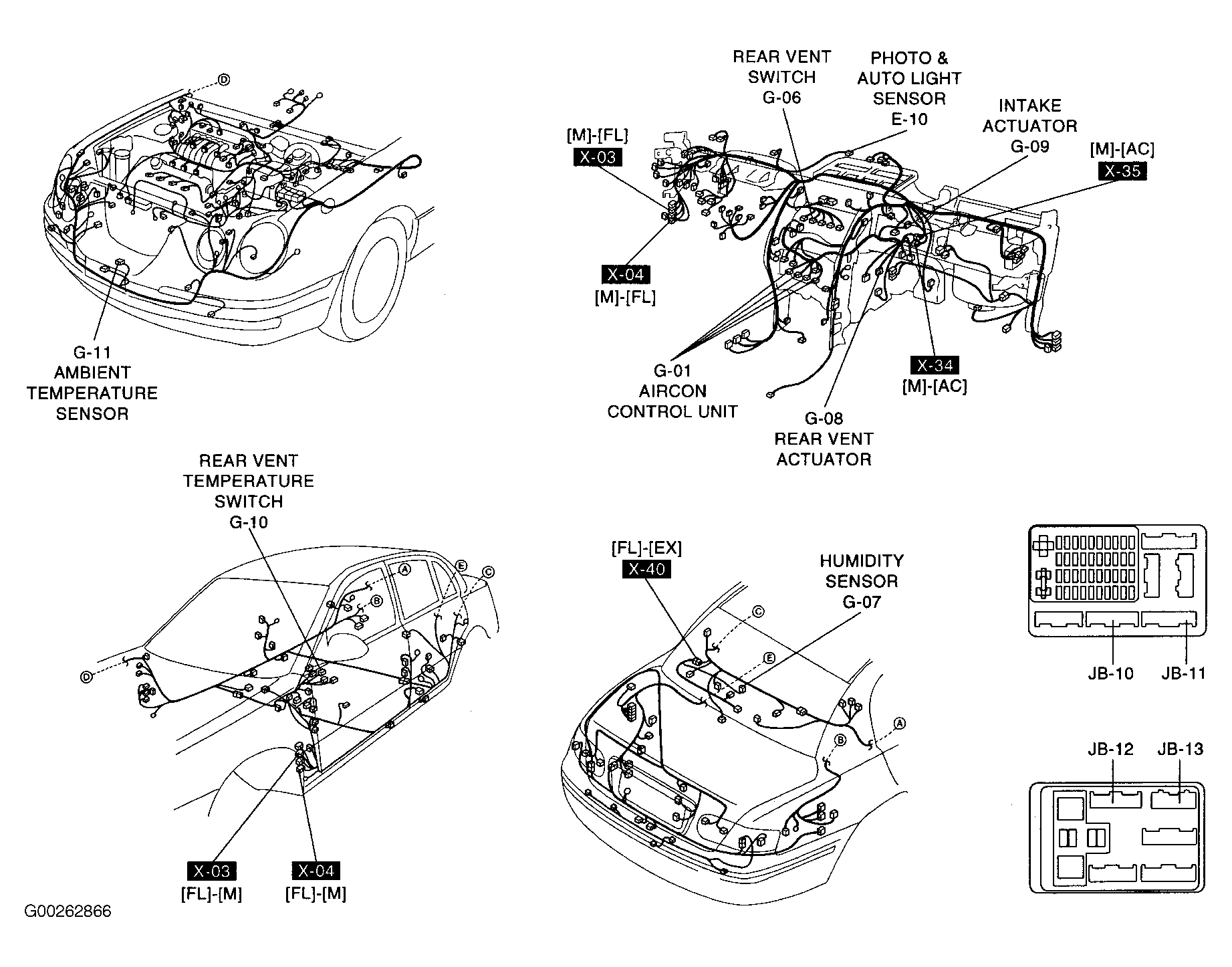

Fig 27: Heater & A/C System

G00262866

Courtesy of KIA MOTORS AMERICA, INC.

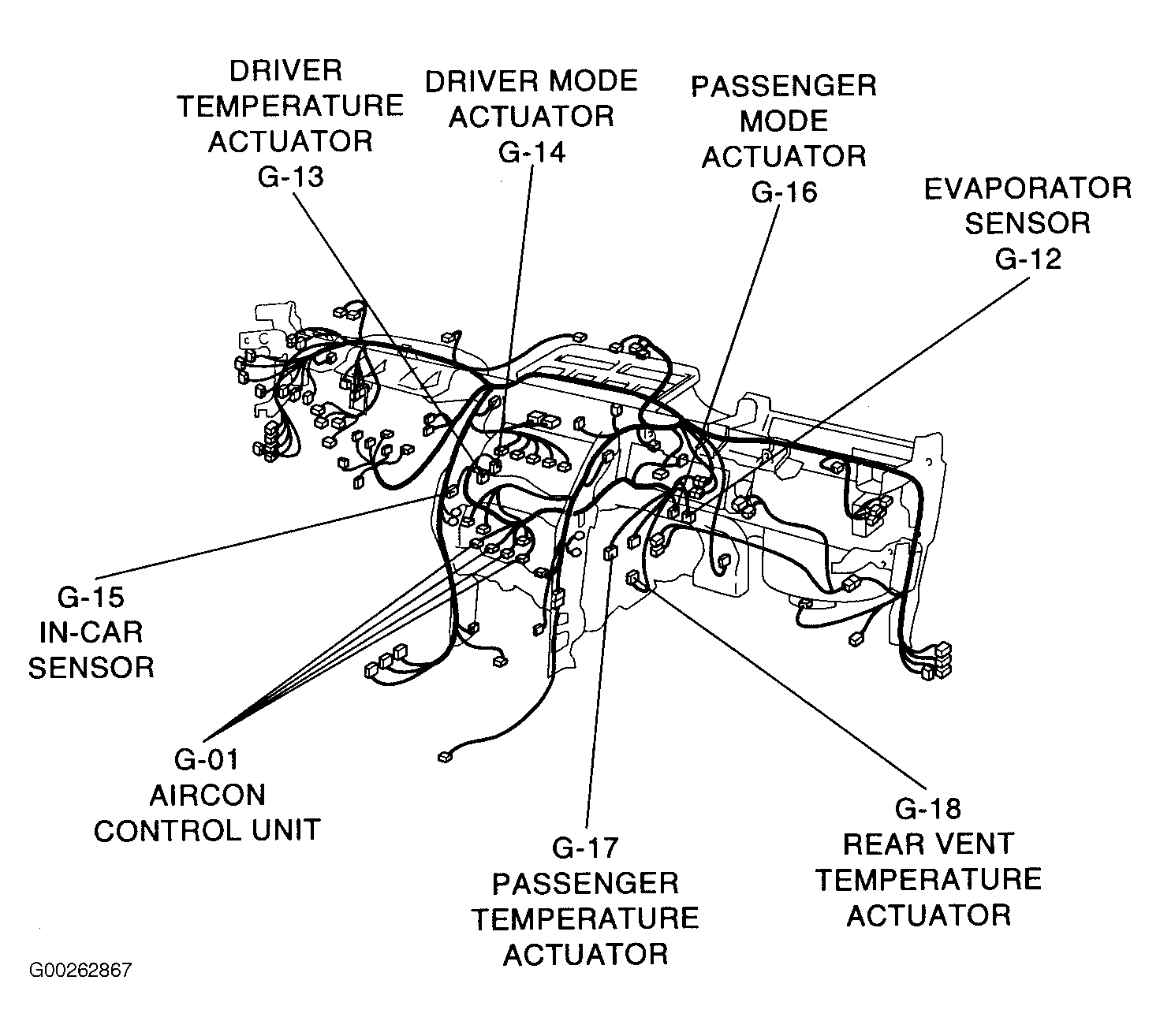

Fig 28: Heater & A/C System

G00262867

Courtesy of KIA MOTORS AMERICA, INC.

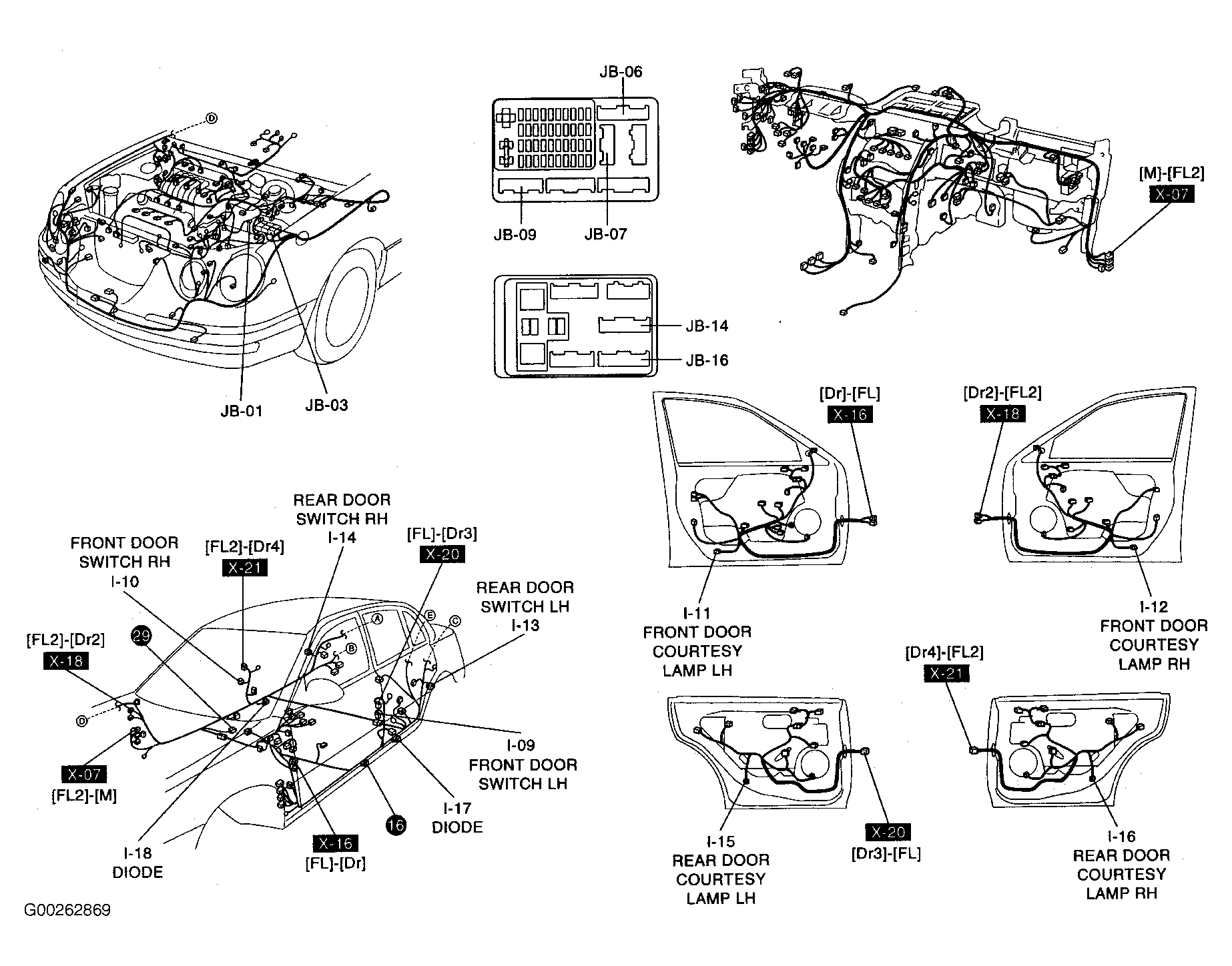

Fig 29: Door Switches & Lights

G00262869

Courtesy of KIA MOTORS AMERICA, INC.

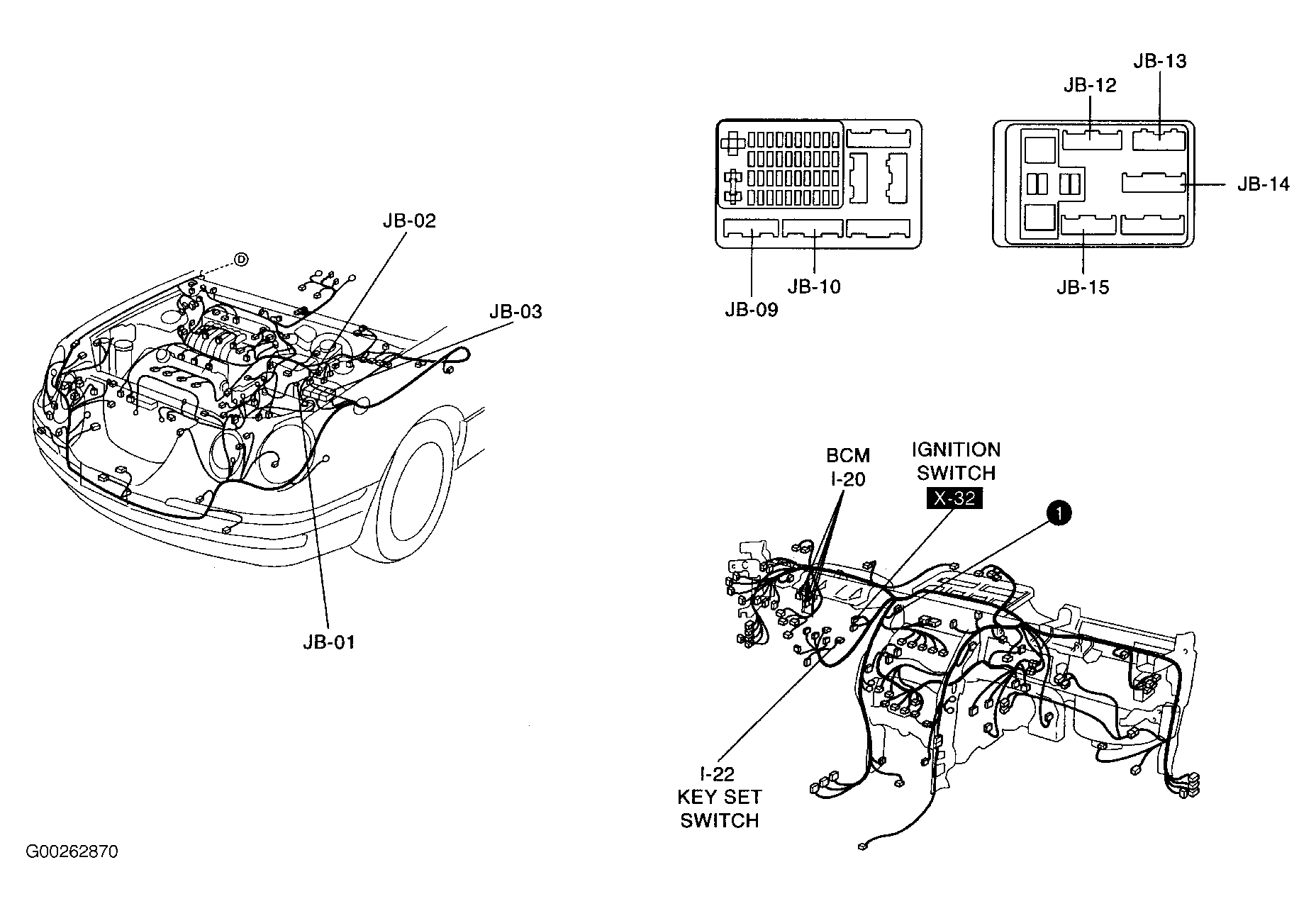

Fig 30: Body Control System

G00262870

Courtesy of KIA MOTORS AMERICA, INC.

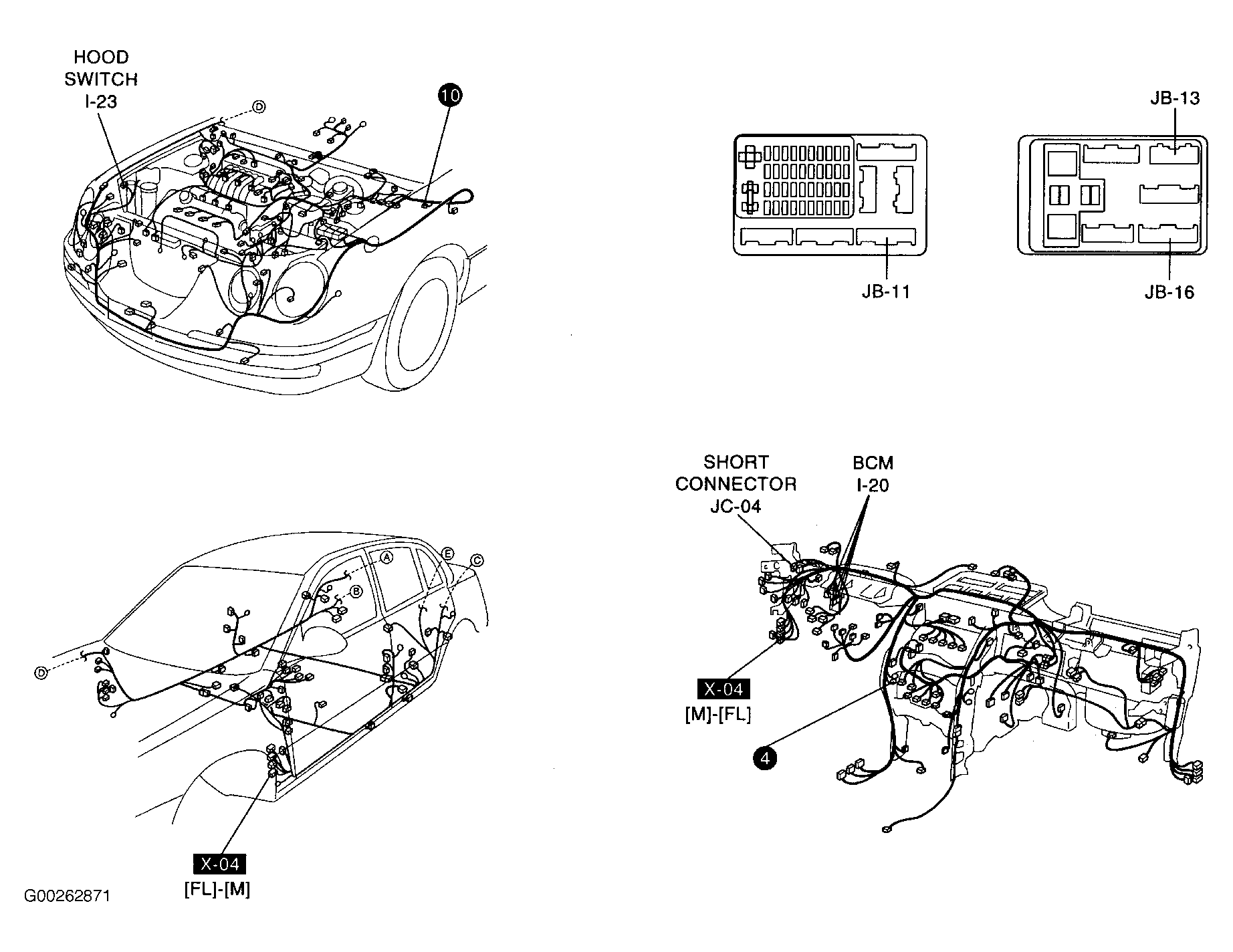

Fig 31: Body Control System

G00262871

Courtesy of KIA MOTORS AMERICA, INC.

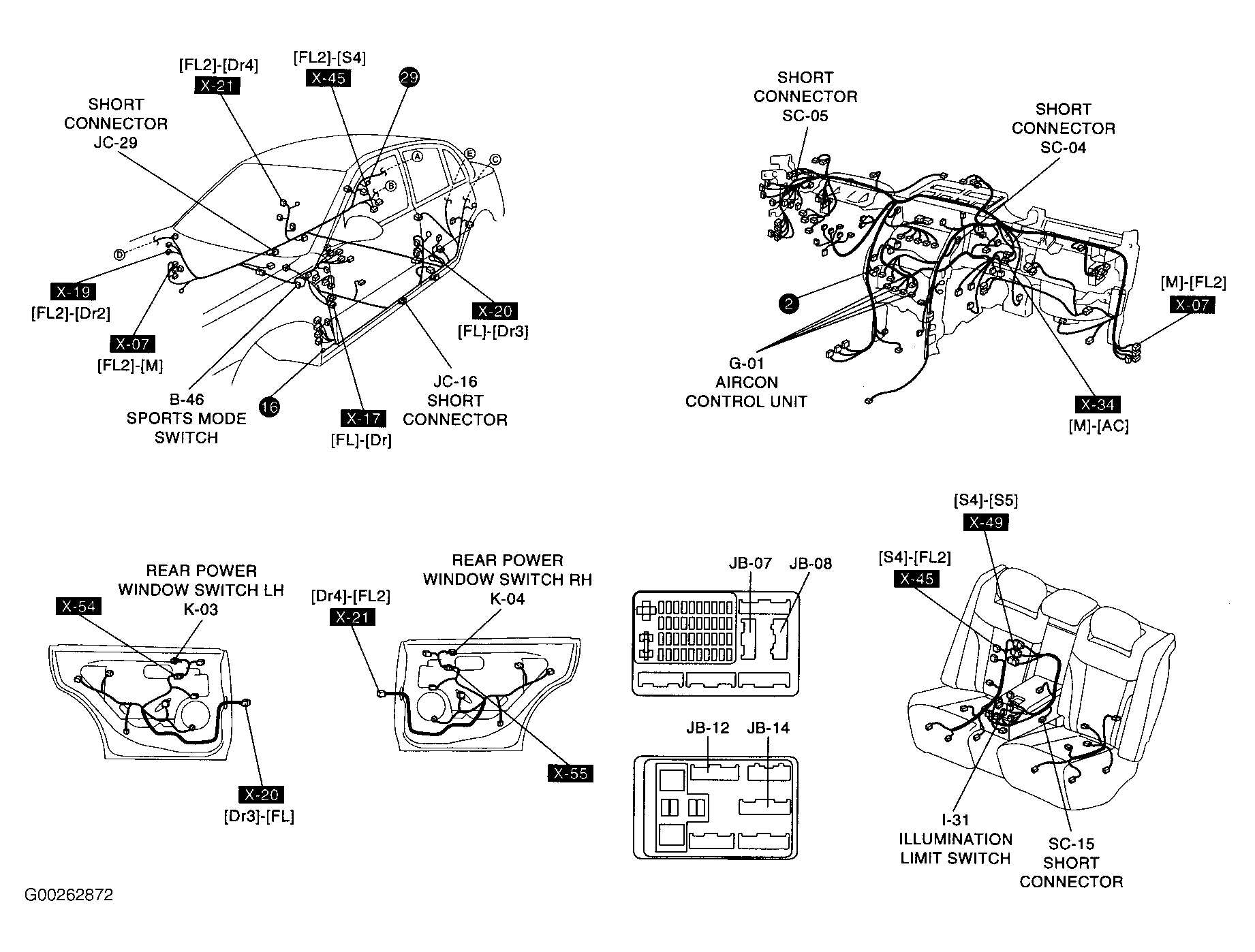

Fig 32: Illumination Lights

G00262872

Courtesy of KIA MOTORS AMERICA, INC.

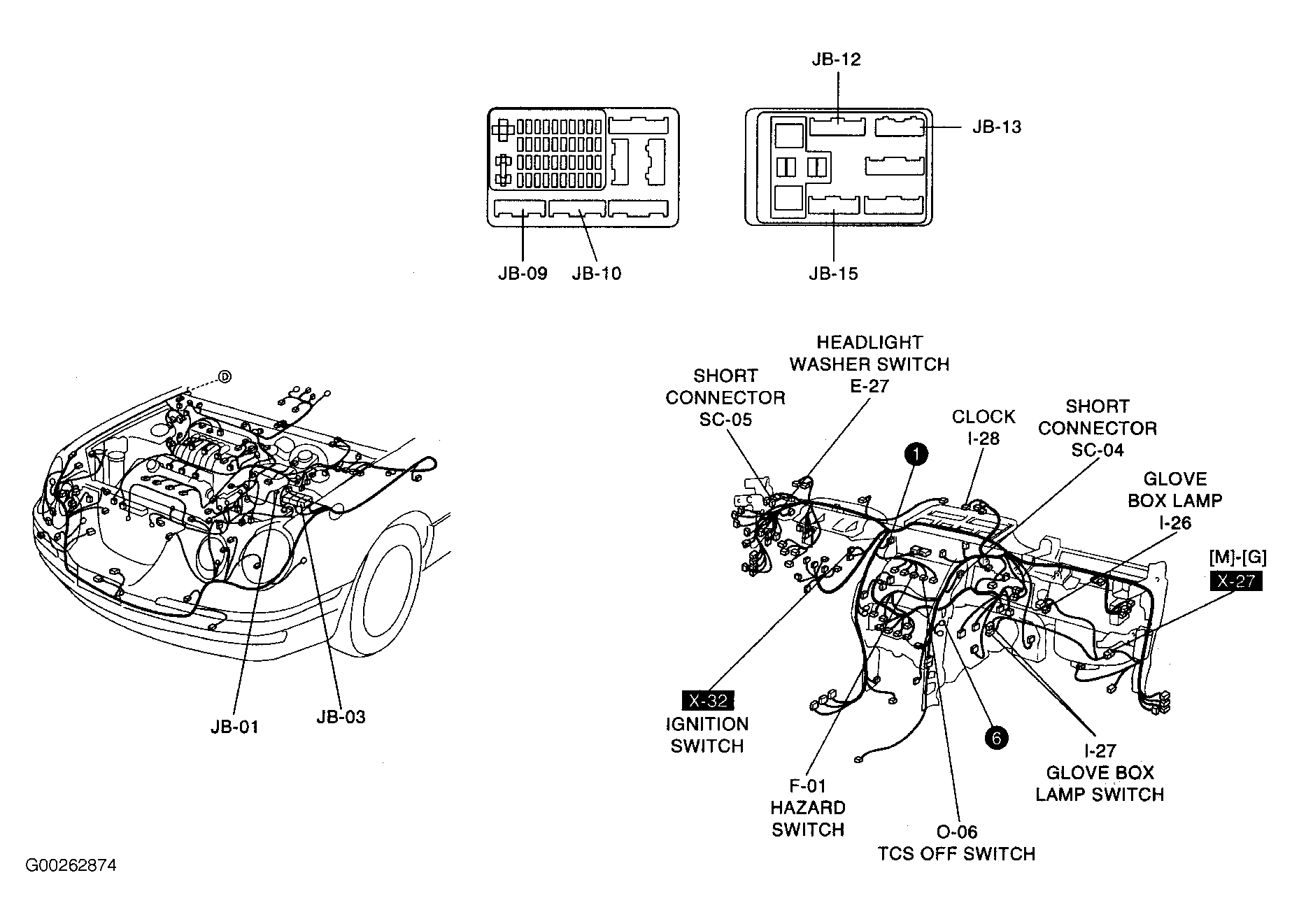

Fig 33: Illumination, Glove Box Light, Clock

G00262874

Courtesy of KIA MOTORS AMERICA, INC.

Fig 34: Audio, Amplifier System

G00262875

Courtesy of KIA MOTORS AMERICA, INC.

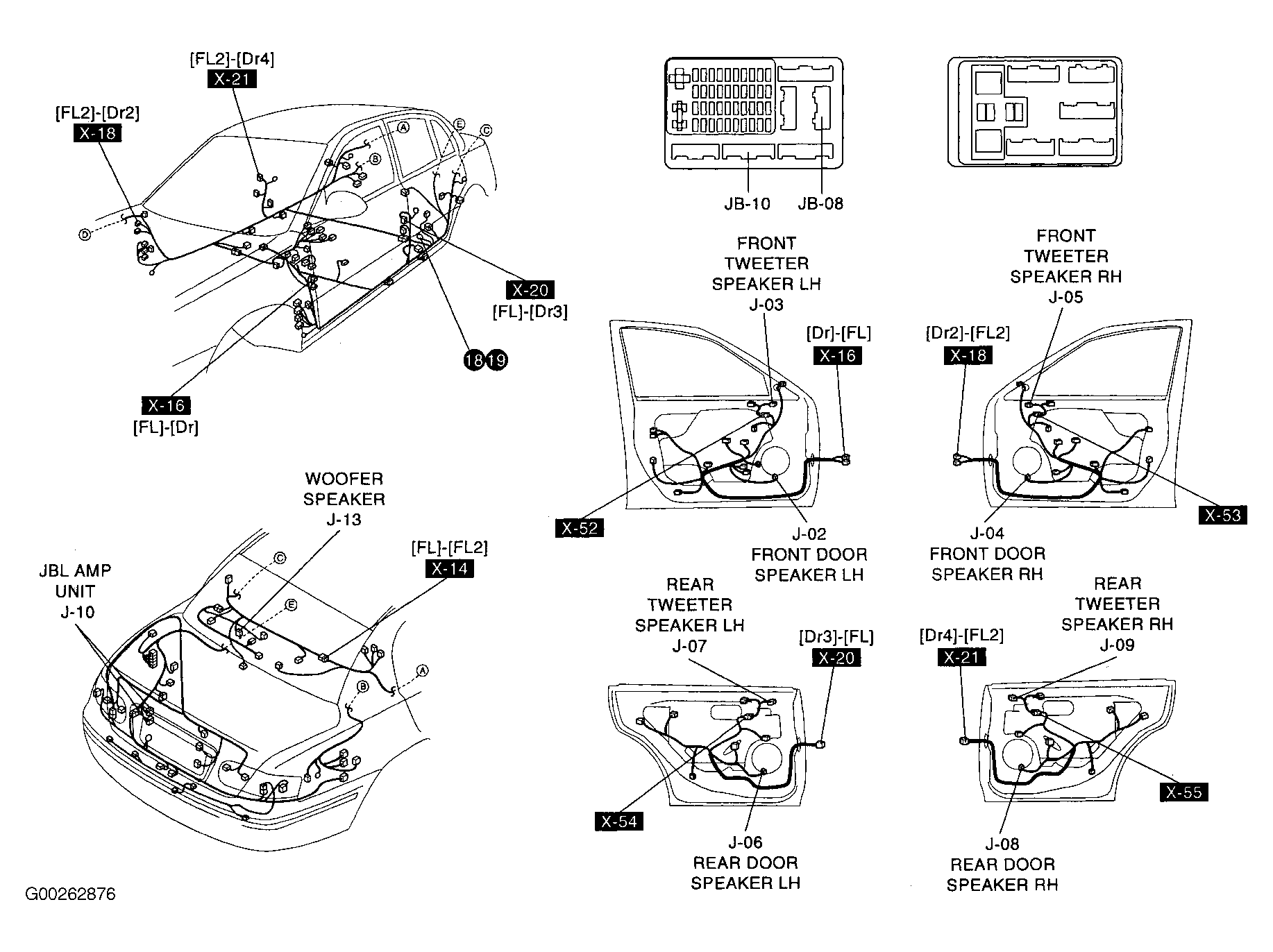

Fig 35: Audio, Amplifier System

G00262876

Courtesy of KIA MOTORS AMERICA, INC.

Fig 36: Power Window System

G00262879

Courtesy of KIA MOTORS AMERICA, INC.

Fig 37: Power Window System

G00262880

Courtesy of KIA MOTORS AMERICA, INC.

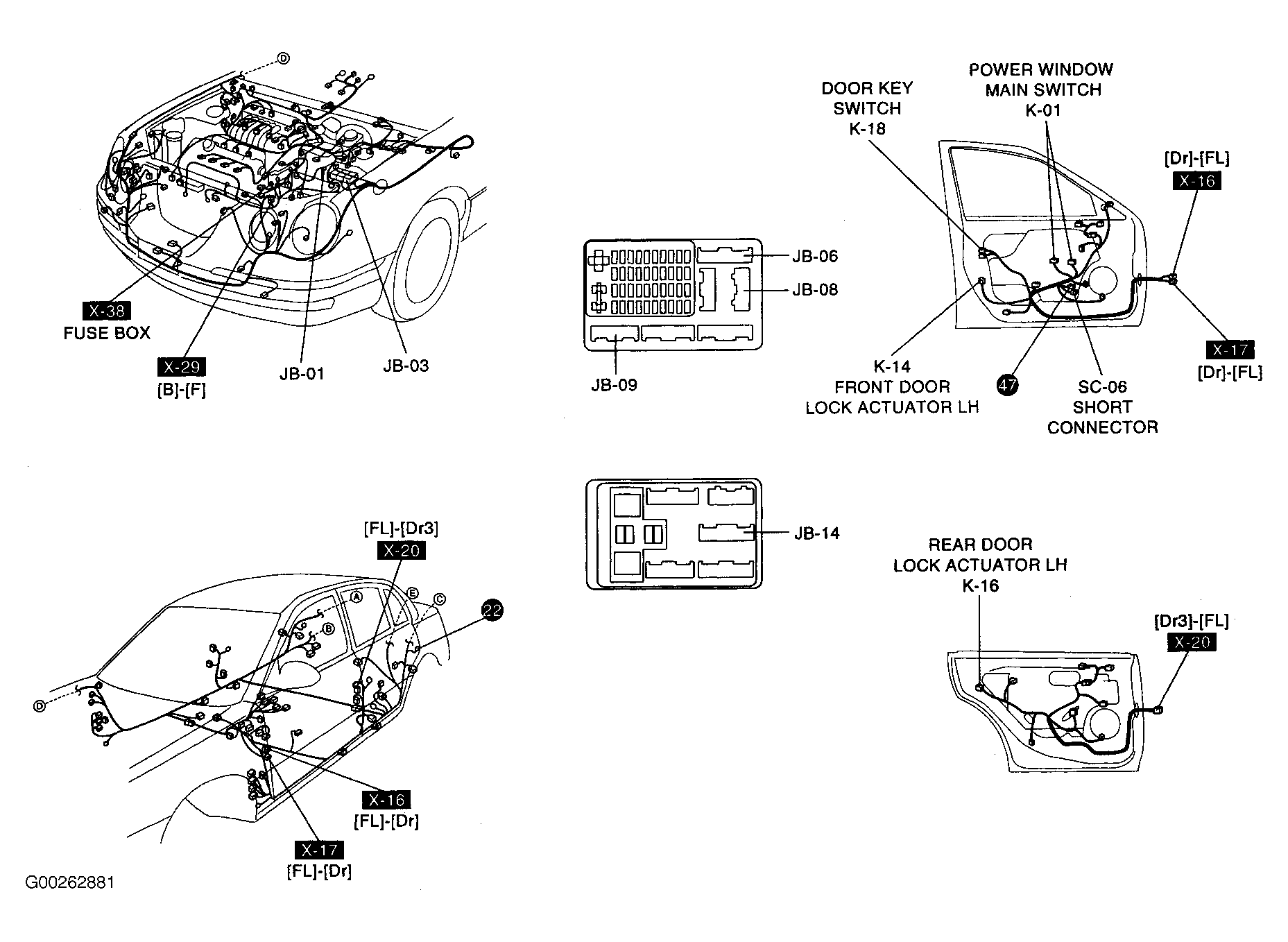

Fig 38: Power Door Lock System

G00262881

Courtesy of KIA MOTORS AMERICA, INC.

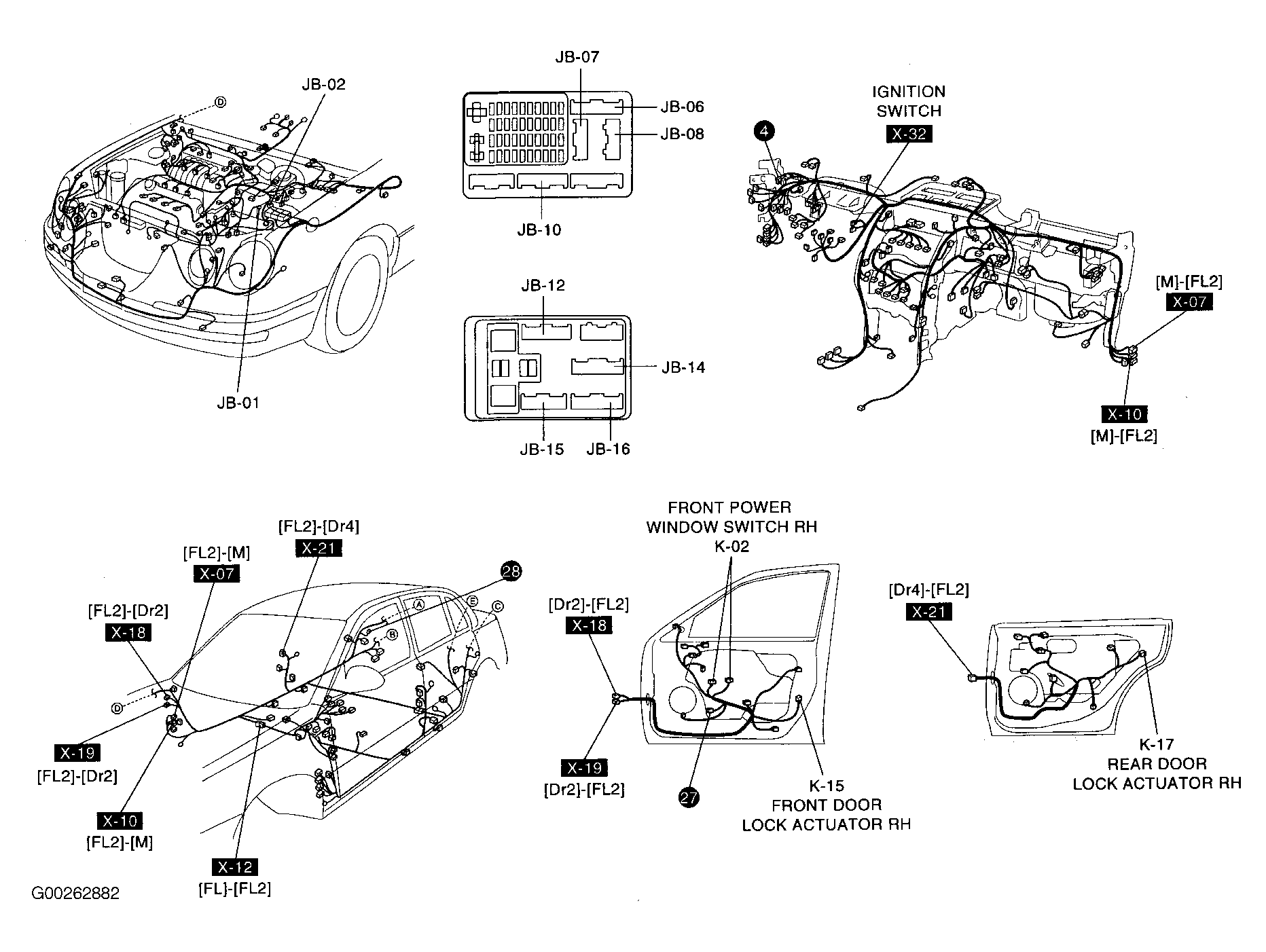

Fig 39: Power Door Lock System

G00262882

Courtesy of KIA MOTORS AMERICA, INC.

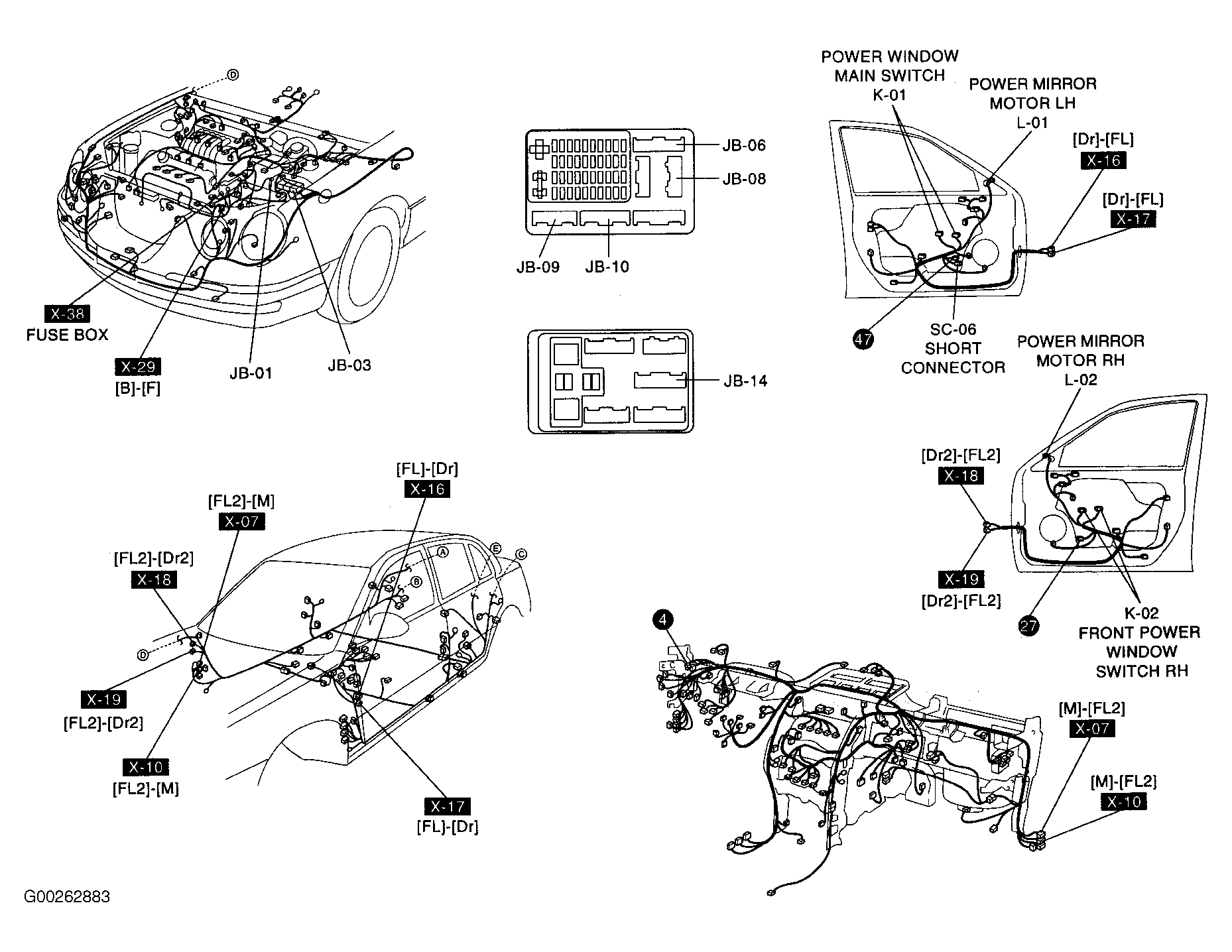

Fig 40: Power Mirror System

G00262883

Courtesy of KIA MOTORS AMERICA, INC.

Fig 41: Sunroof System

G00262884

Courtesy of KIA MOTORS AMERICA, INC.

Fig 42: Electronic Power Steering (EPS) System

G00262885

Courtesy of KIA MOTORS AMERICA, INC.

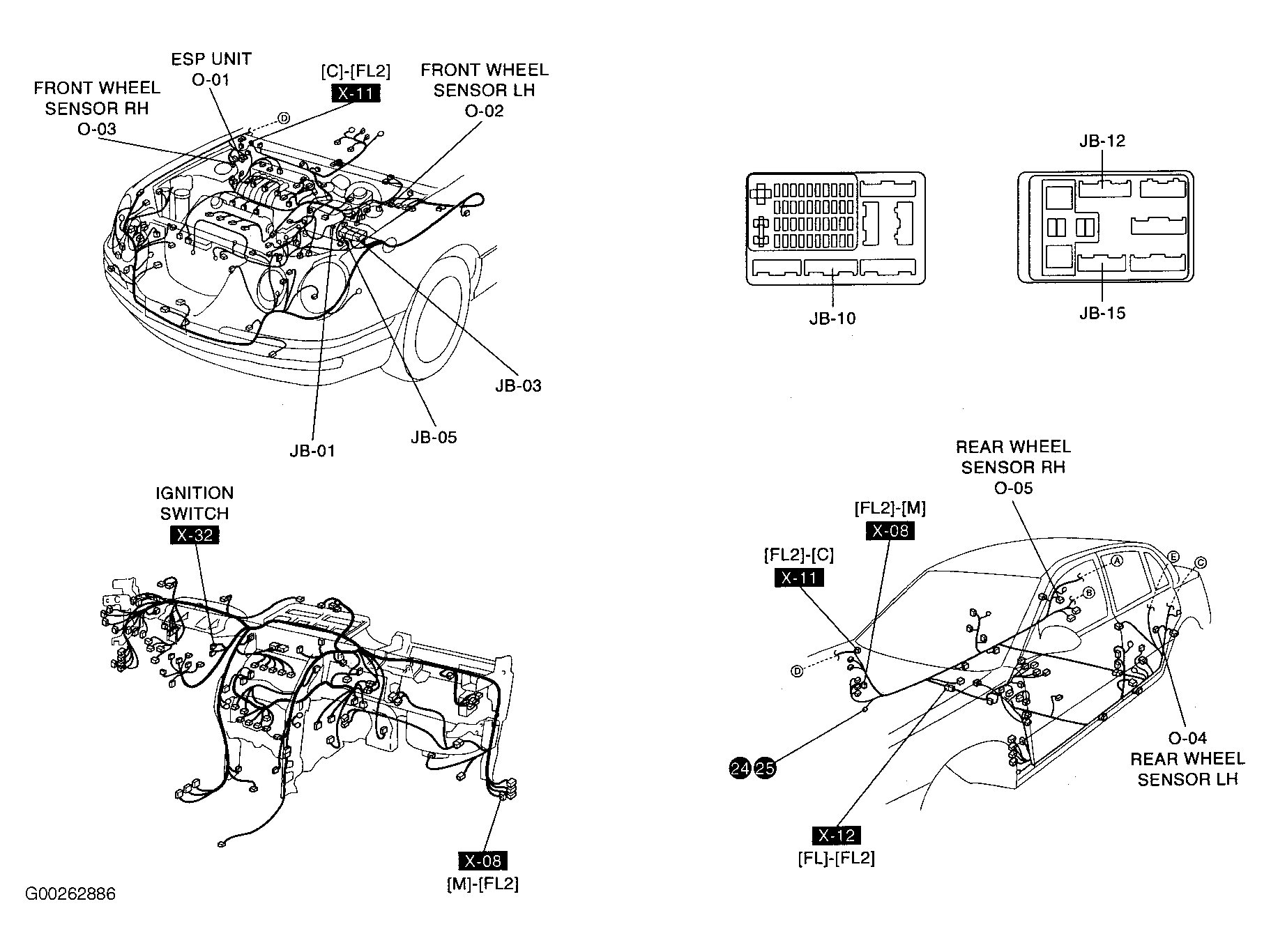

Fig 43: Electronic Stability Program (ESP) System

G00262886

Courtesy of KIA MOTORS AMERICA, INC.

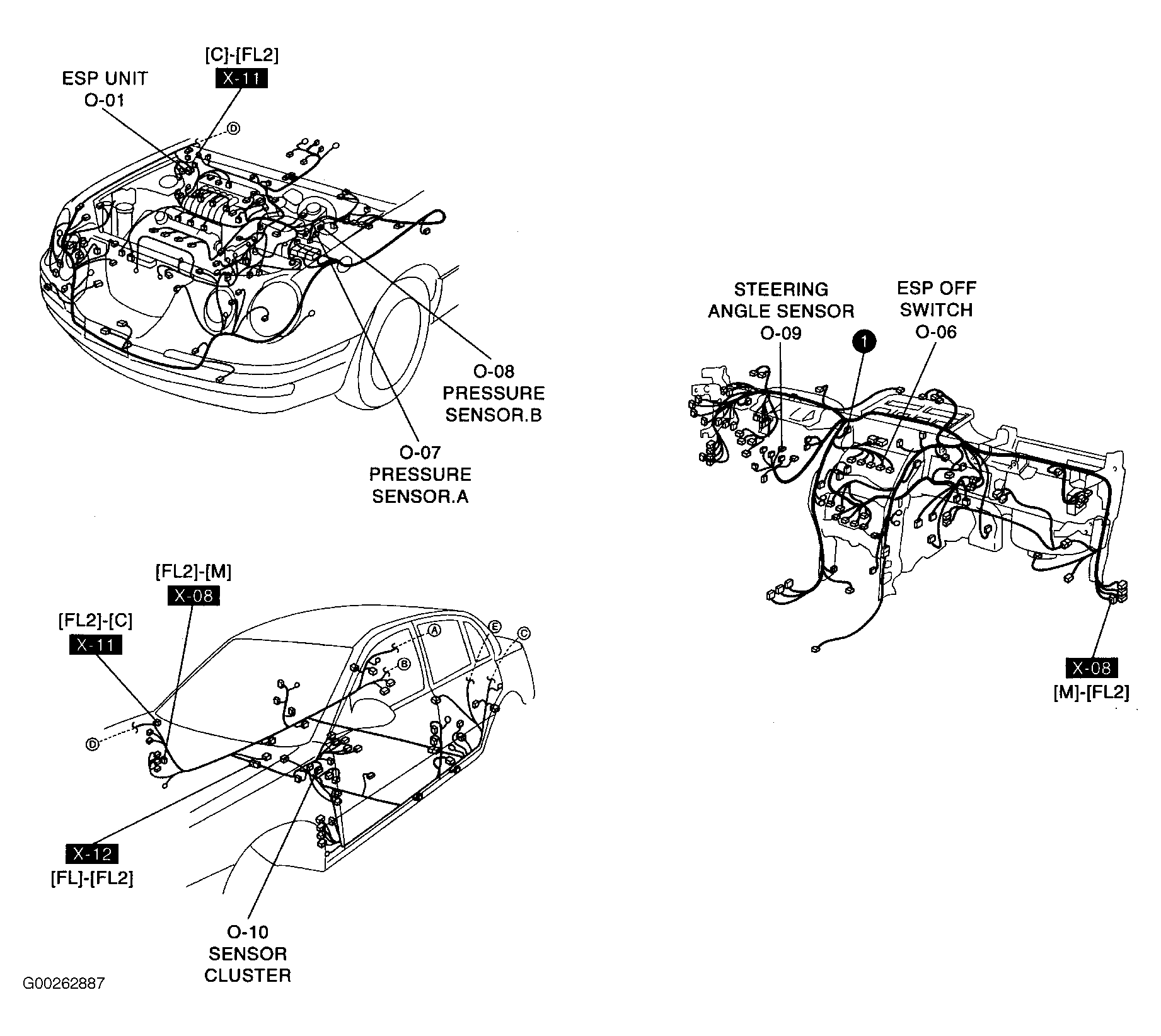

Fig 44: Electronic Stability Program (ESP) System

G00262887

Courtesy of KIA MOTORS AMERICA, INC.

Fig 45: ABS & TCS

G00262888

Courtesy of KIA MOTORS AMERICA, INC.

Fig 46: Power Seat (Driver)

G00262889

Courtesy of KIA MOTORS AMERICA, INC.

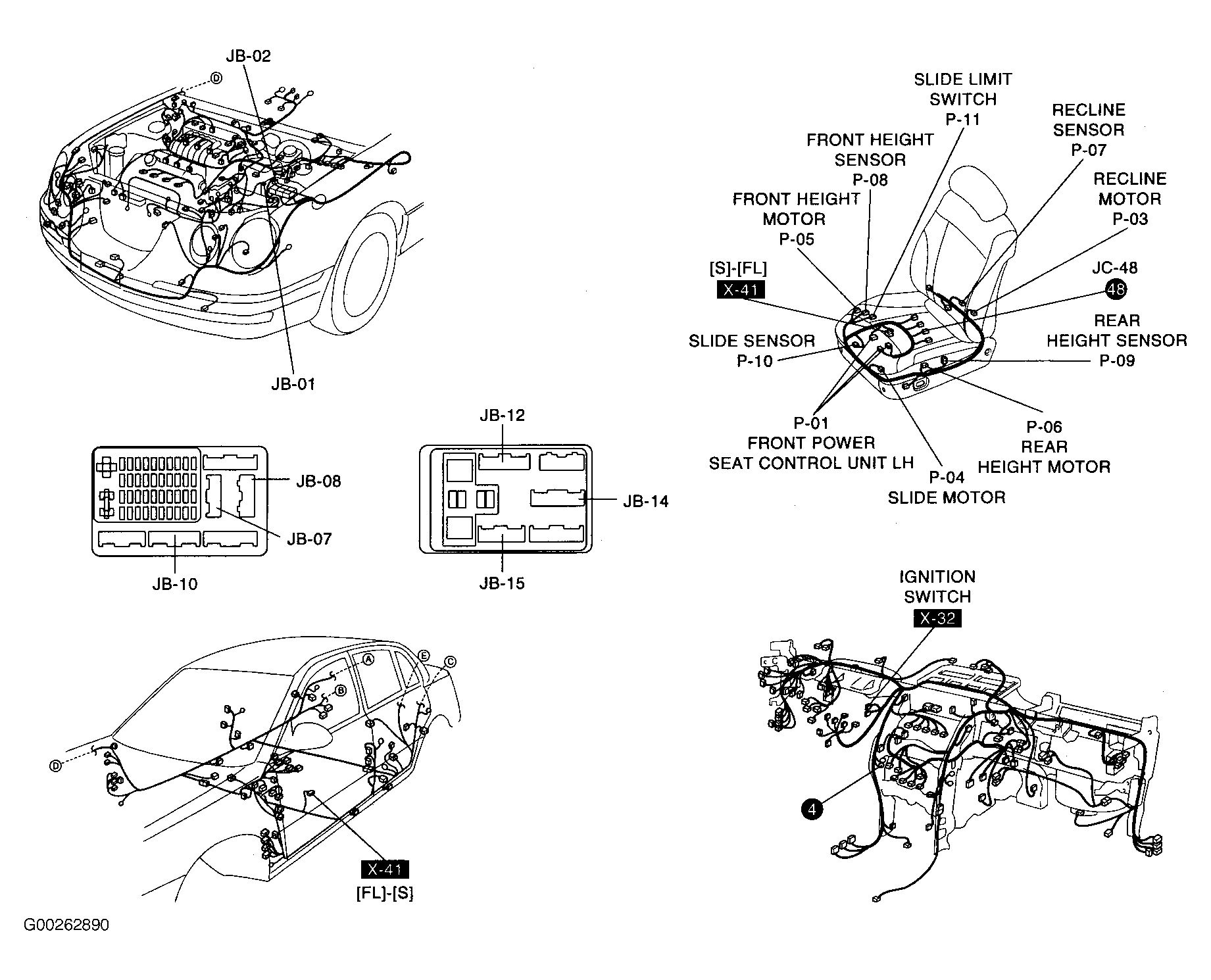

Fig 47: Power Seat (Driver)

G00262890

Courtesy of KIA MOTORS AMERICA, INC.

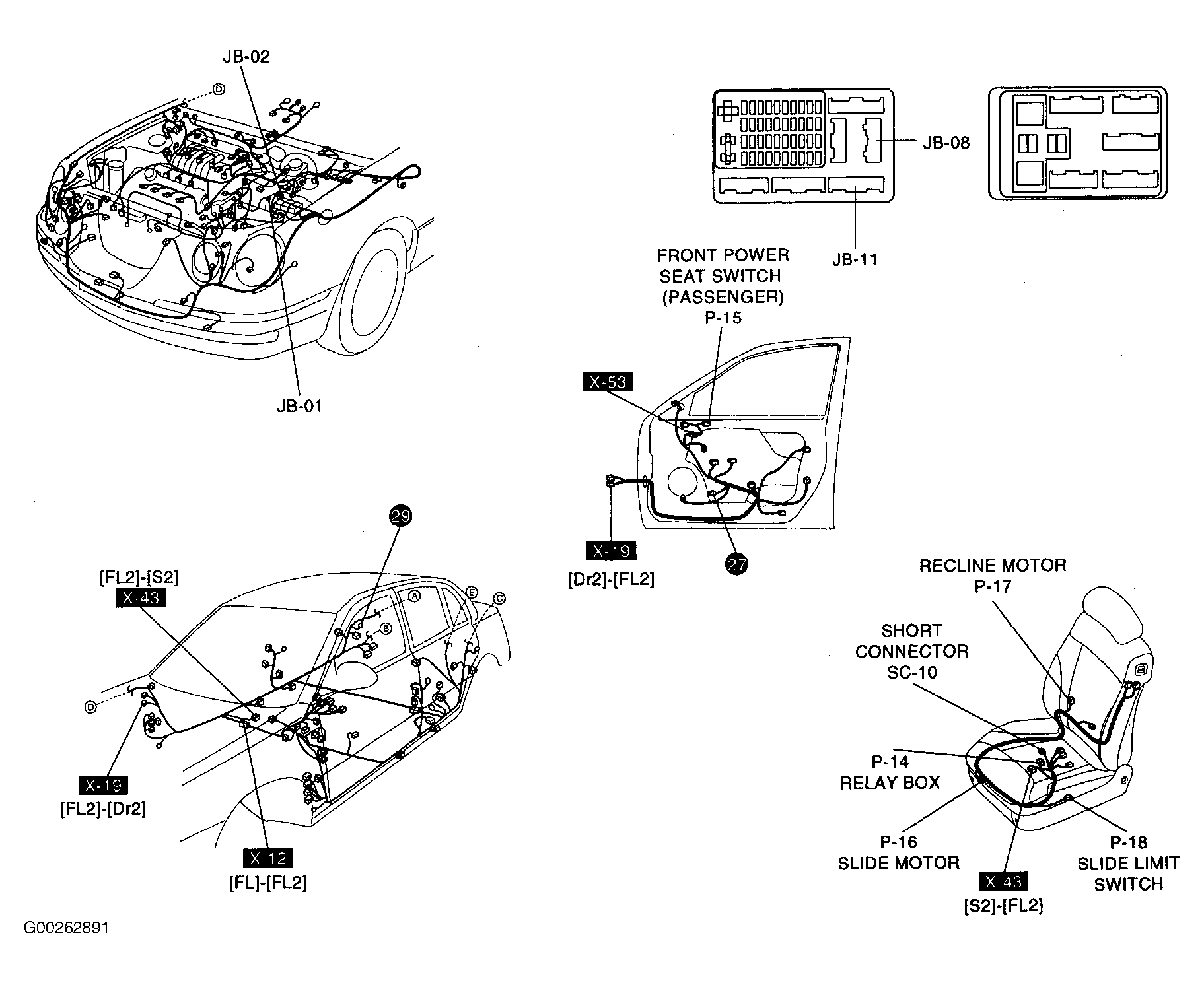

Fig 48: Power Seat (Passenger)

G00262891

Courtesy of KIA MOTORS AMERICA, INC.

Fig 49: Seat Warmer (Front)

G00262892

Courtesy of KIA MOTORS AMERICA, INC.

Fig 50: Seat Warmer (Rear)

G00262893

Courtesy of KIA MOTORS AMERICA, INC.

Fig 51: Airbag System

G00262894

Courtesy of KIA MOTORS AMERICA, INC.

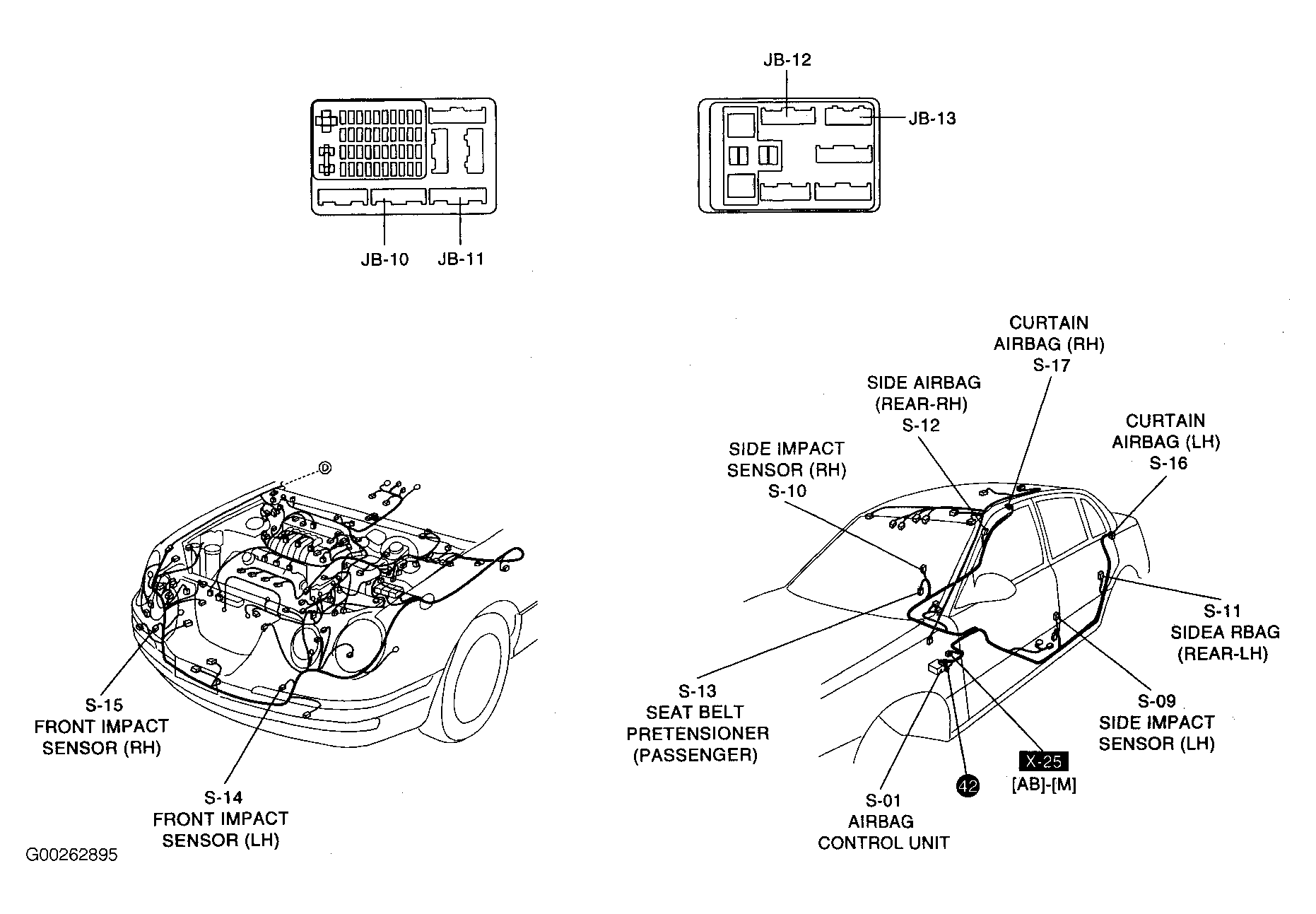

Fig 52: Airbag System

G00262895

Courtesy of KIA MOTORS AMERICA, INC.

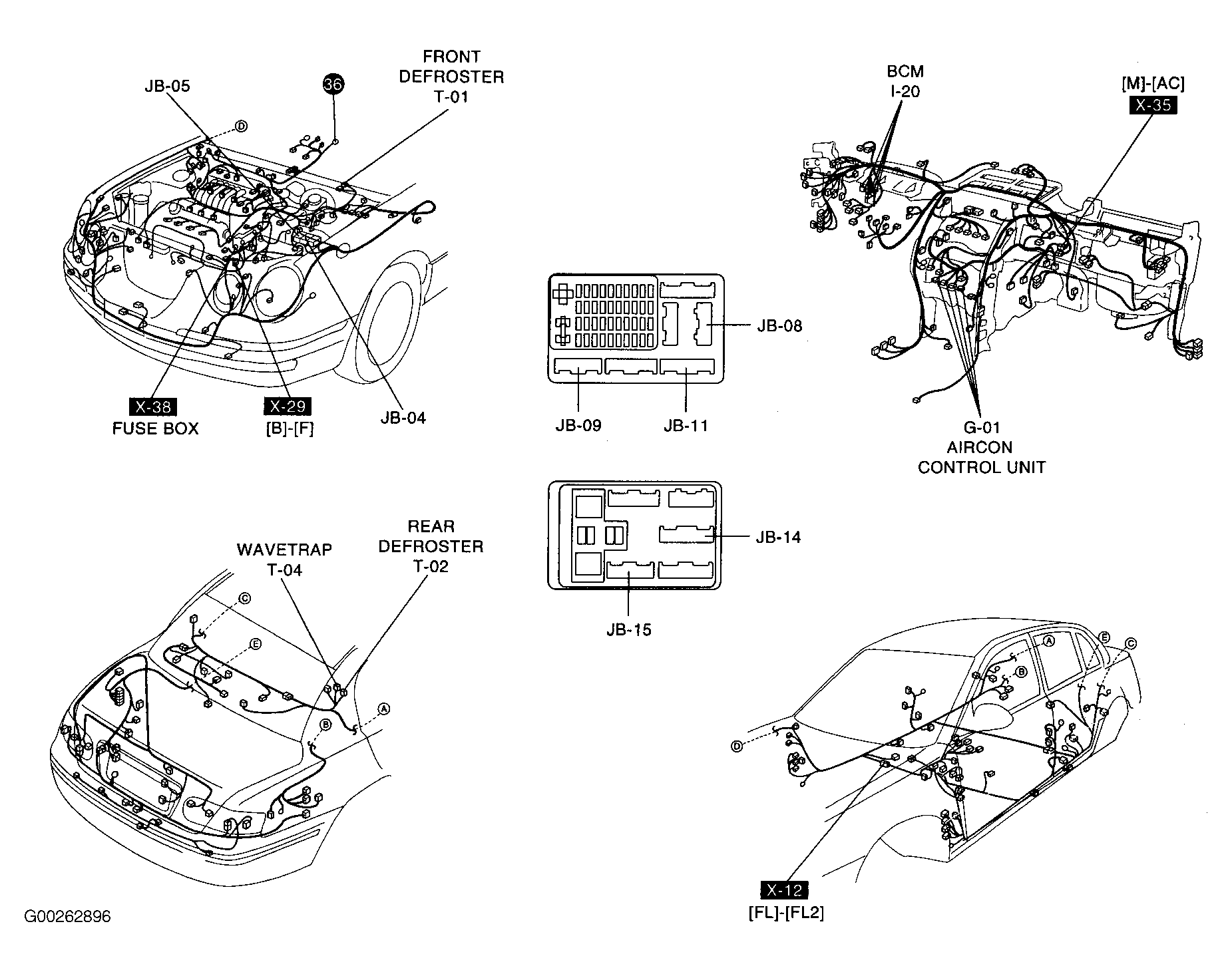

Fig 53: Defroster

G00262896

Courtesy of KIA MOTORS AMERICA, INC.

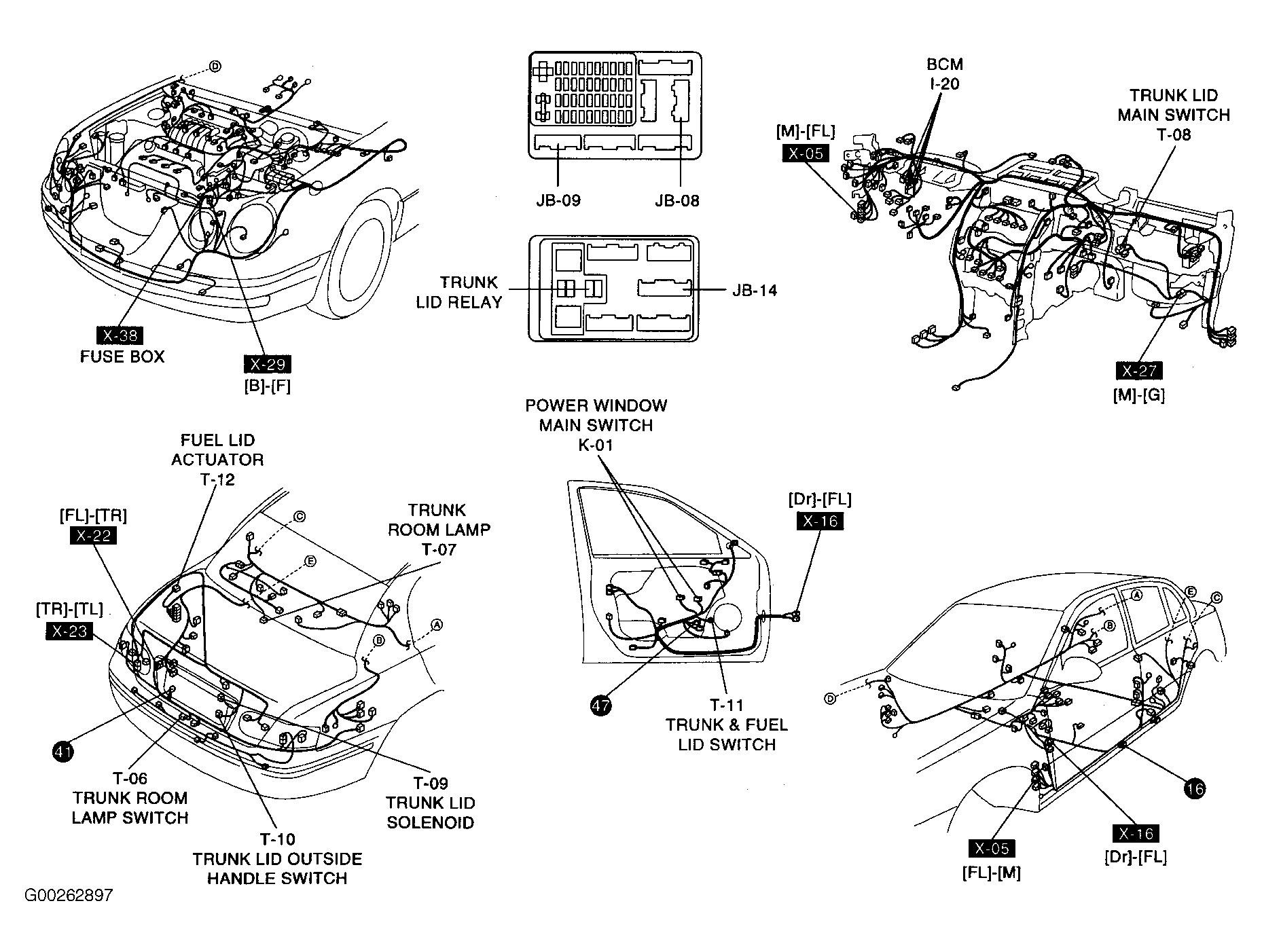

Fig 54: Trunk & Fuel Lid Opener

G00262897

Courtesy of KIA MOTORS AMERICA, INC.

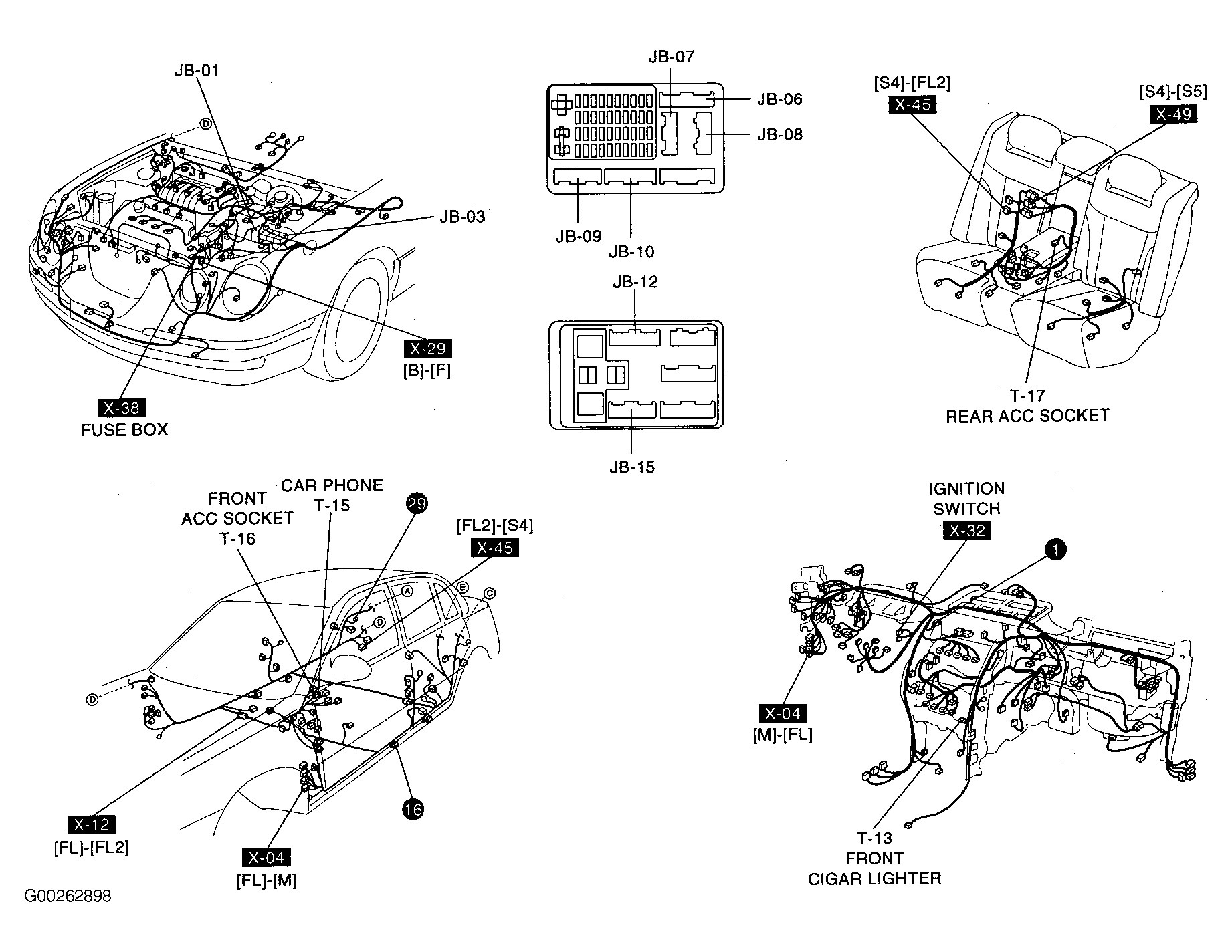

Fig 55: Cigar Lighter, Accessory Socket, Car Phone

G00262898

Courtesy of KIA MOTORS AMERICA, INC.

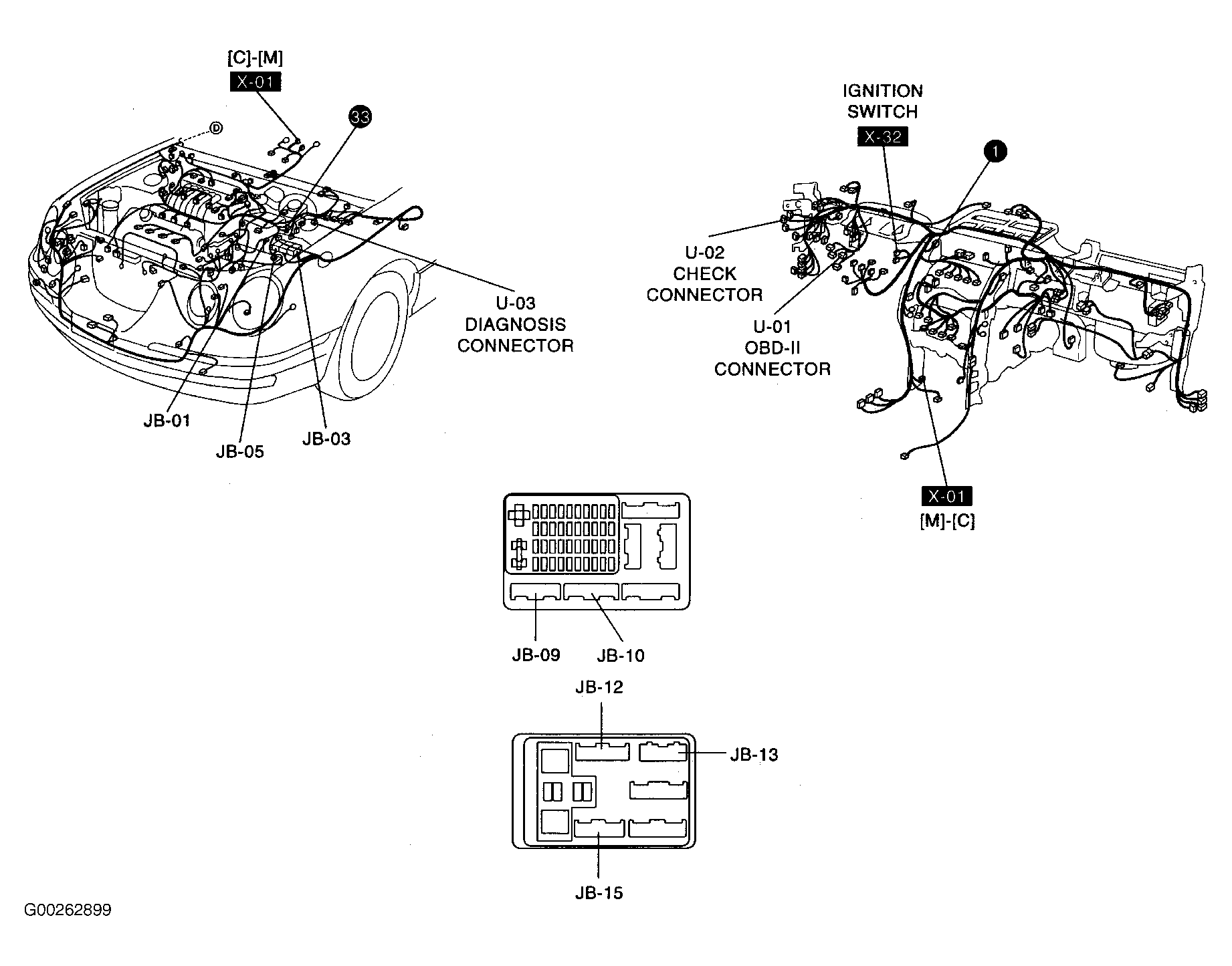

Fig 56: Data Link Connector

G00262899

Courtesy of KIA MOTORS AMERICA, INC.
