Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 3.5L Engine >> Intake And Exhaust System >> Intake Manifold >> Notes

Intake Manifold: Notes

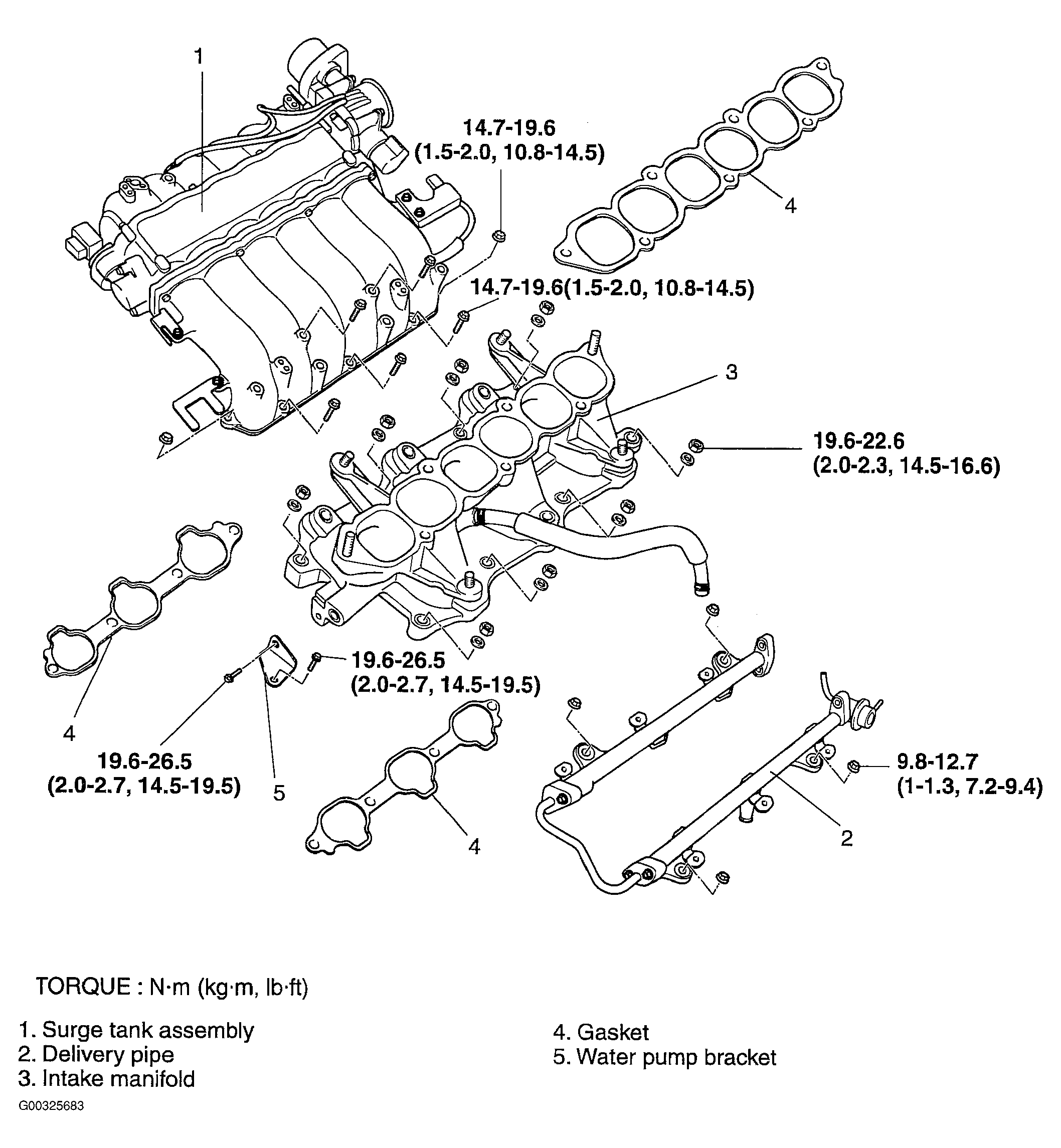

Fig 1: Identifying Intake Manifold Components
G00325683Courtesy of KIA MOTORS AMERICA, INC.
