Main Moving System: Piston: Notes

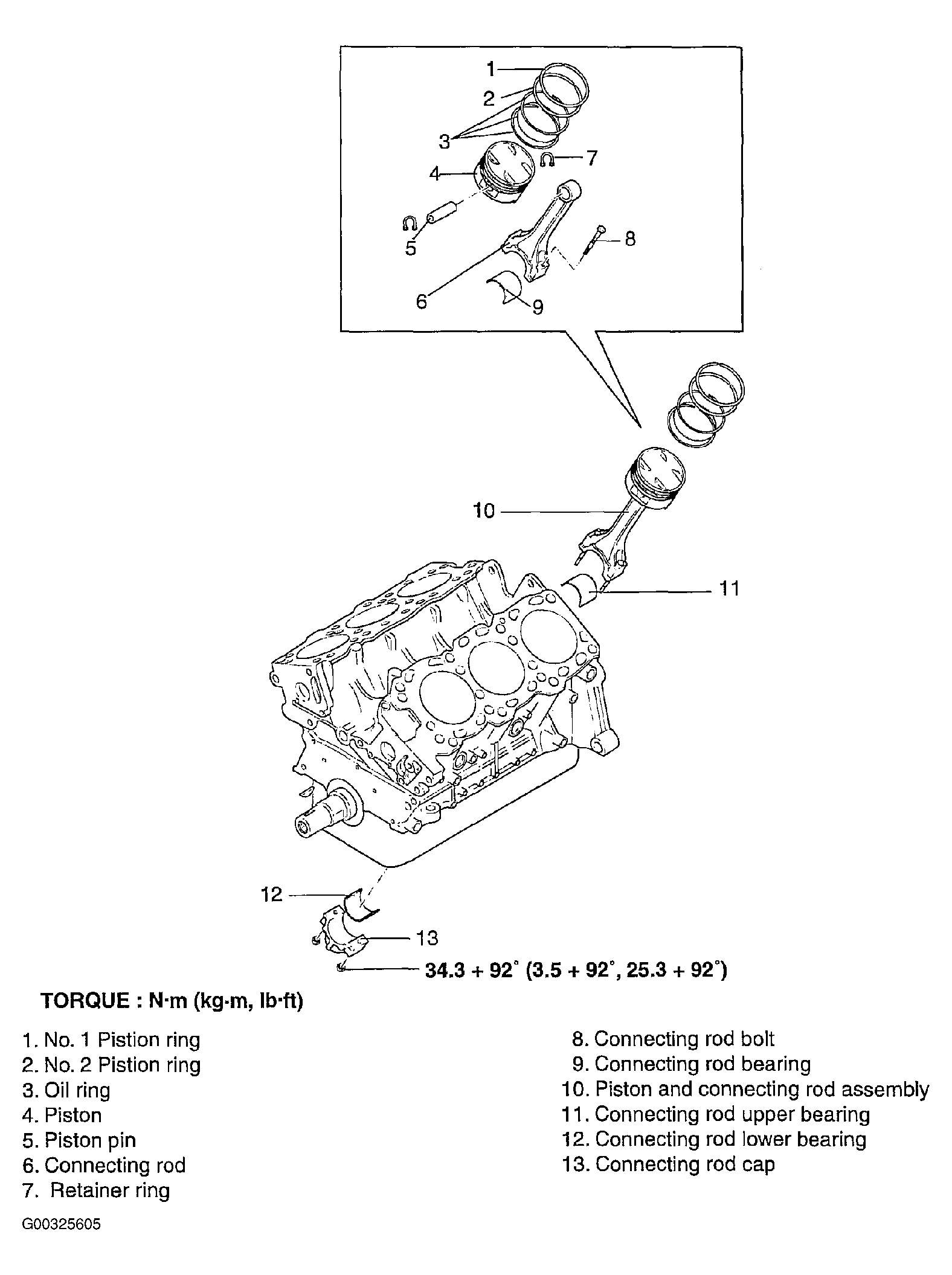

Fig 1: Identifying Piston & Connecting Rod Components
G00325605Courtesy of KIA MOTORS AMERICA, INC.
