Timing Belt: Installation

Install idler pulley to engine support lower bracket.

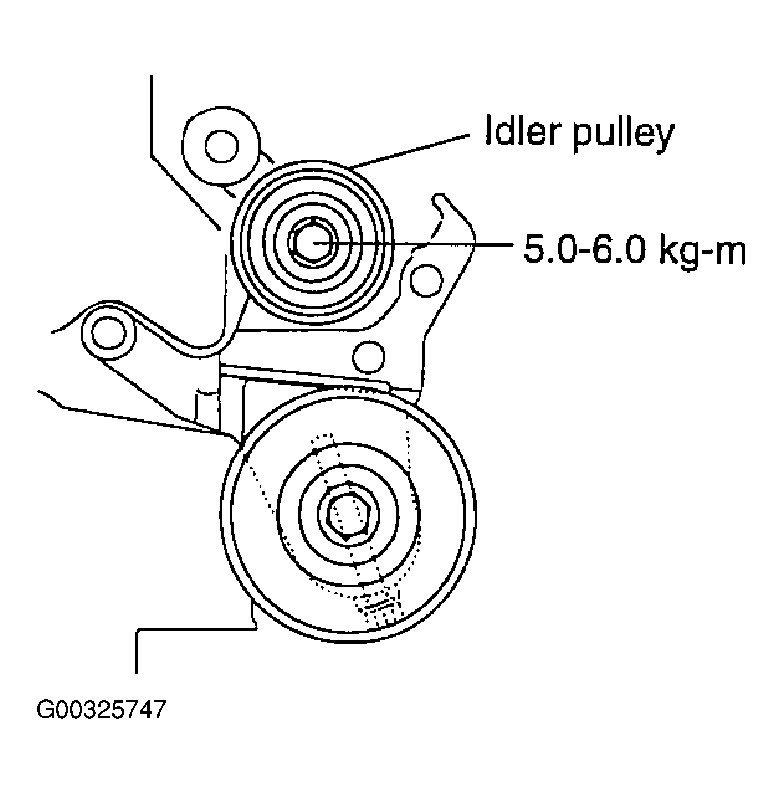

Fig 1: Installing Idler Pulley
Courtesy of KIA MOTORS AMERICA, INC.
Install tensioner arm, shaft and plane washer to cylinder block.
Tightening torque :

34.3 - 53.9 Nm (3.5-5.5 kg.m, 25.3-39.8 lb.ft)

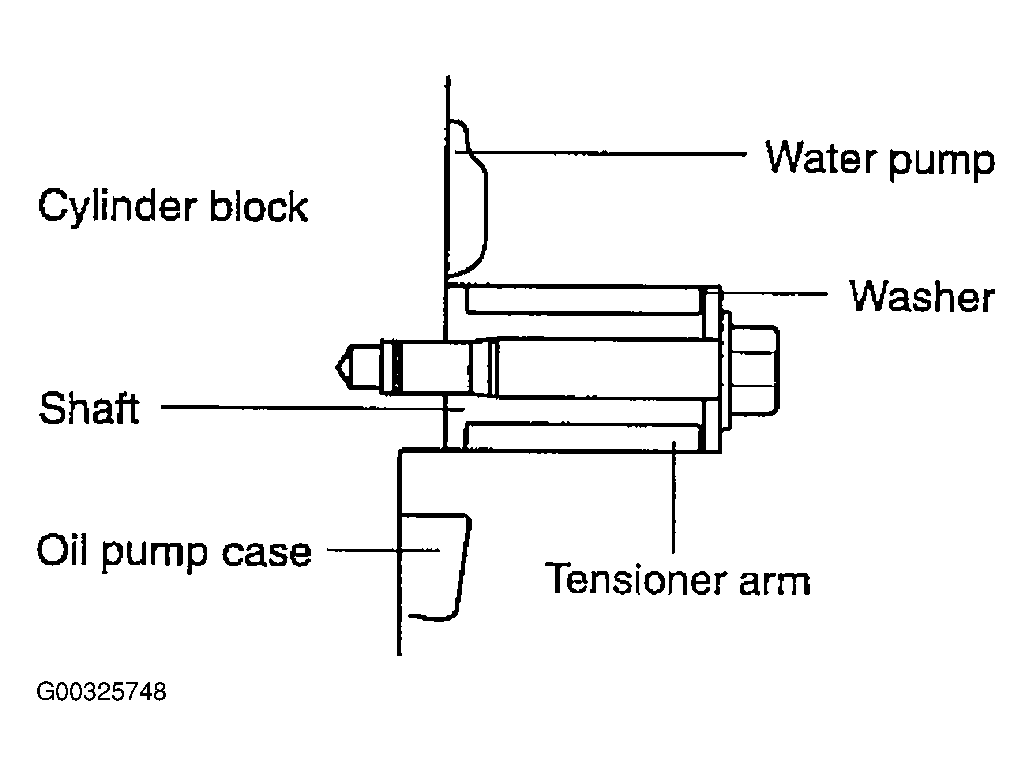

Fig 2: Installing tensioner arm
Courtesy of KIA MOTORS AMERICA, INC.
Install crankshaft sprocket and align the timing mark.

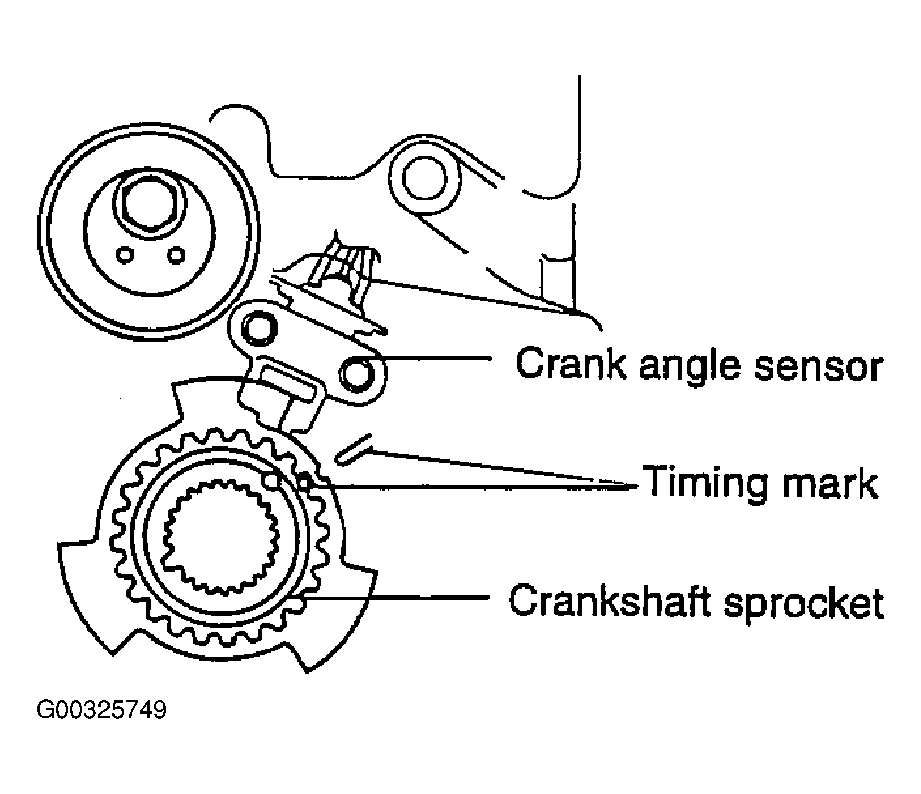

Fig 3: Installing Crankshaft Sprocket And Aligning Timing Mark
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to bend crankshaft sensing blade.

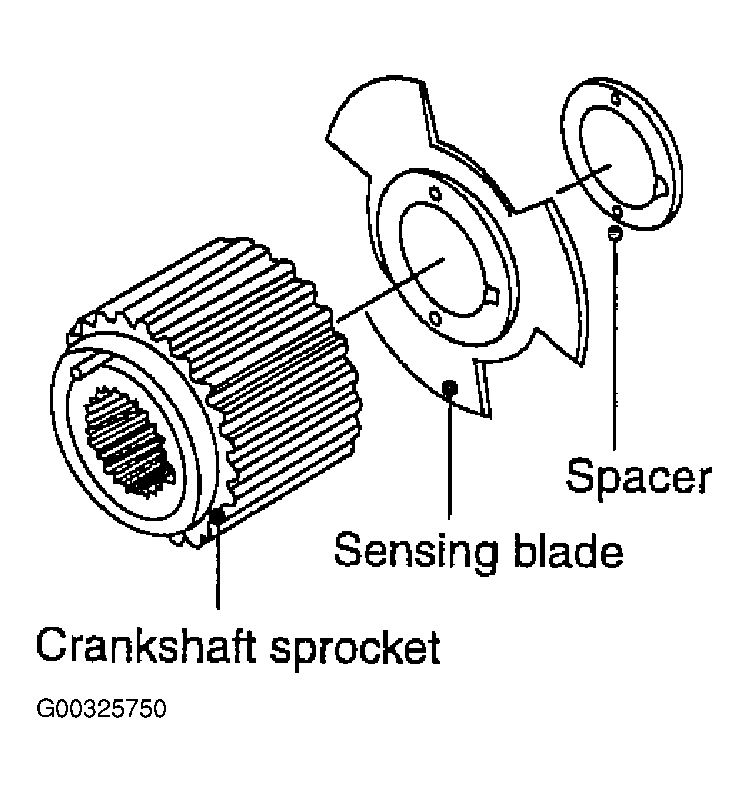

Fig 4: Identifying Sensing Blade & Spacer
Courtesy of KIA MOTORS AMERICA, INC.
Install camshaft sprocket.
Install auto tensioner to oil pump case.
NOTE: At this time auto tensioner's set pin should be assembled completely.

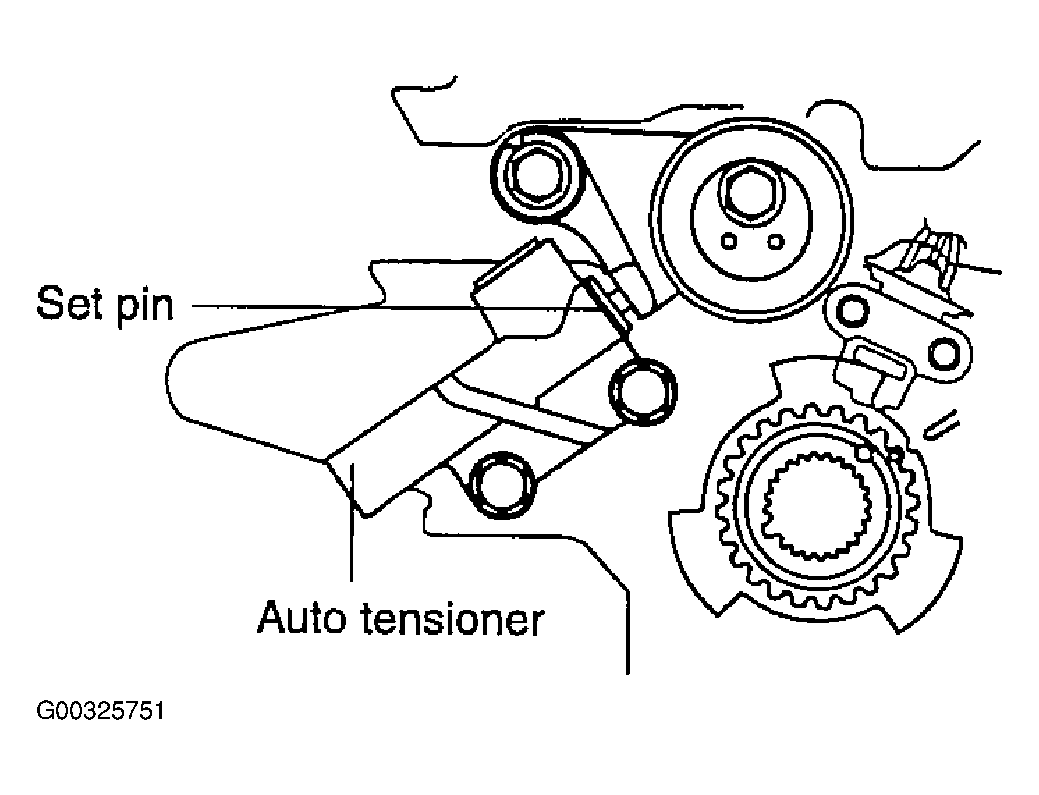

Fig 5: Assembling Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
Align the timing marks of each sprocket and install the timing belt in this order.
Crankshaft sprocket --> Idler pulley --> Exhaust camshaft sprocket (LH) --> Intake camshaft sprocket (LH) --> Water pump pulley --> Intake camshaft sprocket (RH) --> Exhaust camshaft sprocket (RH) --> Tensioner pulley

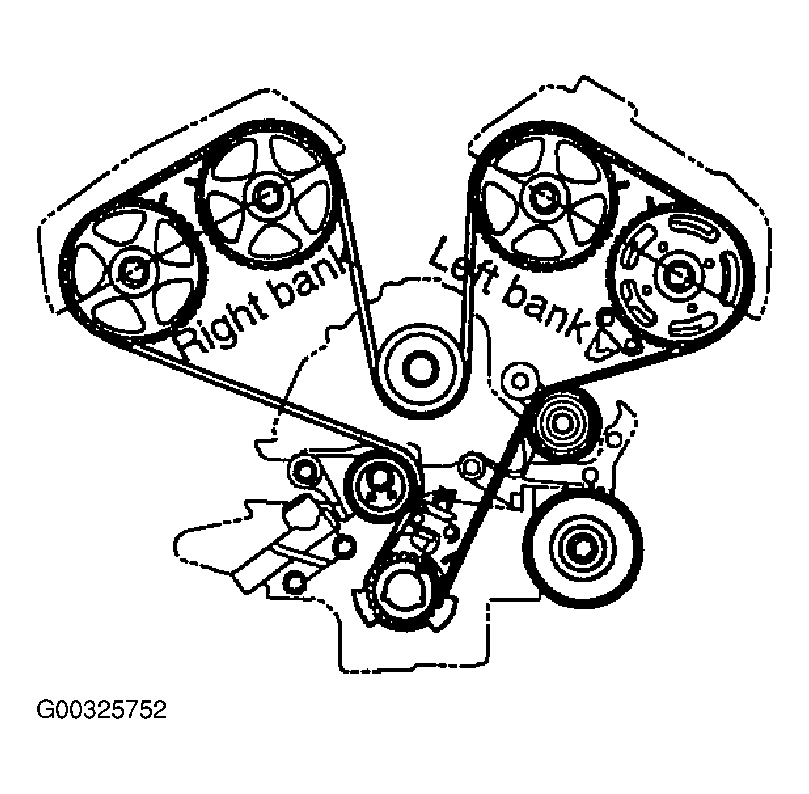

Fig 6: Installing Timing Belt & Aligning Timing Marks
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- In this step, No. 1 is in TDC (Compression stroke)
- Do not insert fingers.
After installing the timing belt, reconfirm the timing mark.
Rotate the crankshaft 1/4 rotation counterclockwise and then rotate the crankshaft clockwise with align the timing mark.
Loosen the center bolt of tensioner pulley.
Apply tension for timing belt by rotating the tensioner pulley with SST (09244--28100) and torque wrench.

Tension torque : 0.5 kg.m

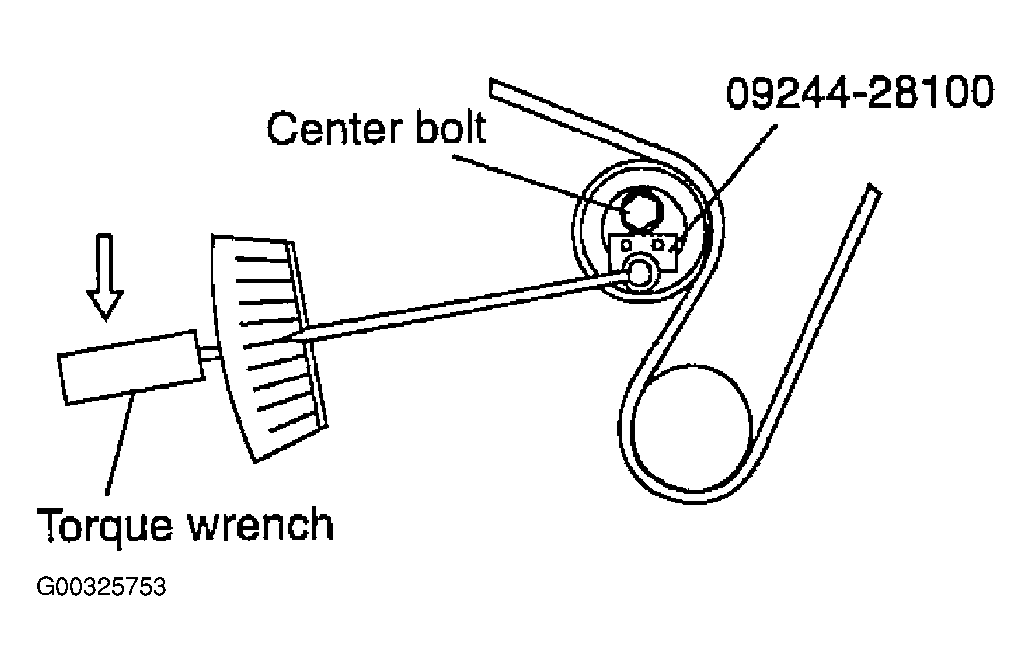

Fig 7: Adjusting Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the center bolt of tensioner pulley.
Tightening torque : 4.3 ~ 5.5 kg.m
Pull out the set pin of auto tensioner.

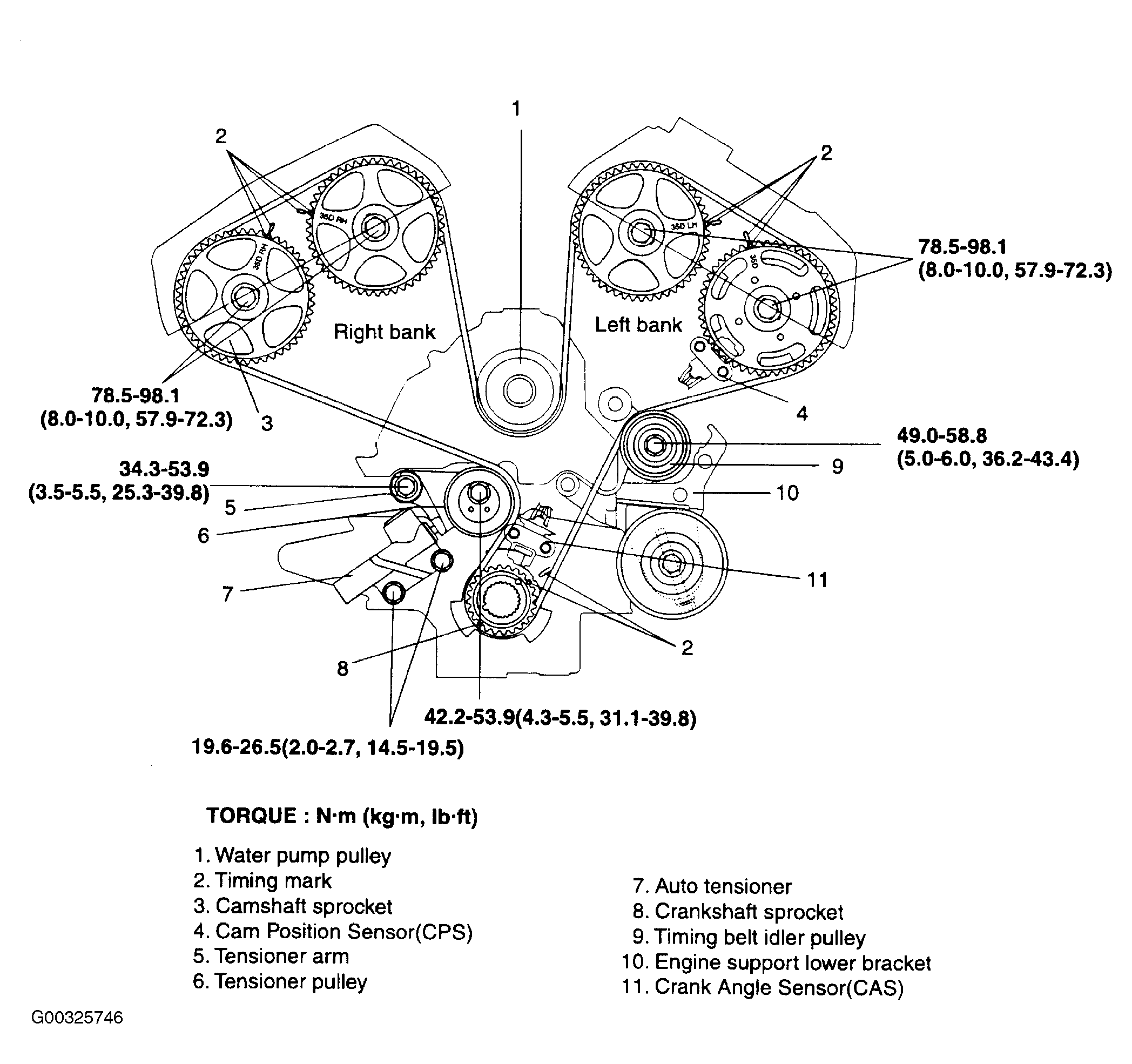

Fig 8: Timing Belt System Tightening Specifications

Courtesy of KIA MOTORS AMERICA, INC.
