Spark Plug Cable: Installation

Improper arrangement of spark plug cables may induce flashover between the cables, causing misfiring and surging at acceleration in high-speed operations.

Therefore, be careful to arrange the spark plug cables properly as shown in the illustration.

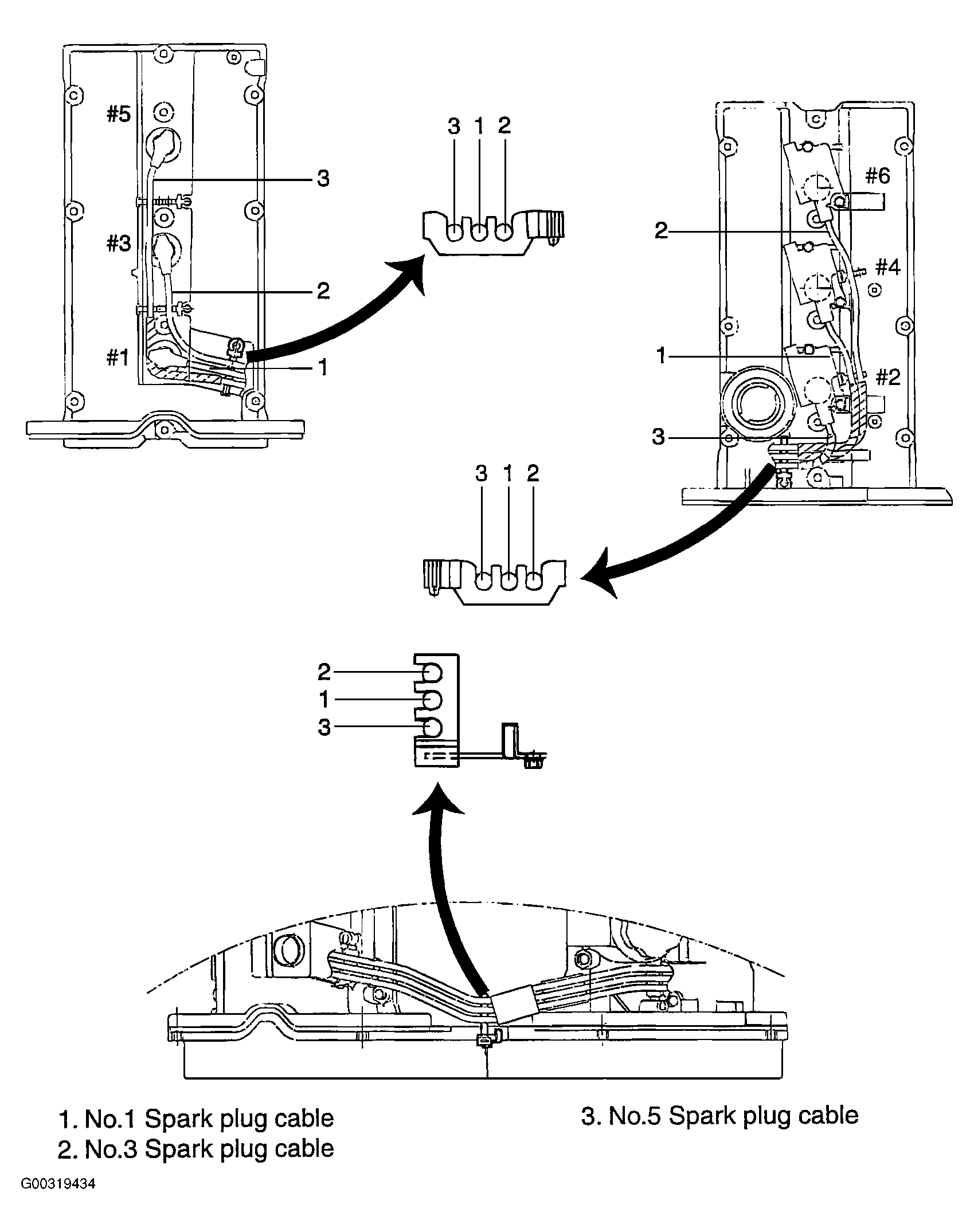

Fig 1: Positioning Spark Plug Cables
G00319434Courtesy of KIA MOTORS AMERICA, INC.
