Ecu Connector

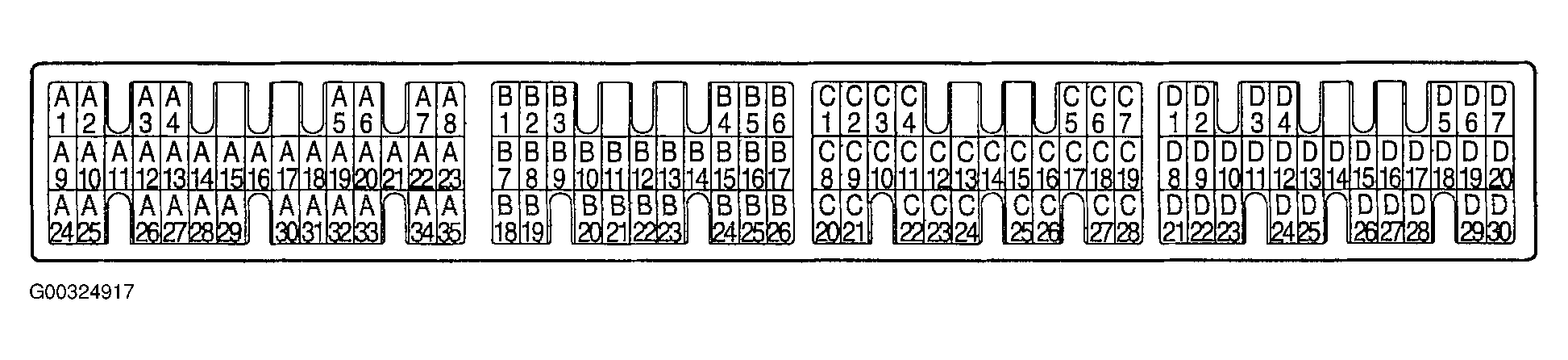

ECU Connector

Fig 1: ECU Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.

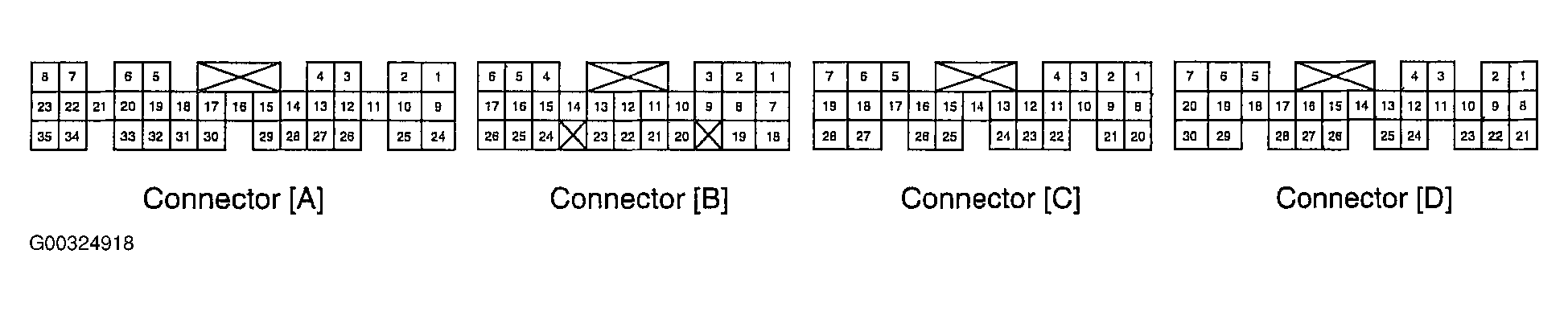

Harness Side Connector

Fig 2: ECU Harness Side Connector
Courtesy of KIA MOTORS AMERICA, INC.
