Fuel Injector
>>
Harness Connector
Harness Connector

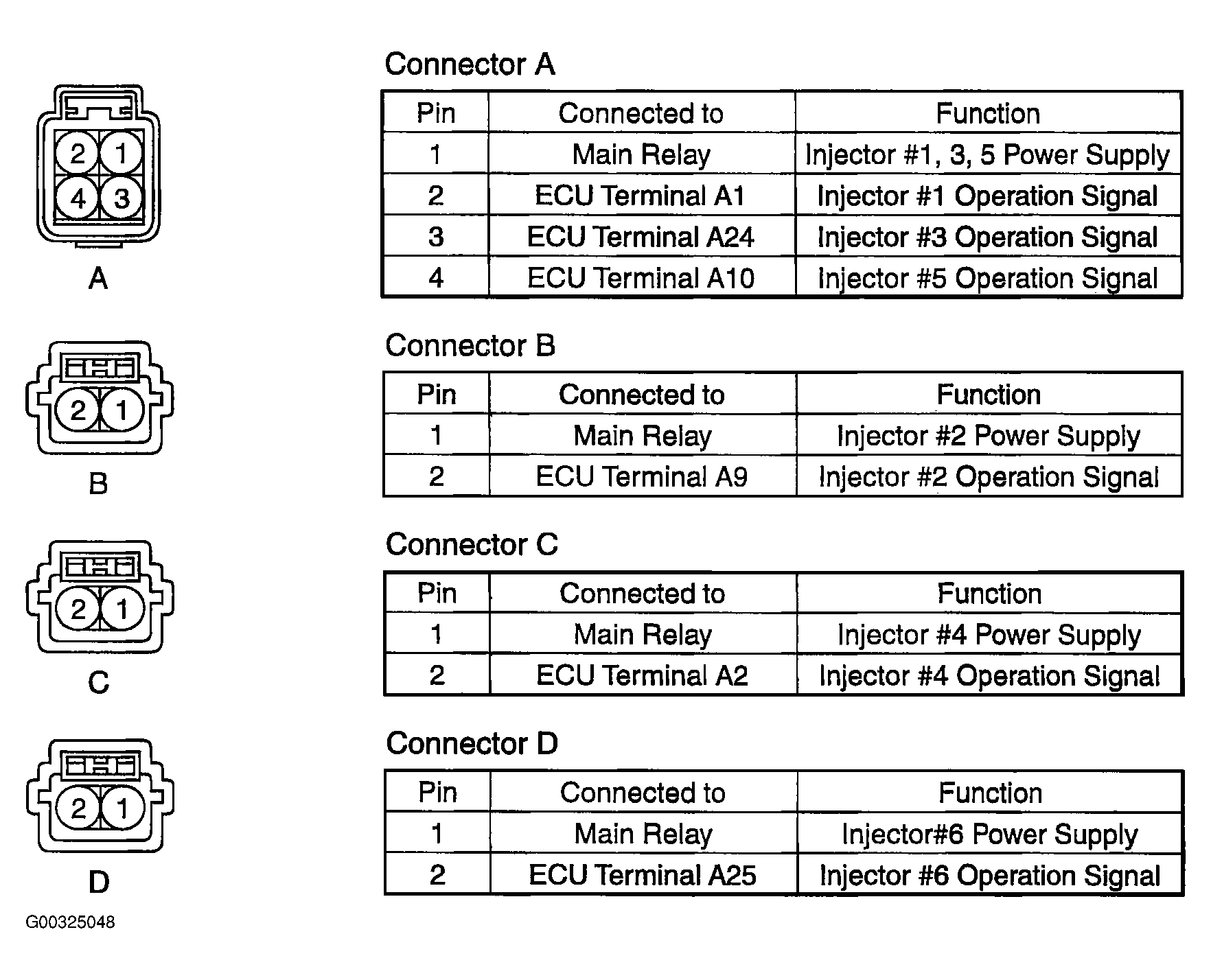

Fig 1: Illustrating Fuel Injector Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
