Using Voltmeter

  1. Resistance measurement between terminals
    1. Disconnect the connector at the injector.
    2. Measure the resistance between terminals.

      Standard value: 13 - 16Ω (at 20 °C (68 °F))

    3. Re-connect the connector to the injector.

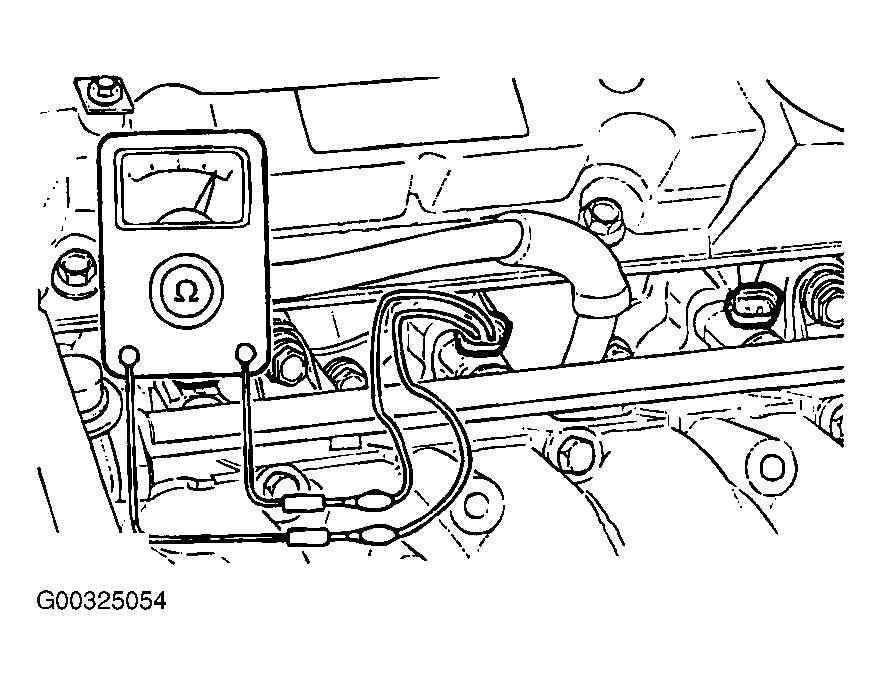

Fig 1: Testing Injector Resistance
G00325054Courtesy of KIA MOTORS AMERICA, INC.
