Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Engine Control System >> MFI Control System >> Limp-Home Valve >> Troubleshooting Procedures >> Notes

Troubleshooting Procedures: Notes

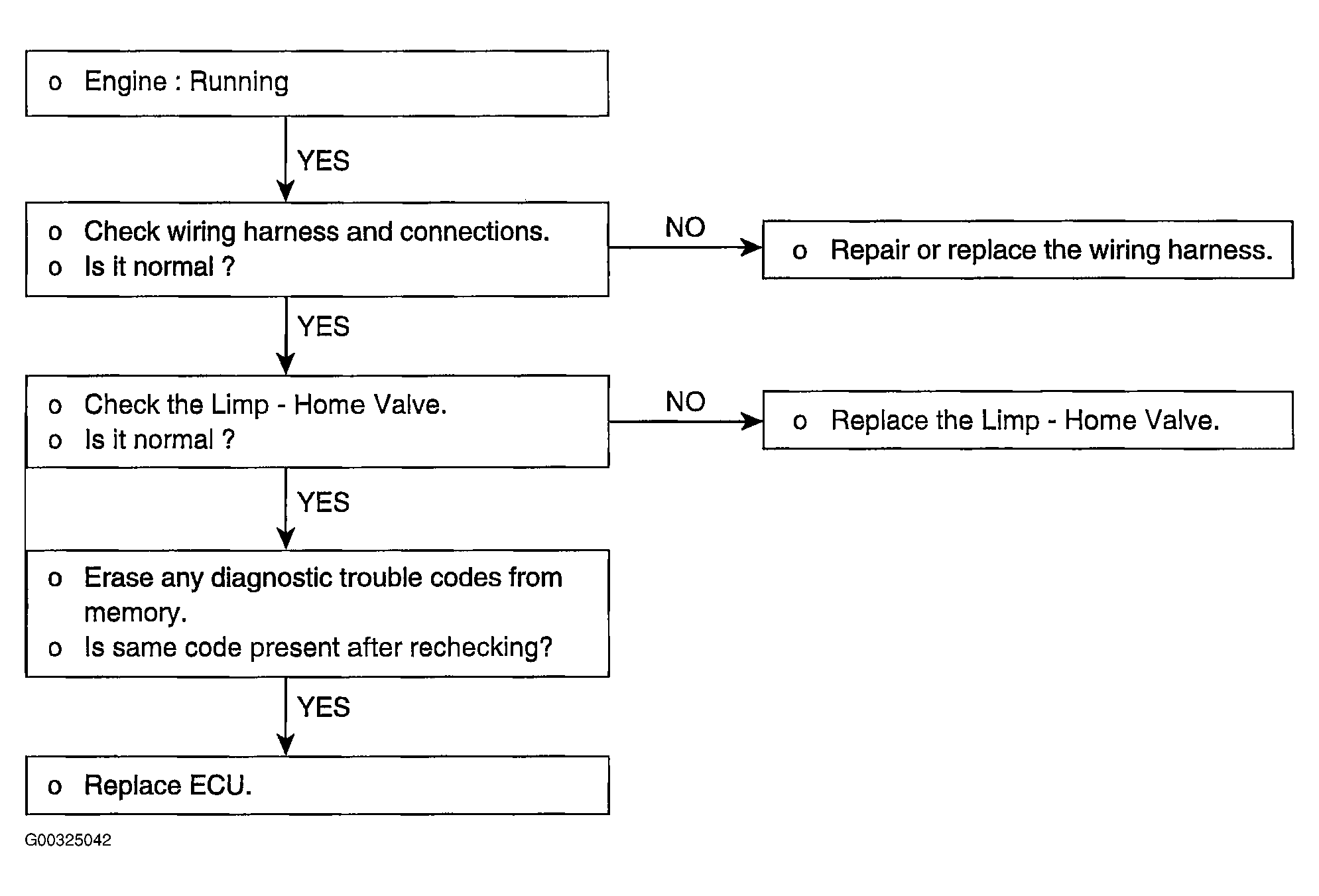

Fig 1: Illustrating Limp-Home Trouble Chart
G00325042Courtesy of KIA MOTORS AMERICA, INC.
