Harness Inspection Procedures

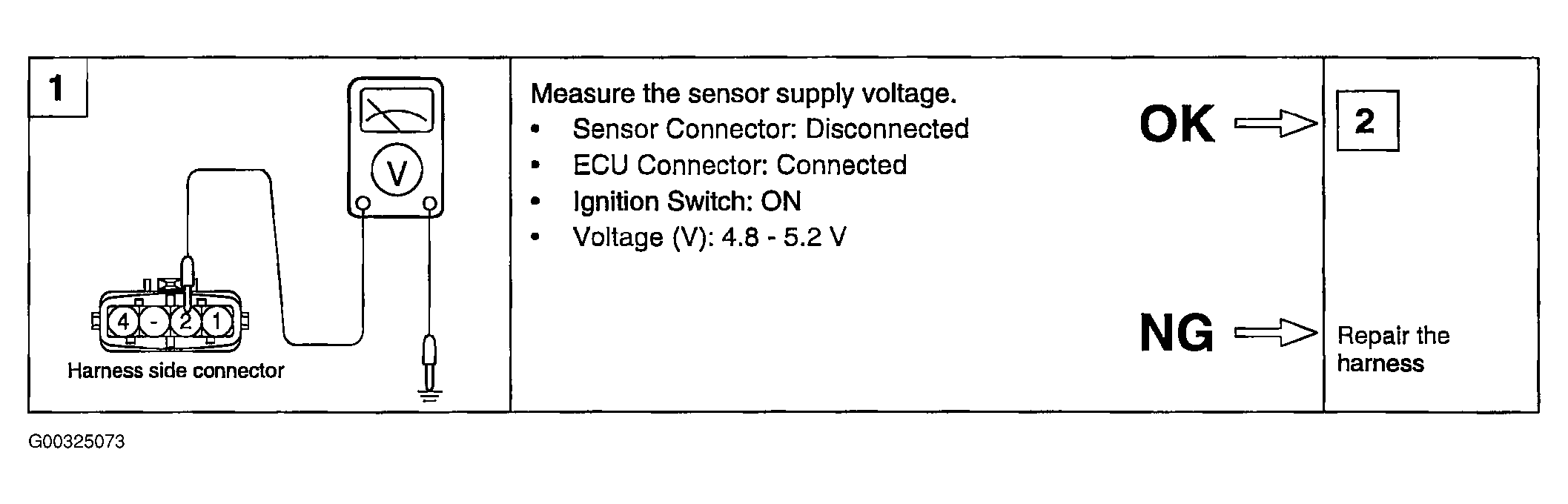

Fig 1: Illustrating MAP Harness Inspection Procedure (1 Of 3)
G00325073Courtesy of KIA MOTORS AMERICA, INC.

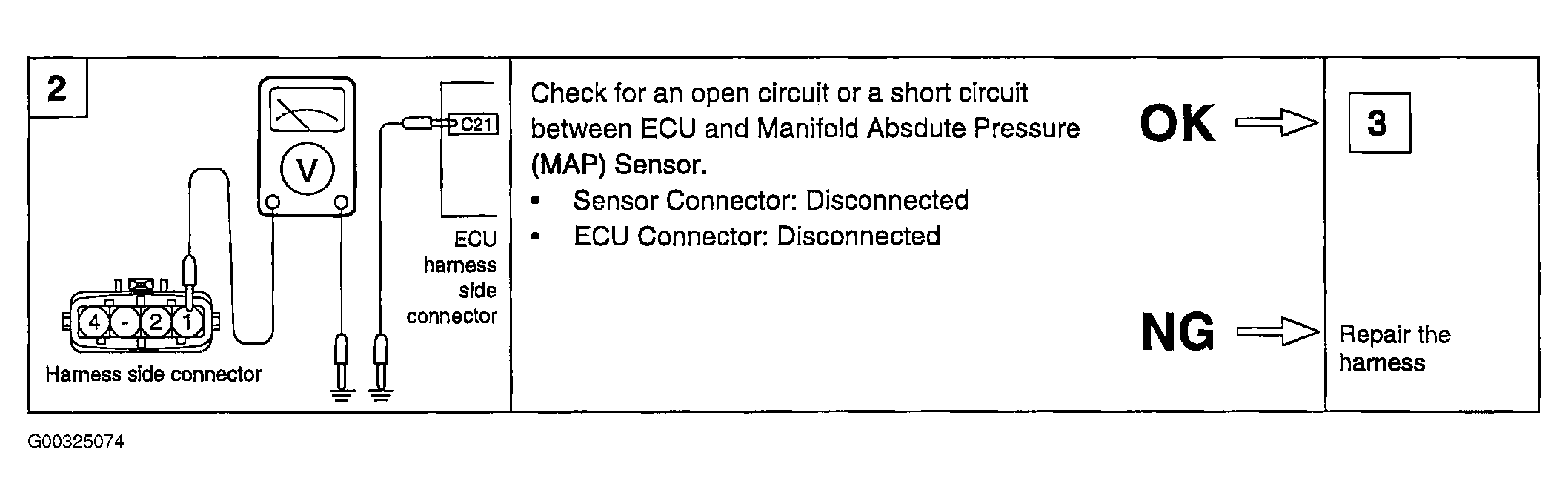

Fig 2: Illustrating MAP Harness Inspection Procedure (2 Of 3)
G00325074Courtesy of KIA MOTORS AMERICA, INC.

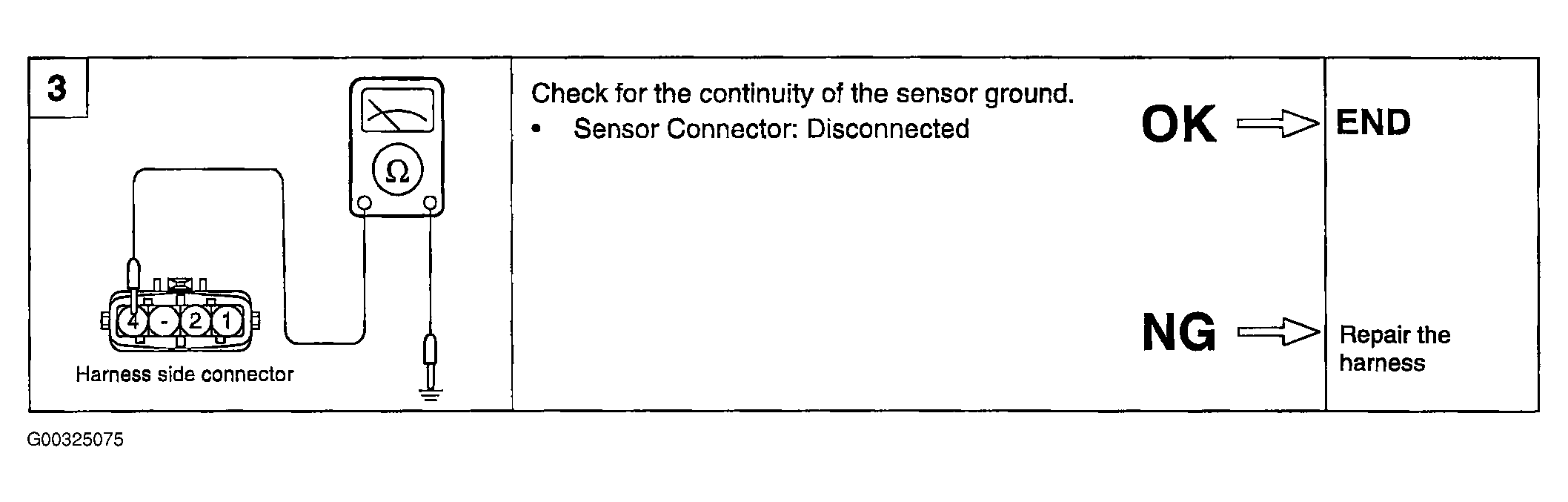

Fig 3: Illustrating MAP Harness Inspection Procedure (3 Of 3)
G00325075Courtesy of KIA MOTORS AMERICA, INC.
