Troubleshooting Procedures: Notes

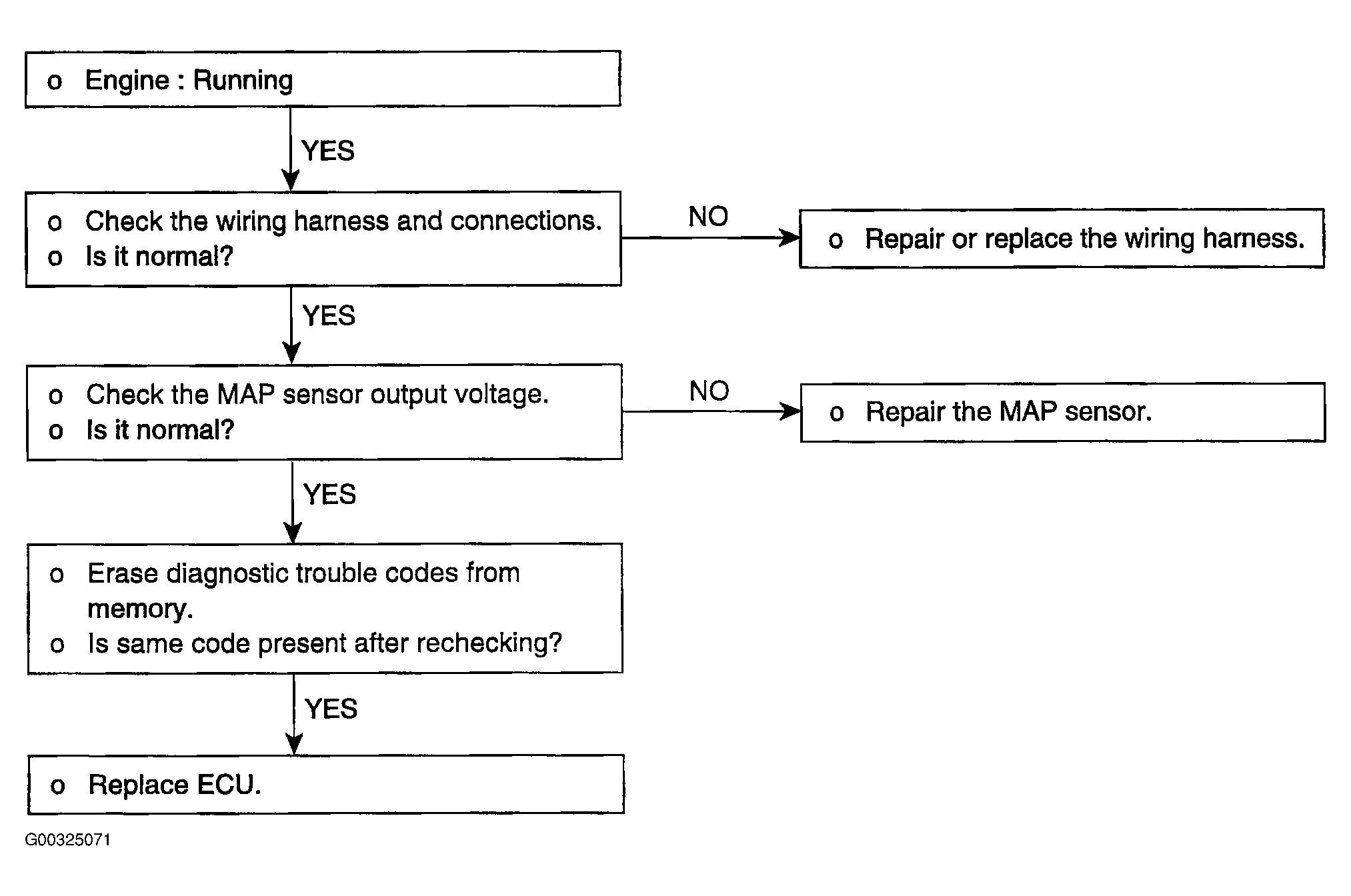

Fig 1: Illustrating MAP Trouble Diagram
G00325071Courtesy of KIA MOTORS AMERICA, INC.
