Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Engine Control System >> MFI Control System >> Water Temperature Sensor (WTS) >> Sensor Inspection >> Using Multi Meter

Using Multi Meter

  1. With the temperature sensing portion of Water Temperature Sensor (WTS) immersed in hot engine coolant, check the resistance.

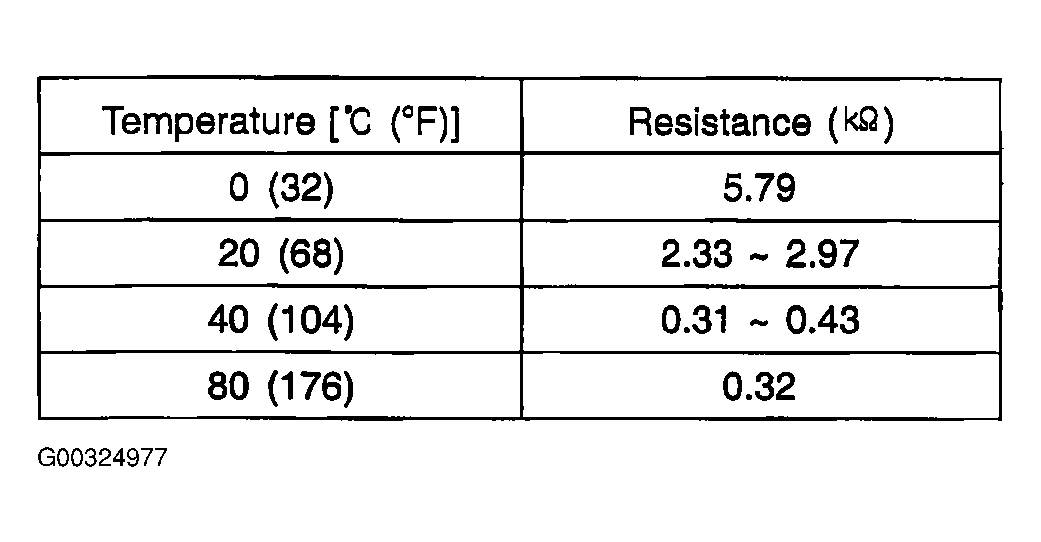

    Fig 1: Illustrating WTS Resistance Chart
    G00324977Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Testing WTS Resistance
    G00324978Courtesy of KIA MOTORS AMERICA, INC.
  2. If the resistance deviates from the standard value greatly, replace the sensor.
