Charging Systems: Generator: Reassembly
Perform reassembly in the reverse procedure of disassembly. Pay attention to the following:

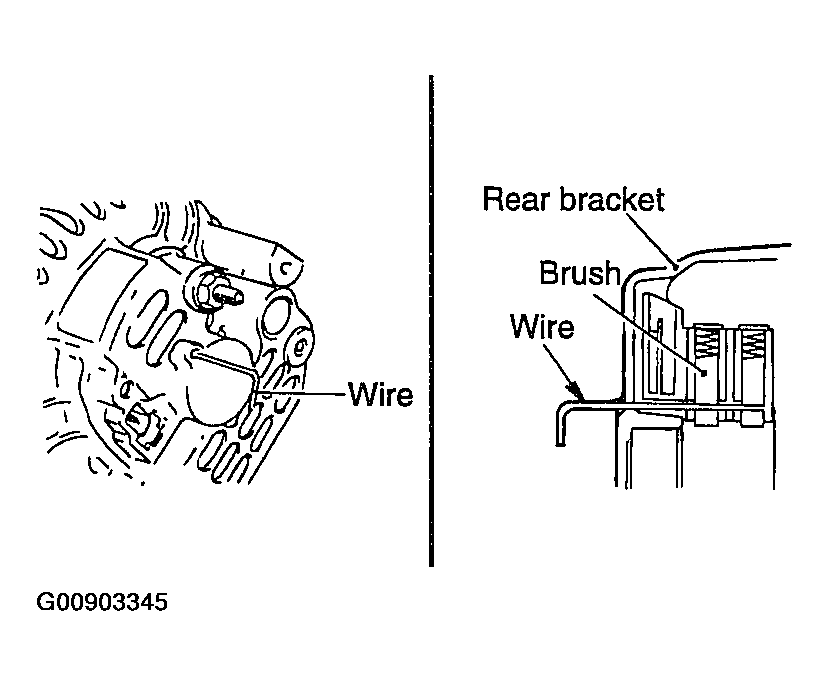

Before the rotor is attached to the rear bracket, insert a wire through the small hole in the rear bracket to lock the brush. After the rotor has been installed, the wire can be removed.
