Home >> Kia >> 2004 >> Optima EX, 2.4 6 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator >> Removal

Charging Systems: Generator: Removal

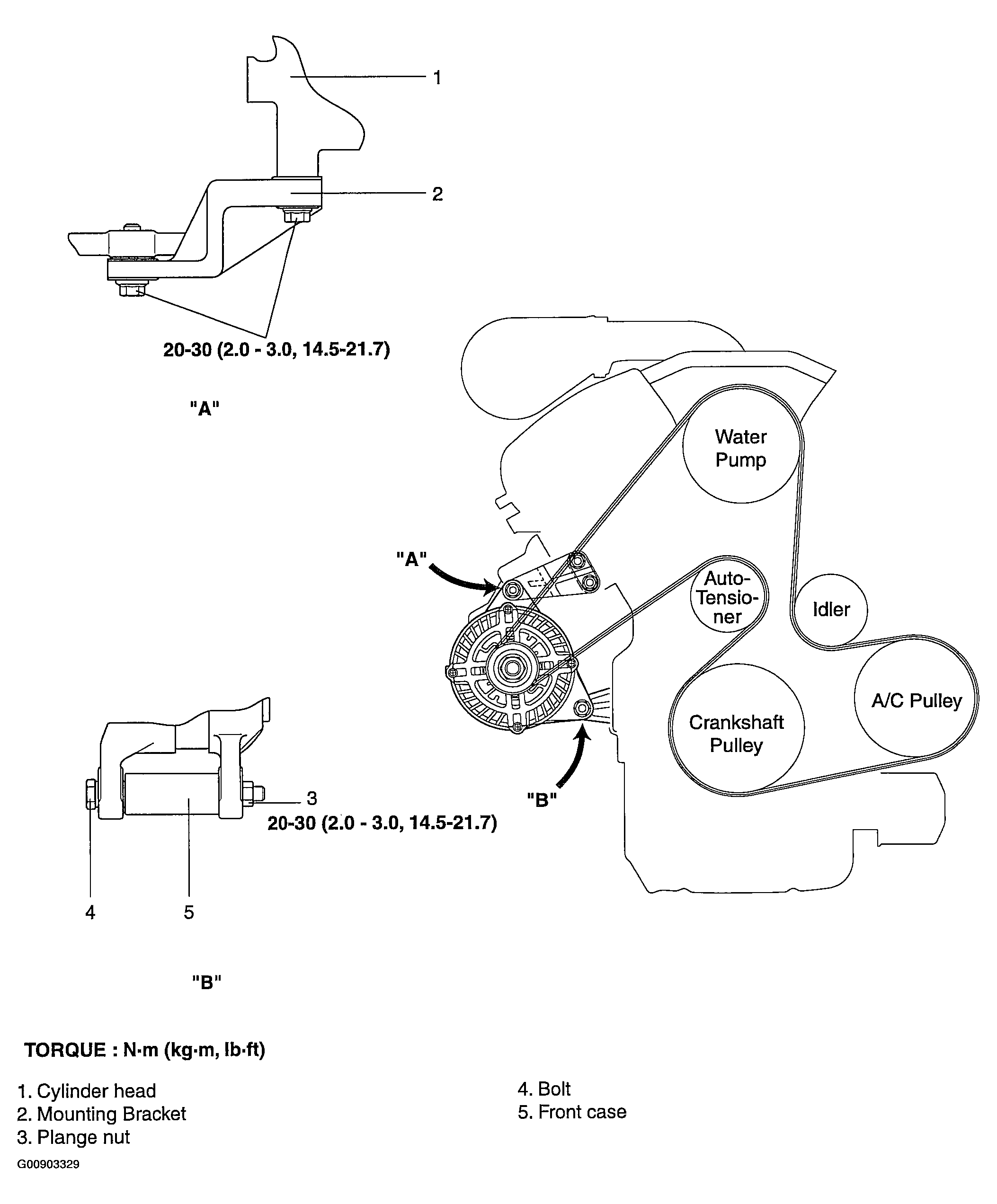

Fig 1: Removing & Installing Generator (2.7L)

G00903329

Courtesy of KIA MOTORS AMERICA, INC.

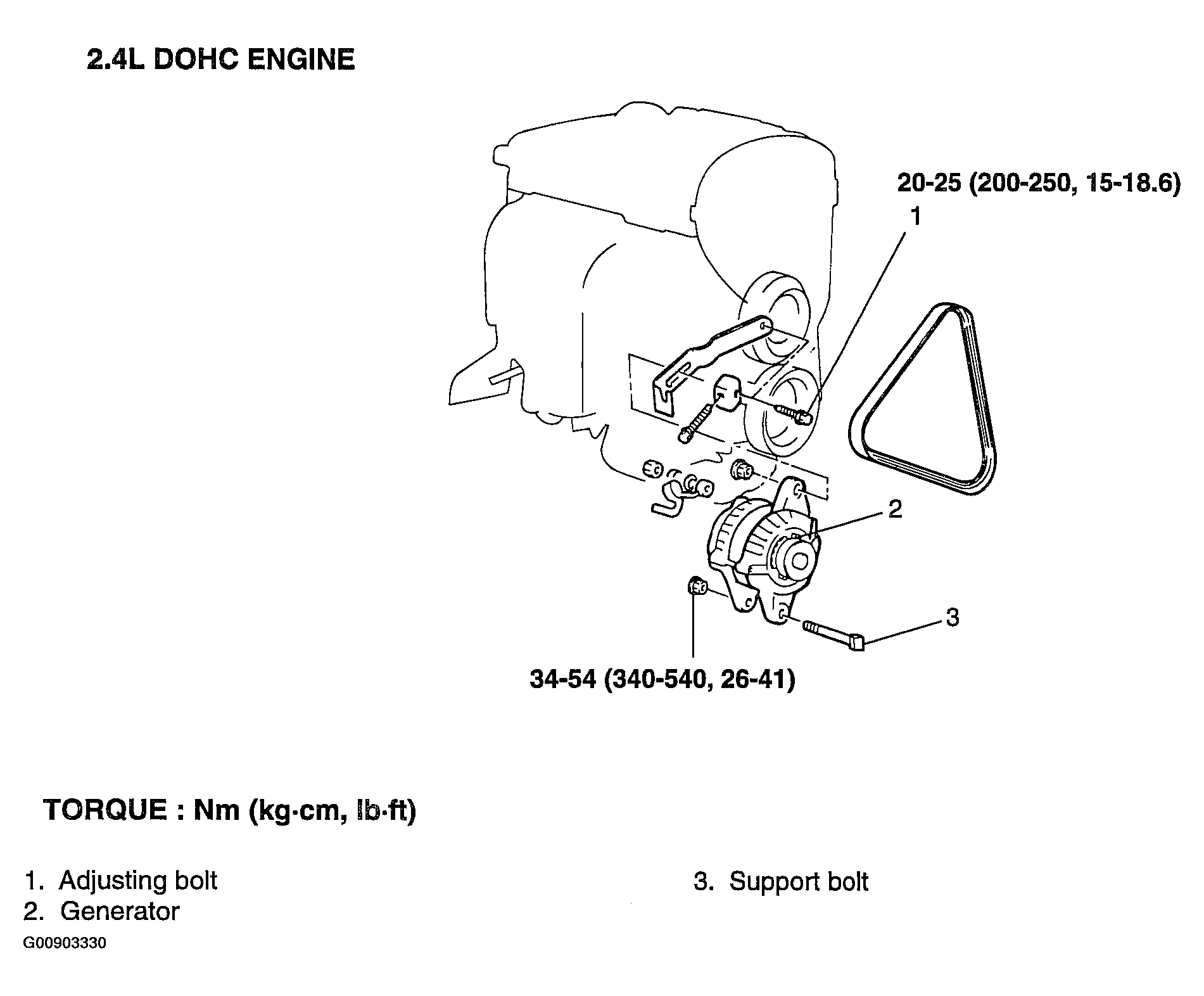

Fig 2: Removing & Installing Generator (2.4L)

G00903330

Courtesy of KIA MOTORS AMERICA, INC.
