Home >> Kia >> 2004 >> Optima EX, 2.4 6 >> Repair and Diagnosis >> Steering >> Steering Column >> General >> Troubleshooting

Steering Column: General: Troubleshooting

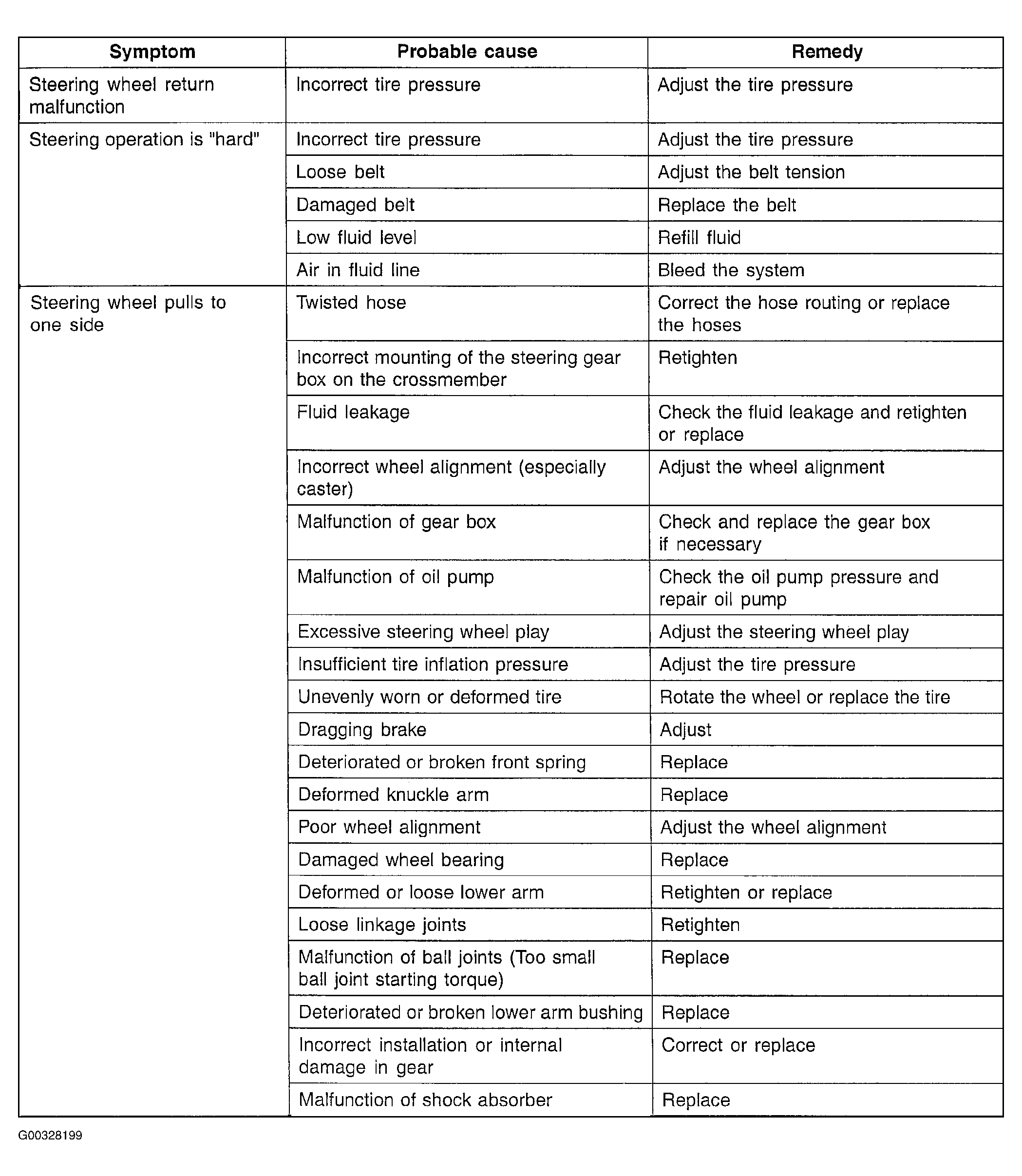

Fig 1: Identifying Steering System Troubleshooting Chart (1 Of 3)
G00328199Courtesy of KIA MOTORS AMERICA, INC.

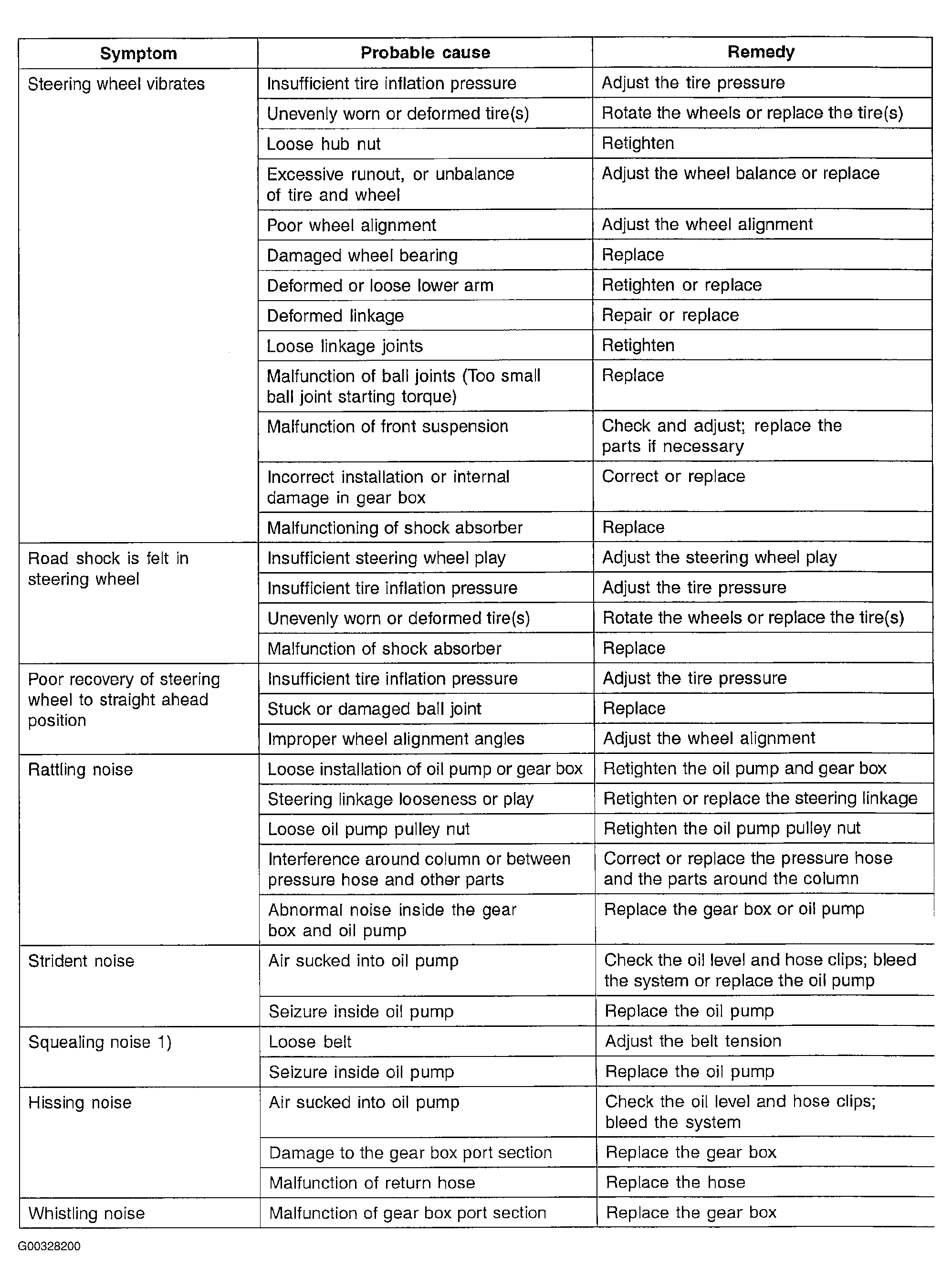

Fig 2: Identifying Steering System Troubleshooting Chart (2 Of 3)
G00328200Courtesy of KIA MOTORS AMERICA, INC.

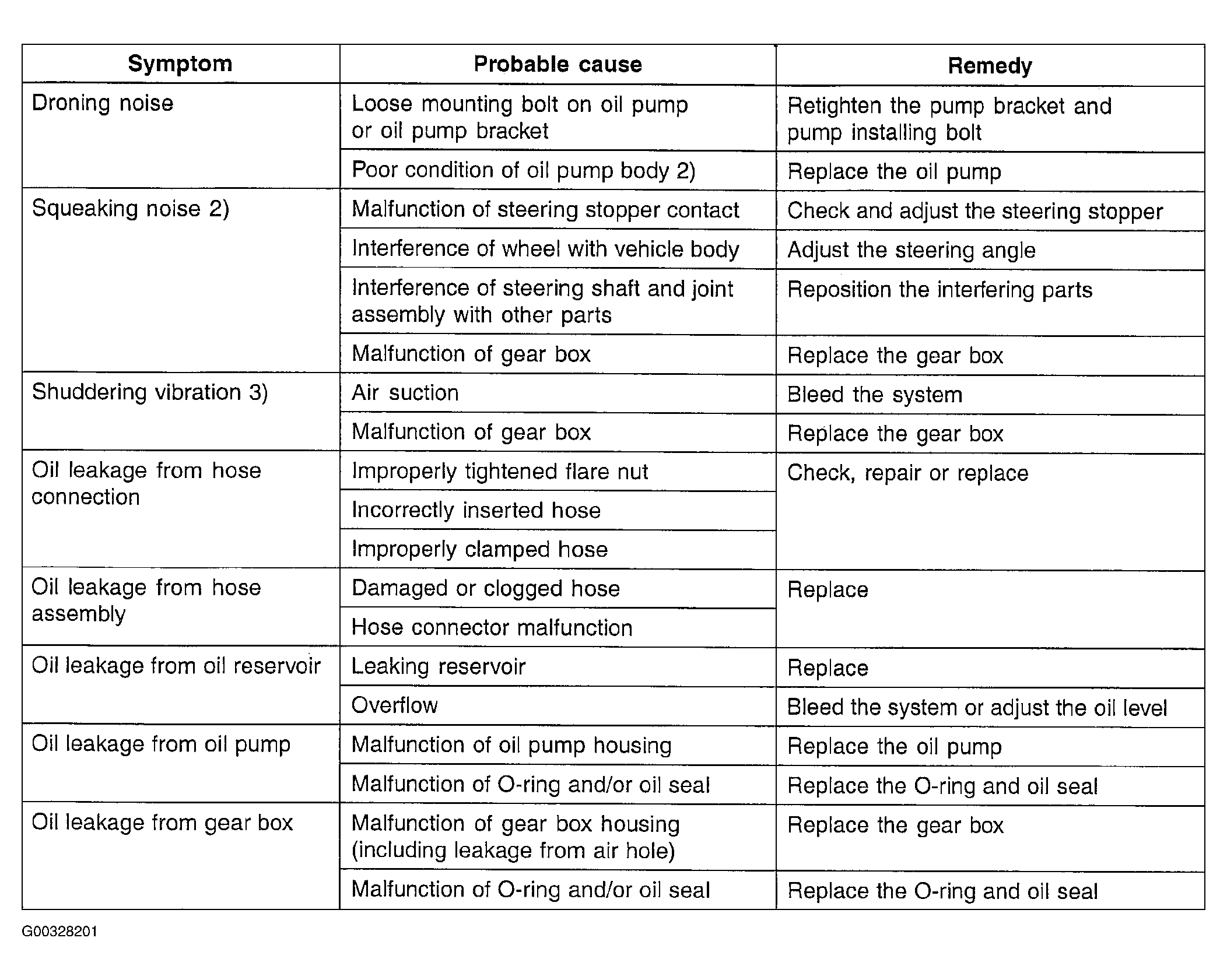

Fig 3: Identifying Steering System Troubleshooting Chart (3 Of 3)
G00328201Courtesy of KIA MOTORS AMERICA, INC.
