Power Window Main Switch

  1. Remove the switch from the door trim panel. See REMOVAL & INSTALLATION  .
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

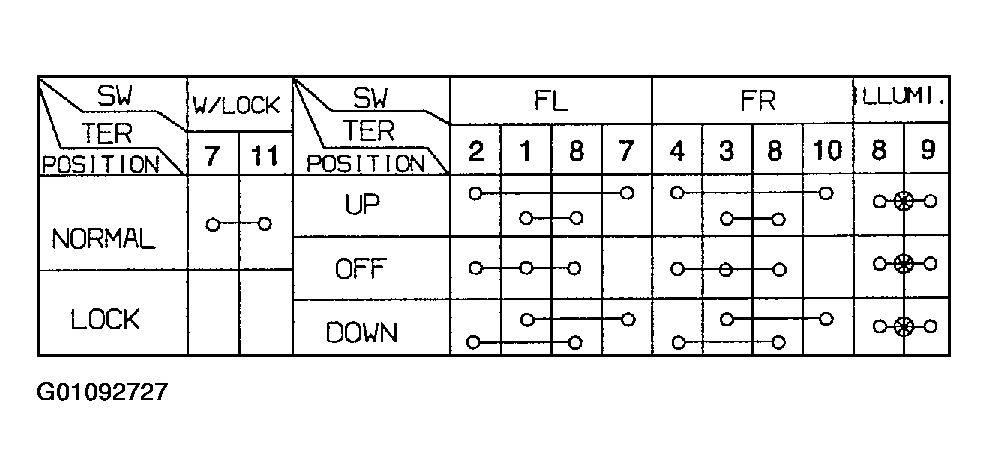

    Fig 1: Checking Power Window Main Switch Continuity
    G01092727Courtesy of KIA MOTORS AMERICA, INC.

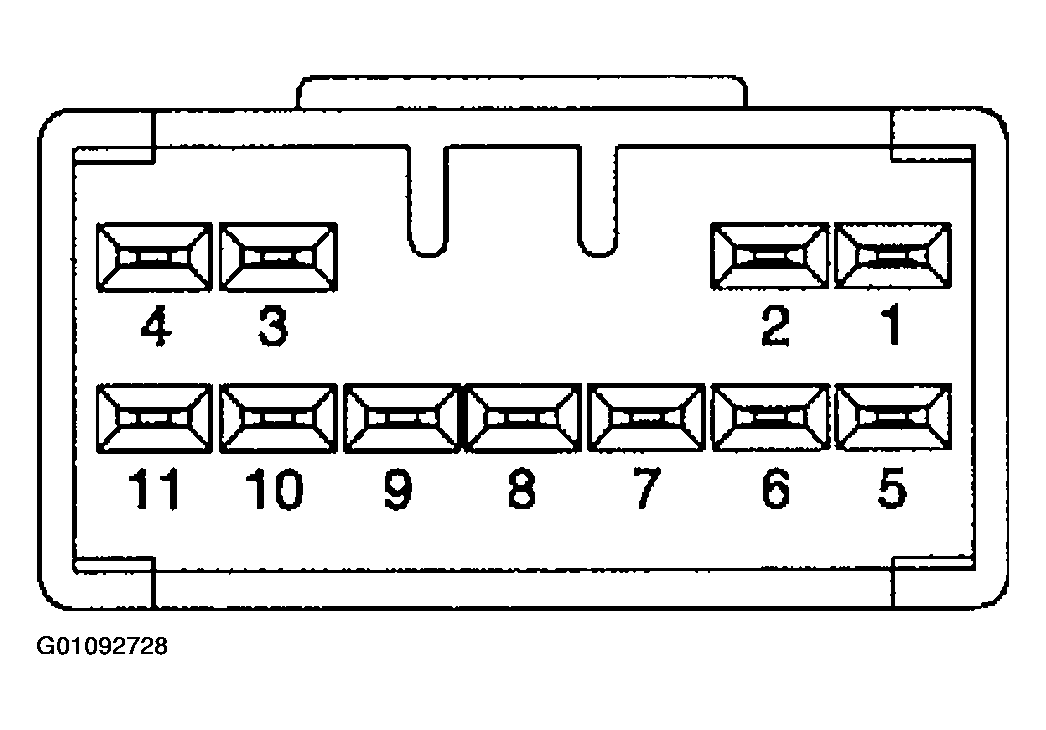

    Fig 2: Identifying Power Window Main Switch Connector Terminals
    G01092728Courtesy of KIA MOTORS AMERICA, INC.
