Power Window Switch
>>
Inspection
>>
Power Window Sub Switch
Power Window Sub Switch

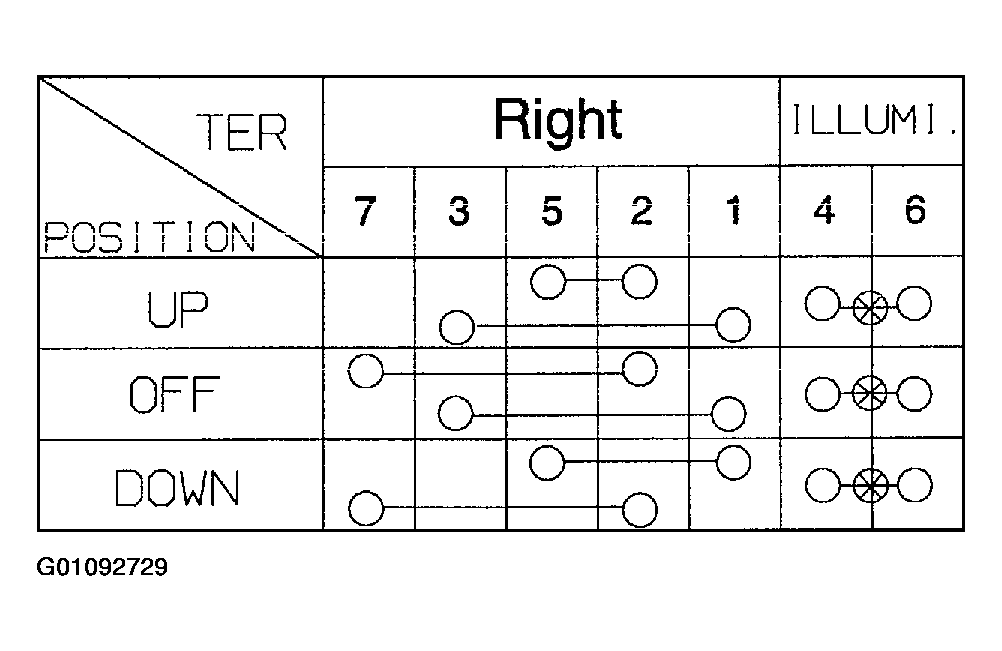

Fig 1: Checking Power Window Sub Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.

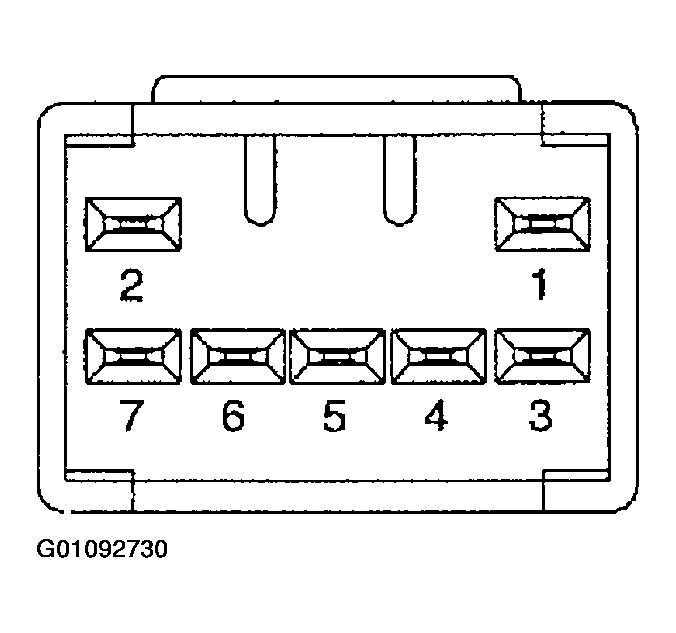

Fig 2: Identifying Power Window Sub Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
