Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

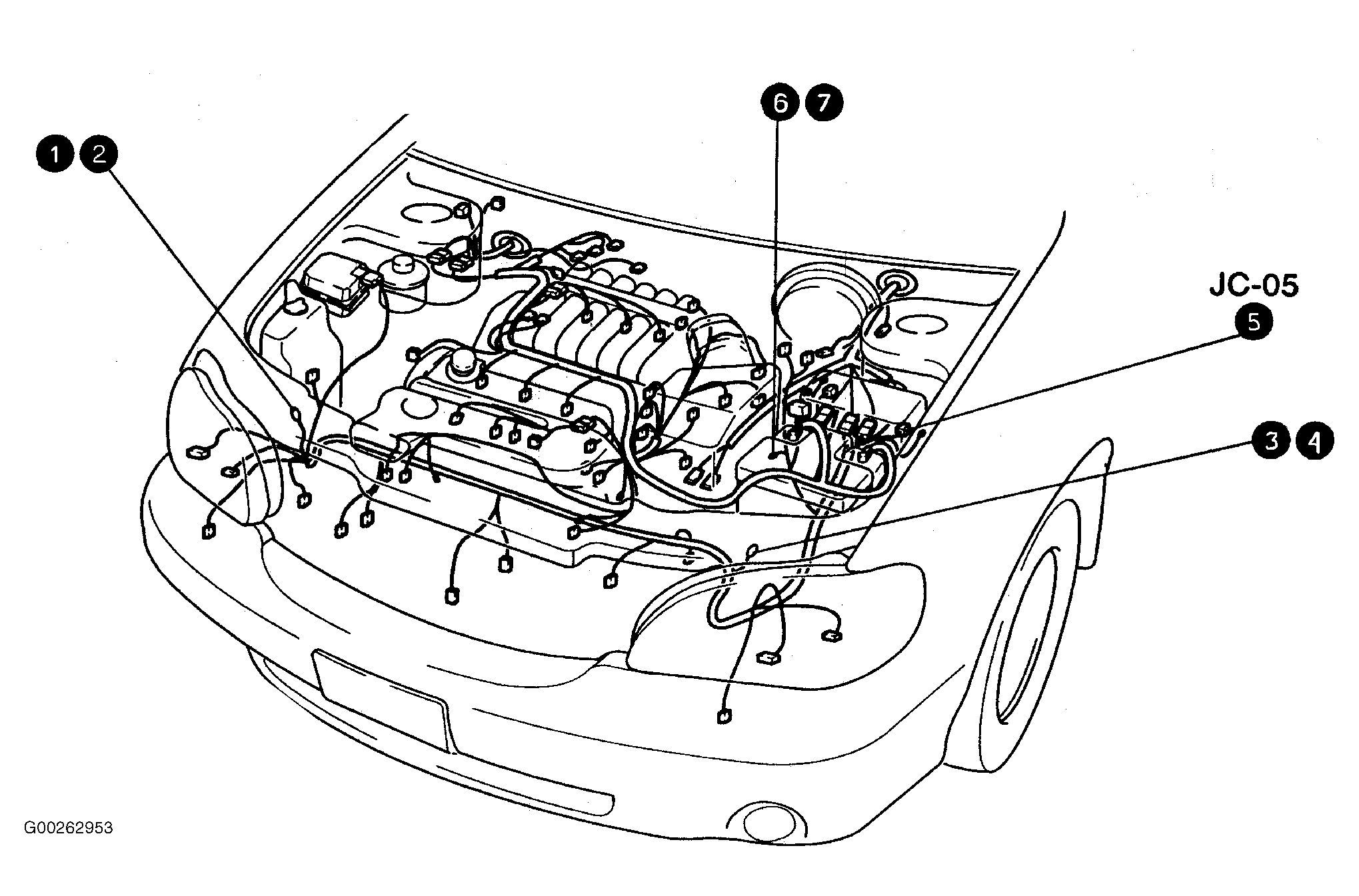

Fig 1: Ground Points
G00262953Courtesy of KIA MOTORS AMERICA, INC.

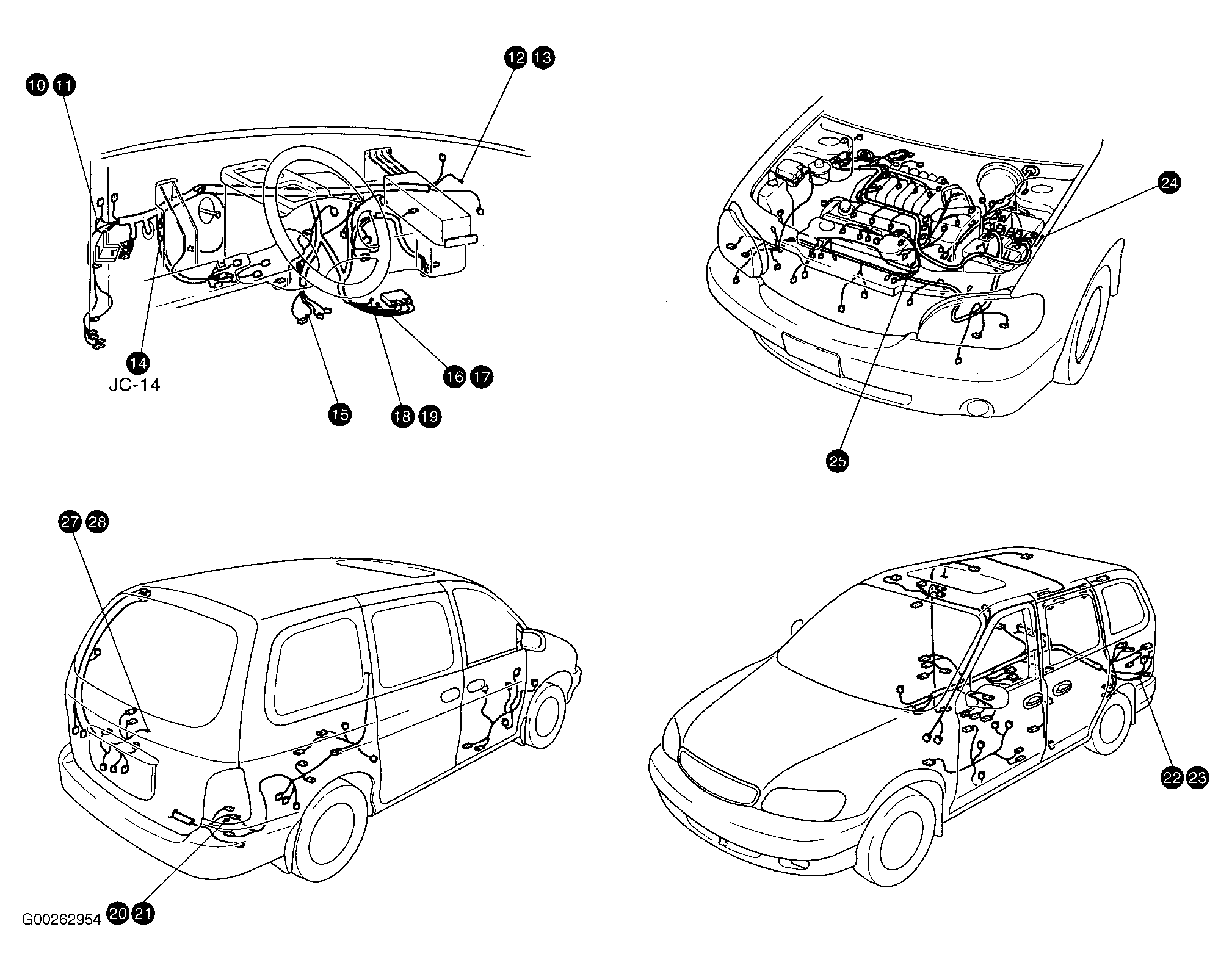

Fig 2: Ground Points
G00262954Courtesy of KIA MOTORS AMERICA, INC.

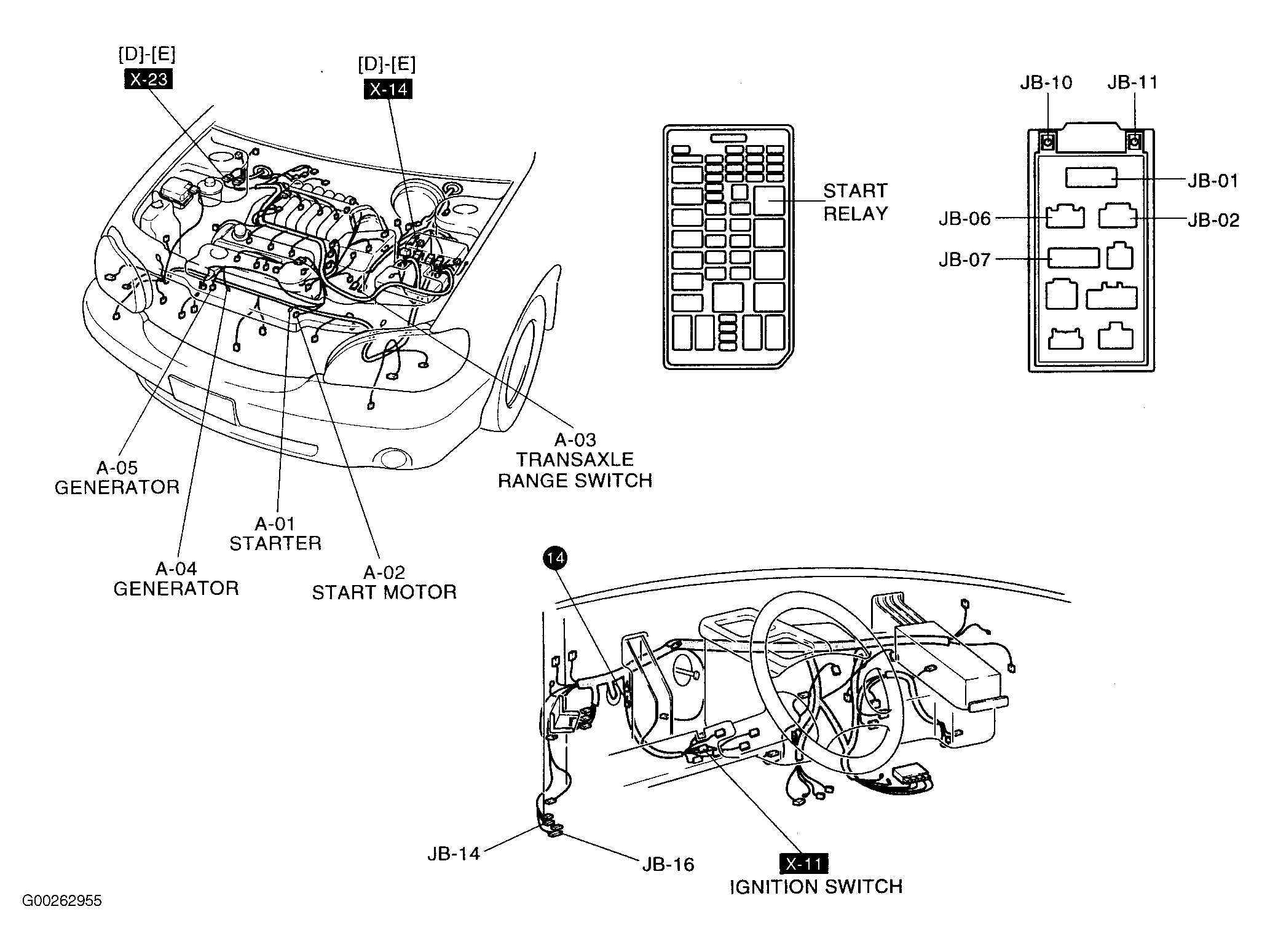

Fig 3: Starting & Charging System
G00262955Courtesy of KIA MOTORS AMERICA, INC.
Fig 4: Powertrain Control System
G00262956Courtesy of KIA MOTORS AMERICA, INC.

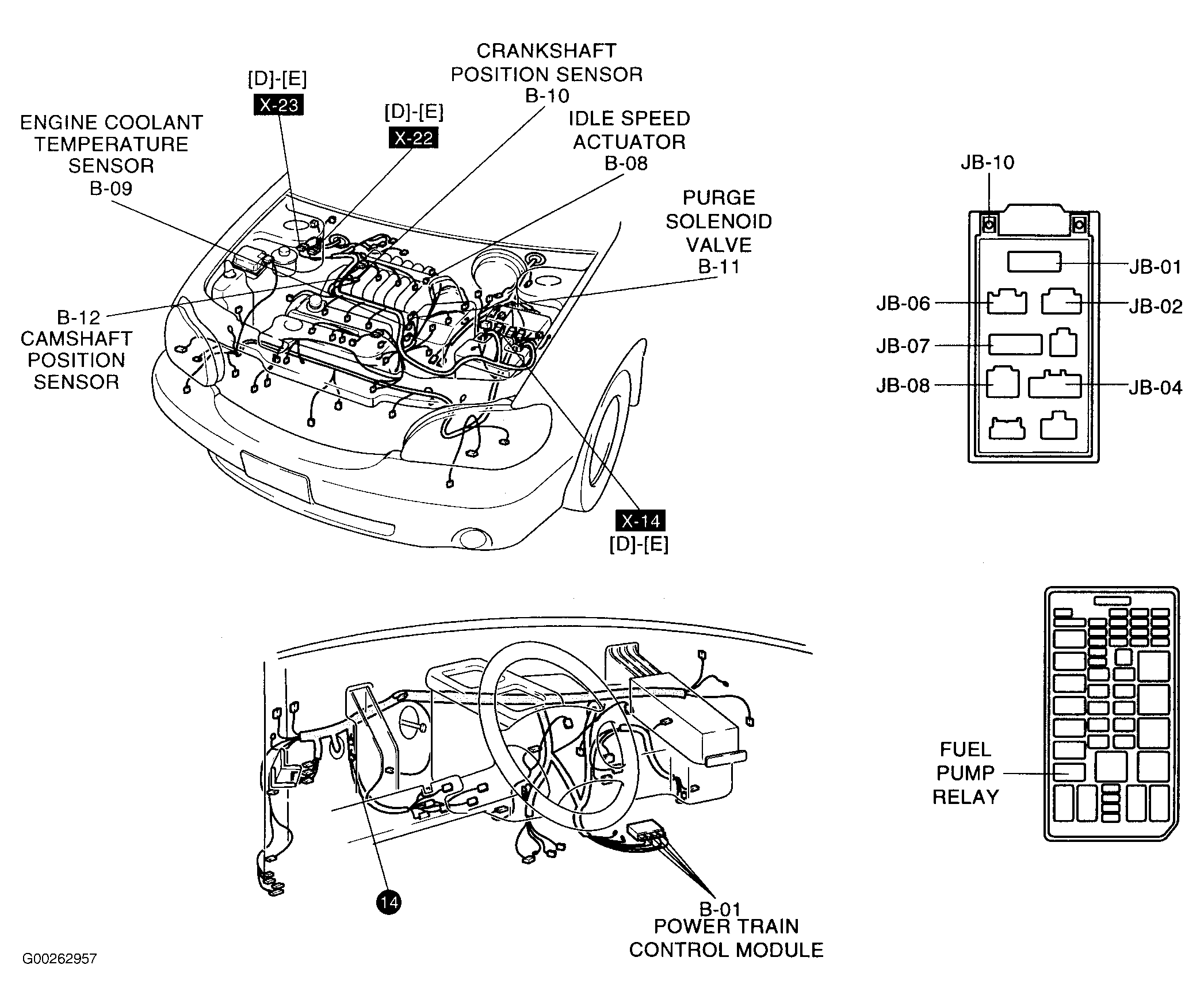

Fig 5: Powertrain Control System
G00262957Courtesy of KIA MOTORS AMERICA, INC.

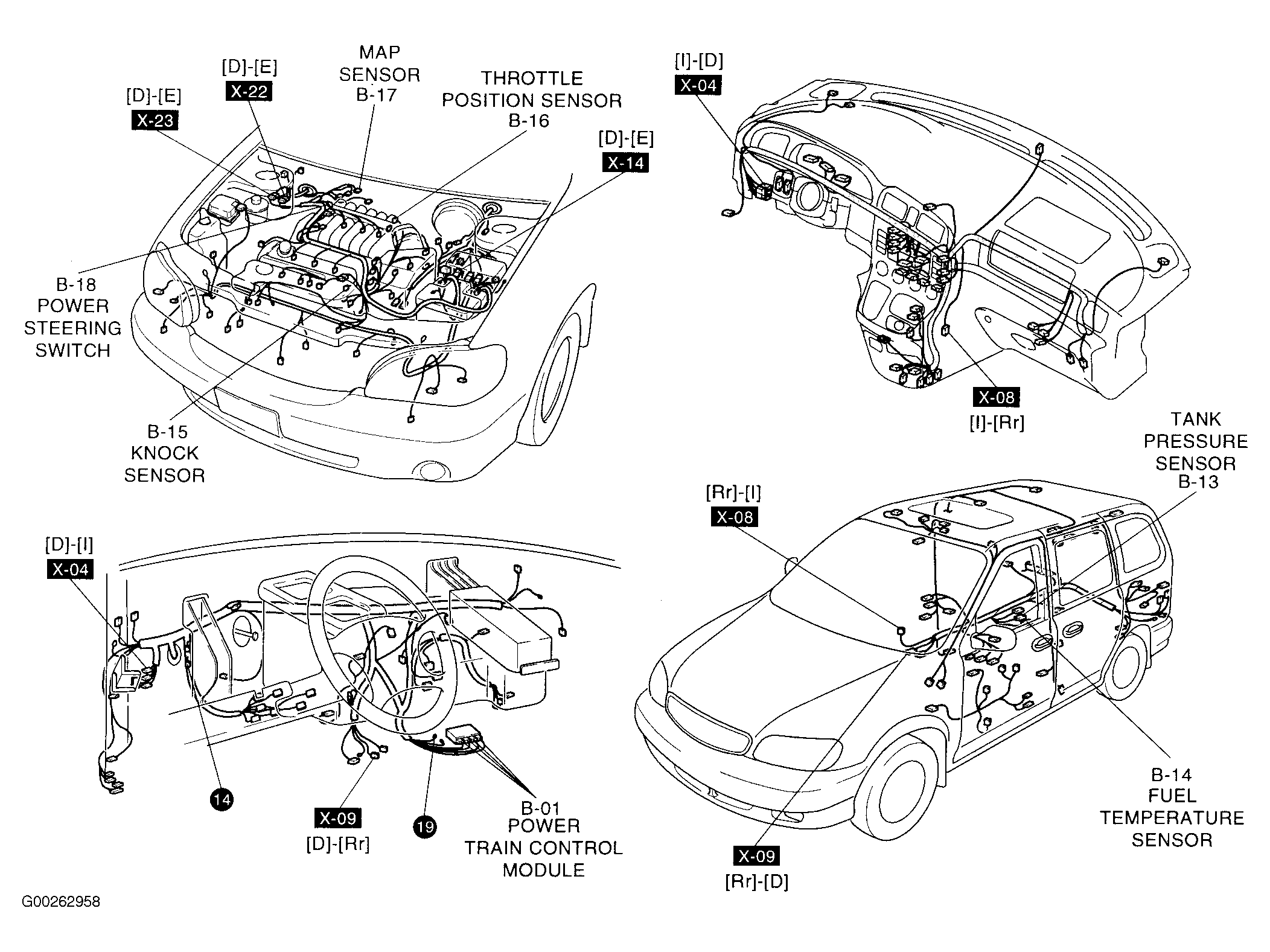

Fig 6: Powertrain Control System
G00262958Courtesy of KIA MOTORS AMERICA, INC.

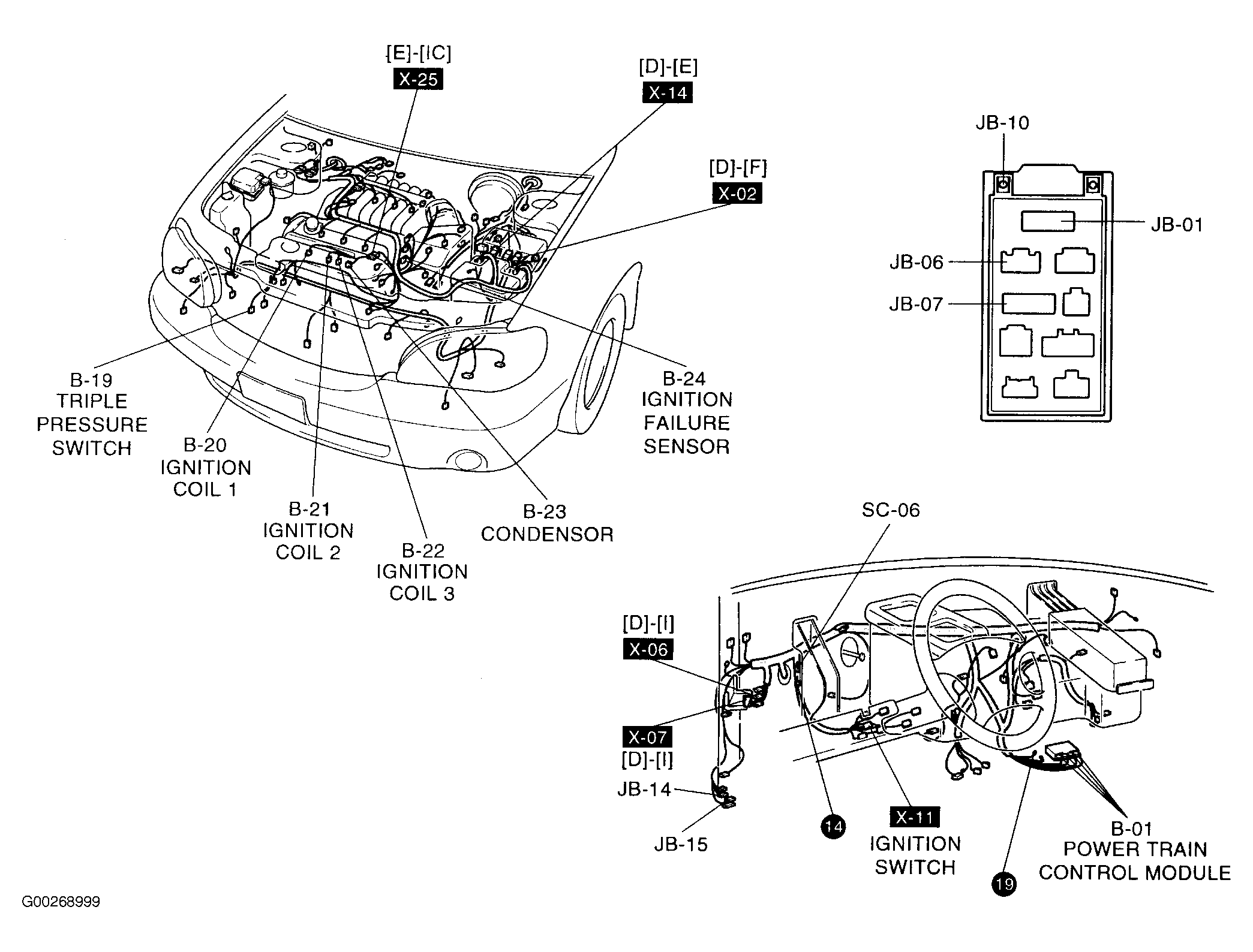

Fig 7: Powertrain Control System
G00268999Courtesy of KIA MOTORS AMERICA, INC.

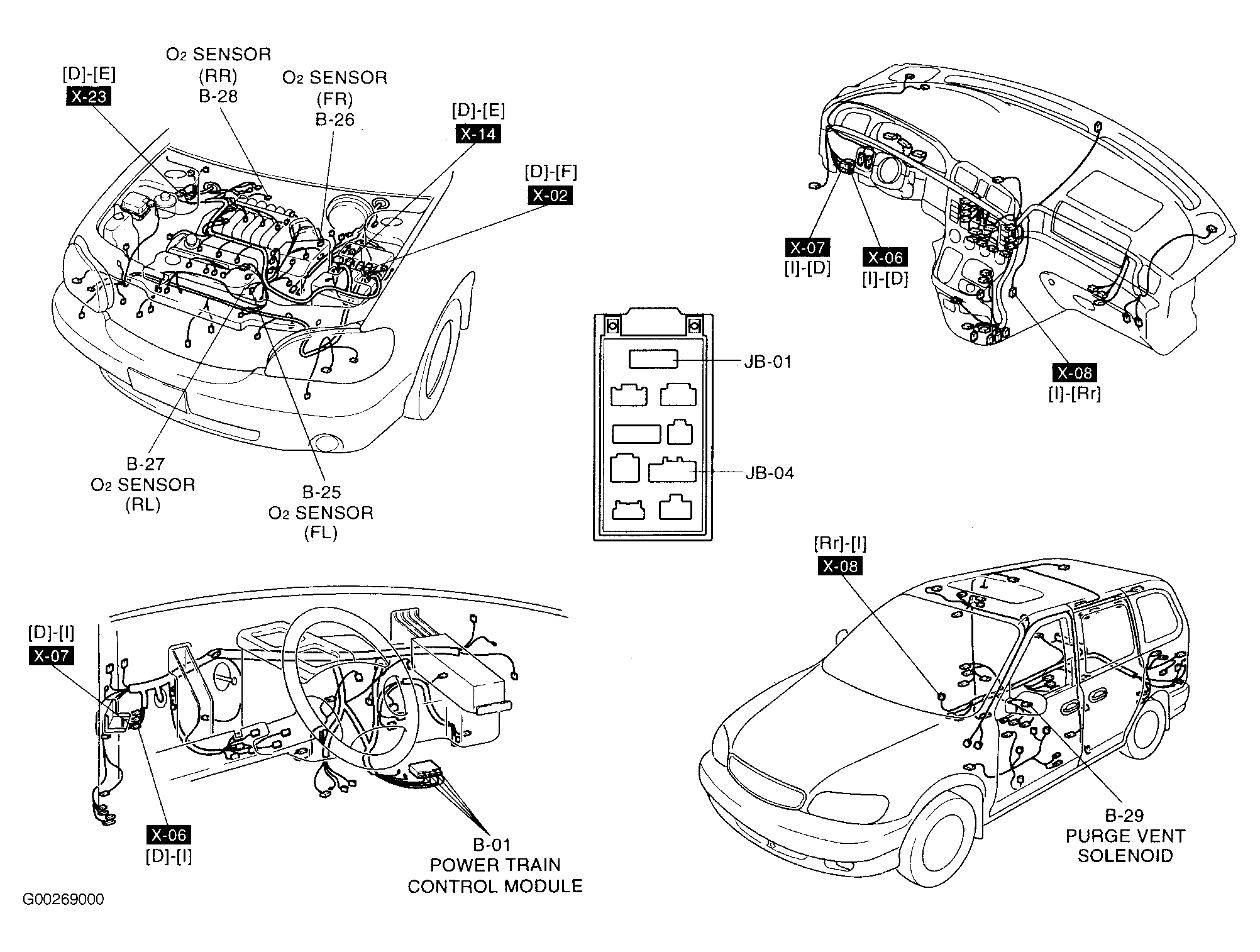

Fig 8: Powertrain Control System
G00269000Courtesy of KIA MOTORS AMERICA, INC.

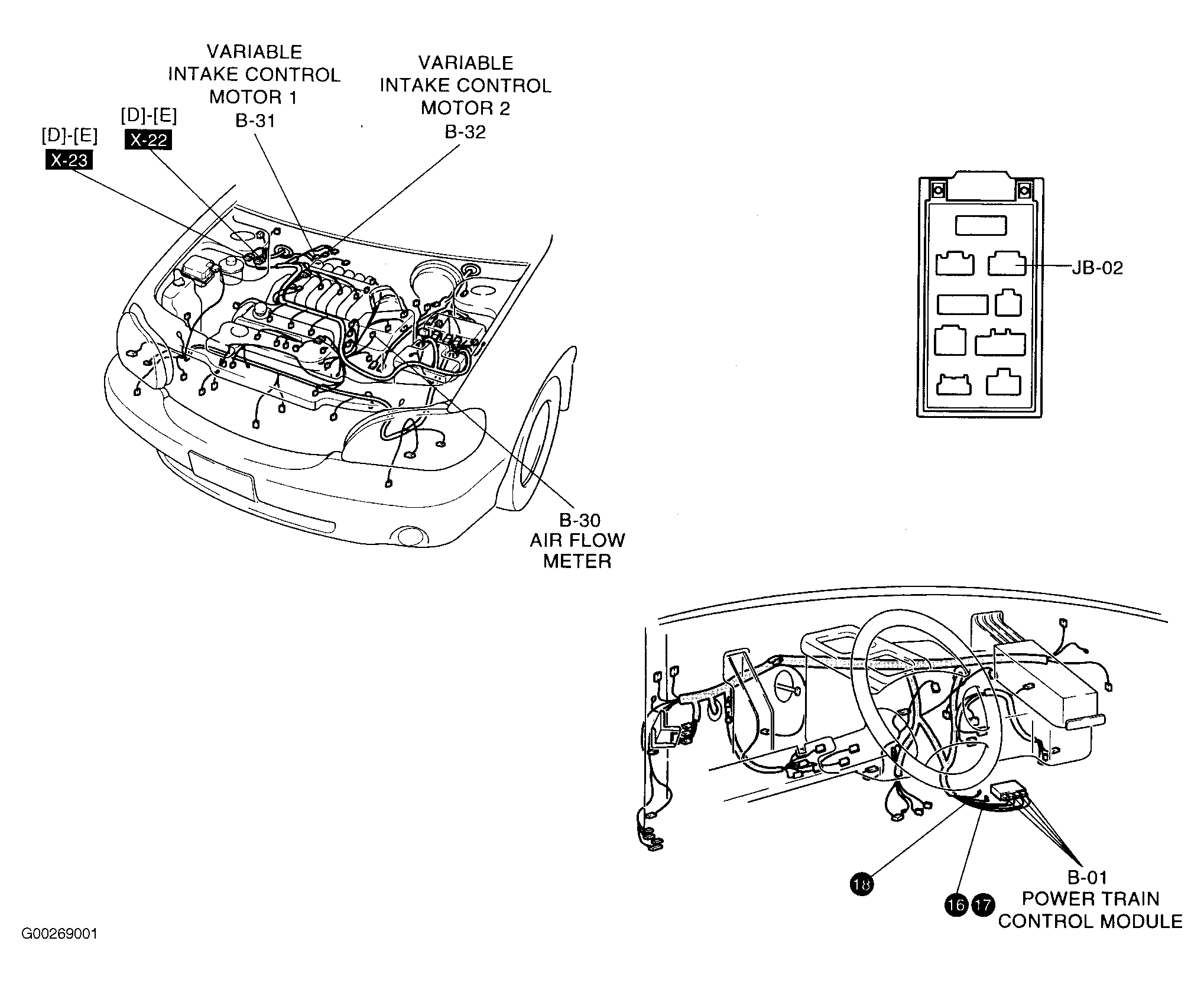

Fig 9: Powertrain Control System
G00269001Courtesy of KIA MOTORS AMERICA, INC.

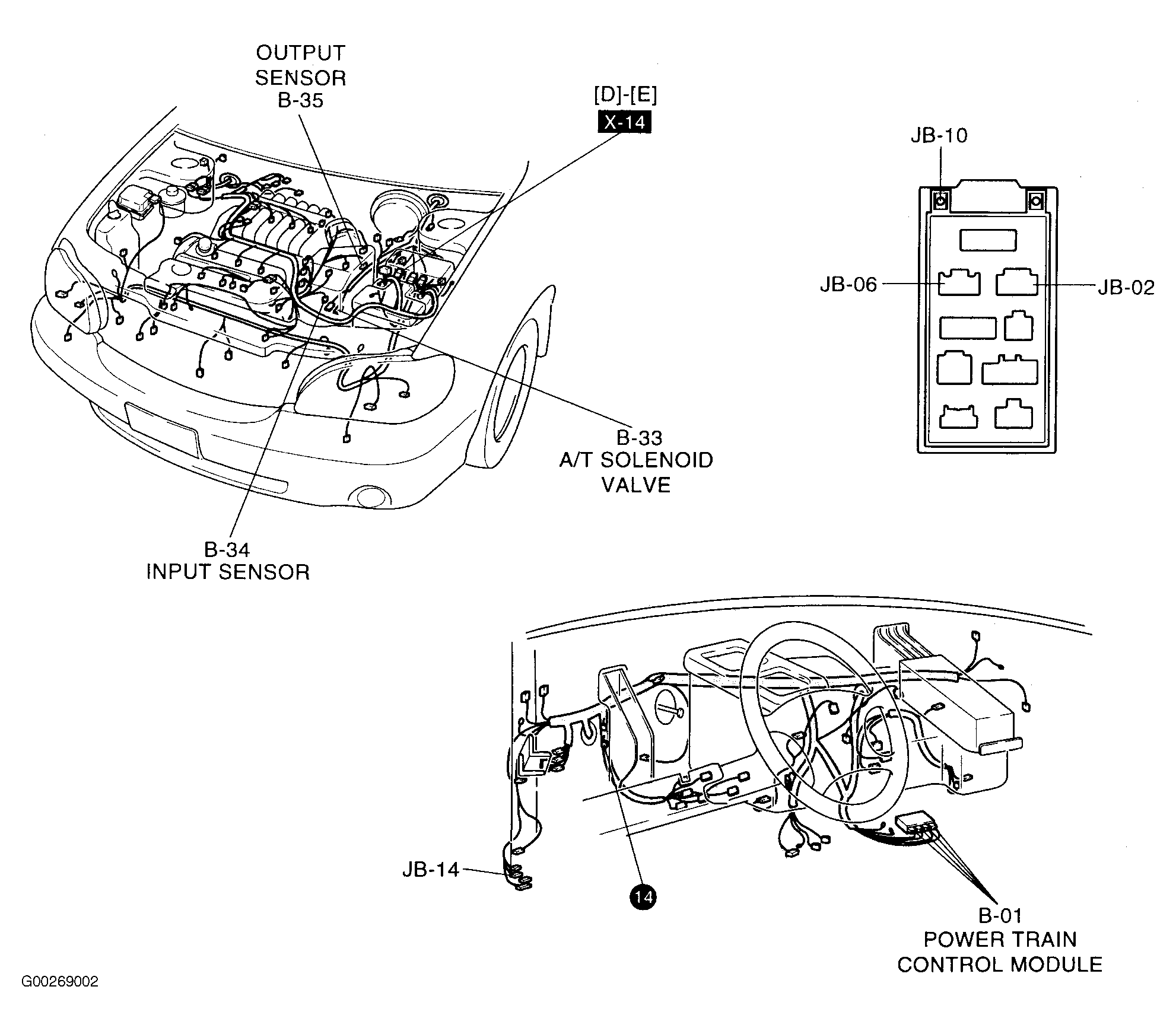

Fig 10: Powertrain Control System
G00269002Courtesy of KIA MOTORS AMERICA, INC.

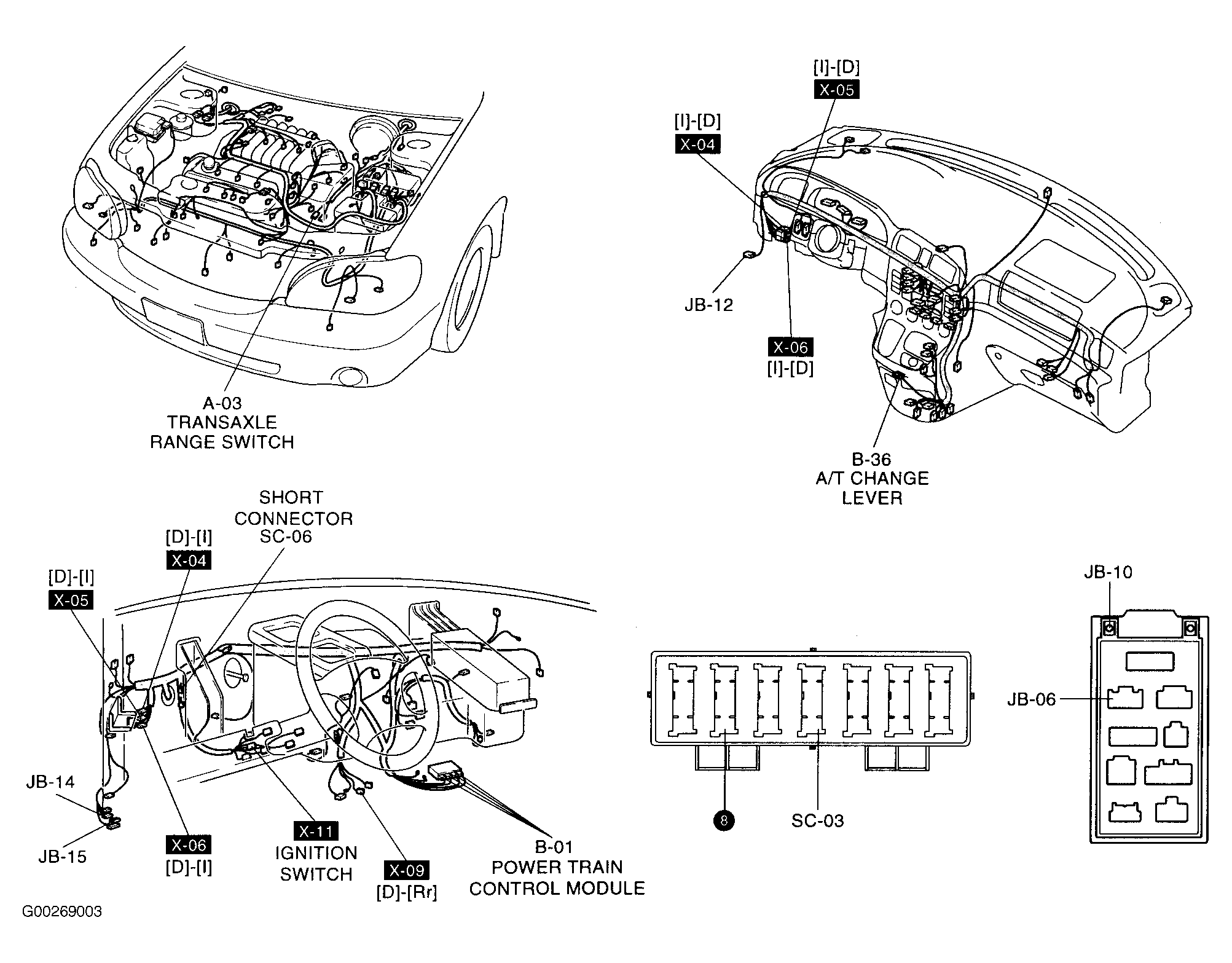

Fig 11: Powertrain Control System
G00269003Courtesy of KIA MOTORS AMERICA, INC.

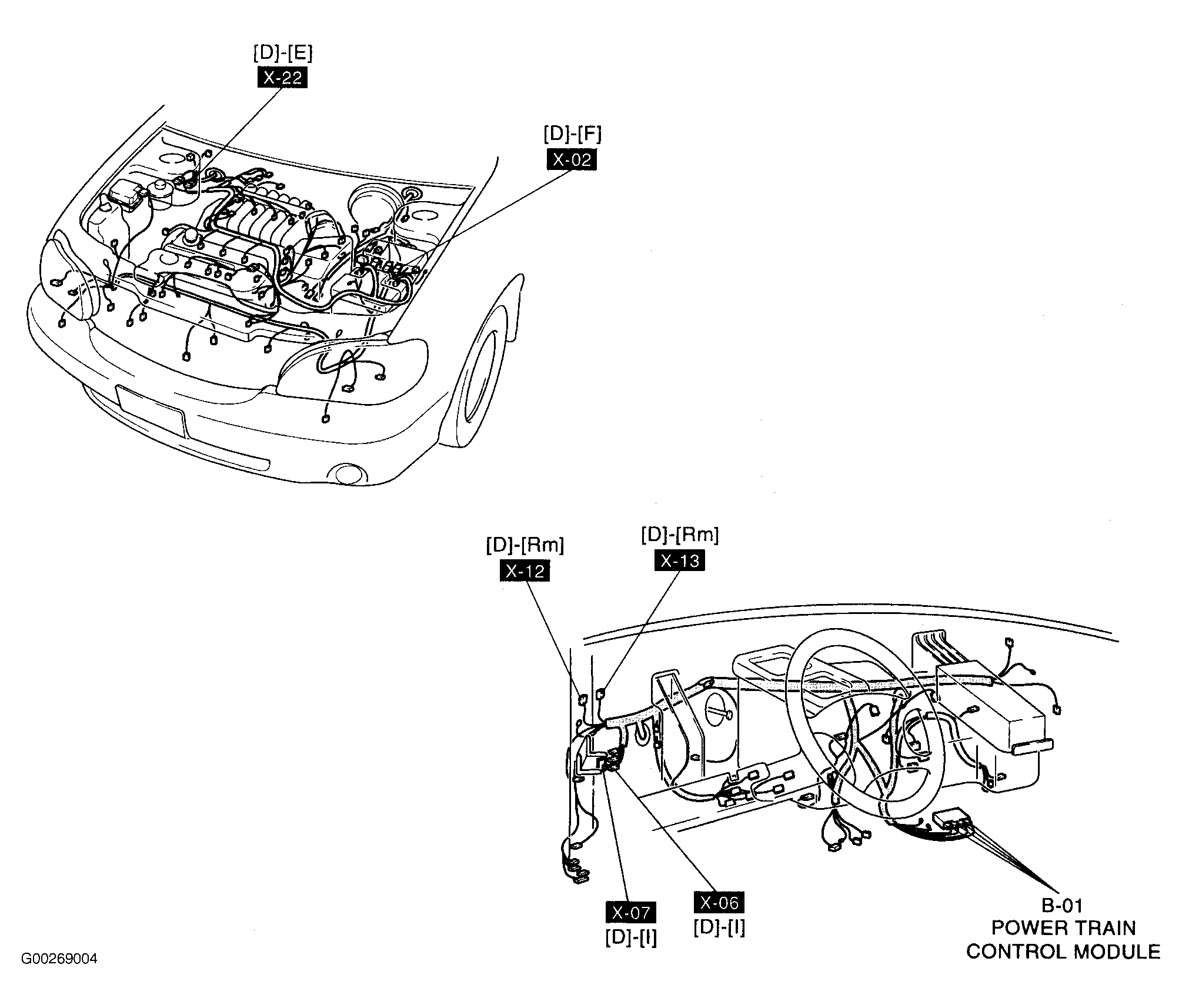

Fig 12: Powertrain Control System
G00269004Courtesy of KIA MOTORS AMERICA, INC.

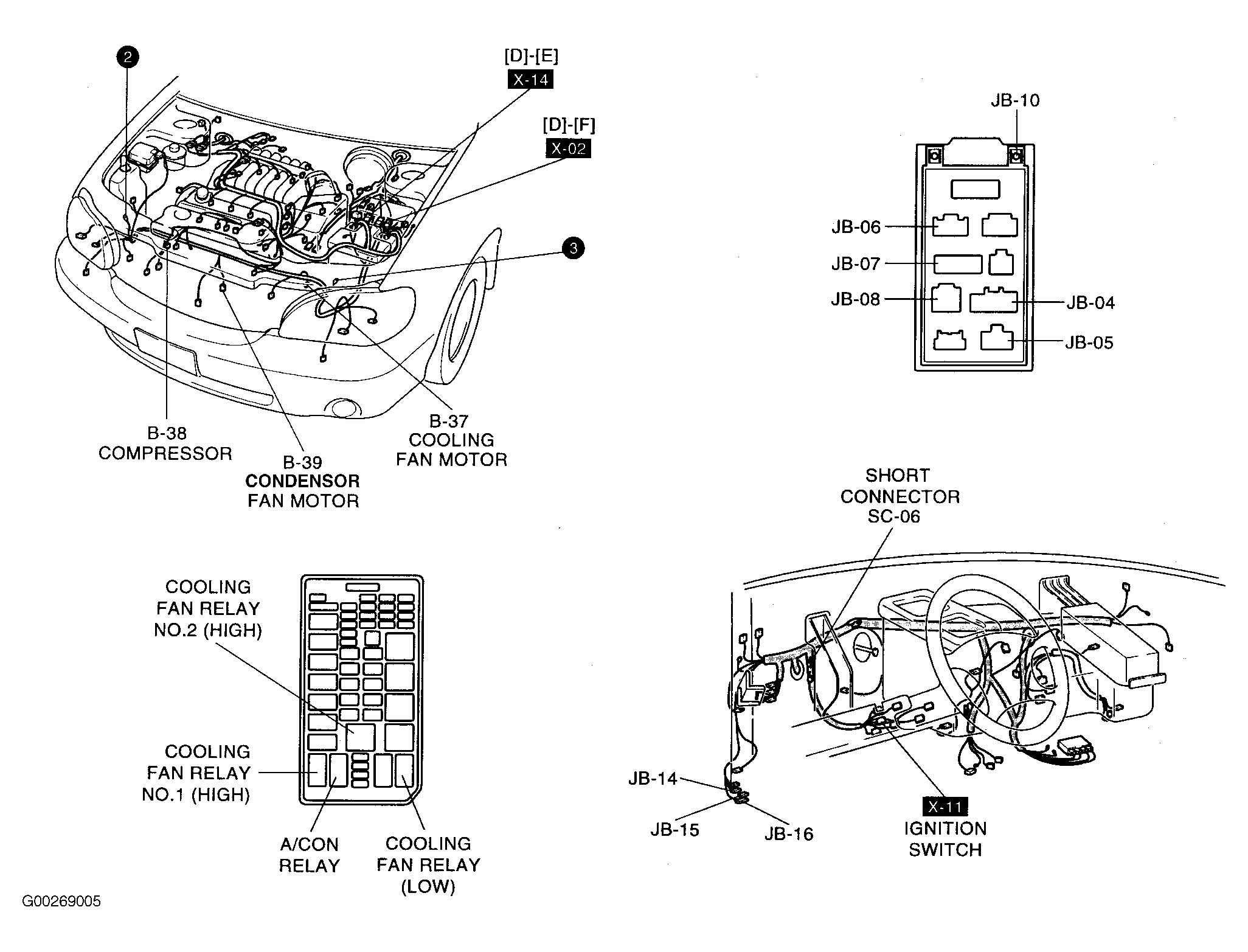

Fig 13: Cooling System
G00269005Courtesy of KIA MOTORS AMERICA, INC.

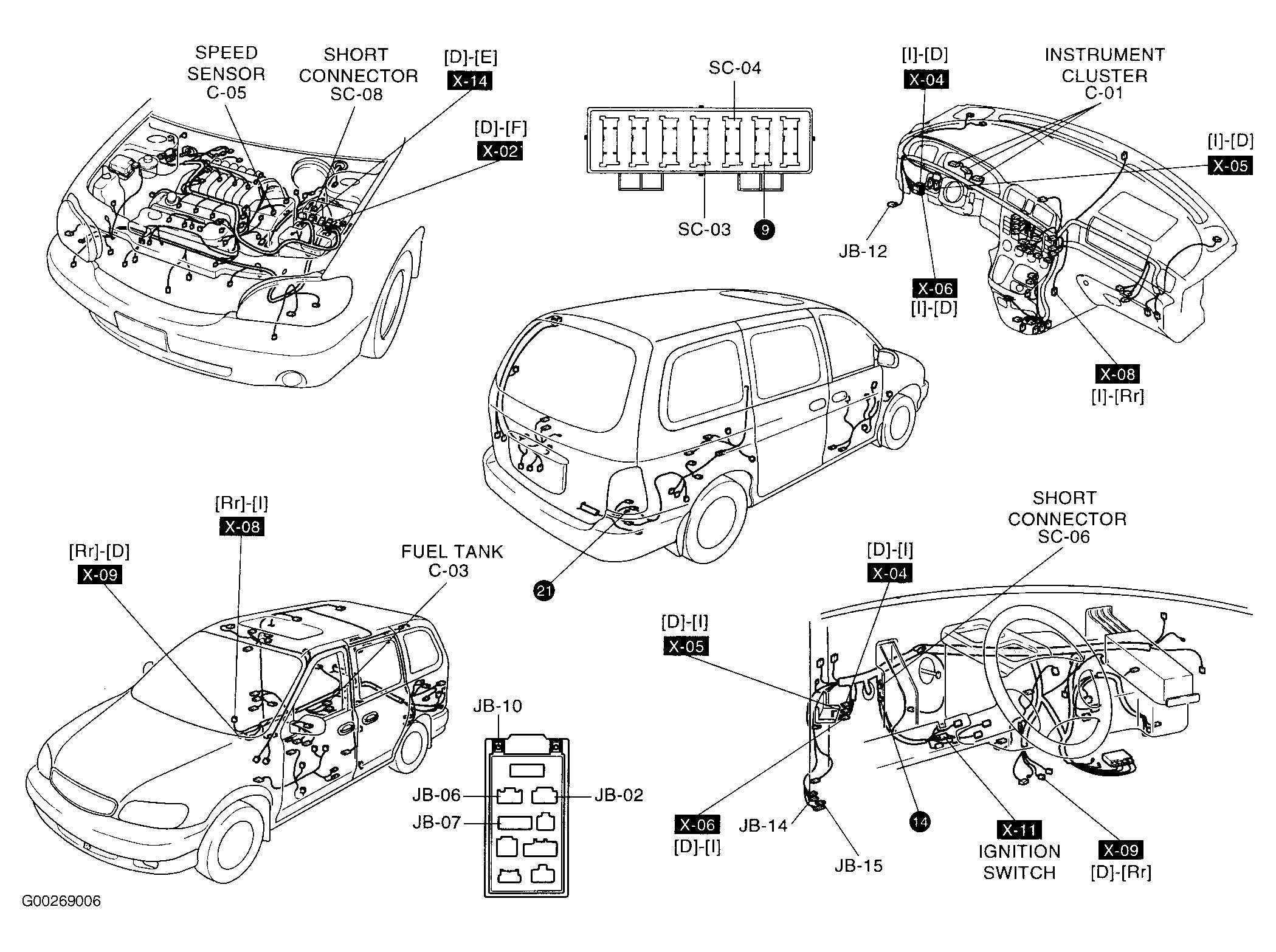

Fig 14: Instrument Cluster
G00269006Courtesy of KIA MOTORS AMERICA, INC.

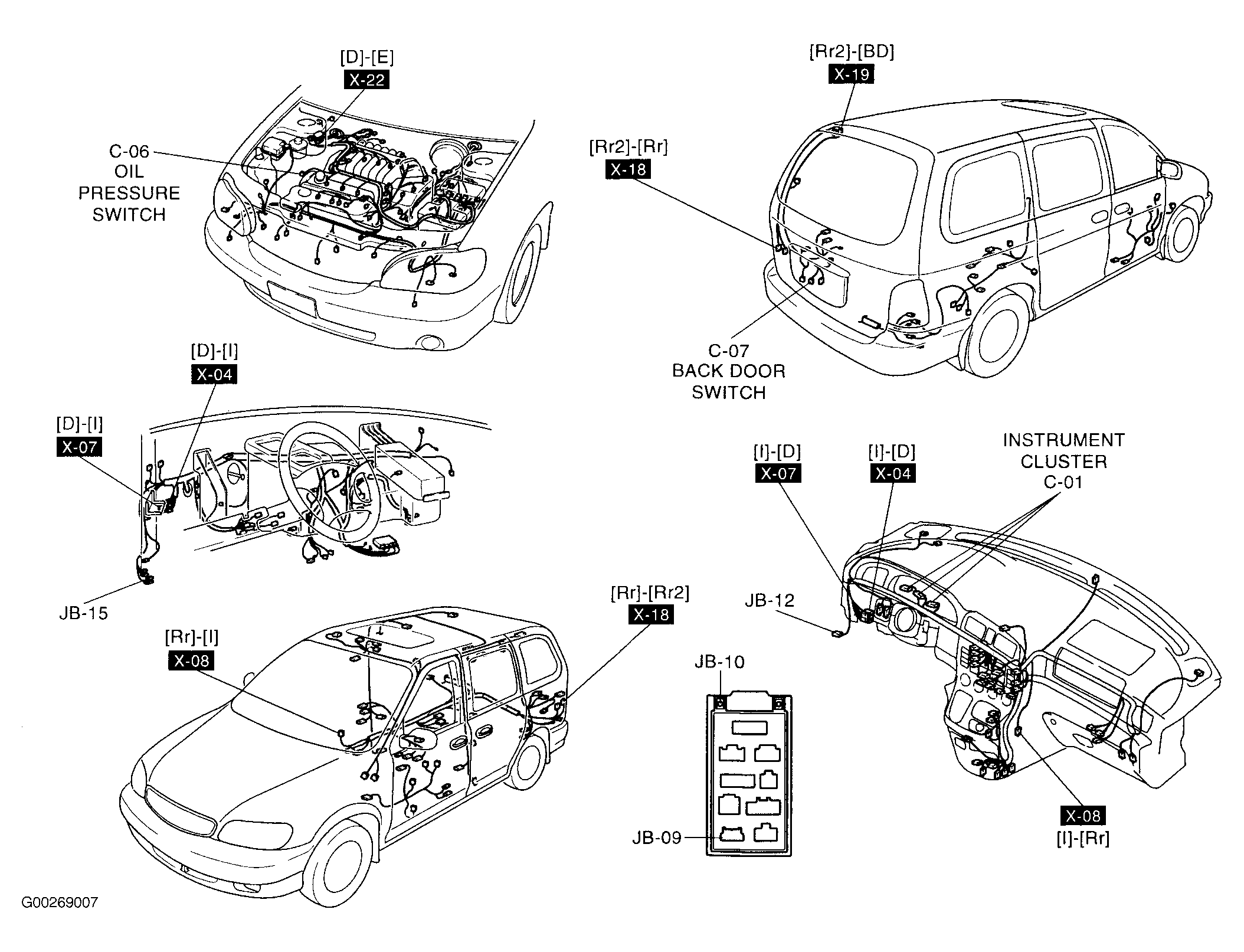

Fig 15: Instrument Cluster
G00269007Courtesy of KIA MOTORS AMERICA, INC.

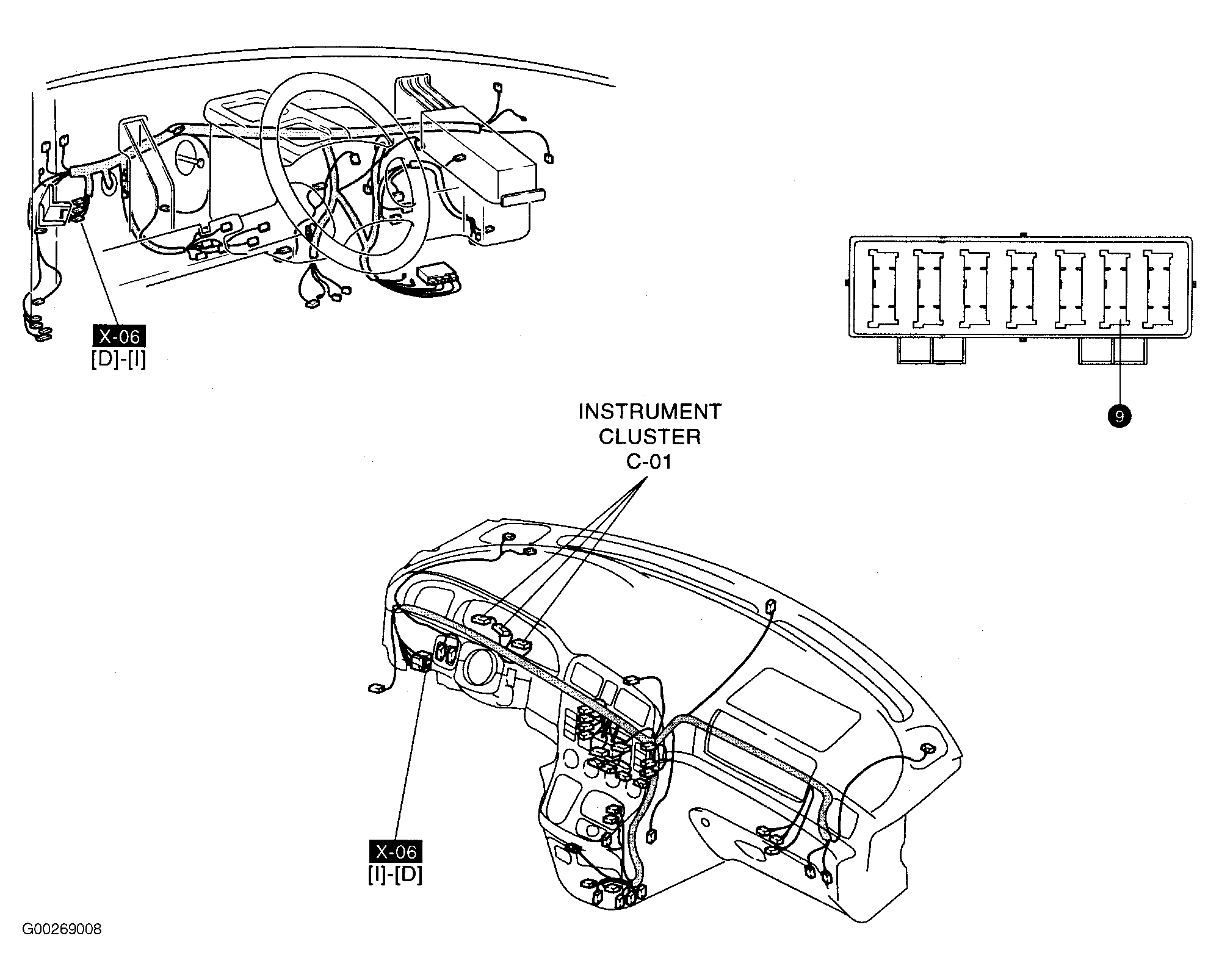

Fig 16: Instrument Cluster
G00269008Courtesy of KIA MOTORS AMERICA, INC.

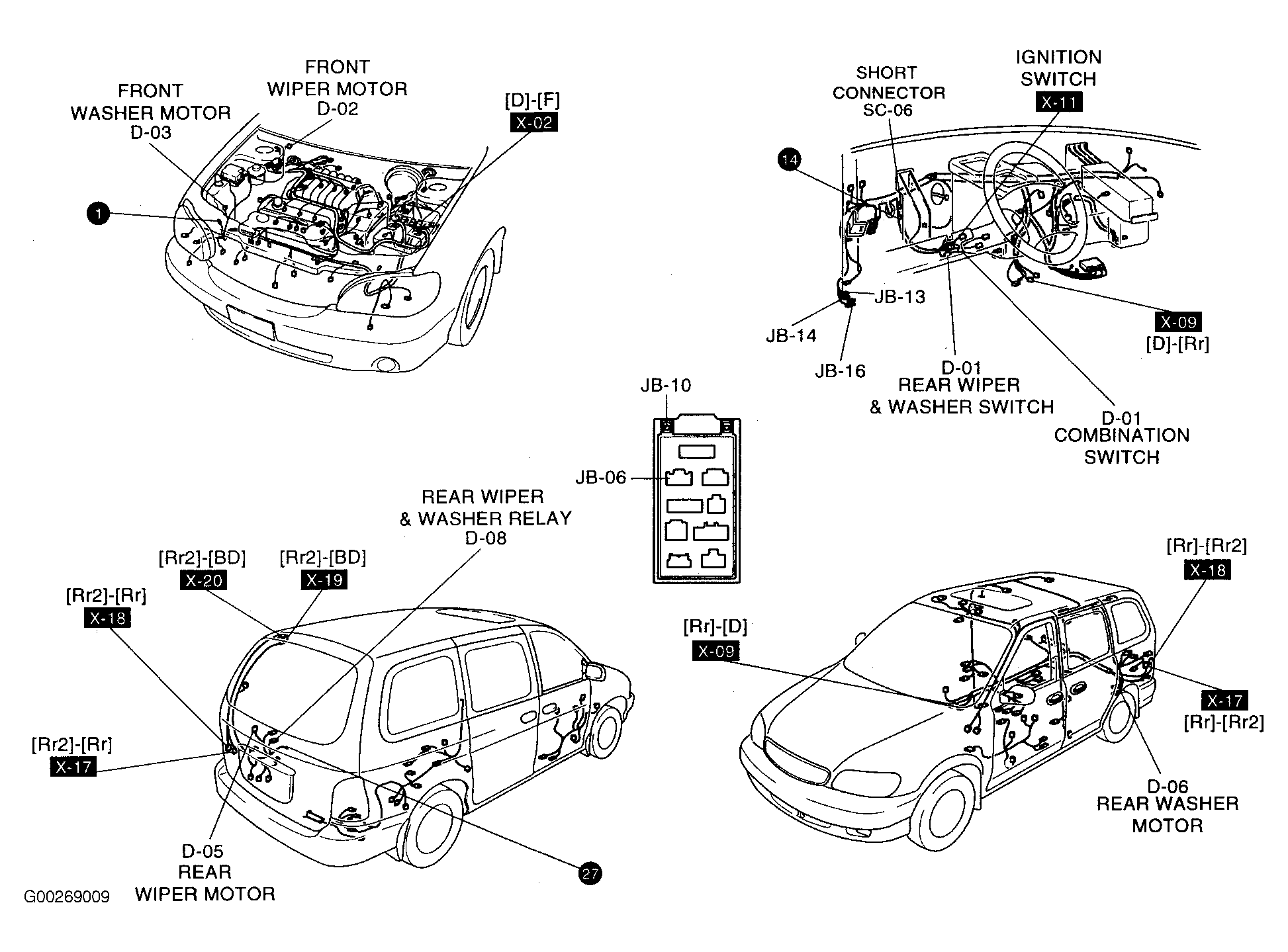

Fig 17: Wiper/Washer System
G00269009Courtesy of KIA MOTORS AMERICA, INC.

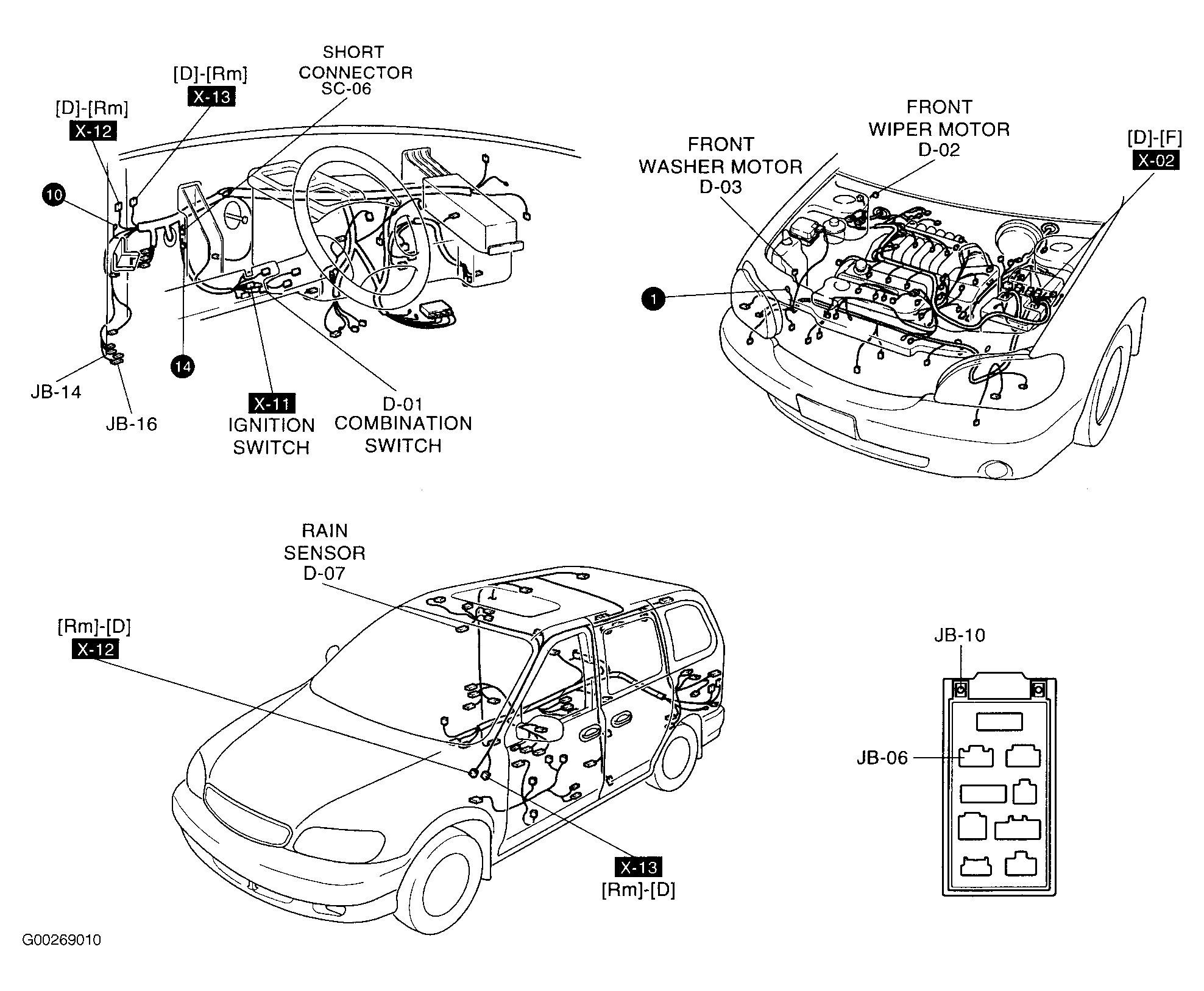

Fig 18: Wiper/Washer System (Rain Sensor)
G00269010Courtesy of KIA MOTORS AMERICA, INC.

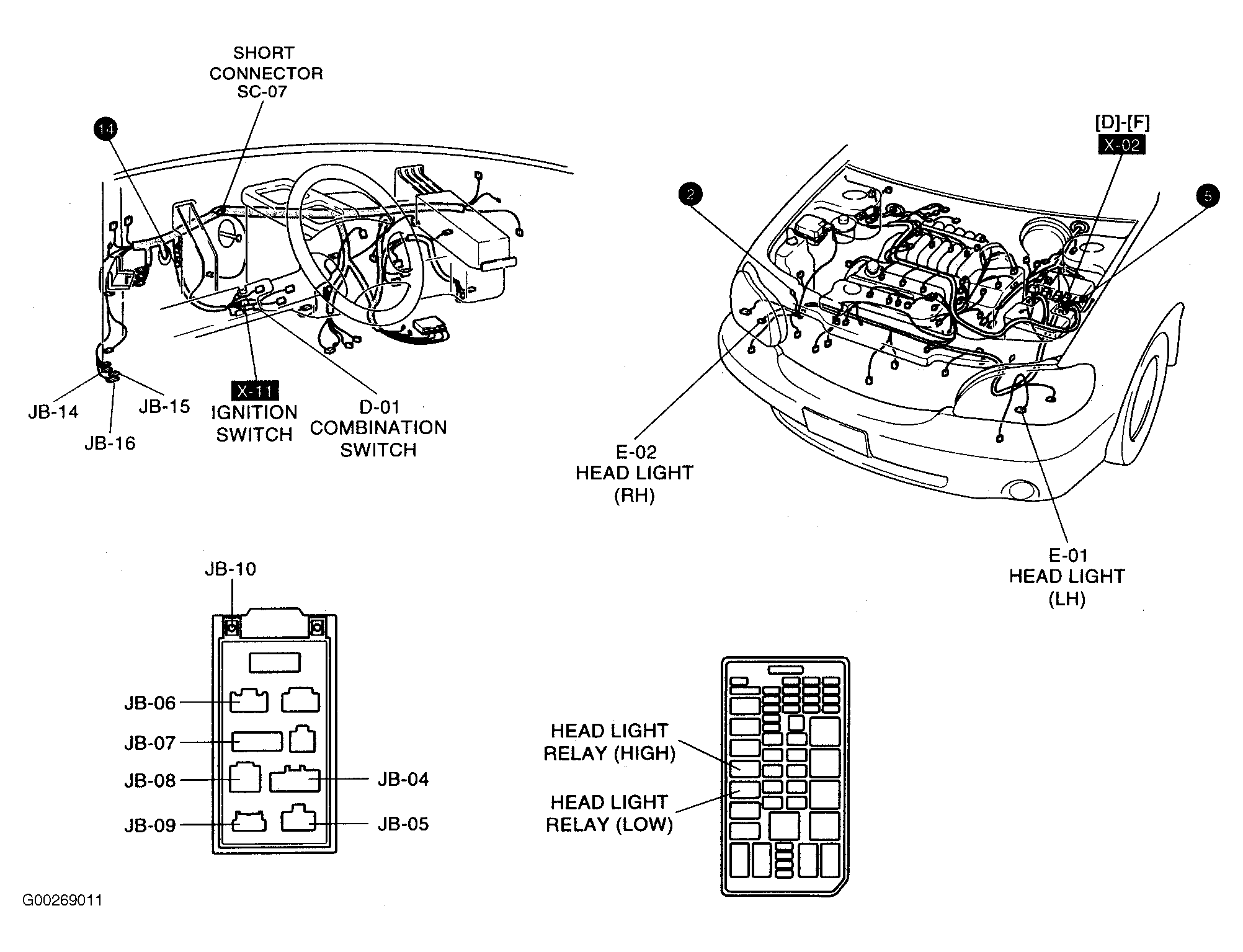

Fig 19: Headlights
G00269011Courtesy of KIA MOTORS AMERICA, INC.
Fig 20: Headlights (Auto Light)
G00269012Courtesy of KIA MOTORS AMERICA, INC.

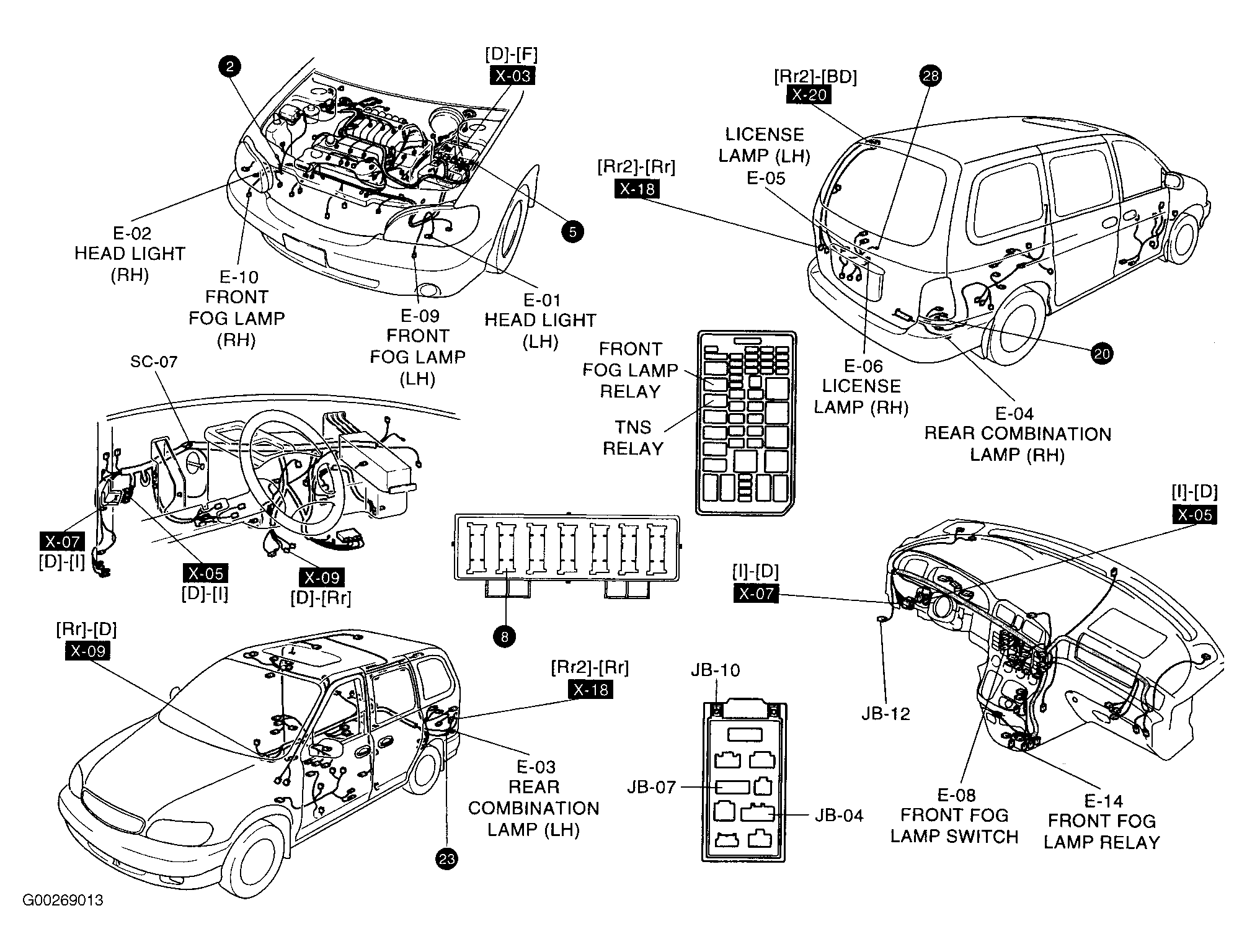

Fig 21: Tail, Position, License & Front Fog Lamps
G00269013Courtesy of KIA MOTORS AMERICA, INC.
Fig 22: Daytime Running Lamps
G00269014Courtesy of KIA MOTORS AMERICA, INC.
Fig 23: Turn & Hazard Flasher Unit
G00269015Courtesy of KIA MOTORS AMERICA, INC.

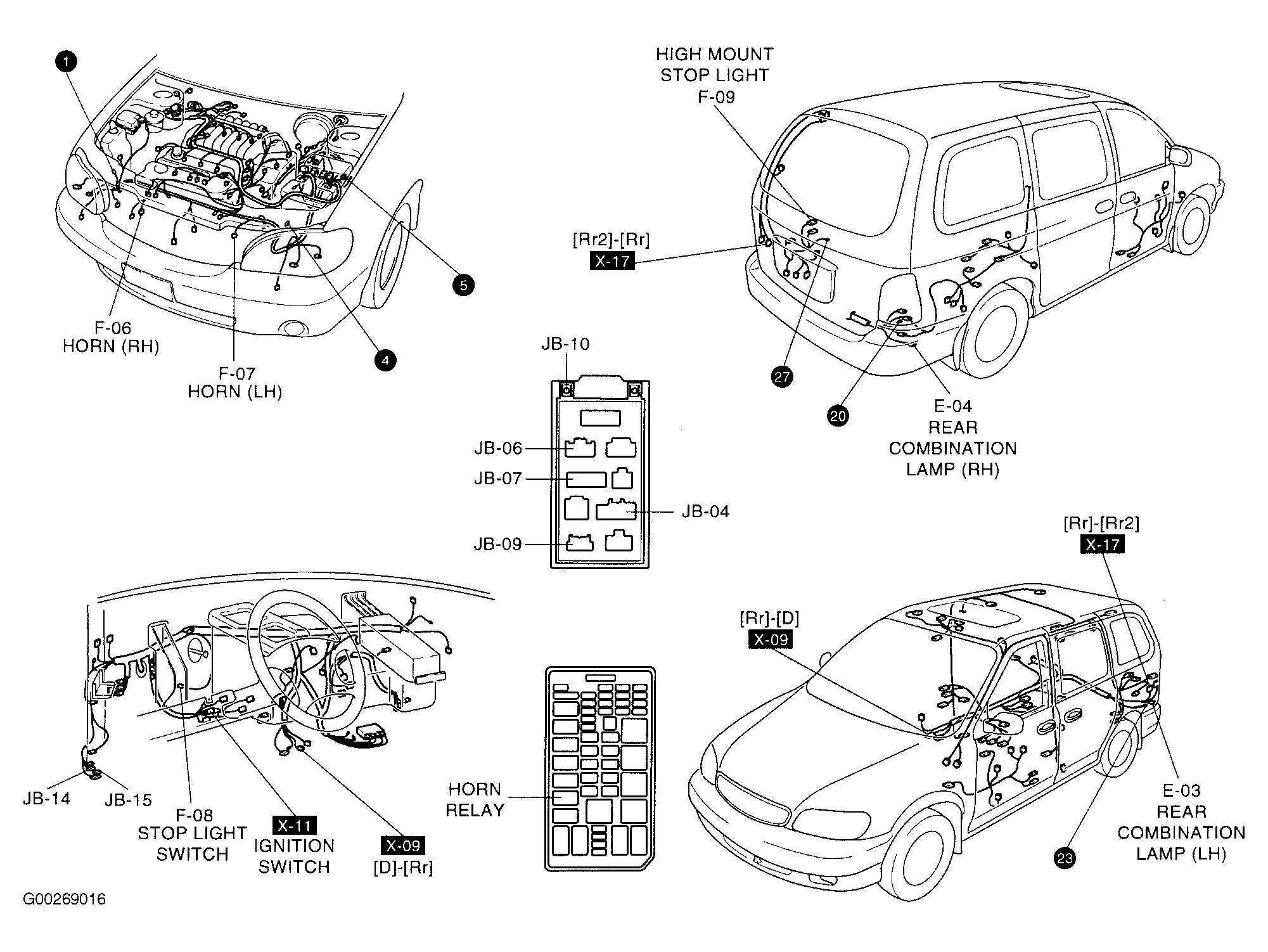

Fig 24: Horn
G00269016Courtesy of KIA MOTORS AMERICA, INC.
Fig 25: Front Heater & A/C System
G00269017Courtesy of KIA MOTORS AMERICA, INC.

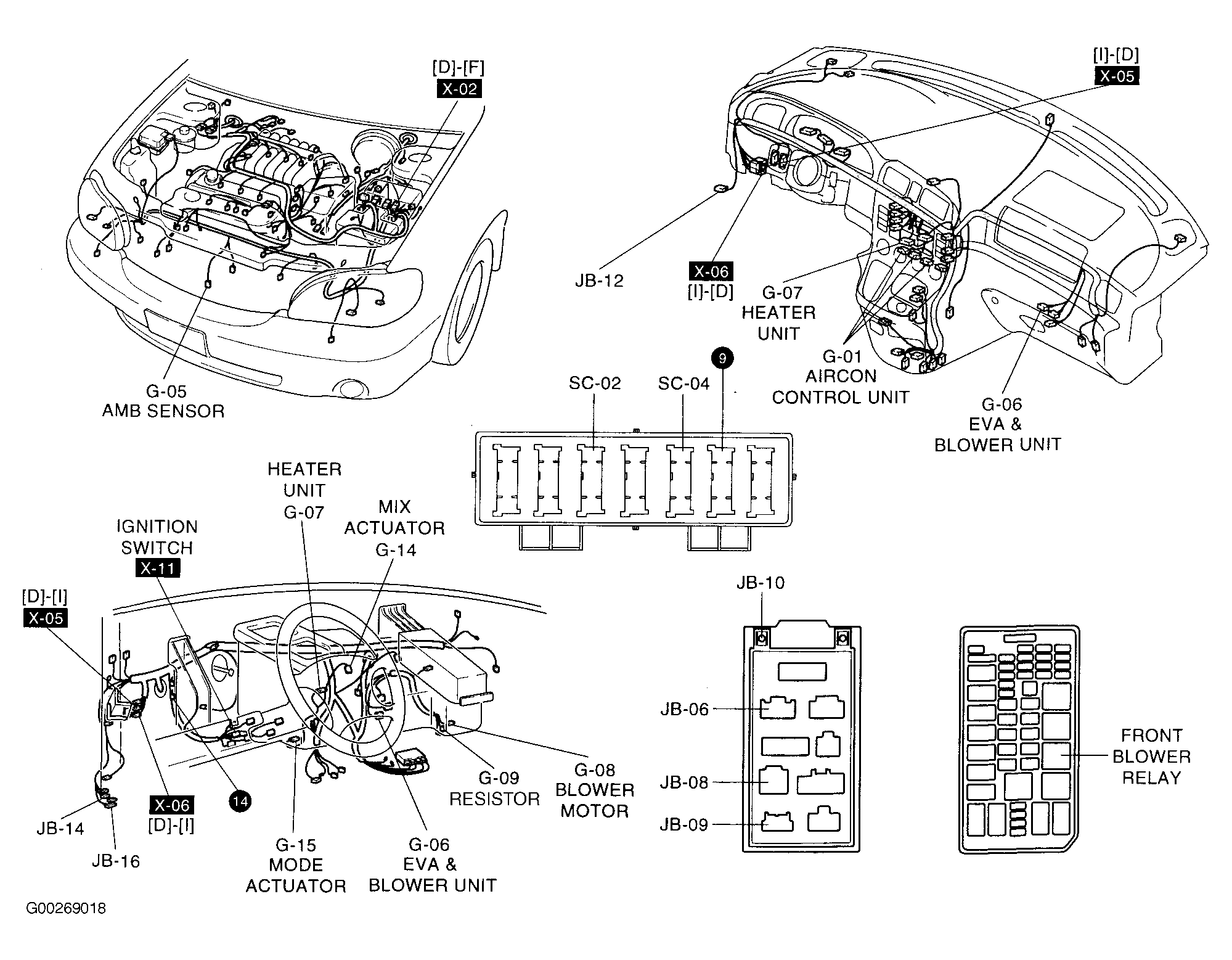

Fig 26: Front Heater & A/C System
G00269018Courtesy of KIA MOTORS AMERICA, INC.

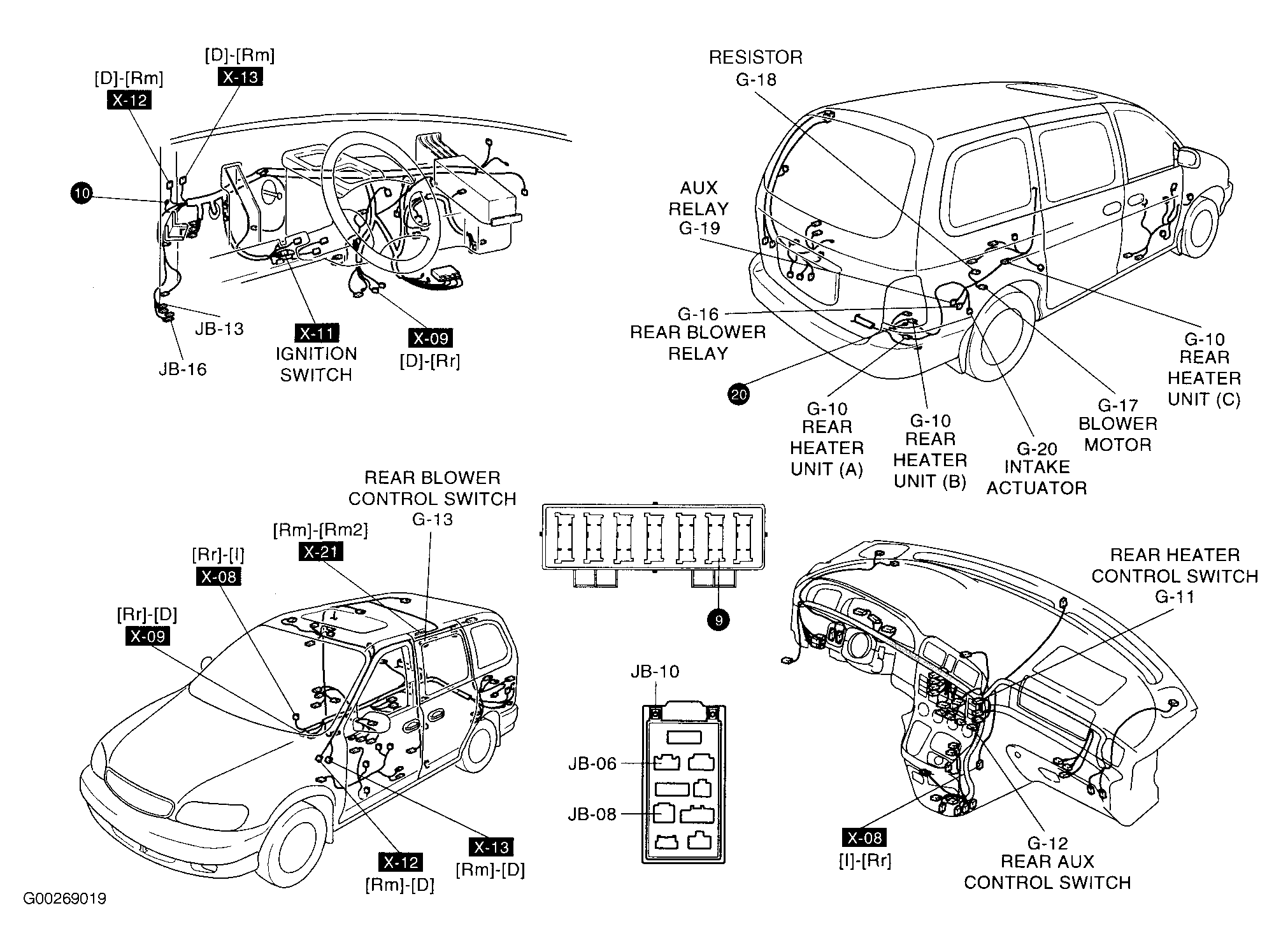

Fig 27: Rear Heater & A/C System
G00269019Courtesy of KIA MOTORS AMERICA, INC.

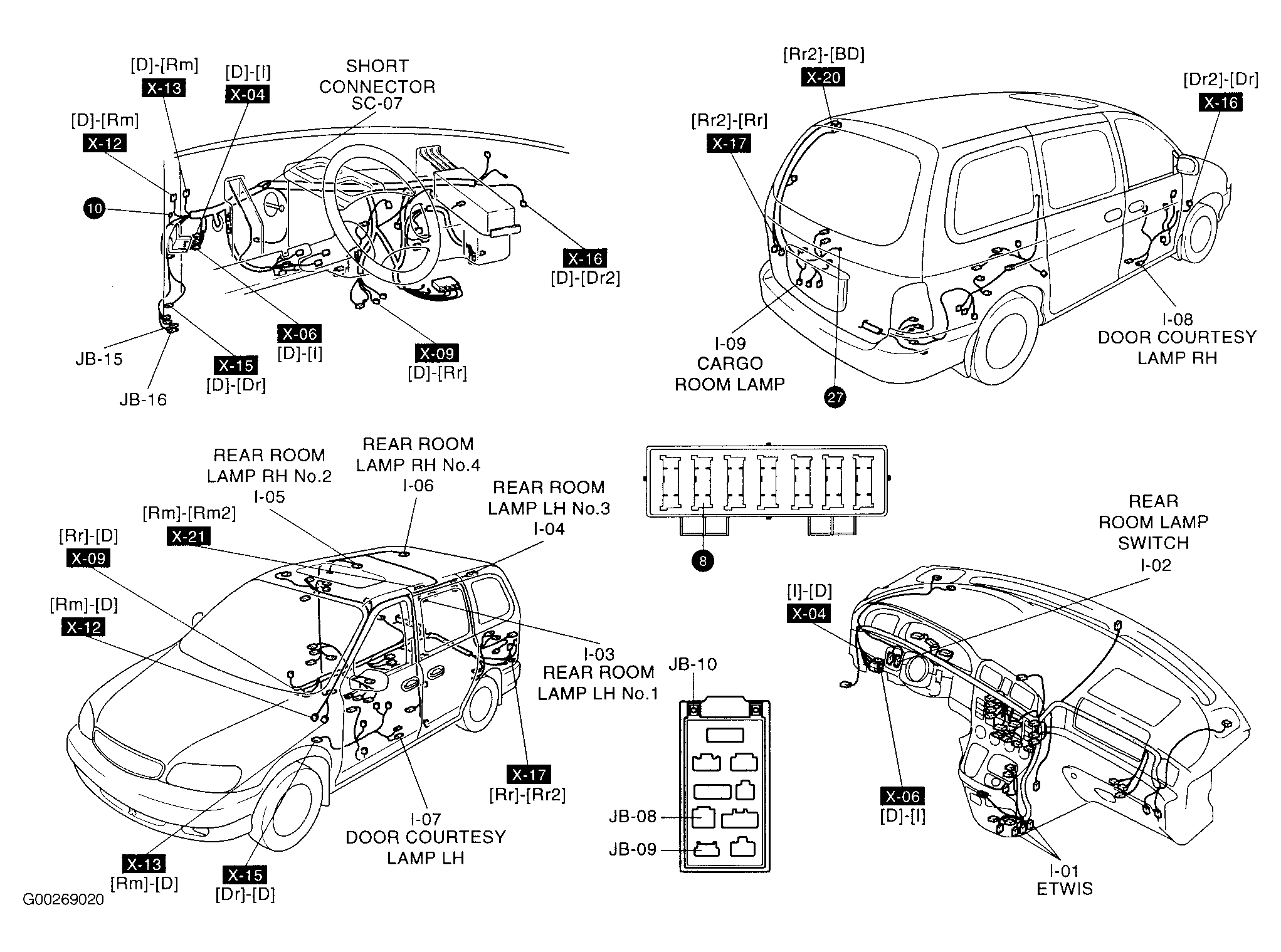

Fig 28: ETWIS, Rear & Cargo Lamps
G00269020Courtesy of KIA MOTORS AMERICA, INC.
Fig 29: Keyless Entry System
G00269021Courtesy of KIA MOTORS AMERICA, INC.
Fig 30: ETWIS
G00269022Courtesy of KIA MOTORS AMERICA, INC.

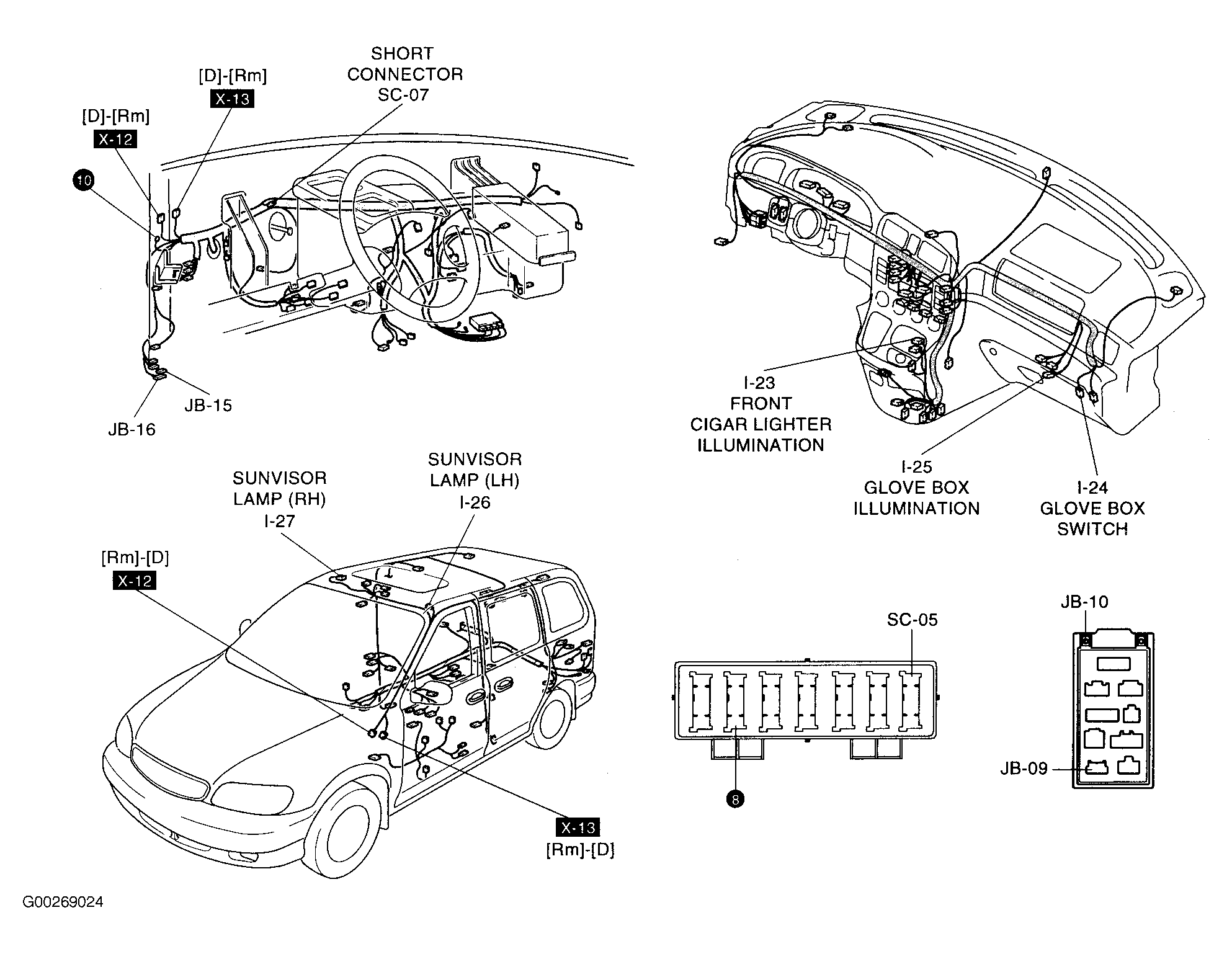

Fig 31: Sunvisor Lamps
G00269024Courtesy of KIA MOTORS AMERICA, INC.

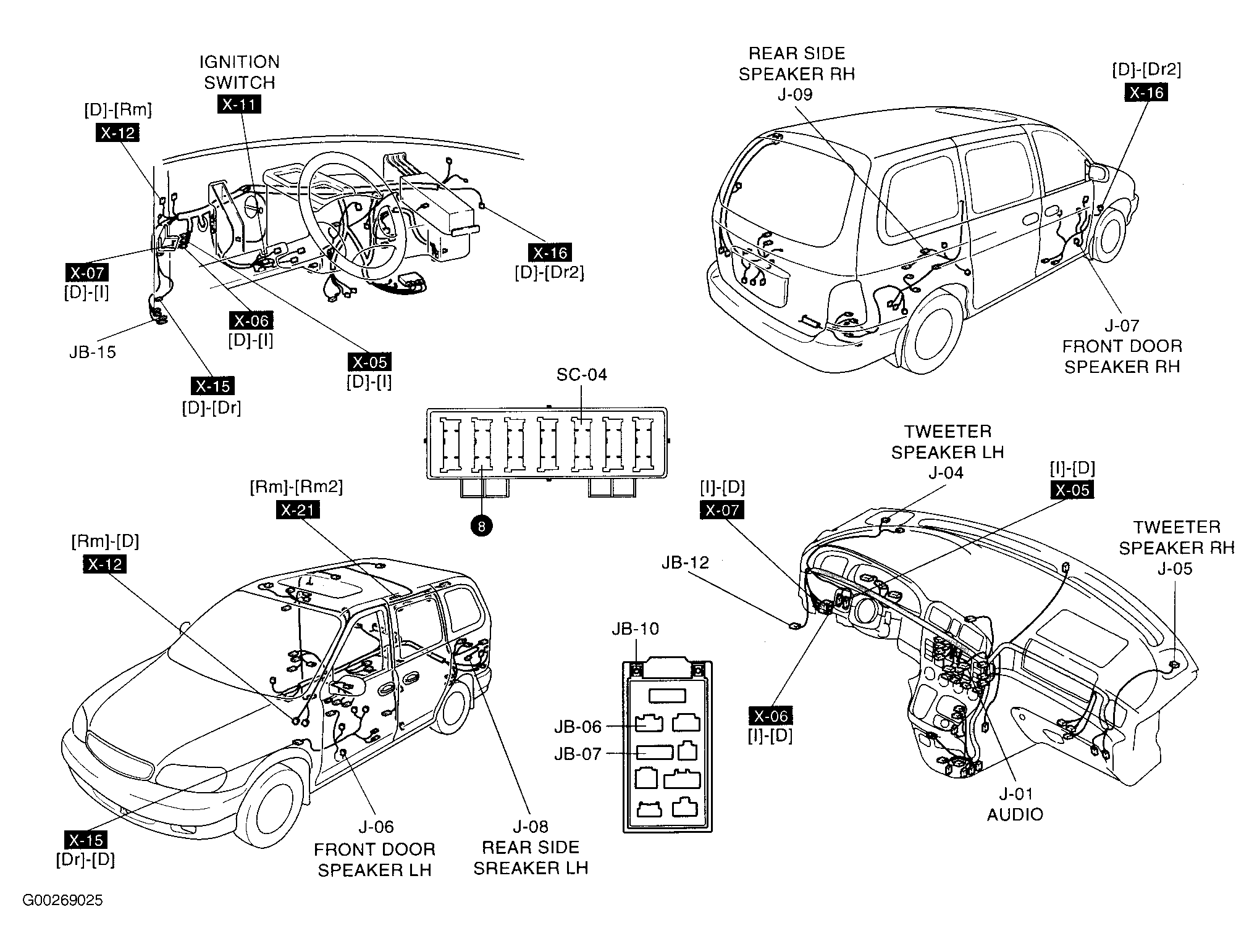

Fig 32: Audio System
G00269025Courtesy of KIA MOTORS AMERICA, INC.
Fig 33: Back-Up Warning System
G00269026Courtesy of KIA MOTORS AMERICA, INC.

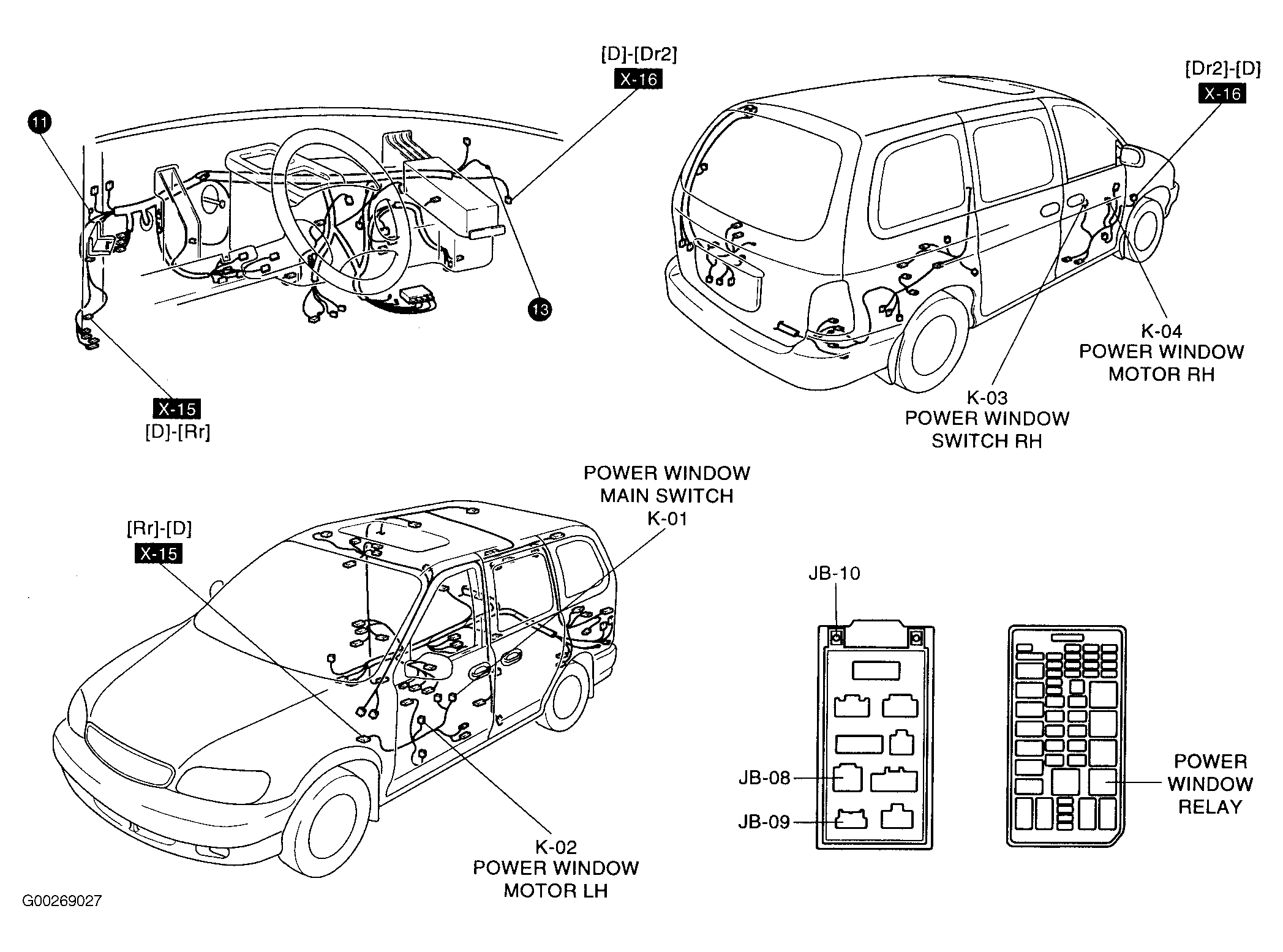

Fig 34: Power Window System
G00269027Courtesy of KIA MOTORS AMERICA, INC.

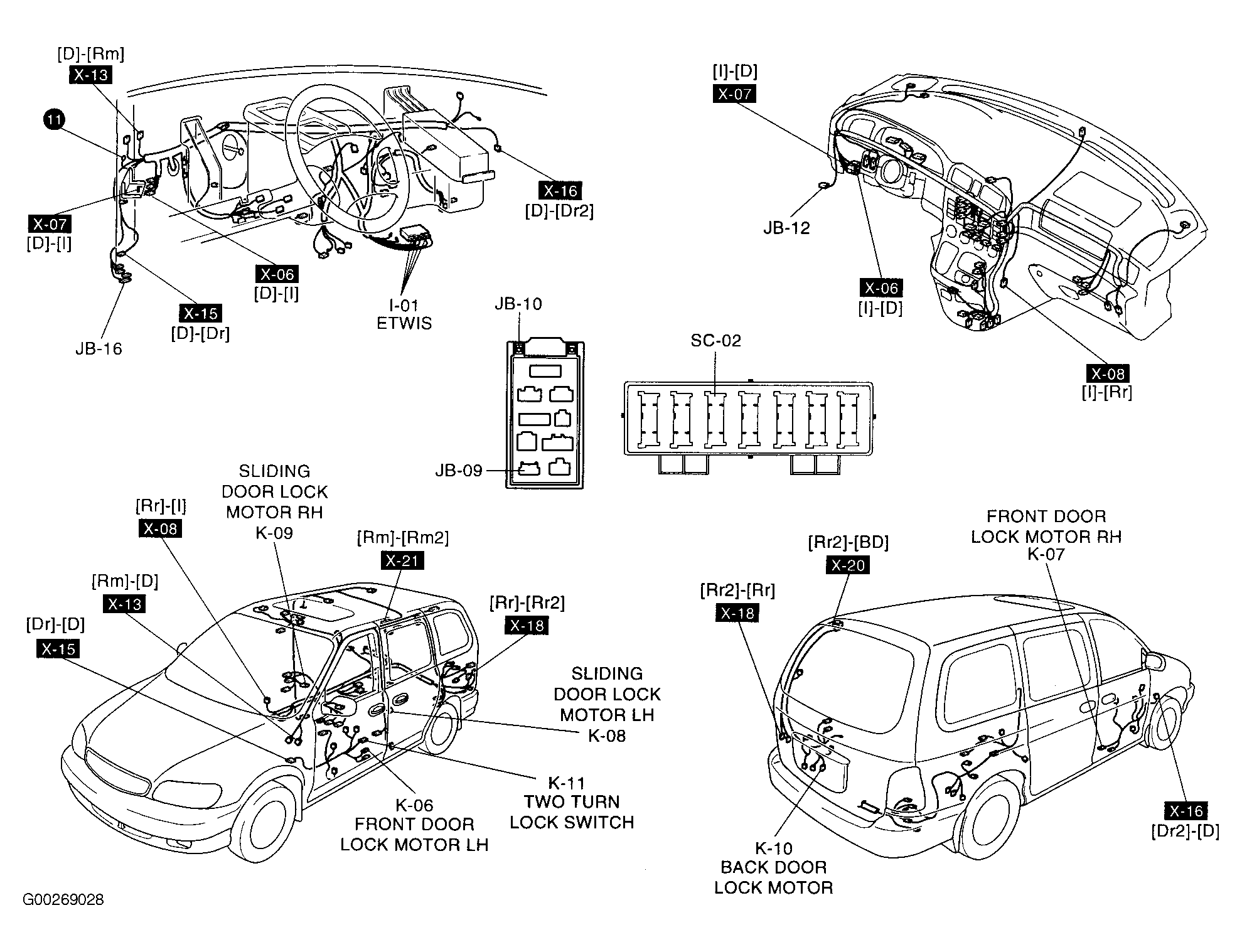

Fig 35: Power Door Lock System
G00269028Courtesy of KIA MOTORS AMERICA, INC.
Fig 36: Power Mirror System
G00269029Courtesy of KIA MOTORS AMERICA, INC.
Fig 37: Sunroof
G00269030Courtesy of KIA MOTORS AMERICA, INC.
Fig 38: Anti-Lock Brake System
G00269031Courtesy of KIA MOTORS AMERICA, INC.

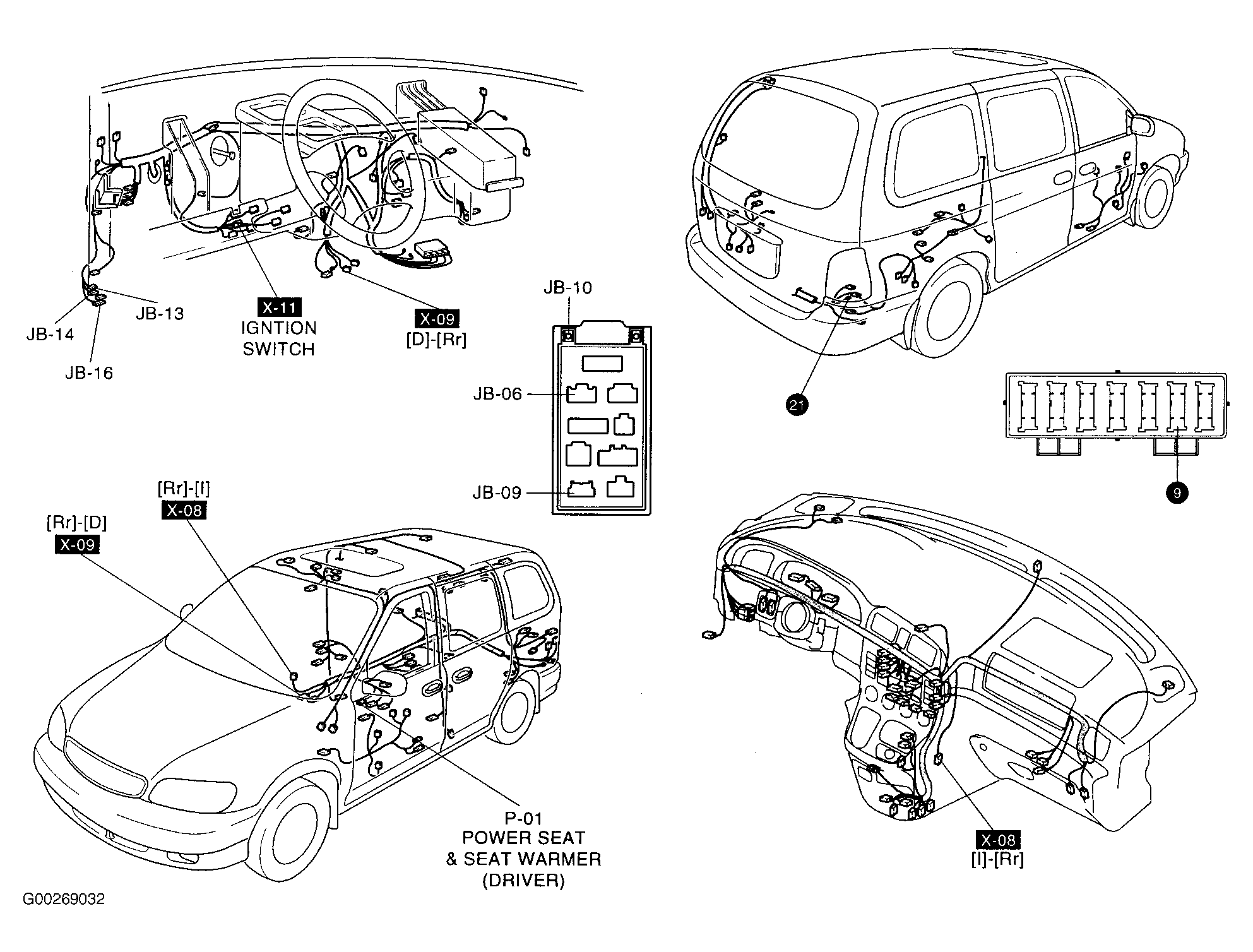

Fig 39: Power Seat (Driver's)
G00269032Courtesy of KIA MOTORS AMERICA, INC.

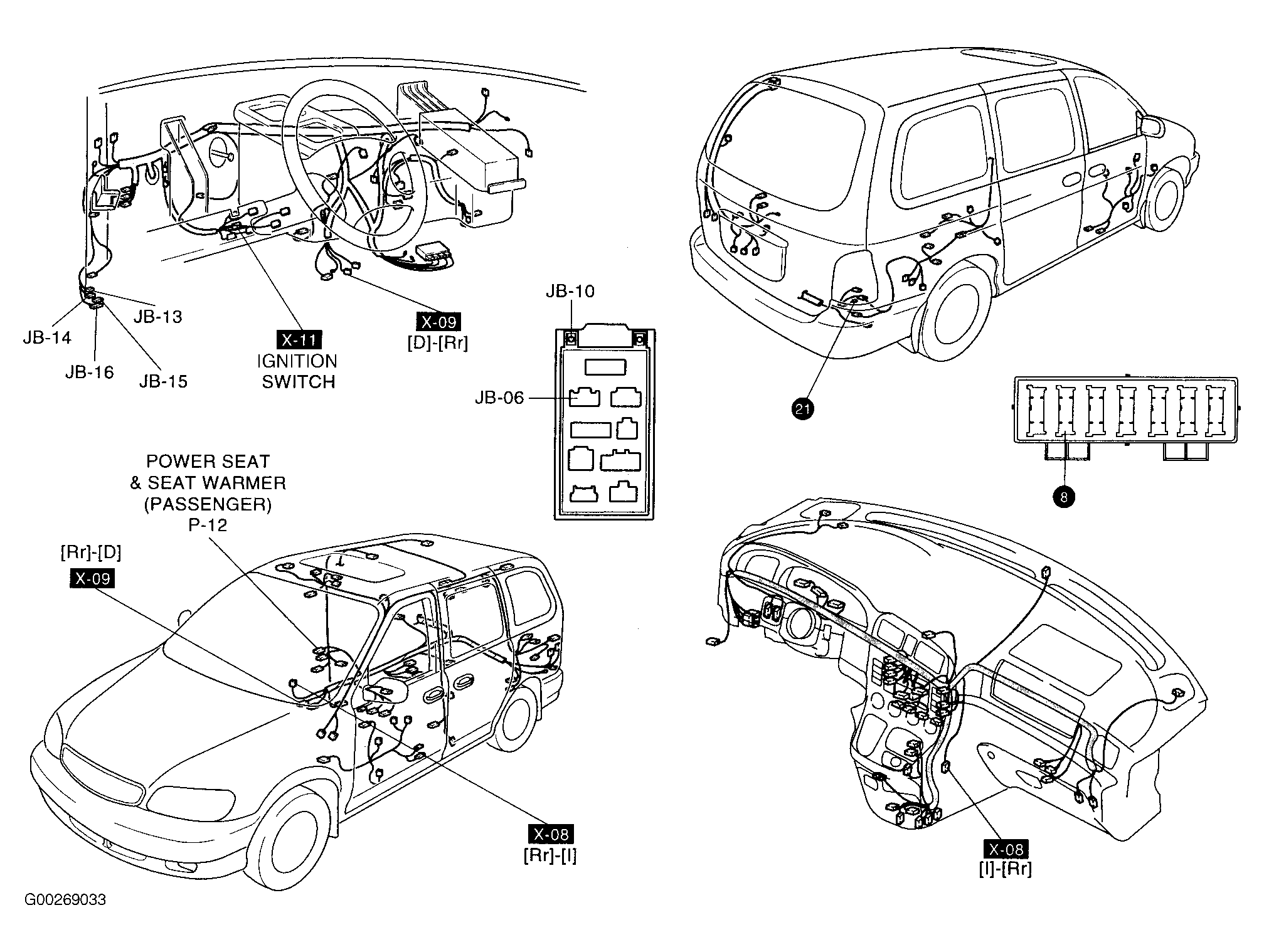

Fig 40: Power Seat (Passenger's)
G00269033Courtesy of KIA MOTORS AMERICA, INC.
Fig 41: Cruise Control System
G00269034Courtesy of KIA MOTORS AMERICA, INC.
Fig 42: Airbag System
G00269035Courtesy of KIA MOTORS AMERICA, INC.

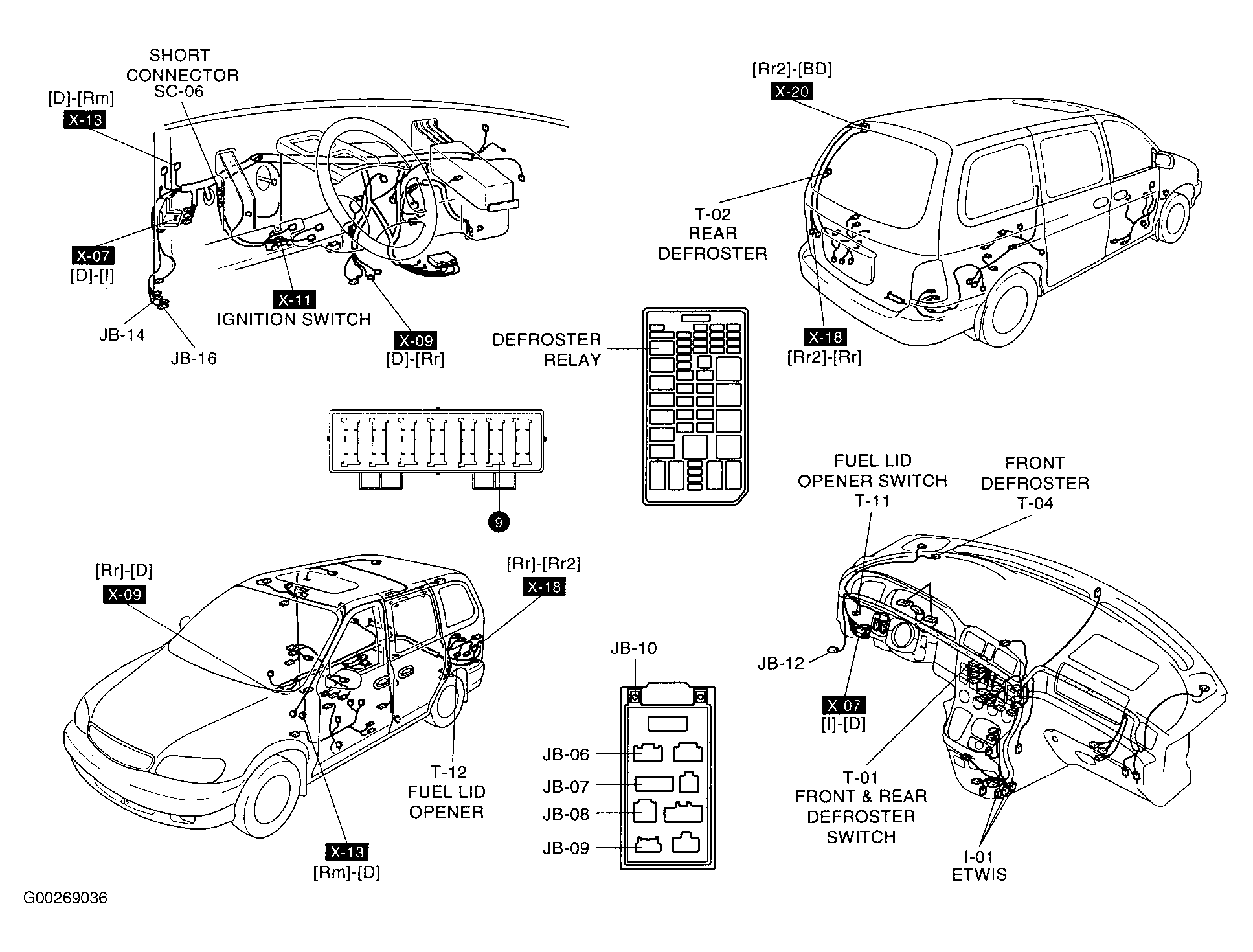

Fig 43: Fuel Lid Opener
G00269036Courtesy of KIA MOTORS AMERICA, INC.
Fig 44: Trip Computer
G00269037Courtesy of KIA MOTORS AMERICA, INC.
Fig 45: Immobilizer System
G00269038Courtesy of KIA MOTORS AMERICA, INC.

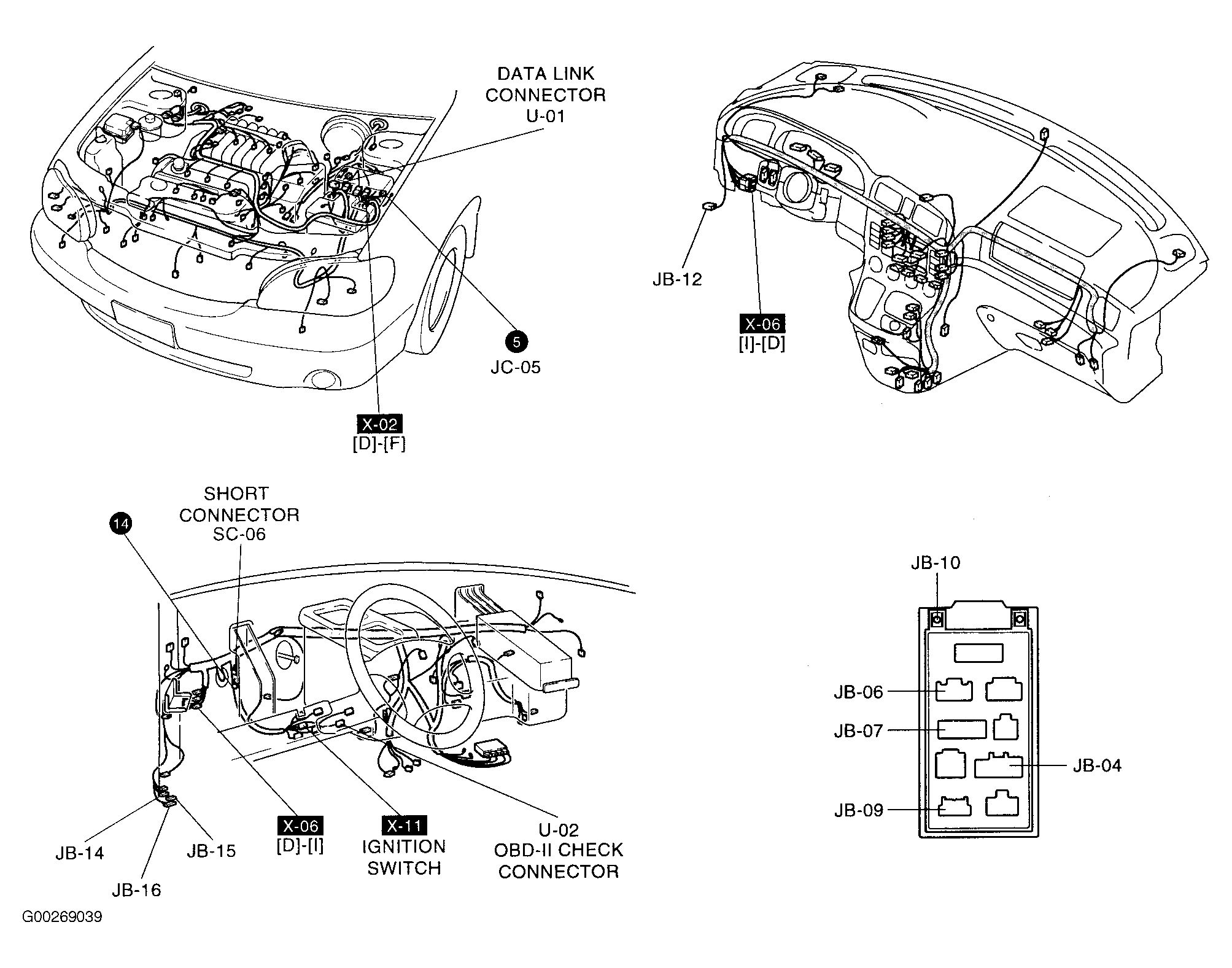

Fig 46: Data Link Connector
G00269039Courtesy of KIA MOTORS AMERICA, INC.
