Average Speed

  1. Indication range: 0-999 MPH (km/h).
  2. Indication average speed from detecting pulse upon the IGN ON to the IGN OFF.
  3. Upon re-starting the engine, the last average speed will display.
  4. When IGN OFF and the battery ground cable disconnected current accumulated value will be reset to "- - -".
  5. Current accumulated value will be reset to "- - -" upon MODE switch ON for 1 second over.
  6. Average speed = Accumulation driving distance/Accumulation driving time (After IGN ON)
  7. Speed indication: update every 10 second.
  8. Tolerance: +/-0.4%

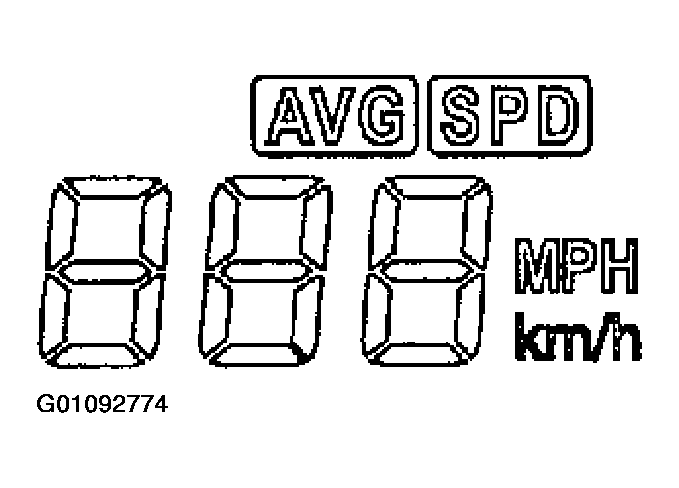

    Fig 1: Identifying Average Speed Screen
    G01092774Courtesy of KIA MOTORS AMERICA, INC.
