Driving Time

  1. Indication range: 00:00~99:59
  2. Indicates accumulated running time from the IGN ON to the IGN OFF.
  3. Upon re-starting the engine, last running time will display.
  4. Upon the MODE switch ON for 1 second over, the current accumulated value will be reset to "0".
  5. When IGN OFF and the battery ground cable is disconnected, the accumulated value will be reset to "0".
  6. Tolerance: 0.4%

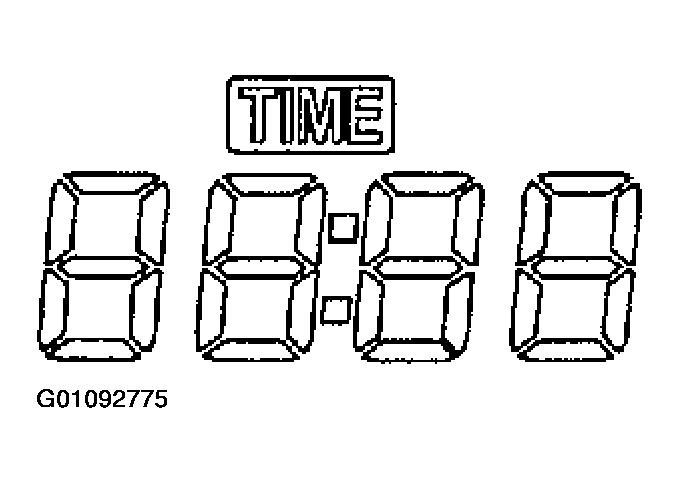

    Fig 1: Identifying Driving Time Screen
    G01092775Courtesy of KIA MOTORS AMERICA, INC.
