Home >> Kia >> 2004 >> Sorento EX, RWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Removal And Installation >> Components

Removal And Installation: Components

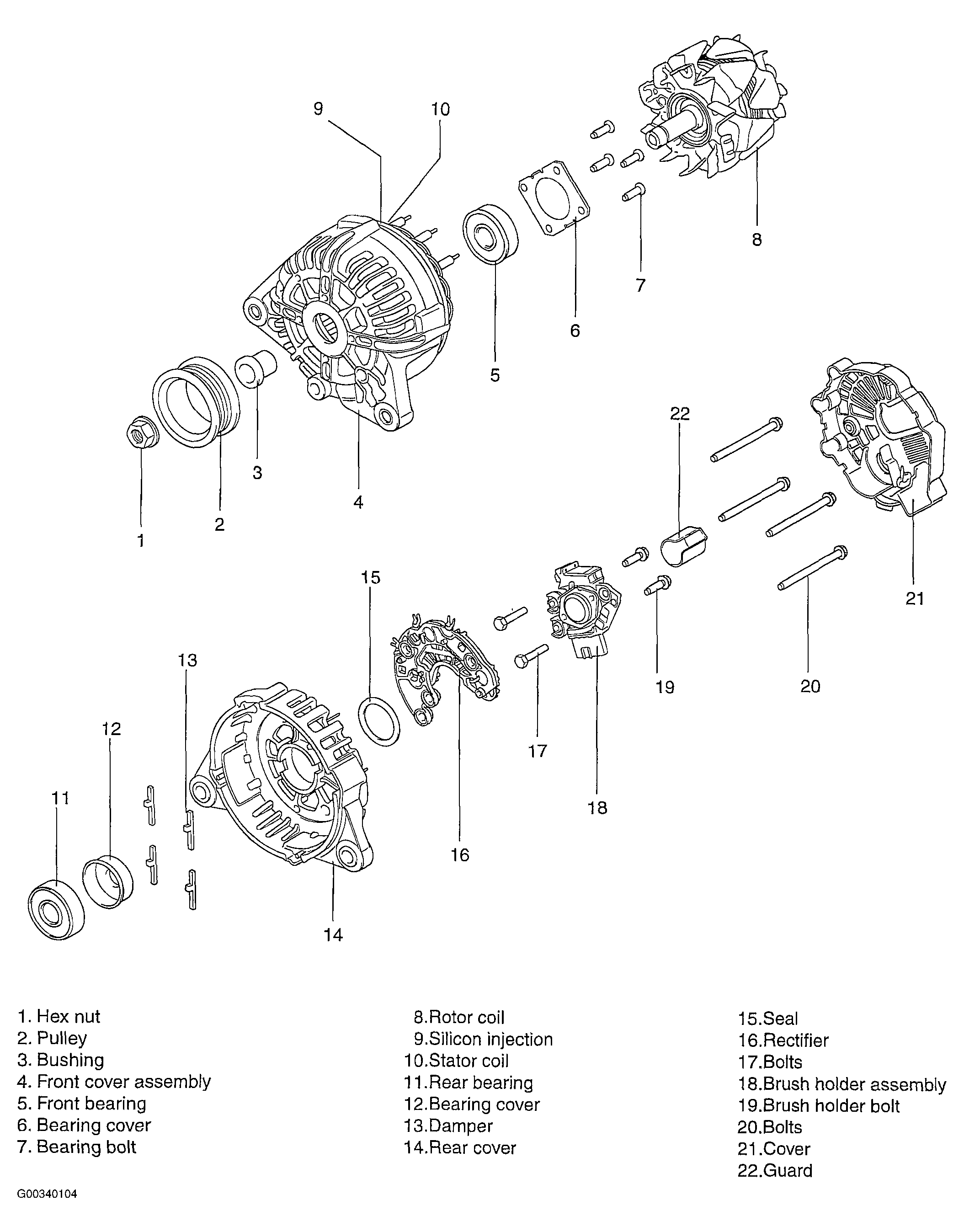

Fig 1: Exploded View Of Generator
G00340104Courtesy of KIA MOTORS AMERICA, INC.
