Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

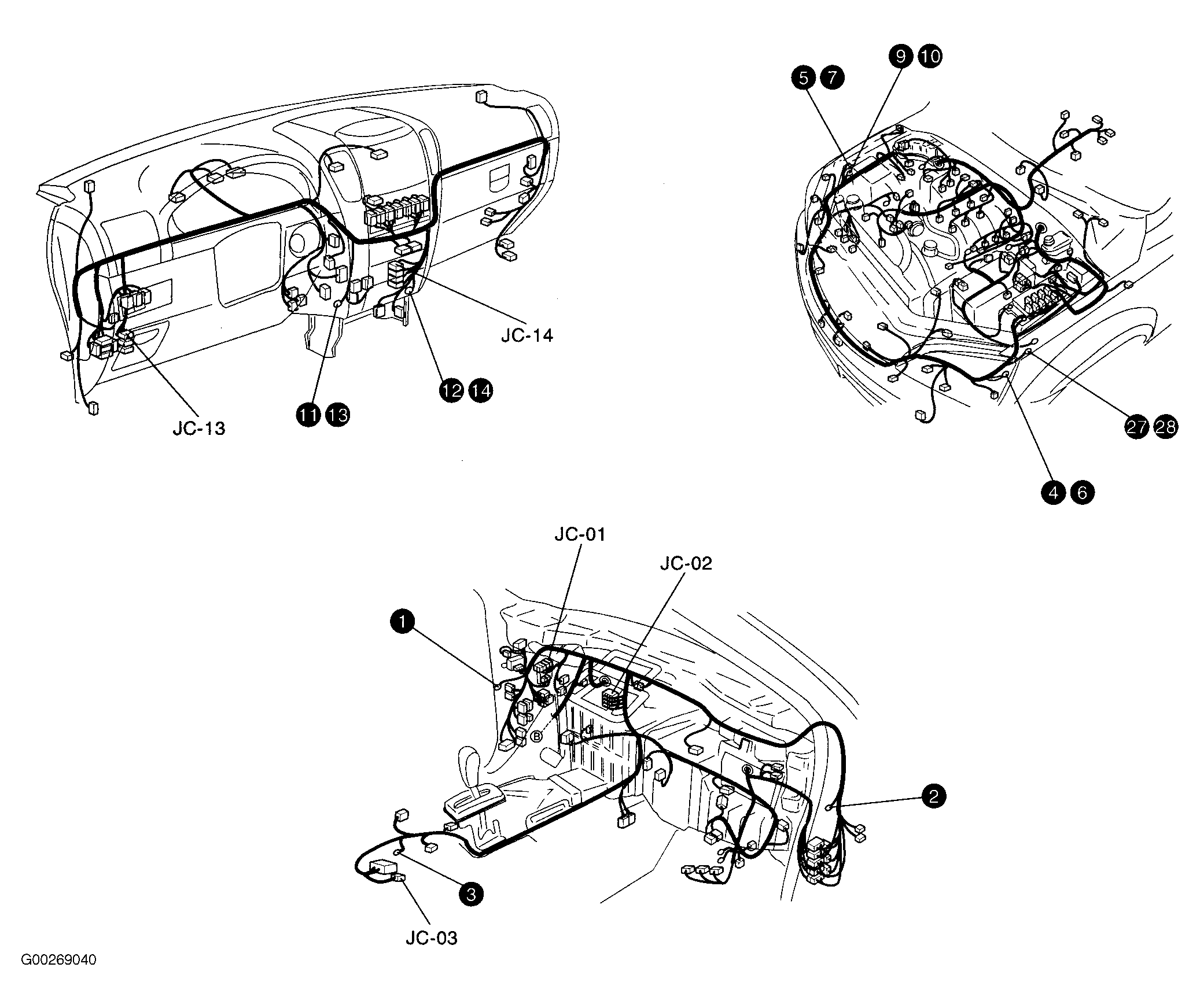

Fig 1: Ground Points

G00269040

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Ground Points

G00269041

Courtesy of KIA MOTORS AMERICA, INC.

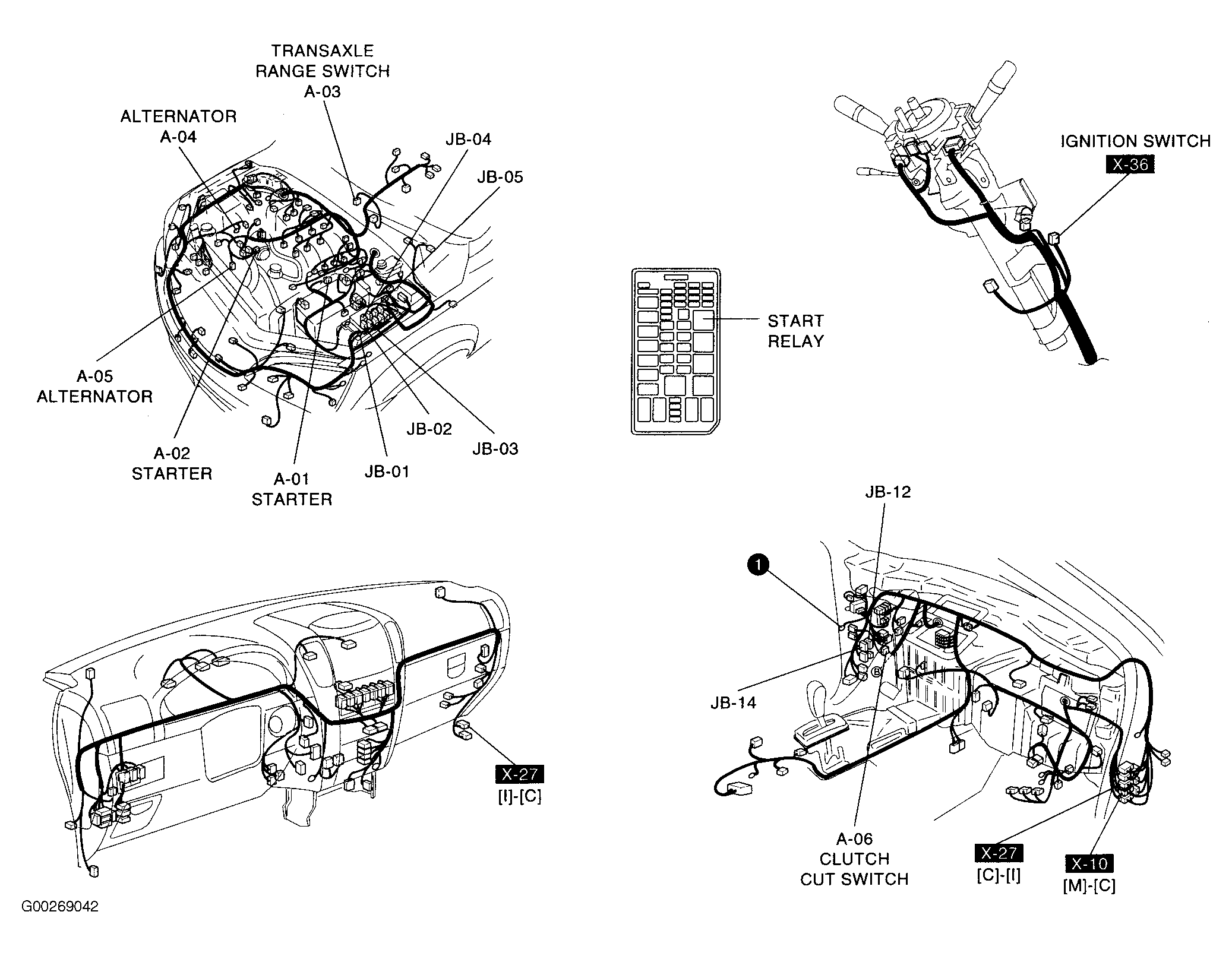

Fig 3: Starting & Charging System

G00269042

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Engine Control System

G00269043

Courtesy of KIA MOTORS AMERICA, INC.

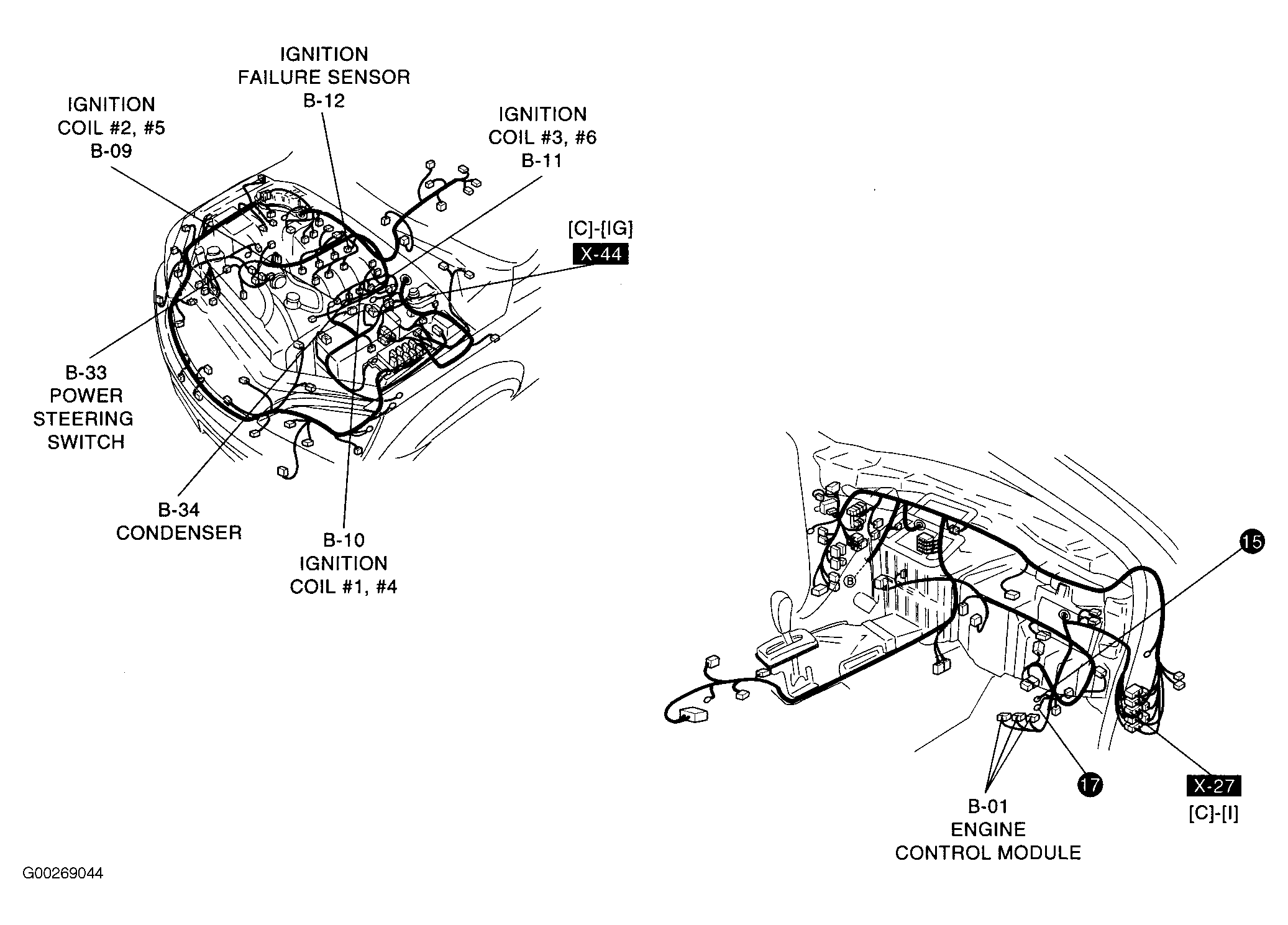

Fig 5: Engine Control System

G00269044

Courtesy of KIA MOTORS AMERICA, INC.

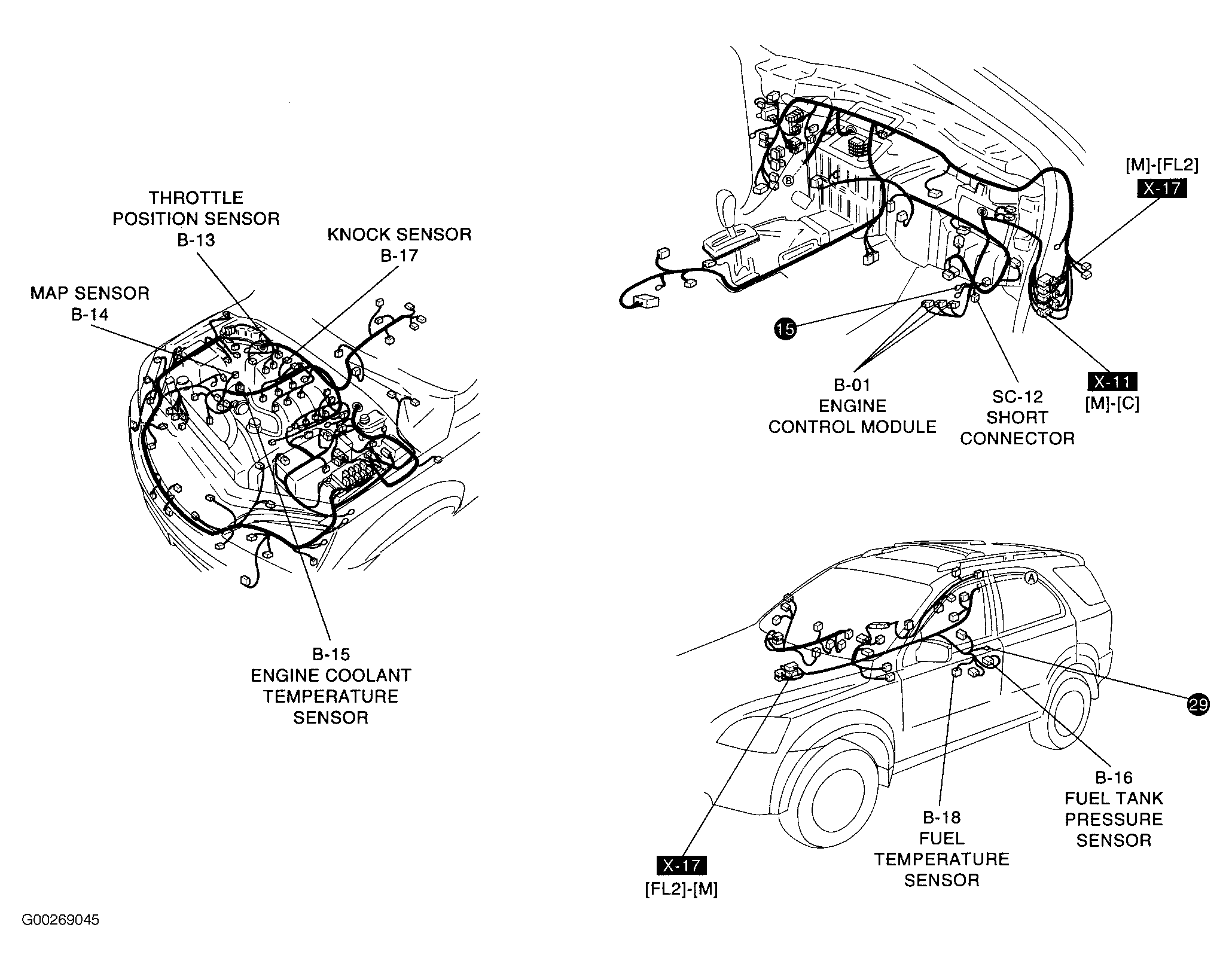

Fig 6: Engine Control System

G00269045

Courtesy of KIA MOTORS AMERICA, INC.

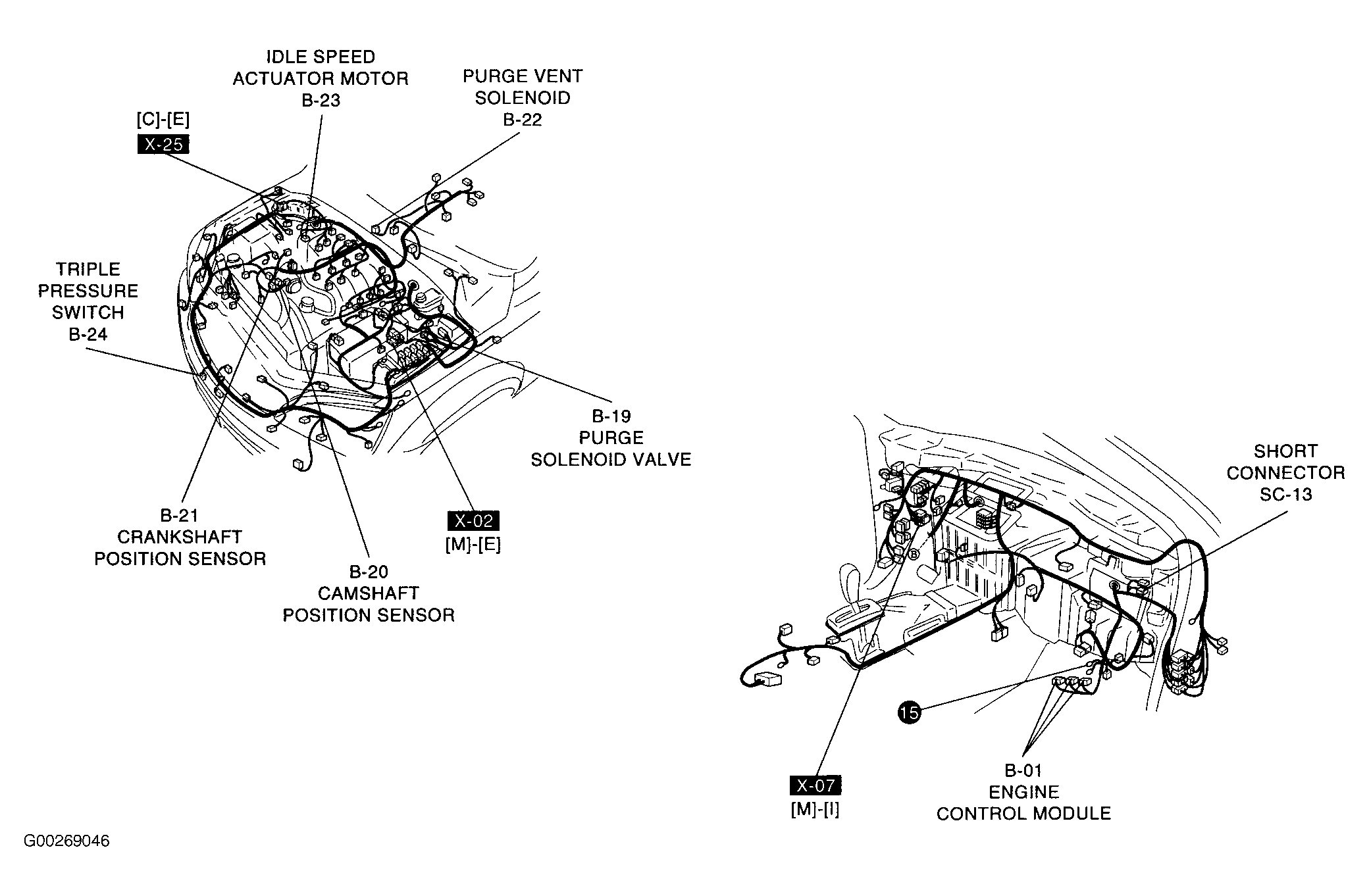

Fig 7: Engine Control System

G00269046

Courtesy of KIA MOTORS AMERICA, INC.

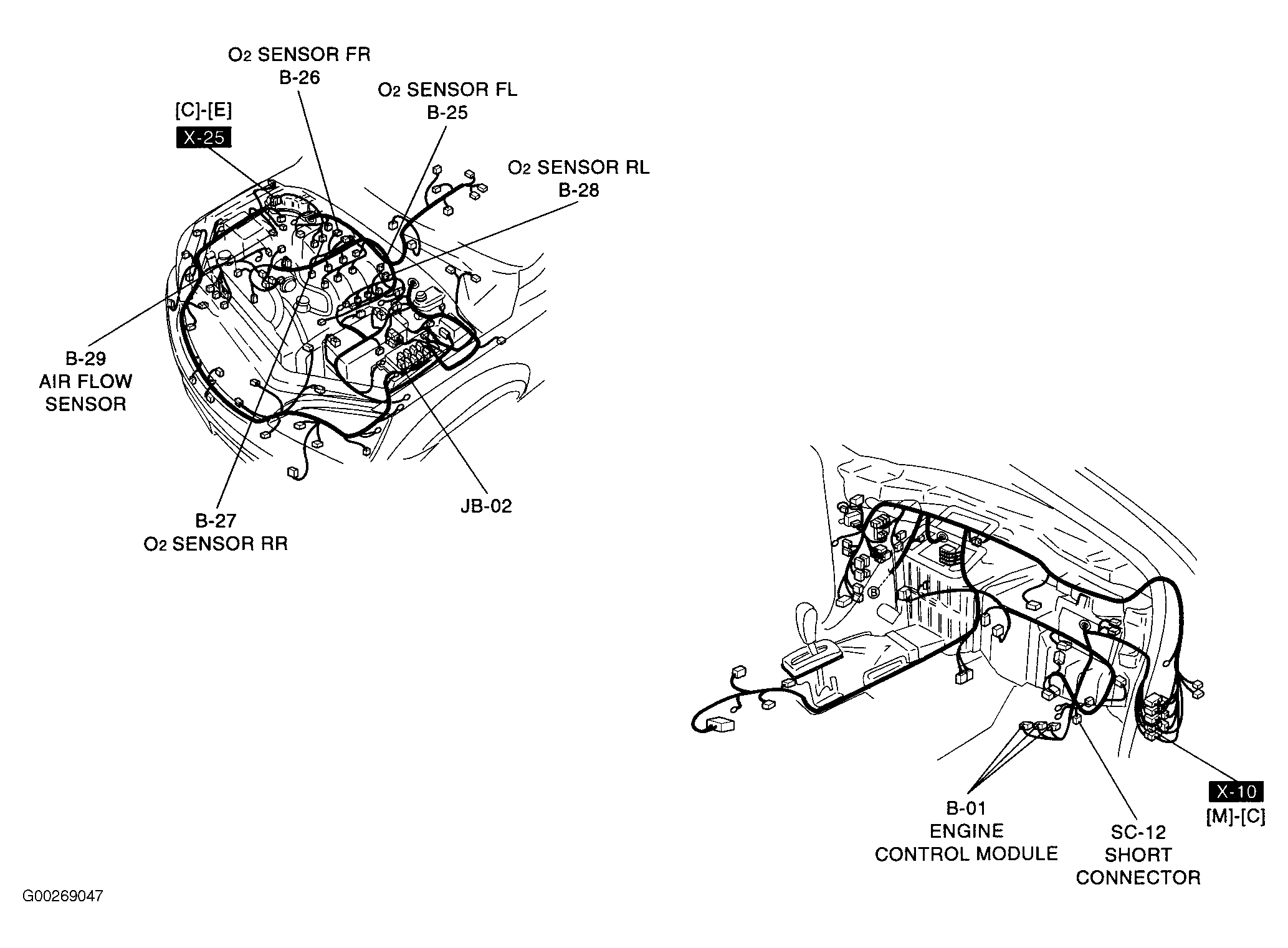

Fig 8: Engine Control System

G00269047

Courtesy of KIA MOTORS AMERICA, INC.

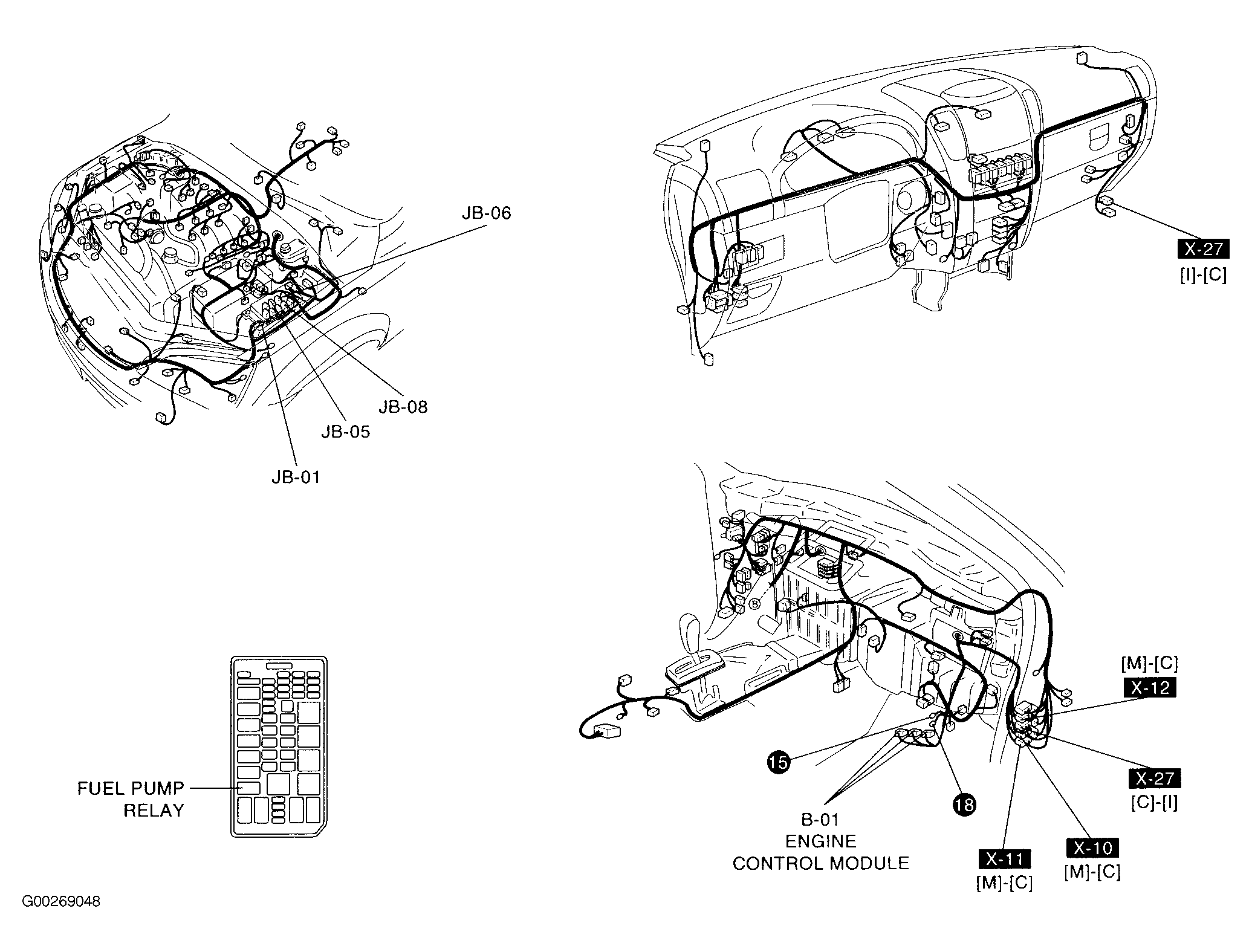

Fig 9: Engine Control System

G00269048

Courtesy of KIA MOTORS AMERICA, INC.

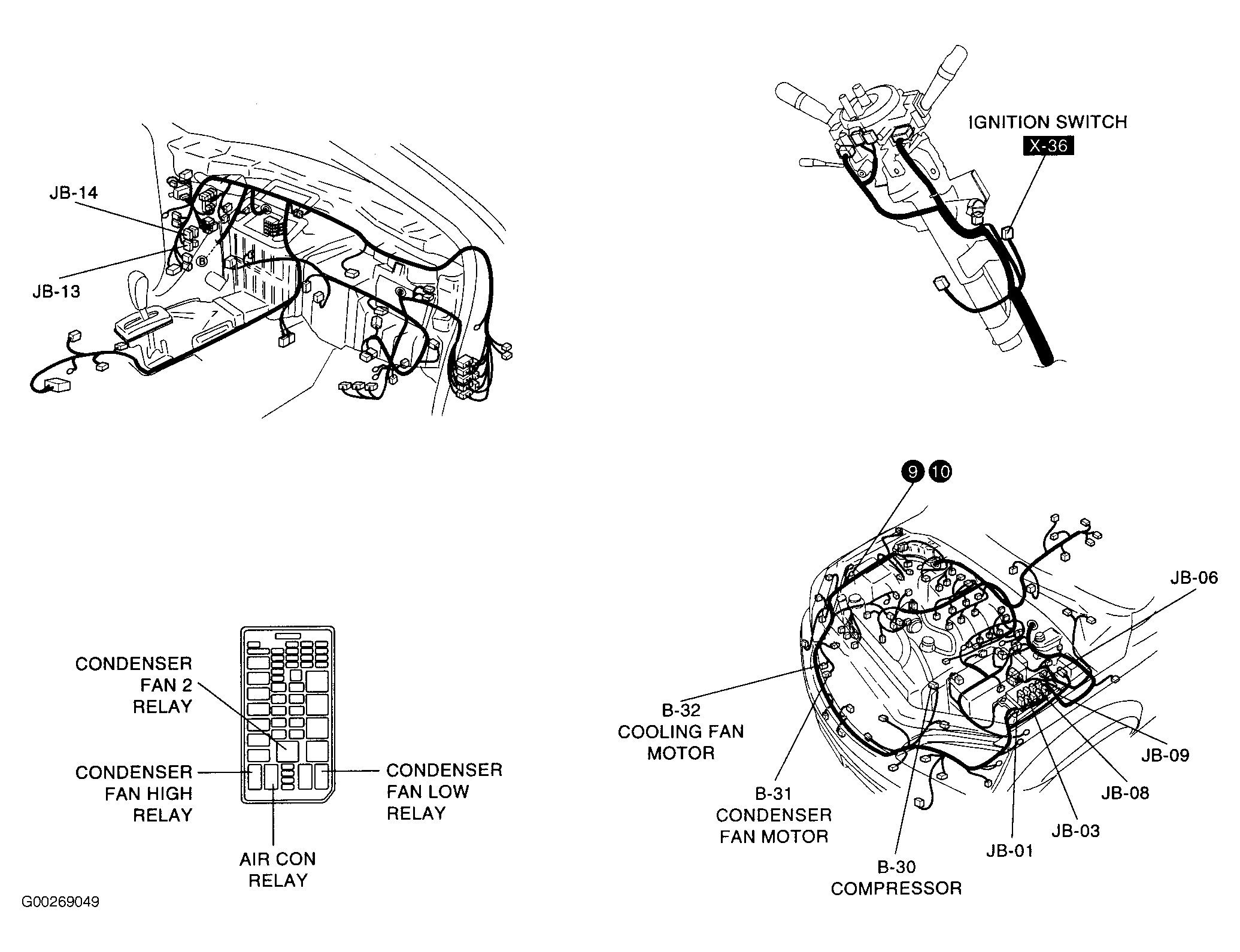

Fig 10: Cooling System

G00269049

Courtesy of KIA MOTORS AMERICA, INC.

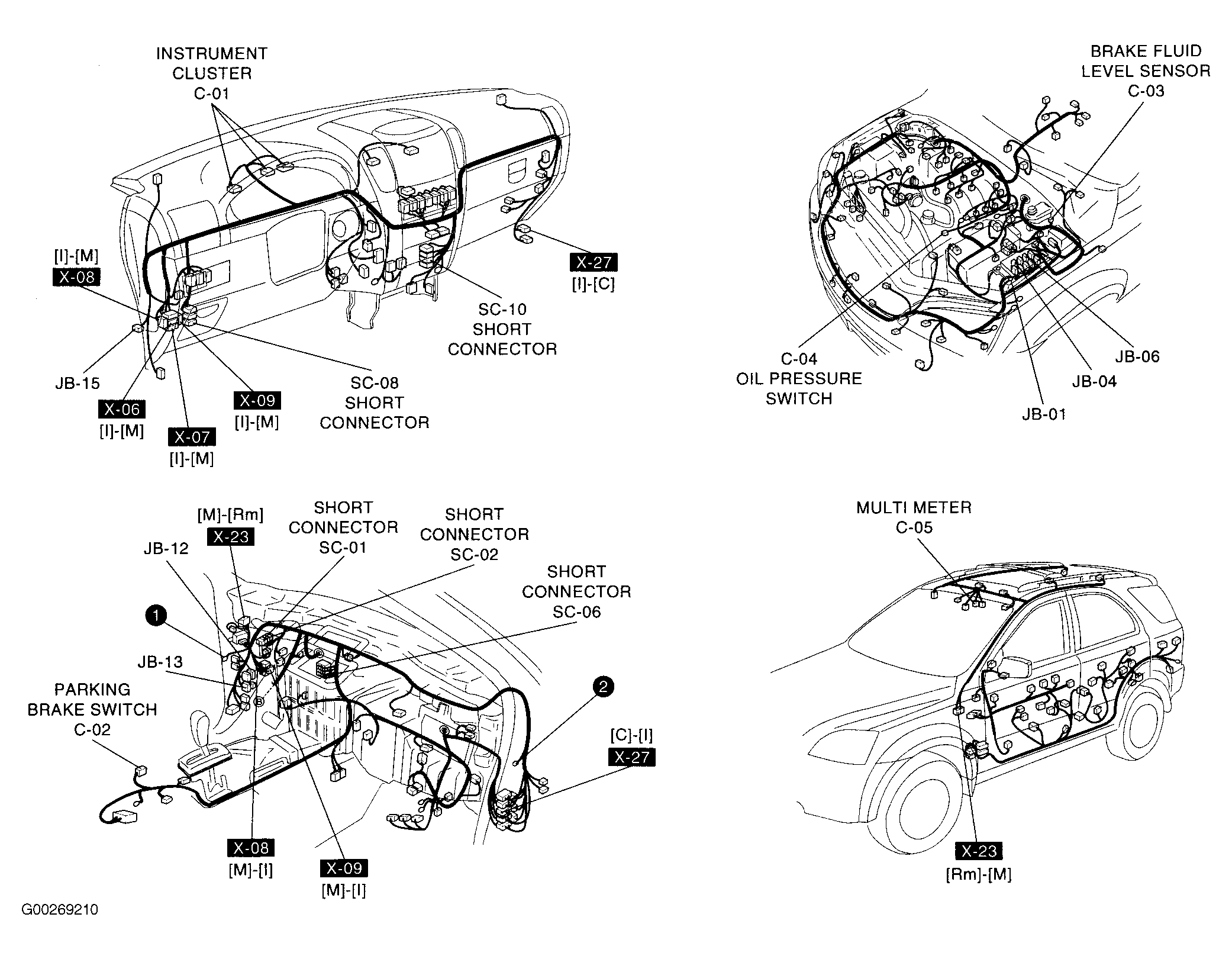

Fig 11: Instrument Cluster, Warning Lamp & Multi-Meter

G00269210

Courtesy of KIA MOTORS AMERICA, INC.

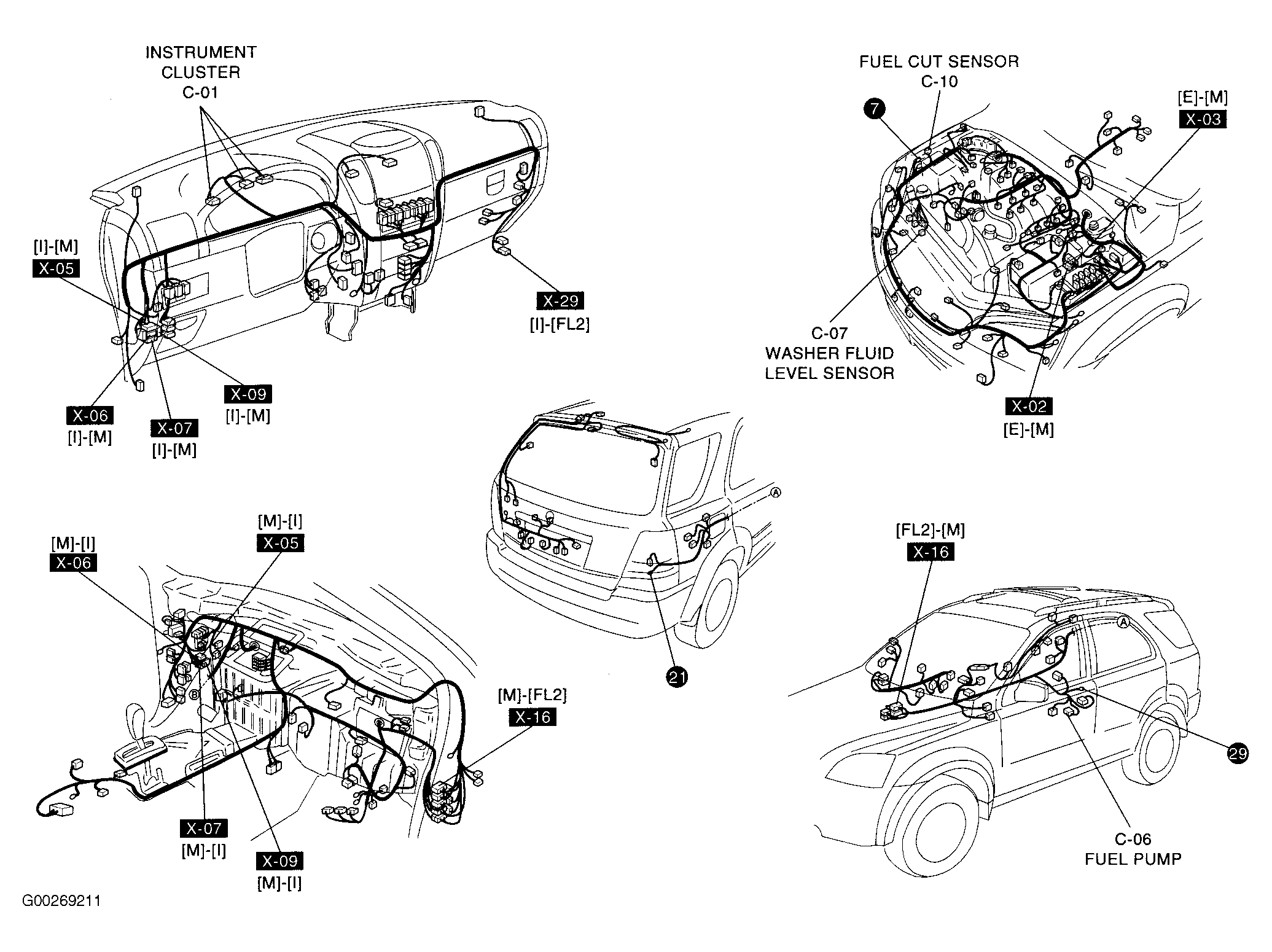

Fig 12: Instrument Cluster & Warning Lamp

G00269211

Courtesy of KIA MOTORS AMERICA, INC.

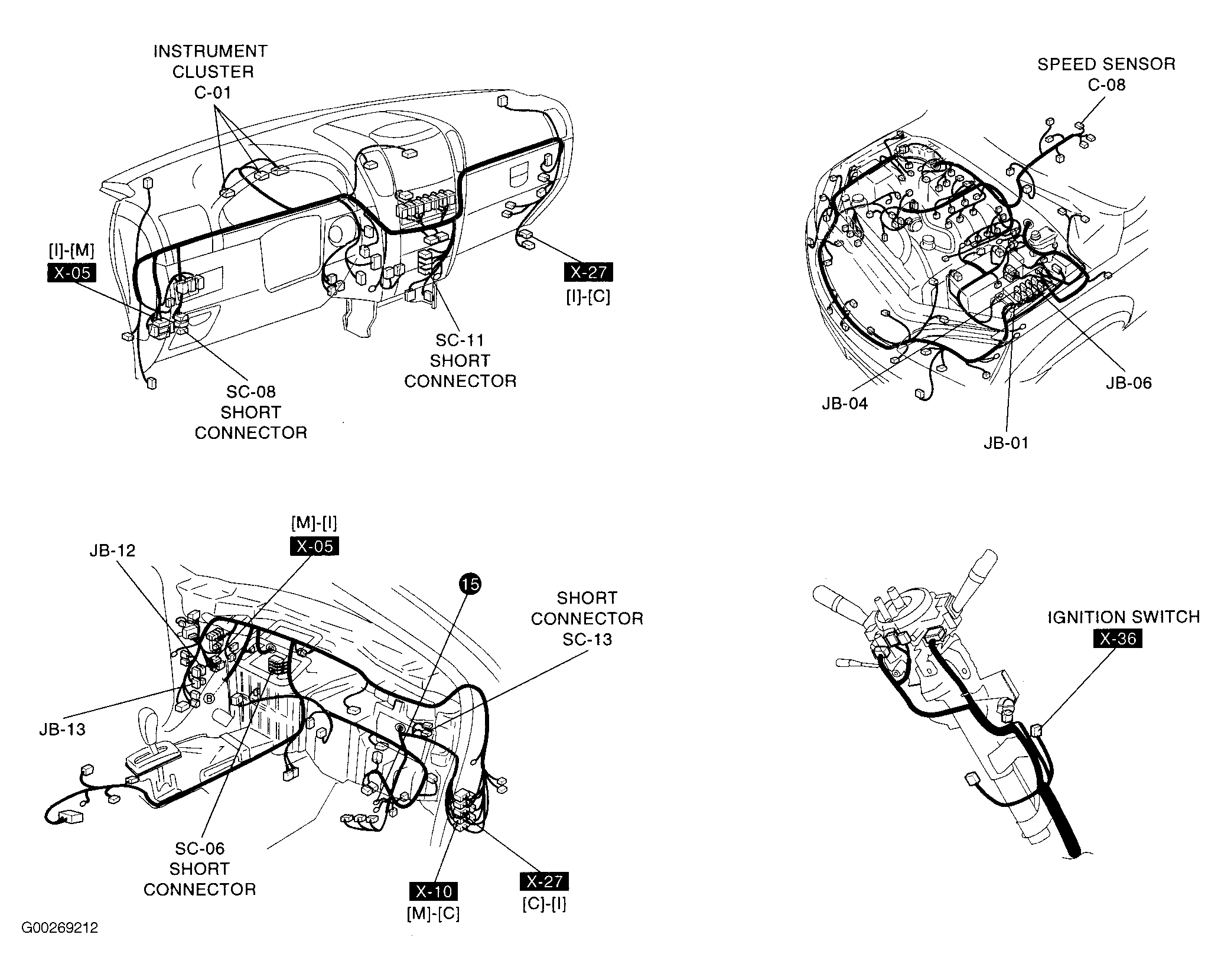

Fig 13: Instrument Cluster, Warning Lamp & Speed Sensor

G00269212

Courtesy of KIA MOTORS AMERICA, INC.

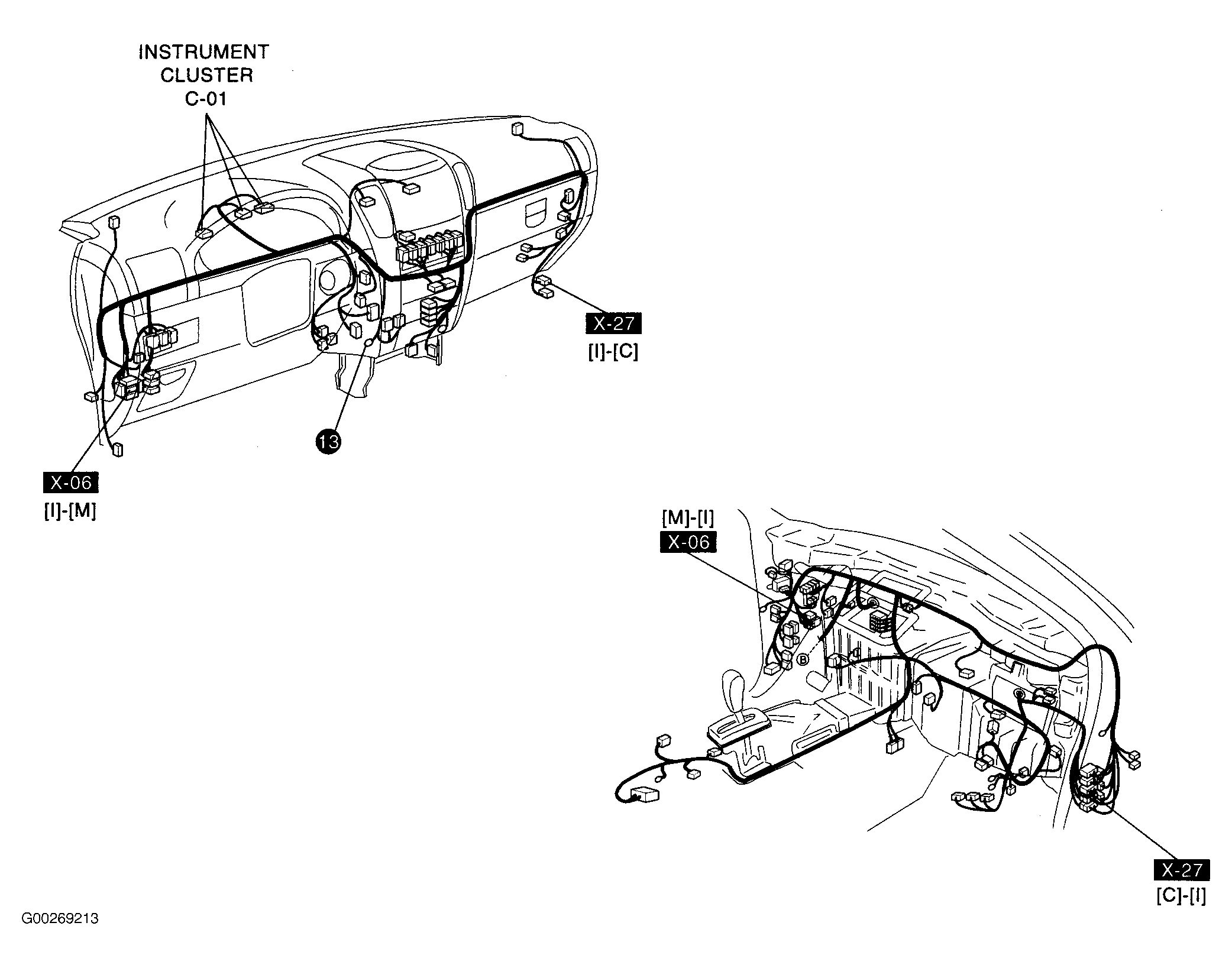

Fig 14: Instrument Cluster & Warning Lamp

G00269213

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Front Wiper/Washer System

G00269214

Courtesy of KIA MOTORS AMERICA, INC.

Fig 16: Rear Wiper/Washer System

G00269215

Courtesy of KIA MOTORS AMERICA, INC.

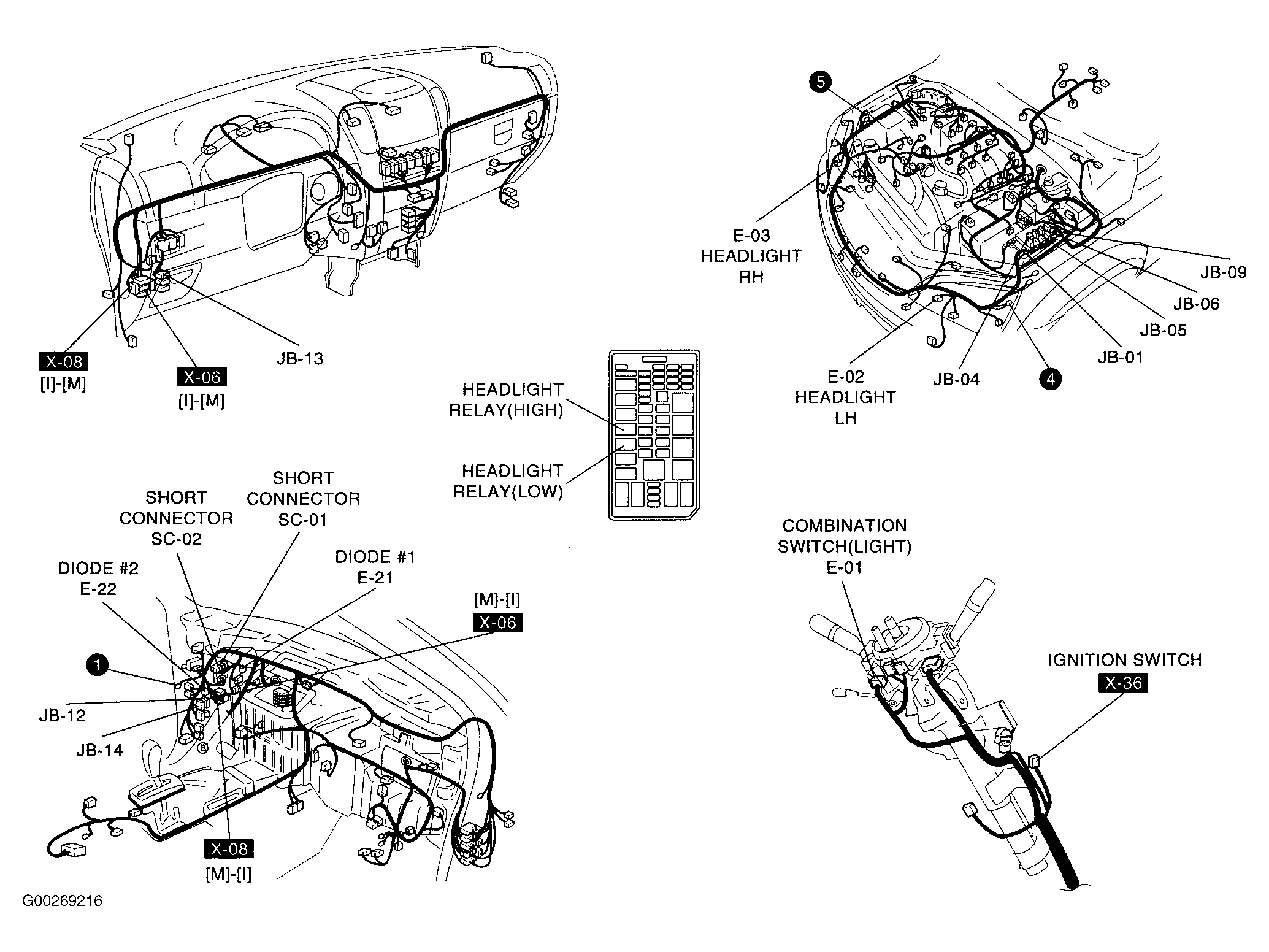

Fig 17: Headlight System

G00269216

Courtesy of KIA MOTORS AMERICA, INC.

Fig 18: Headlight System (Auto Light)

G00269217

Courtesy of KIA MOTORS AMERICA, INC.

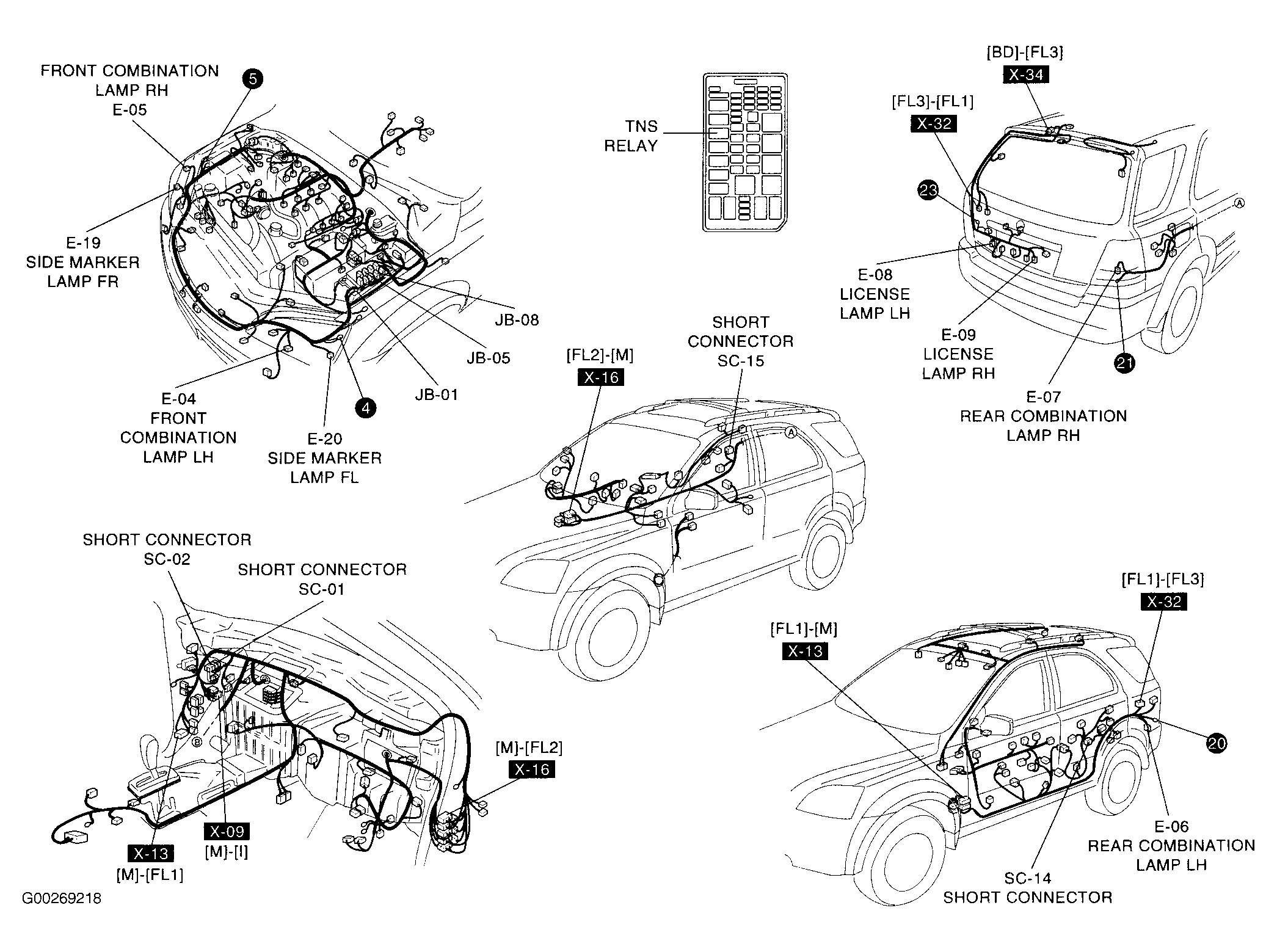

Fig 19: Tail, License, Position & Marker Lamps

G00269218

Courtesy of KIA MOTORS AMERICA, INC.

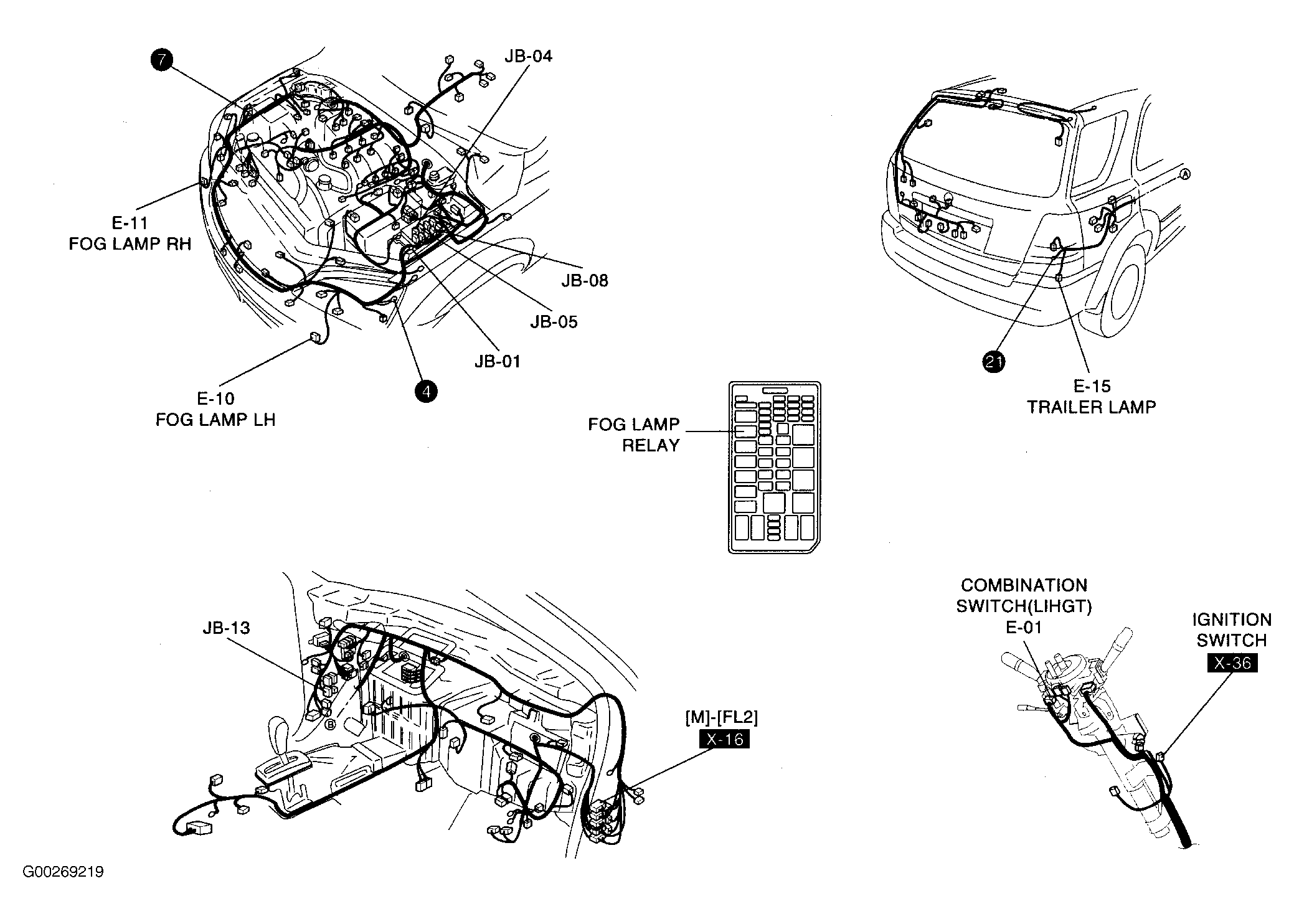

Fig 20: Fog & Trailer Lamps

G00269219

Courtesy of KIA MOTORS AMERICA, INC.

Fig 21: Daytime Running Lamps

G00269220

Courtesy of KIA MOTORS AMERICA, INC.

Fig 22: Turn & Hazard Flasher Unit

G00269221

Courtesy of KIA MOTORS AMERICA, INC.

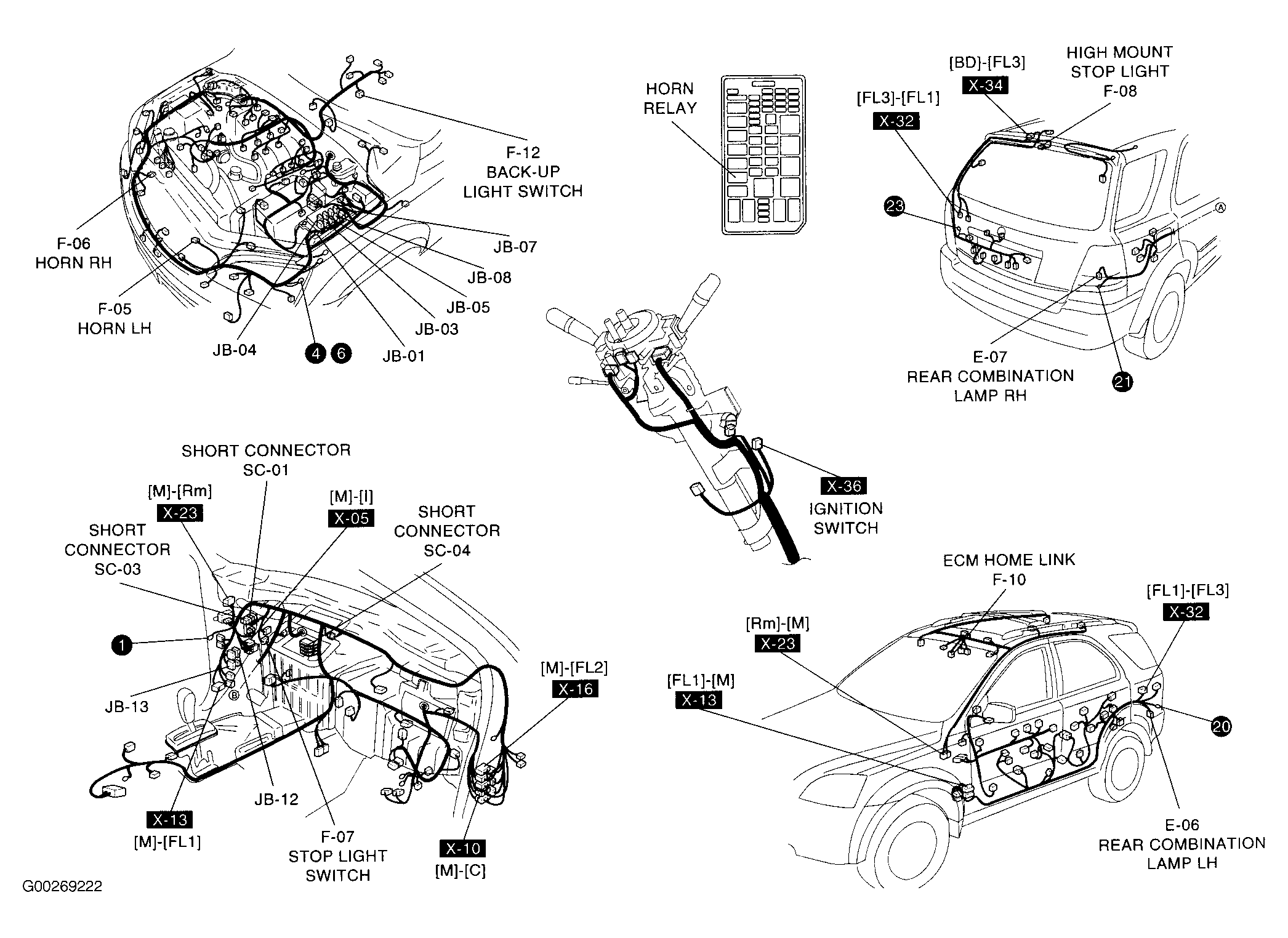

Fig 23: Horn

G00269222

Courtesy of KIA MOTORS AMERICA, INC.

Fig 24: Heater & A/C System (Logic)

G00269223

Courtesy of KIA MOTORS AMERICA, INC.

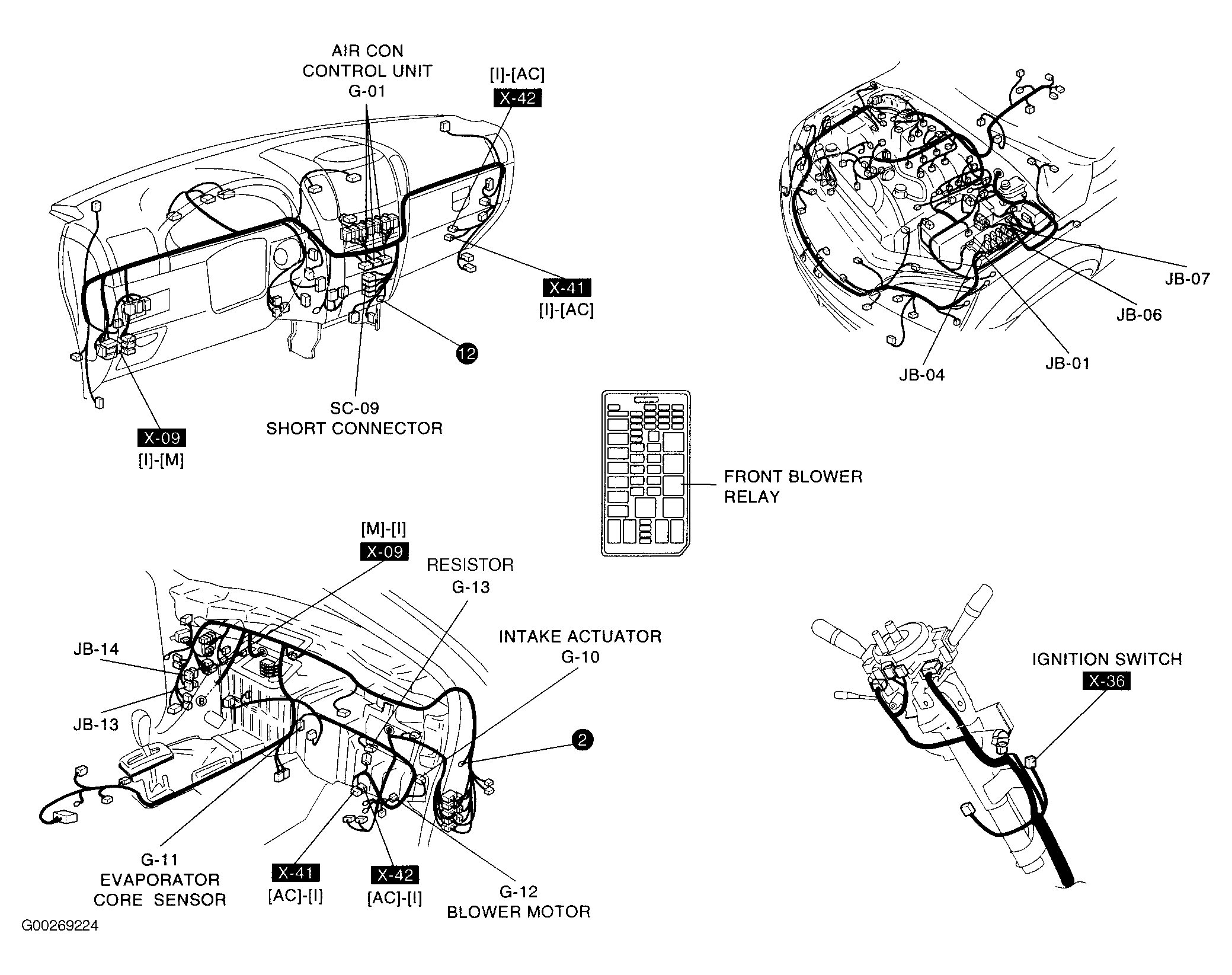

Fig 25: Heater & A/C System (Logic)

G00269224

Courtesy of KIA MOTORS AMERICA, INC.

Fig 26: Heater & A/C System (FATC)

G00269225

Courtesy of KIA MOTORS AMERICA, INC.

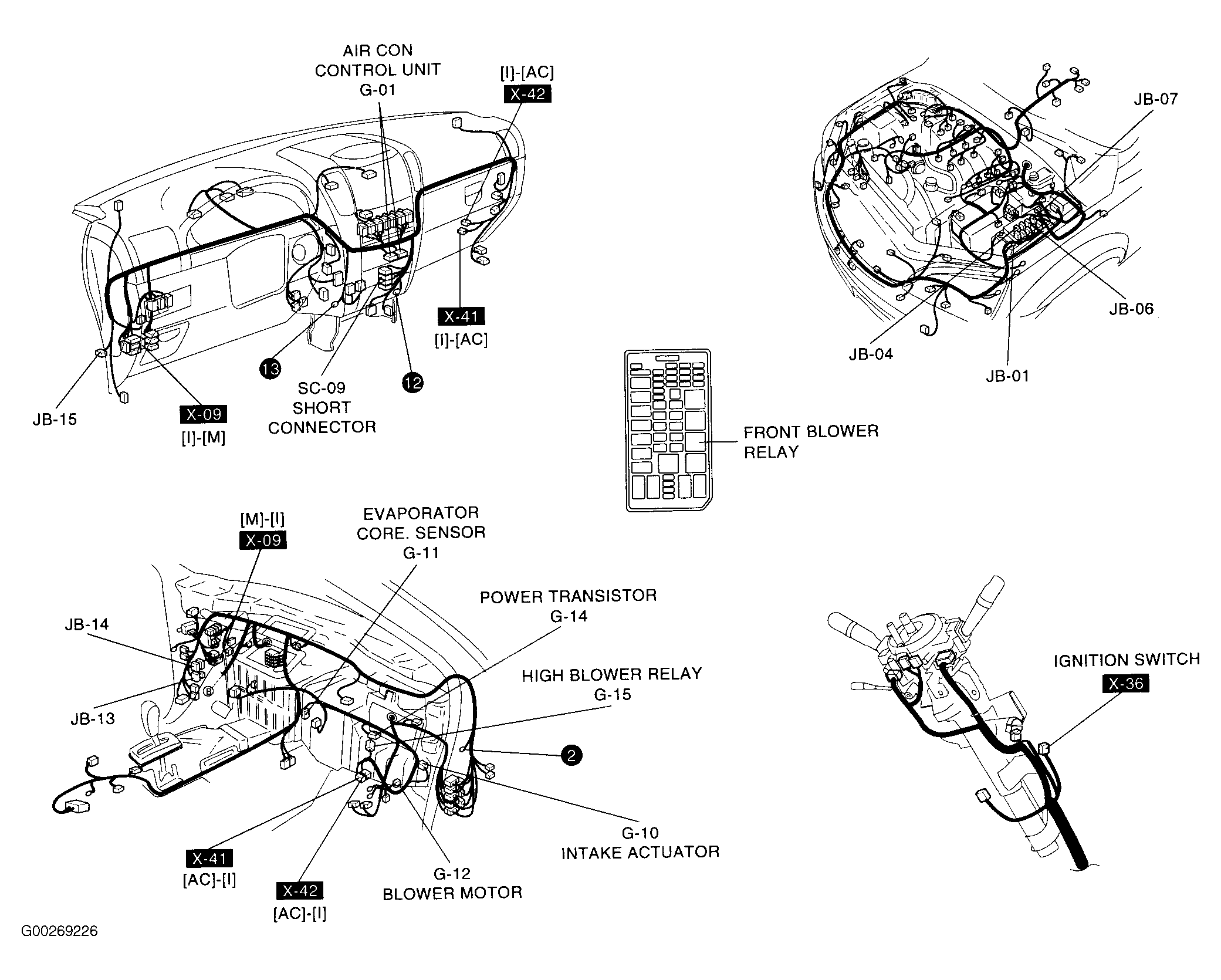

Fig 27: Heater & A/C System (FATC)

G00269226

Courtesy of KIA MOTORS AMERICA, INC.

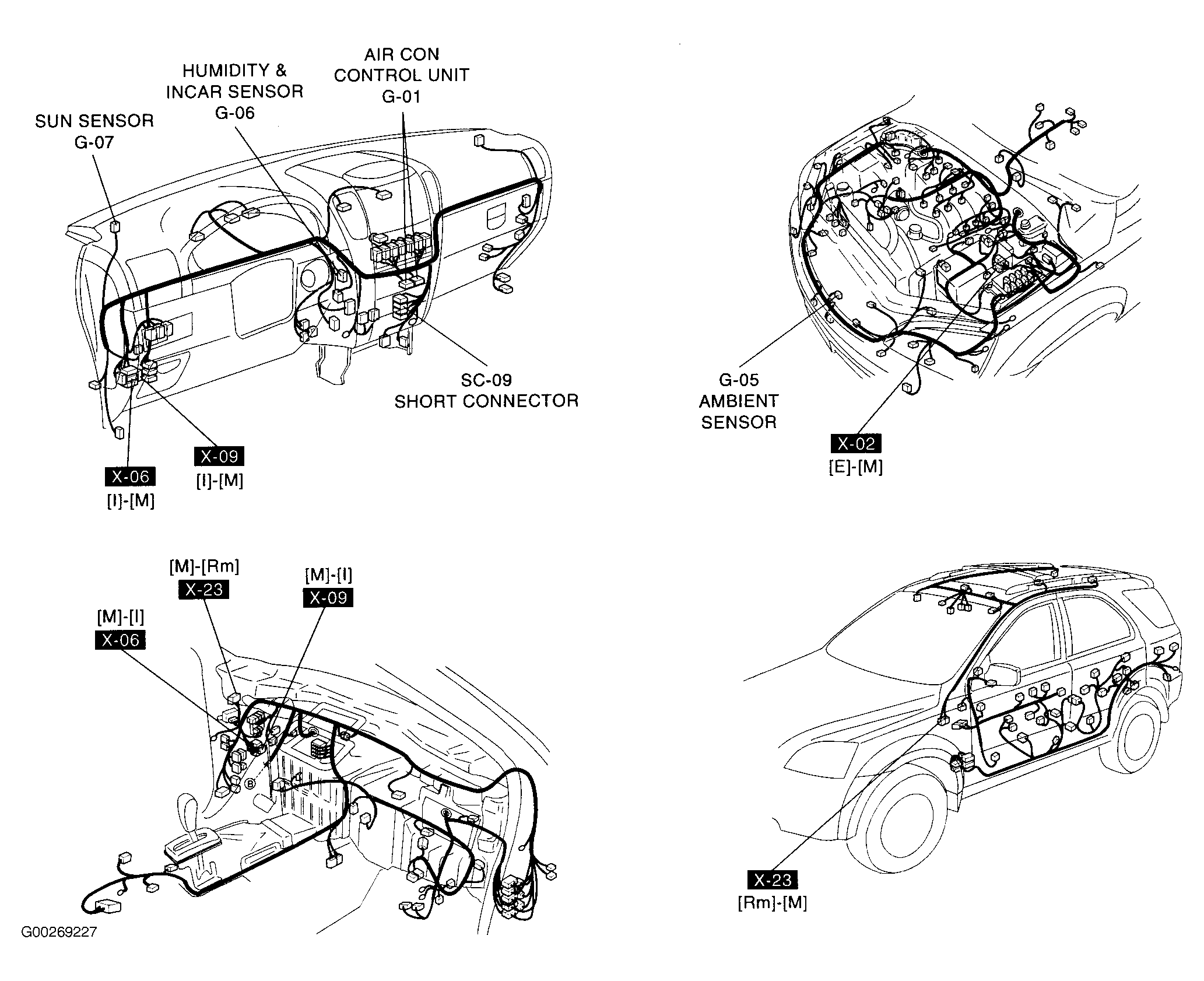

Fig 28: Heater & A/C System (FATC)

G00269227

Courtesy of KIA MOTORS AMERICA, INC.

Fig 29: Transaxle Control System

G00269228

Courtesy of KIA MOTORS AMERICA, INC.

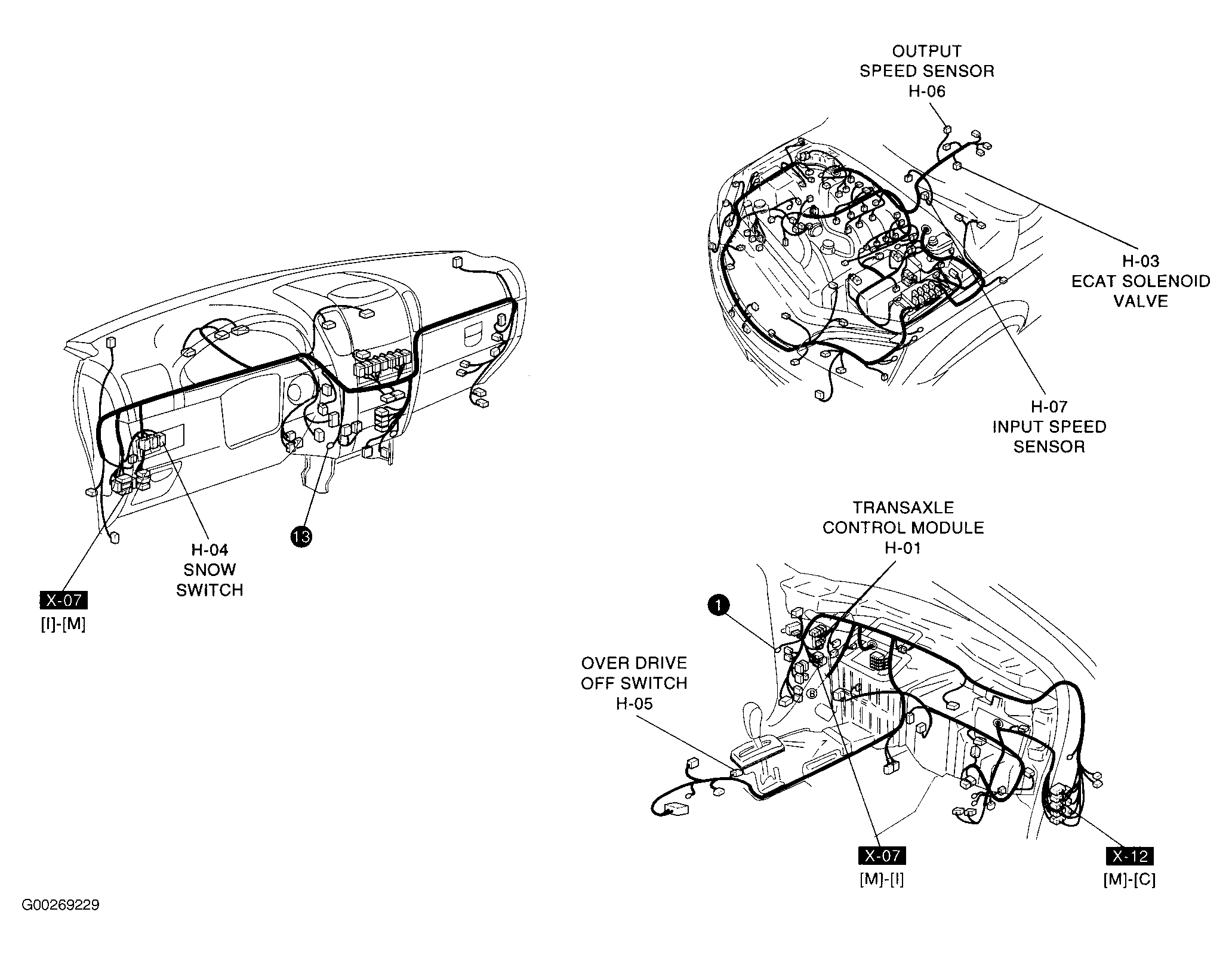

Fig 30: Transaxle Control System

G00269229

Courtesy of KIA MOTORS AMERICA, INC.

Fig 31: Transfer Case Control System (EST)

G00269230

Courtesy of KIA MOTORS AMERICA, INC.

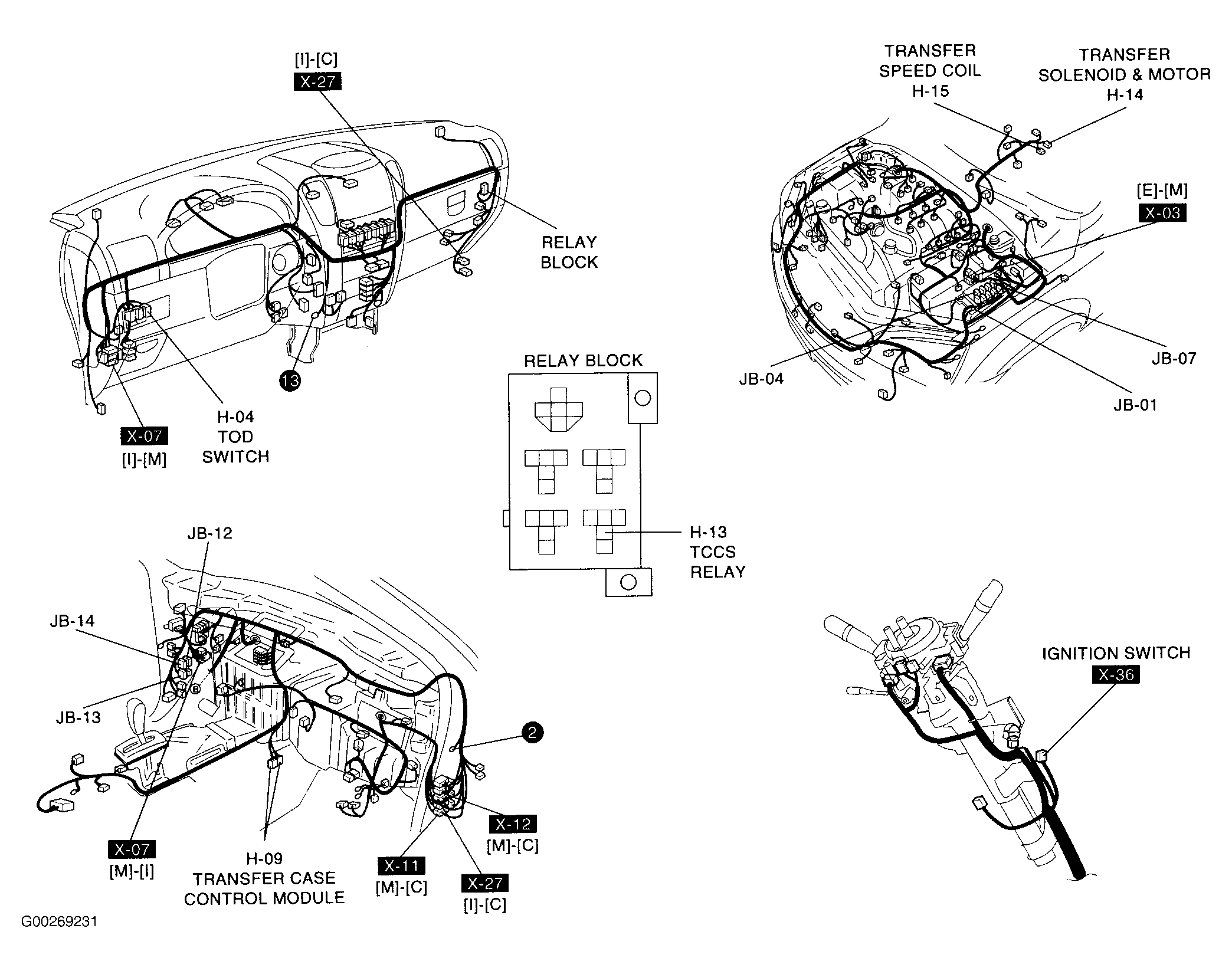

Fig 32: Transfer Case Control System (TOD)

G00269231

Courtesy of KIA MOTORS AMERICA, INC.

Fig 33: ETACS, Key Remain Switch, Center Room Lamp, Sunvisor & Cargo Room Lamps

G00269232

Courtesy of KIA MOTORS AMERICA, INC.

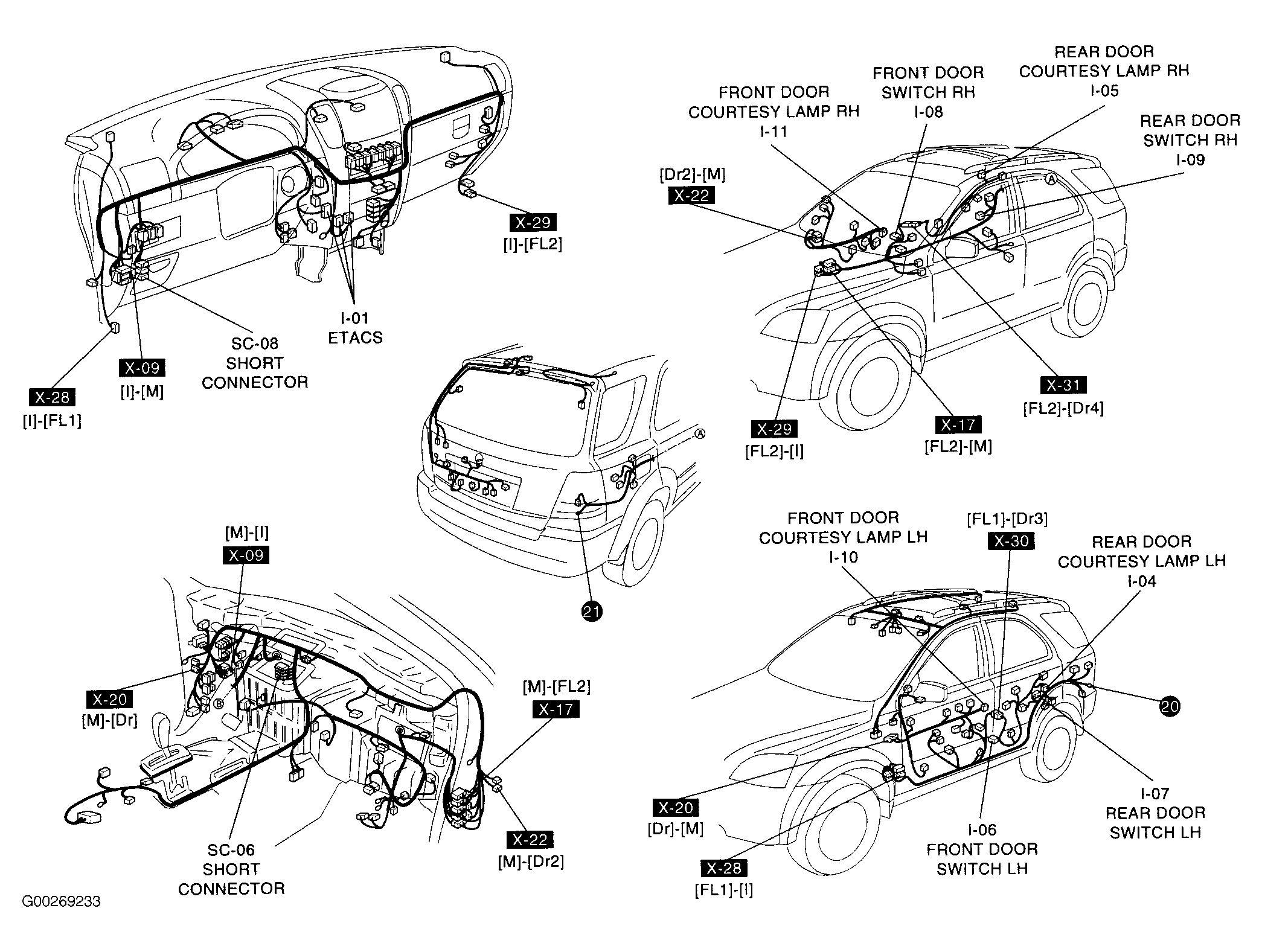

Fig 34: ETACS, Door Switches & Courtesy Lamps

G00269233

Courtesy of KIA MOTORS AMERICA, INC.

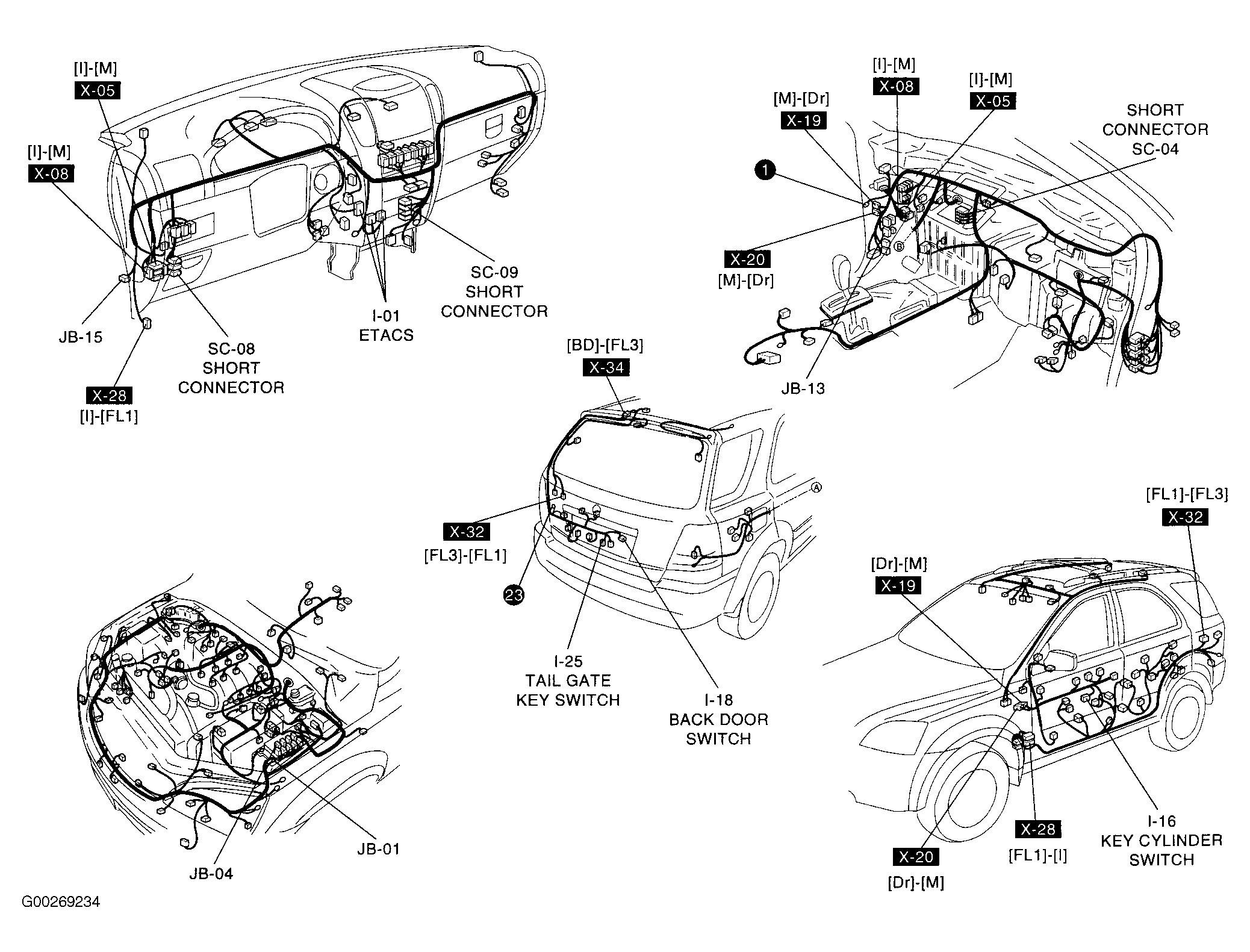

Fig 35: ETACS, Key Cylinder Switch

G00269234

Courtesy of KIA MOTORS AMERICA, INC.

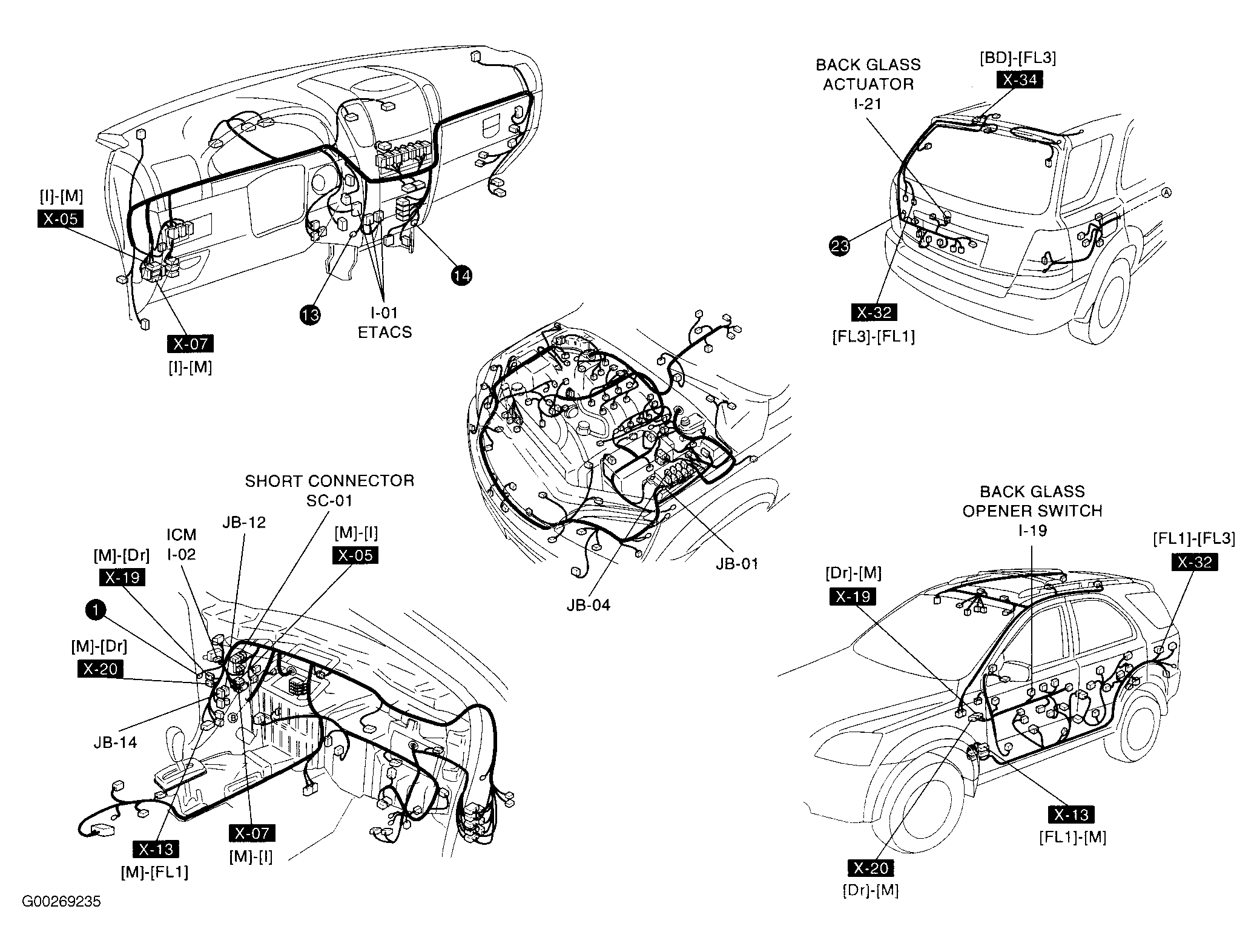

Fig 36: ETACS, Back Glass Opener

G00269235

Courtesy of KIA MOTORS AMERICA, INC.

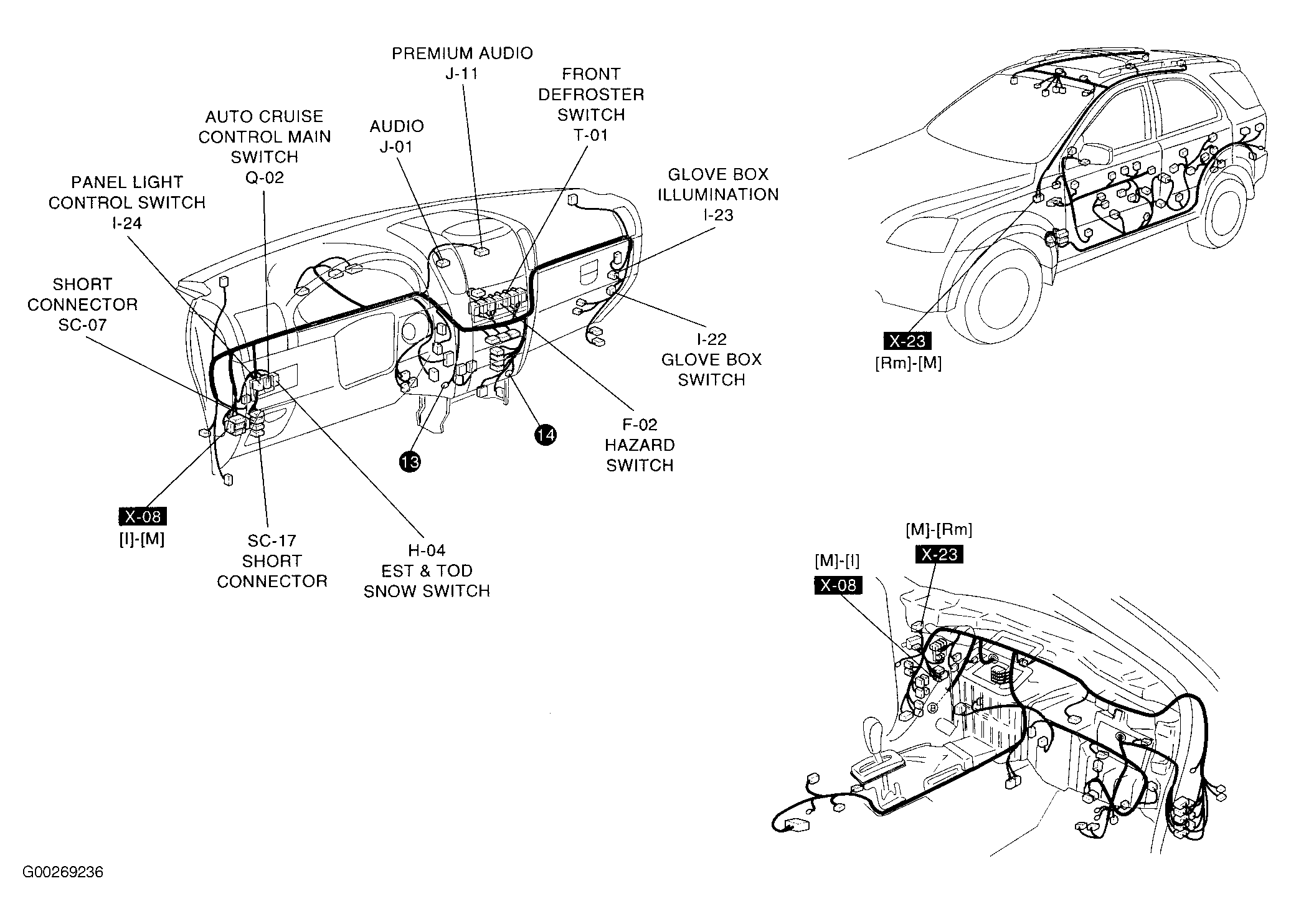

Fig 37: Glove Box Lamp

G00269236

Courtesy of KIA MOTORS AMERICA, INC.

Fig 38: Audio System

G00269238

Courtesy of KIA MOTORS AMERICA, INC.

Fig 39: Audio System (Premium)

G00269239

Courtesy of KIA MOTORS AMERICA, INC.

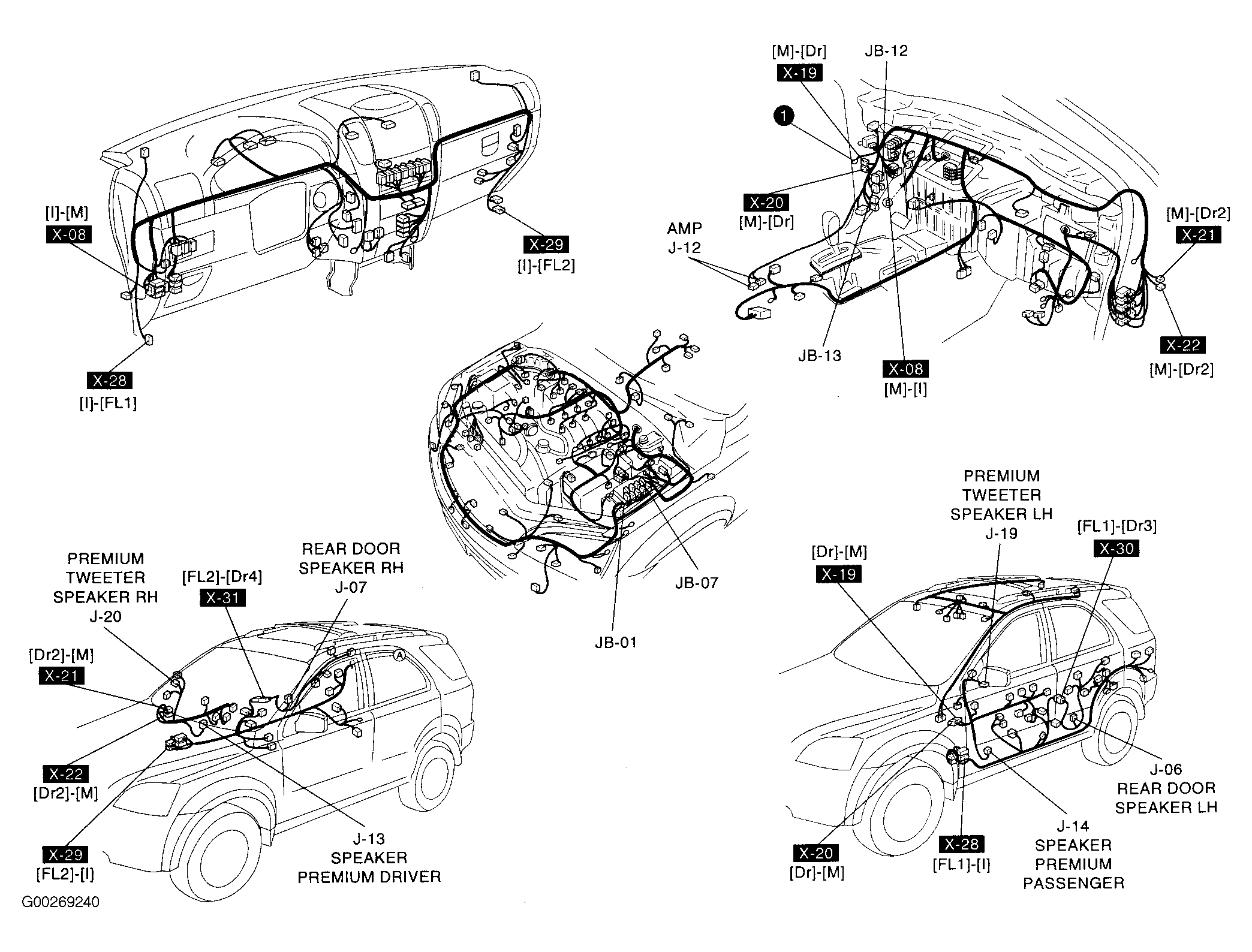

Fig 40: Audio System (Premium)

G00269240

Courtesy of KIA MOTORS AMERICA, INC.

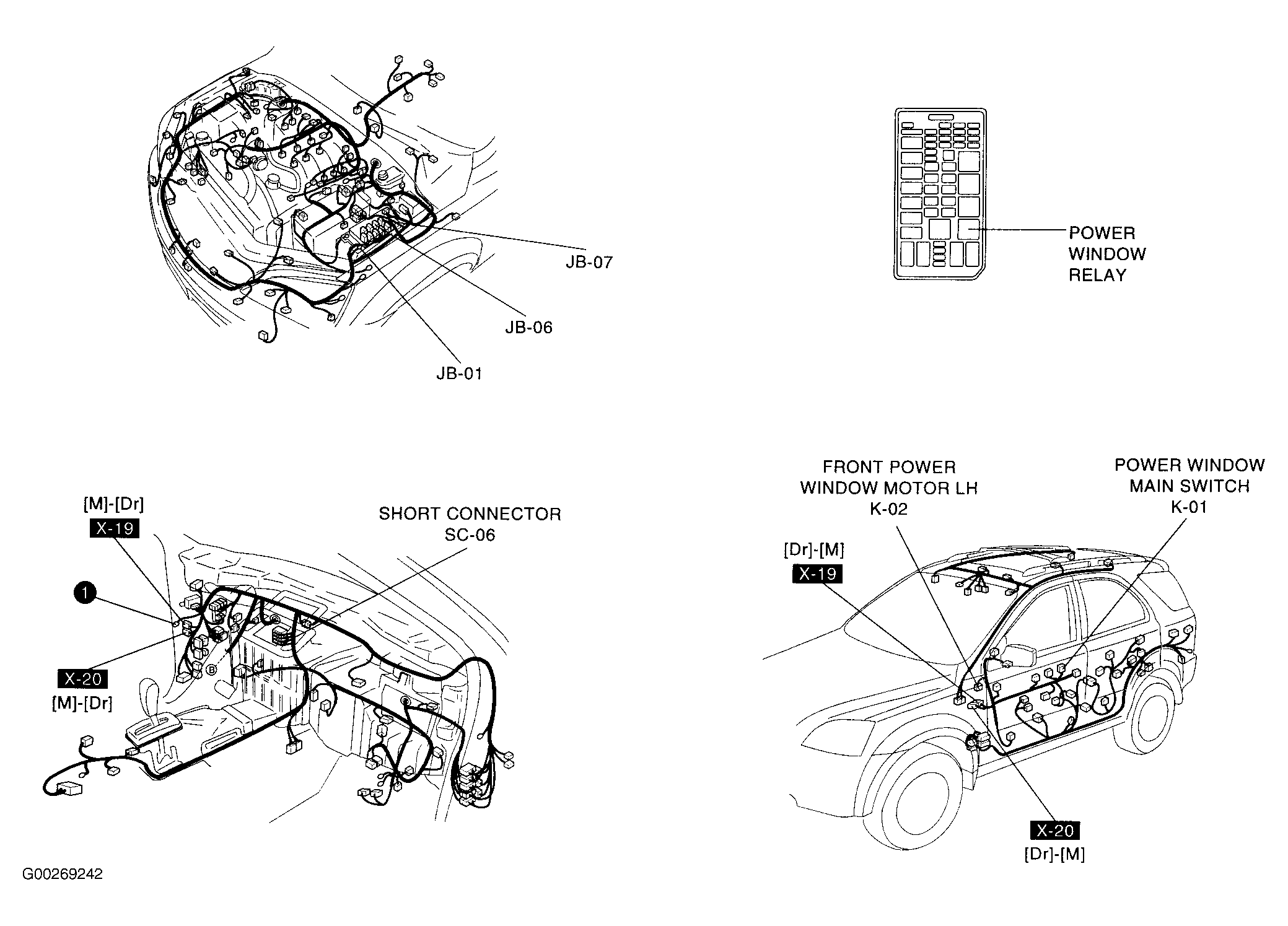

Fig 41: Power Window System

G00269242

Courtesy of KIA MOTORS AMERICA, INC.

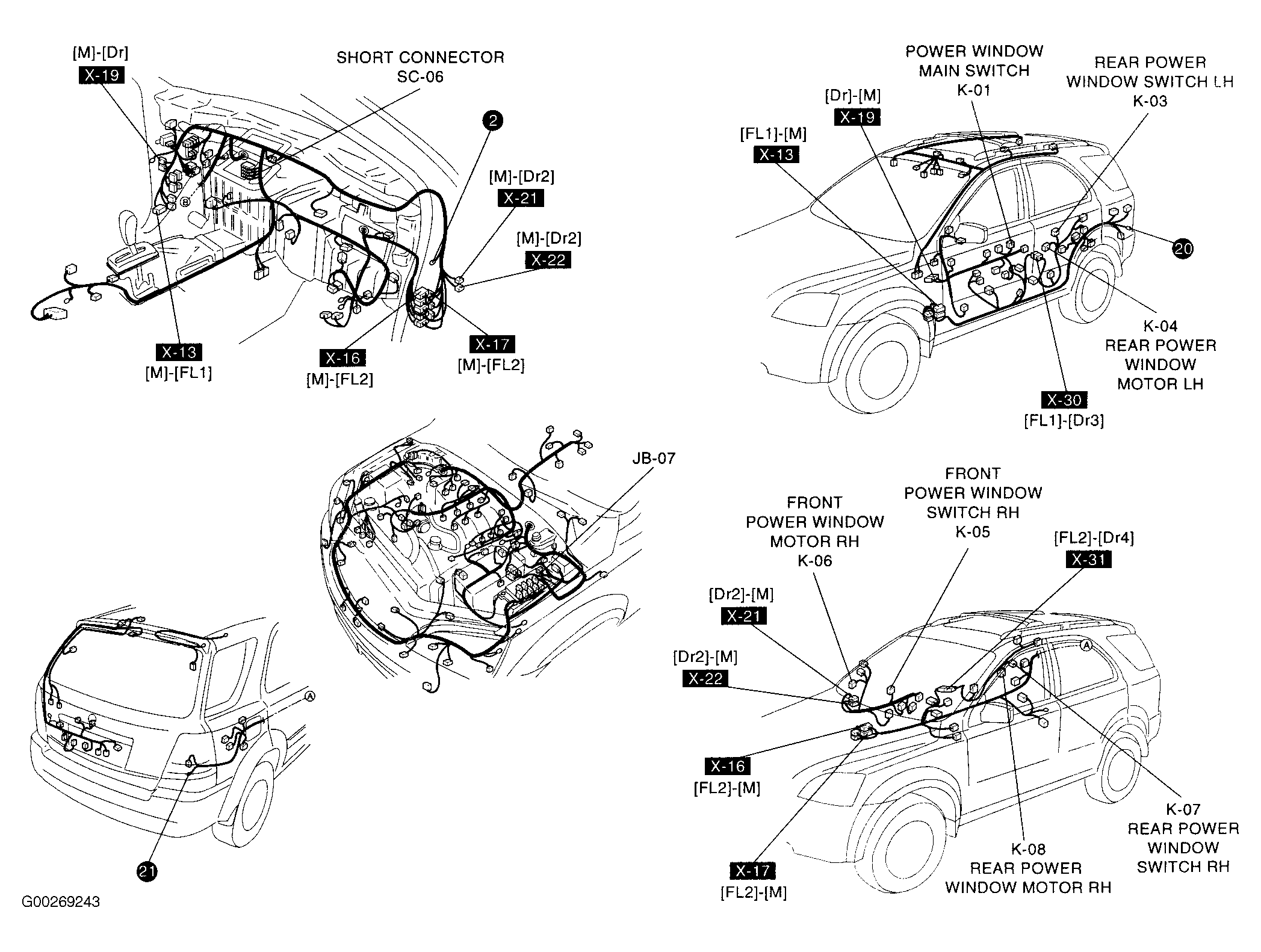

Fig 42: Power Window System

G00269243

Courtesy of KIA MOTORS AMERICA, INC.

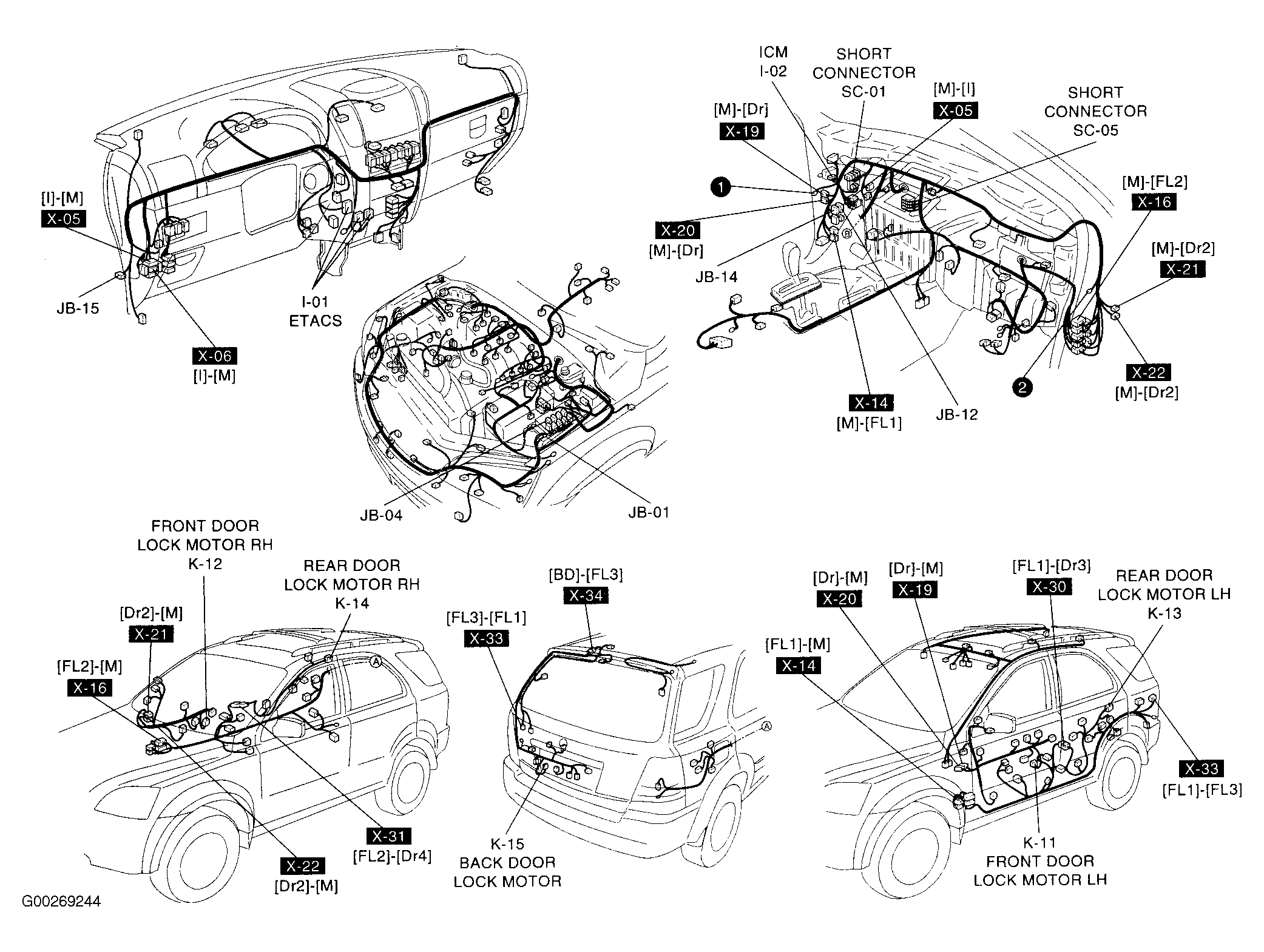

Fig 43: Power Door Lock System

G00269244

Courtesy of KIA MOTORS AMERICA, INC.

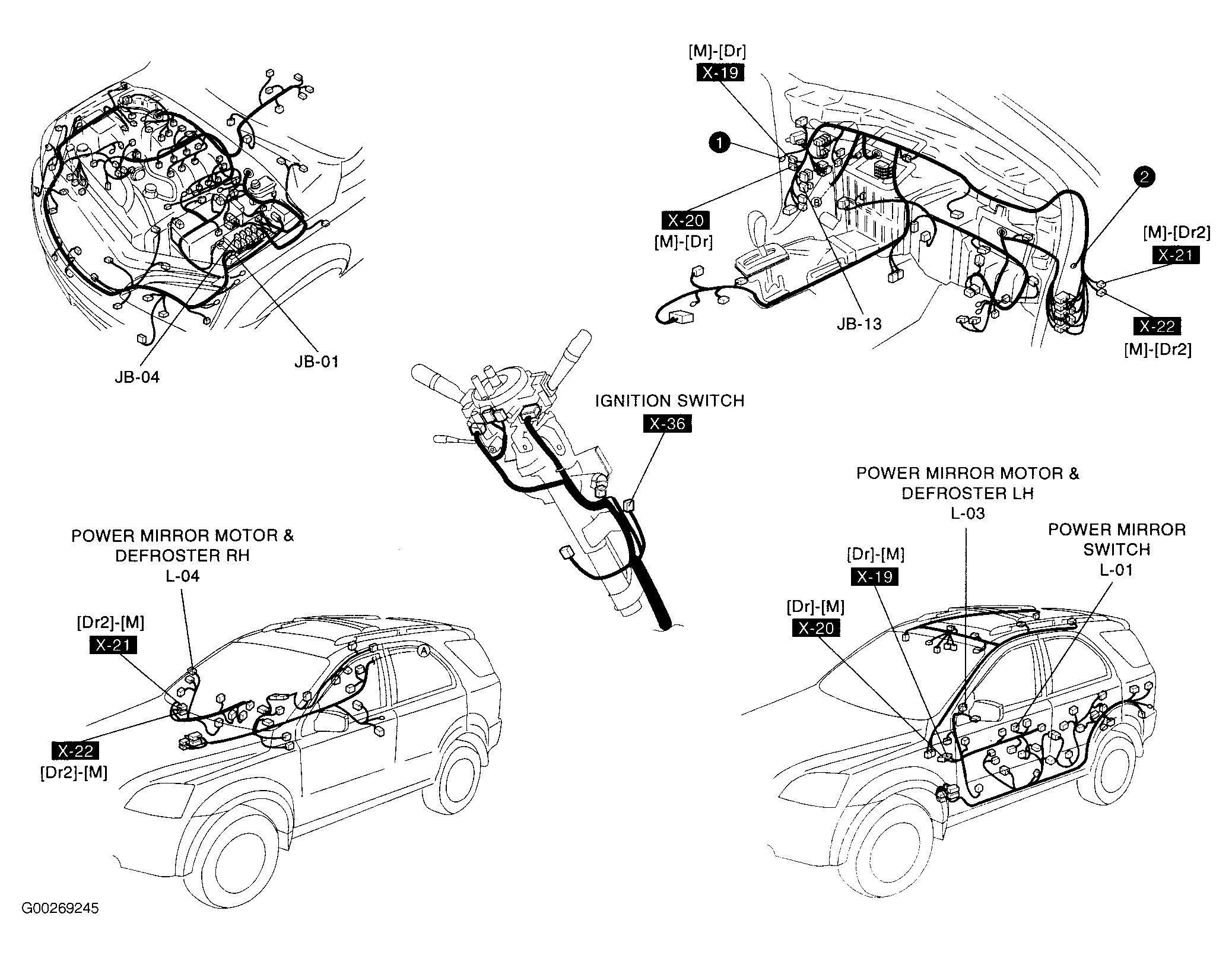

Fig 44: Power Mirror System

G00269245

Courtesy of KIA MOTORS AMERICA, INC.

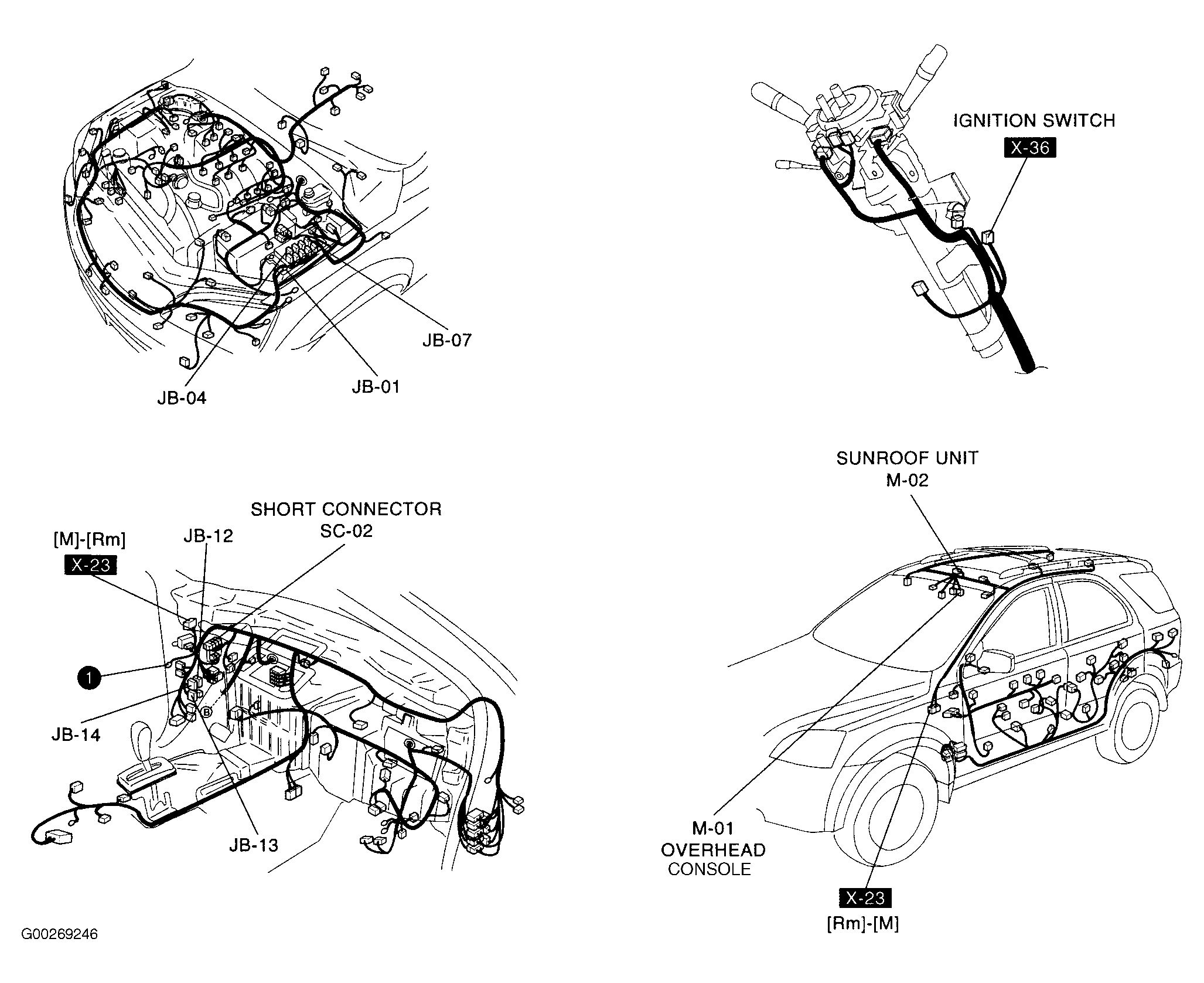

Fig 45: Sunroof System

G00269246

Courtesy of KIA MOTORS AMERICA, INC.

Fig 46: Electronic Power Steering (EPS) System

G00269247

Courtesy of KIA MOTORS AMERICA, INC.

Fig 47: Anti-Lock Brake (ABS) System

G00269248

Courtesy of KIA MOTORS AMERICA, INC.

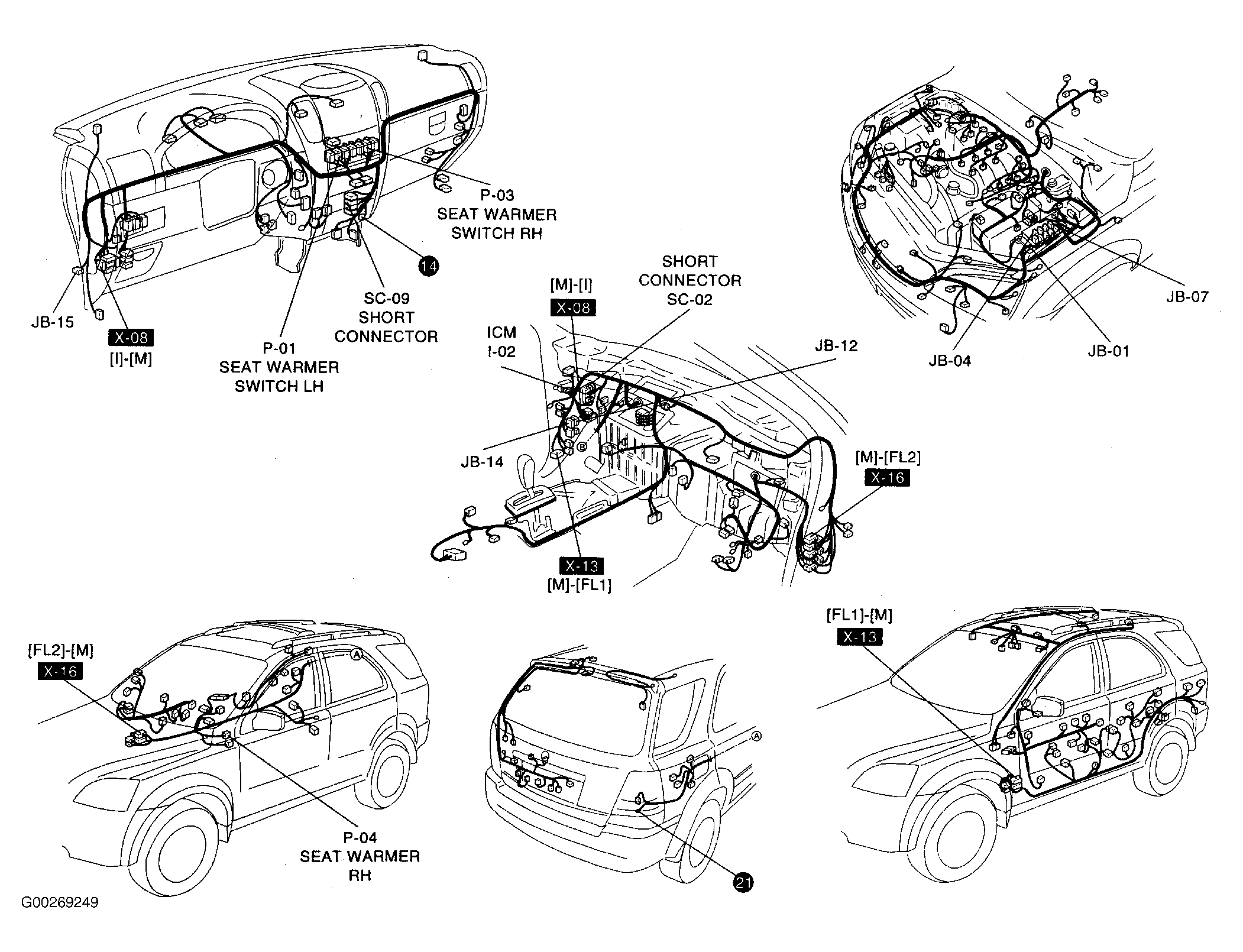

Fig 48: Seat Warmer System

G00269249

Courtesy of KIA MOTORS AMERICA, INC.

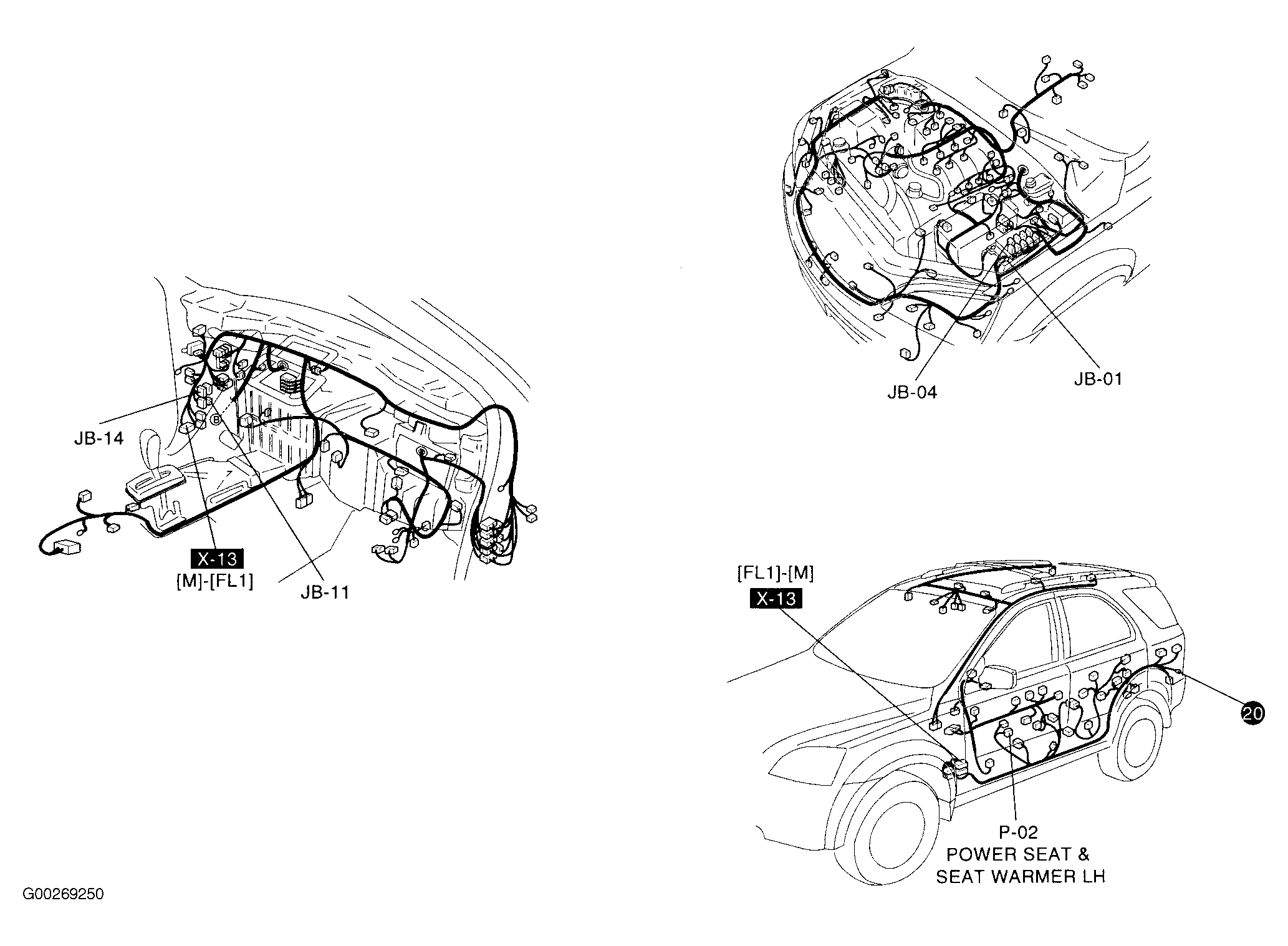

Fig 49: Power Seat (Driver's)

G00269250

Courtesy of KIA MOTORS AMERICA, INC.

Fig 50: Auto Cruise Control System

G00269251

Courtesy of KIA MOTORS AMERICA, INC.

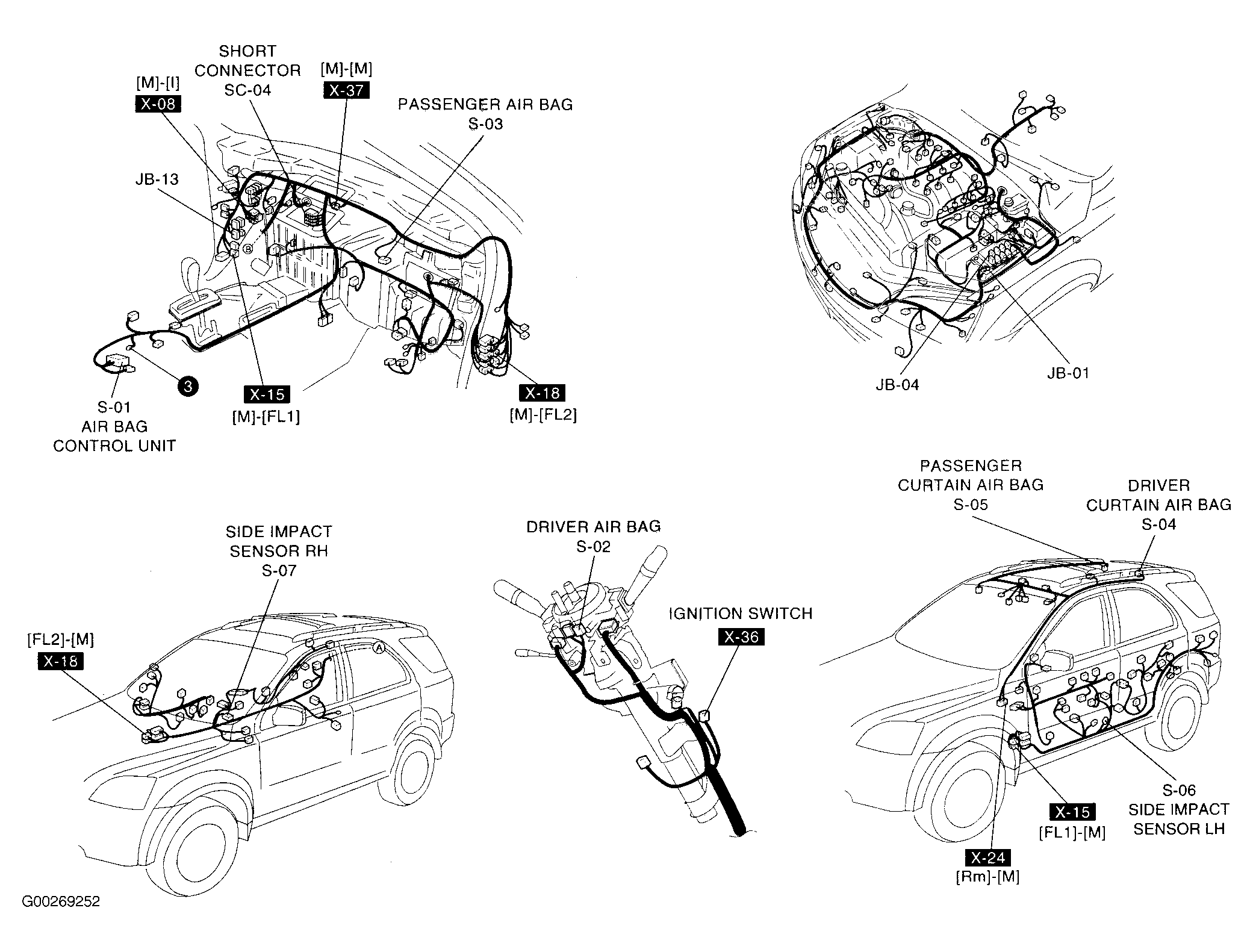

Fig 51: Airbag System

G00269252

Courtesy of KIA MOTORS AMERICA, INC.

Fig 52: Airbag System

G00269253

Courtesy of KIA MOTORS AMERICA, INC.

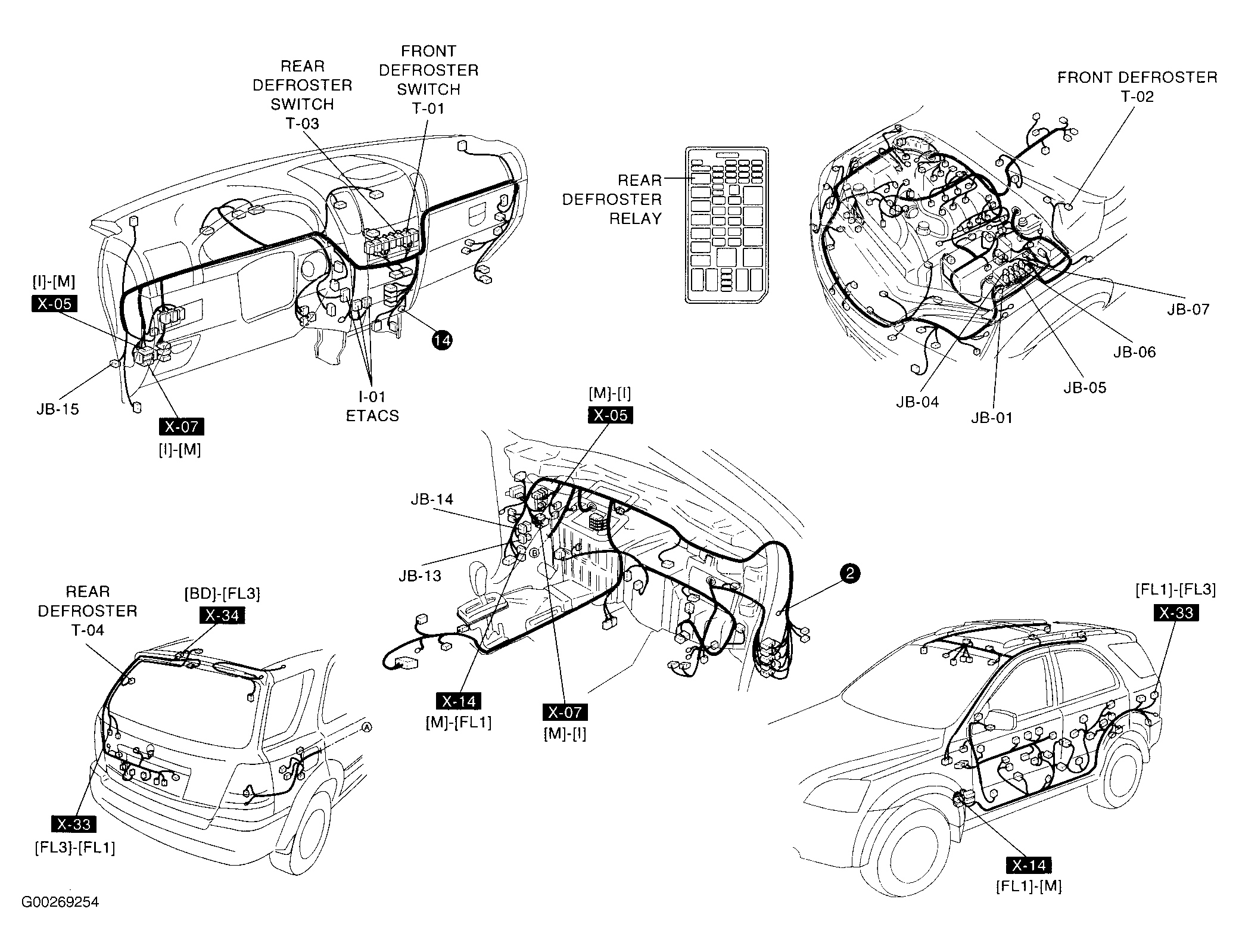

Fig 53: Defroster

G00269254

Courtesy of KIA MOTORS AMERICA, INC.

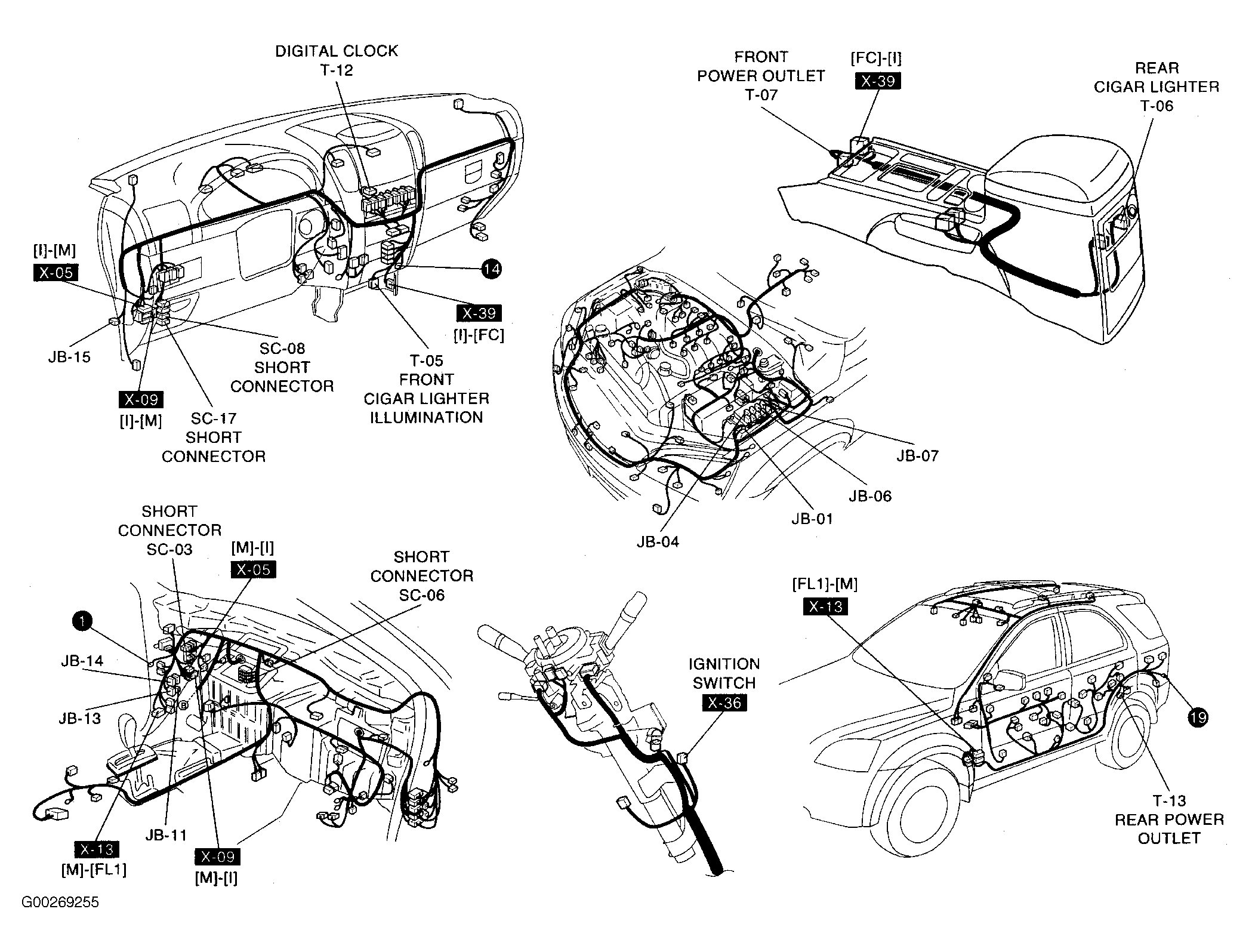

Fig 54: Cigar Lighter, Power Outlet & Clock

G00269255

Courtesy of KIA MOTORS AMERICA, INC.

Fig 55: Immobilizer System

G00269256

Courtesy of KIA MOTORS AMERICA, INC.

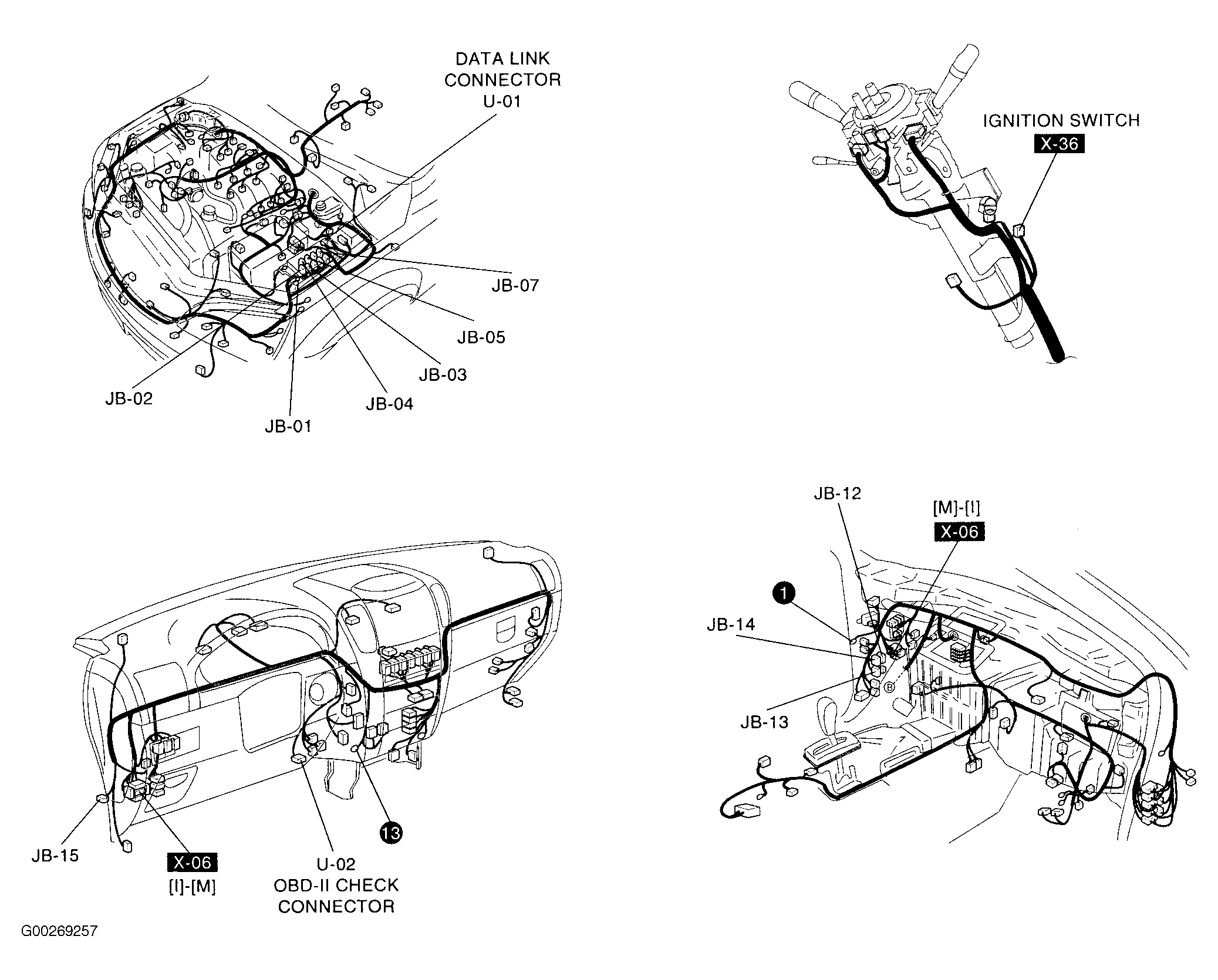

Fig 56: Data Link Connector

G00269257

Courtesy of KIA MOTORS AMERICA, INC.

Fig 57: Identifying Crankshaft & Camshaft Position Sensor Locations

G00340090

Courtesy of KIA MOTORS AMERICA, INC.
