Components And Components Location: Components

CAUTION: Crankshaft pulley bolt is a "one-time" use and must be replaced whenever it is removed.

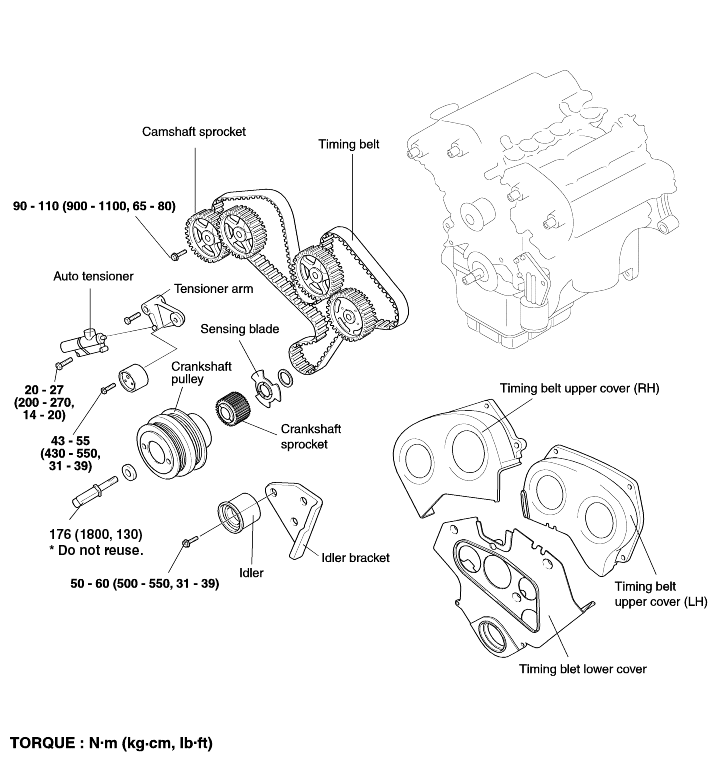

Fig 1: Timing System Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
