Steering Column: General: Troubleshooting

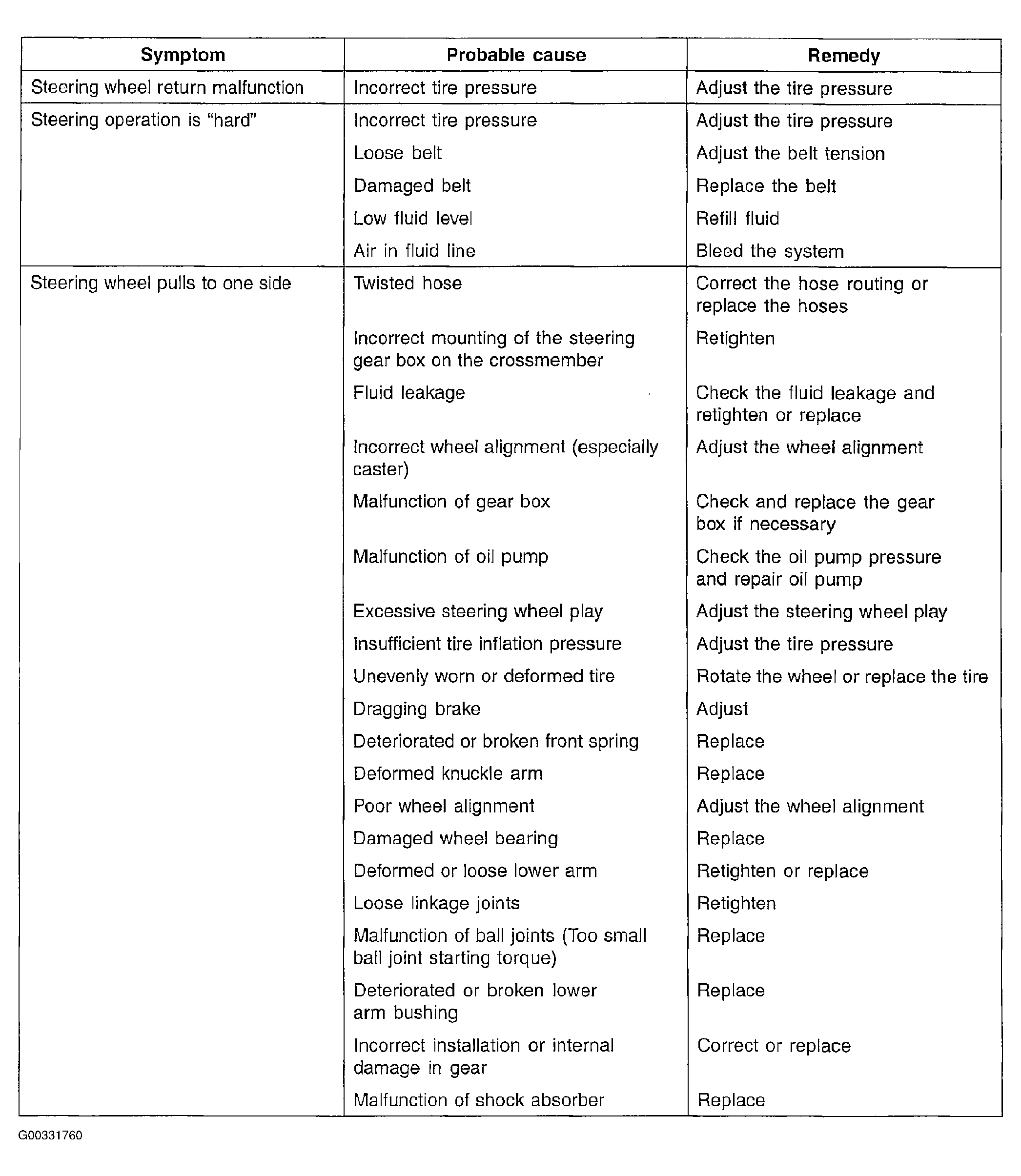

Fig 1: Troubleshooting (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

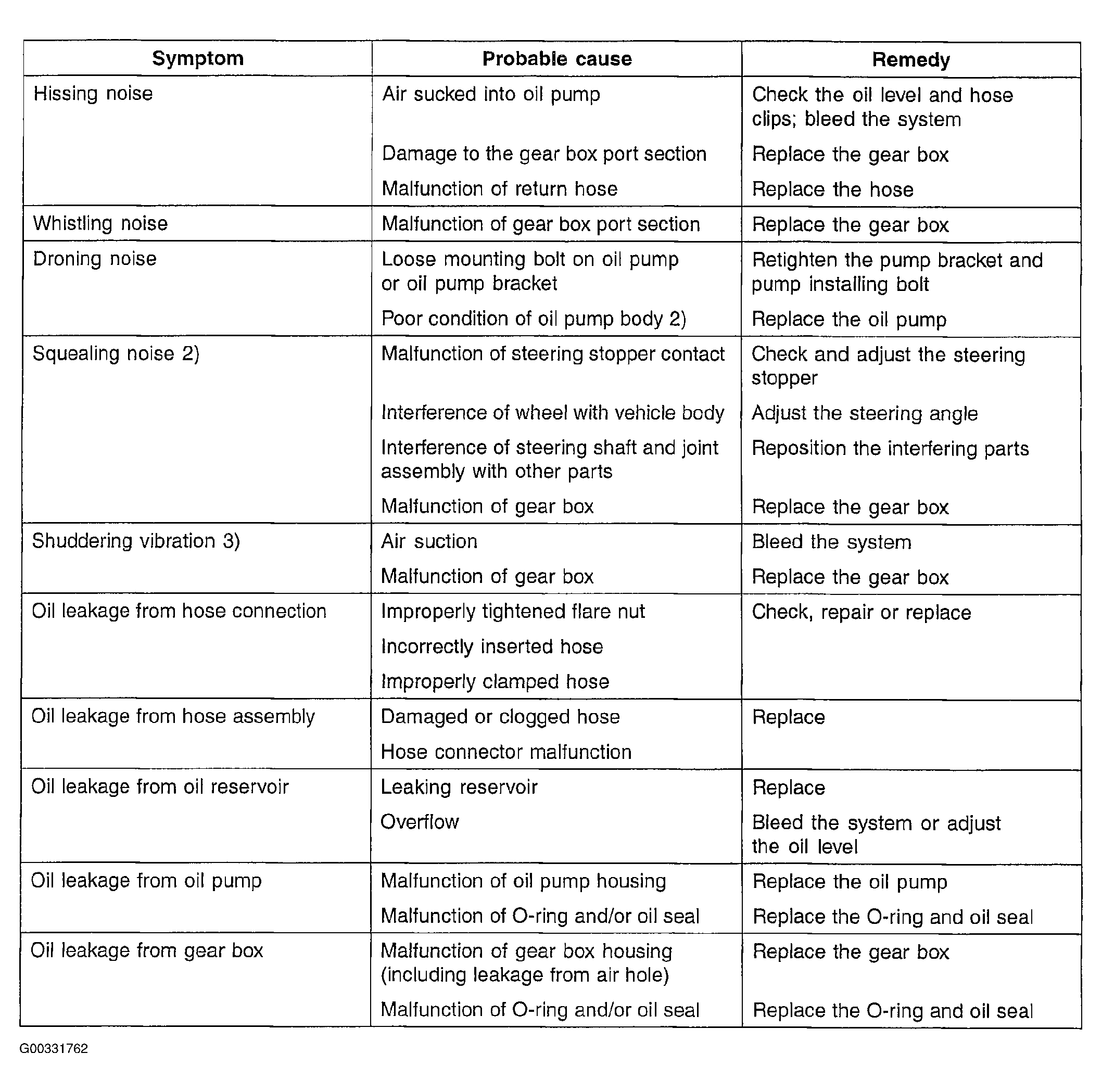

Fig 2: Troubleshooting (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

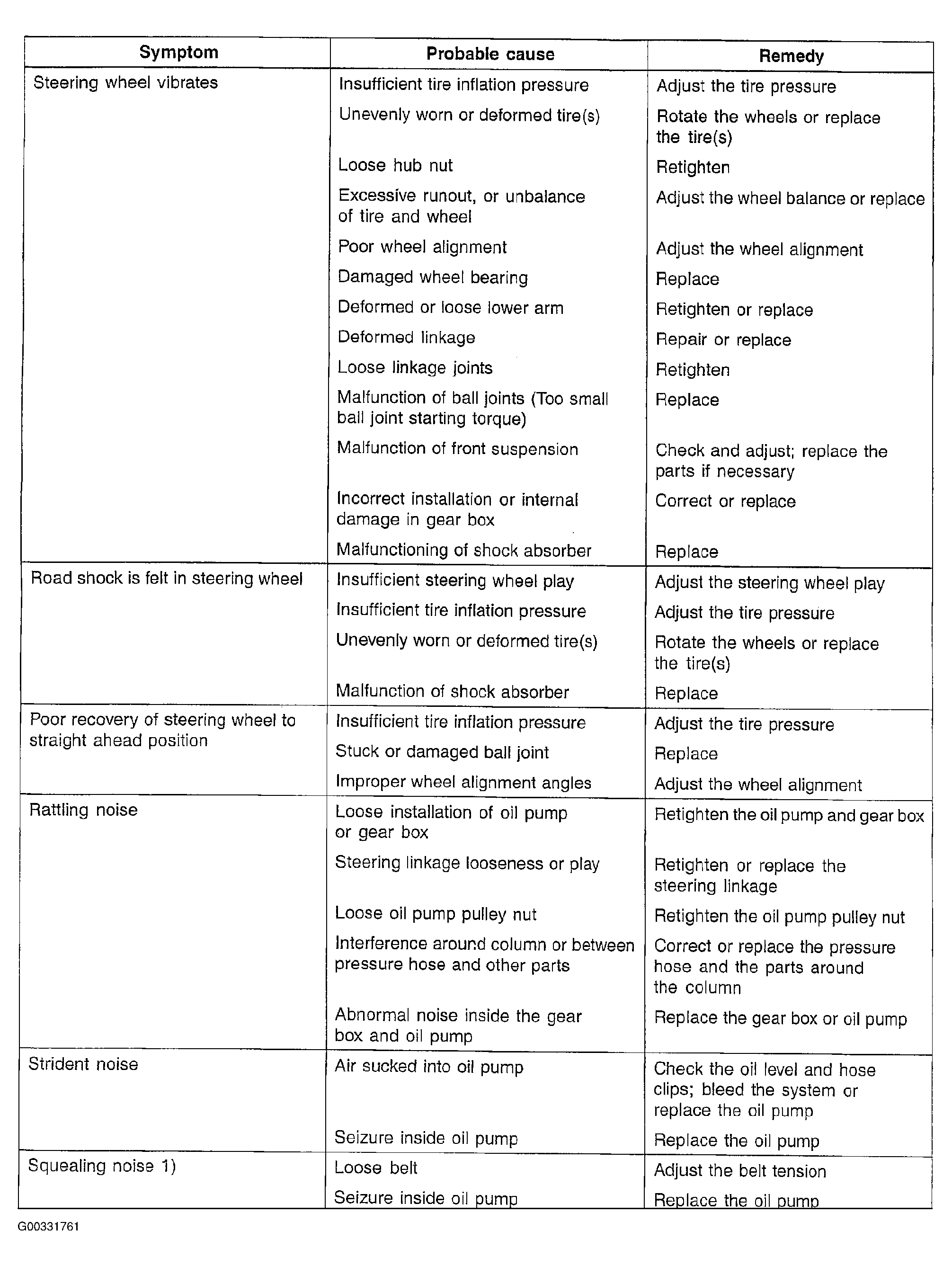

Fig 3: Troubleshooting (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

1. A squealing noise may be heard just after very cold engine start (-20°C or less), caused by fluid characteristics at extreme low temperatures. This is not a malfunction.
2. A slight "beat noise" is produced by the oil pump; this is not a malfunction. (This noise occurs particularly when a stationary steering effort is made.)
3. A slight vibration may be felt when a stationary steering effort is made due to the condition of the road surface. To check whether the vibration actually exists or not, test-drive the vehicle on a dry concrete or asphalt surface. A very slight amount of vibration is not a malfunction.
