Power Window Sub Switch

  1. Remove the rear door trim panel. See REAR DOOR .
  2. Remove the power window sub switch (A) by pushing the fixation clip of the power window sub switch.

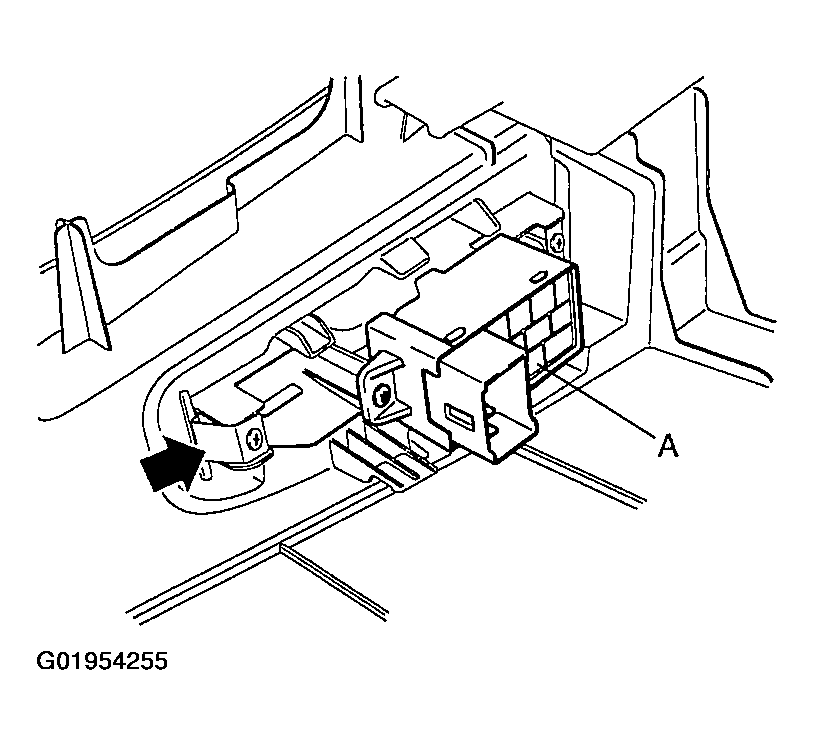

    Fig 1: Removing The Power Window Sub Switch
    G01954255Courtesy of KIA MOTORS AMERICA, INC.

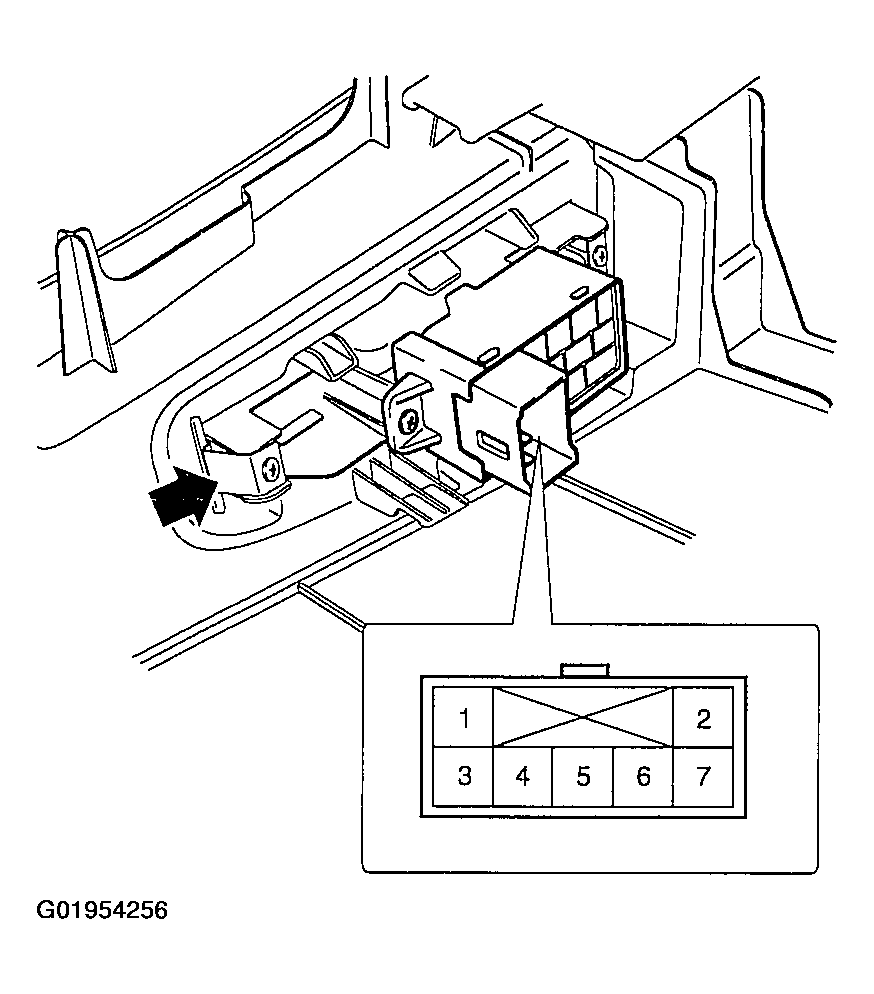

    Fig 2: Illustrating The Power Window Sub Switch Connector
    G01954256Courtesy of KIA MOTORS AMERICA, INC.
  3. Check for continuity between the terminals. When the continuity does not agree, it exchanges the switch.

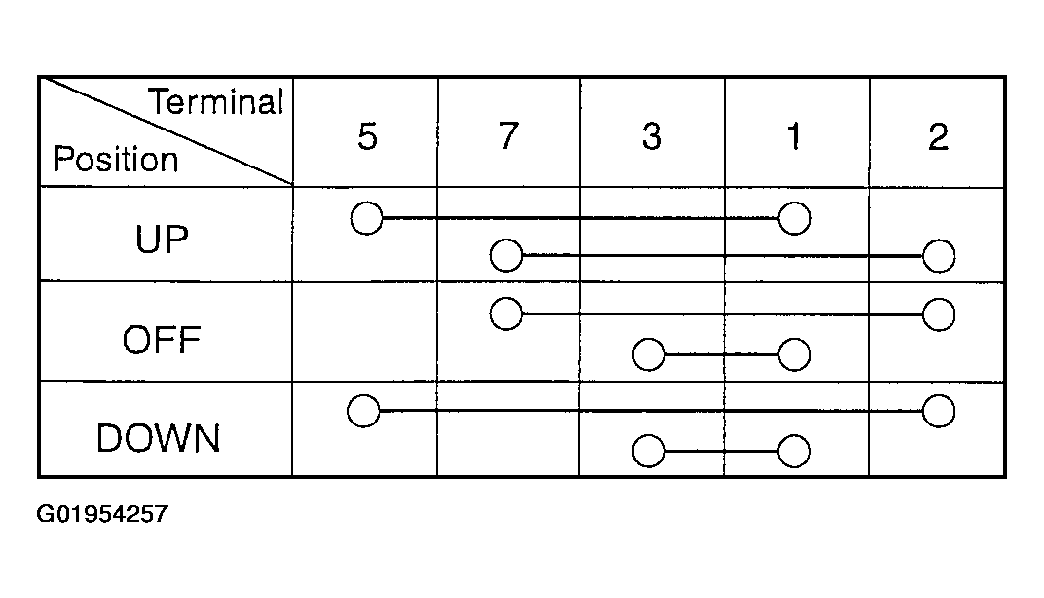

    Fig 3: Testing The Power Window Sub Switch Continuity
    G01954257Courtesy of KIA MOTORS AMERICA, INC.
