Home >> Kia >> 2004 >> Spectra Base, 1.8 1, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Troubleshooting

Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

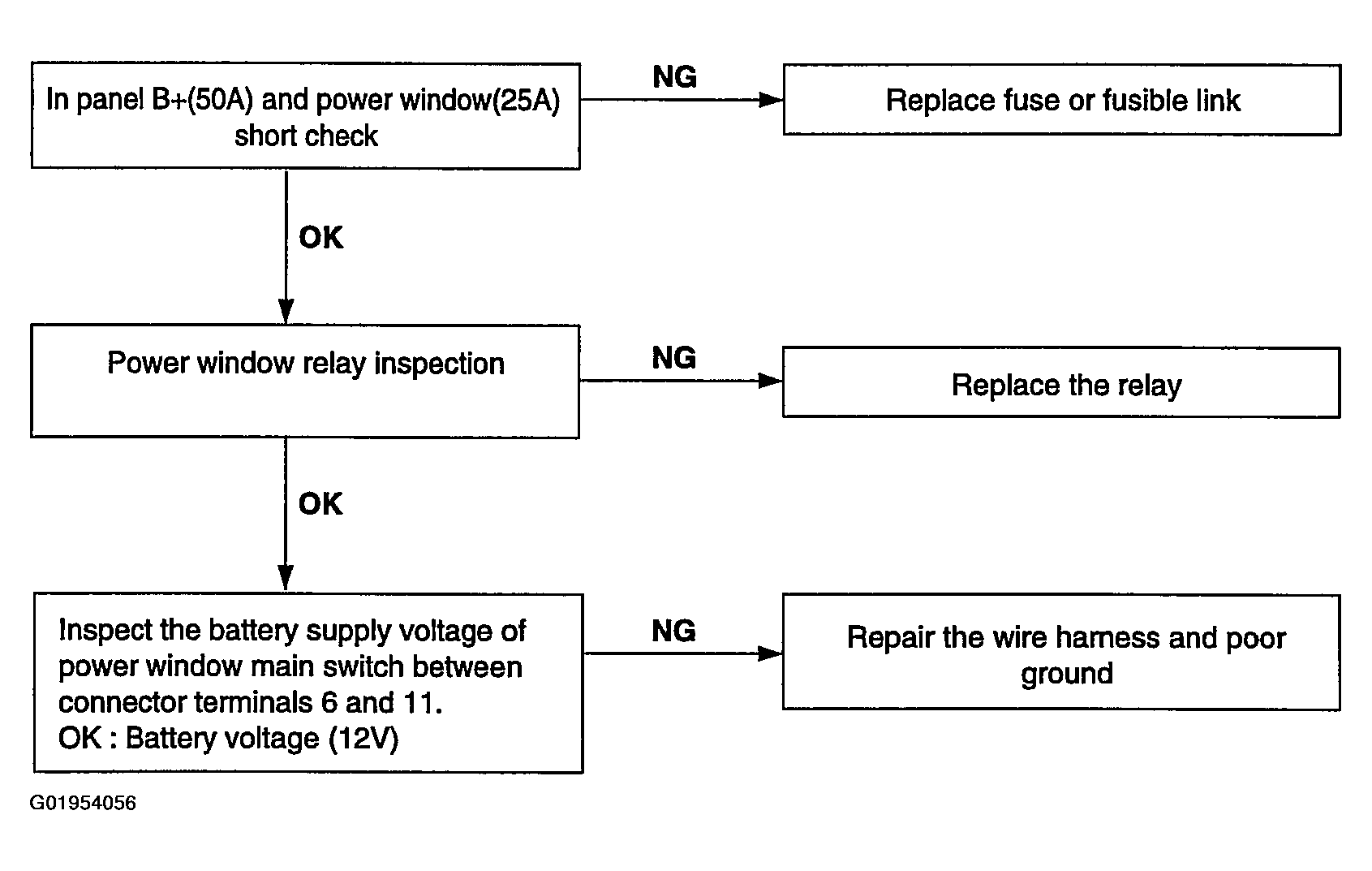

    Fig 1: No Windows Operate From The Main Switch On The Driver's Door Troubleshooting Guide
    G01954056Courtesy of KIA MOTORS AMERICA, INC.
  2. Driver's side window does not operate.

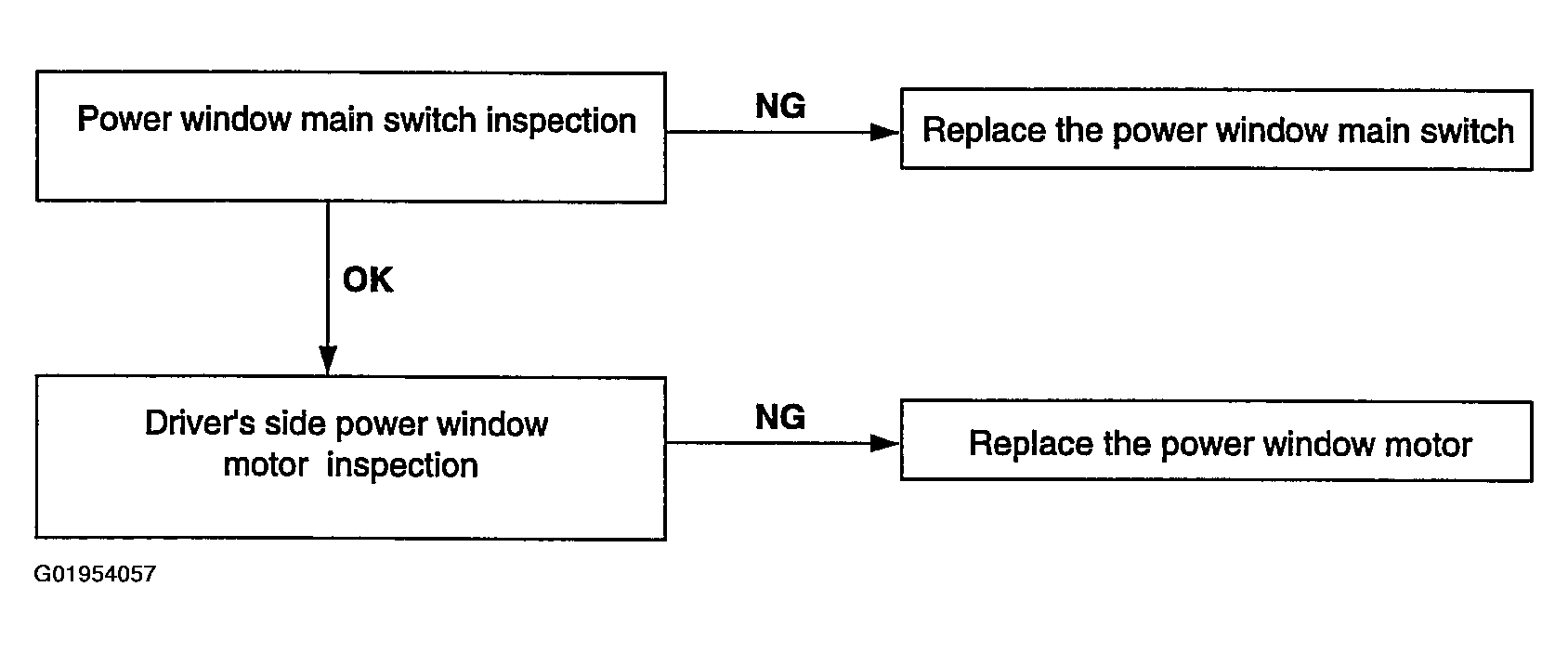

    Fig 2: Driver's Side Window Does Not Operate Troubleshooting Guide
    G01954057Courtesy of KIA MOTORS AMERICA, INC.
  3. Passenger's side window does not operate.

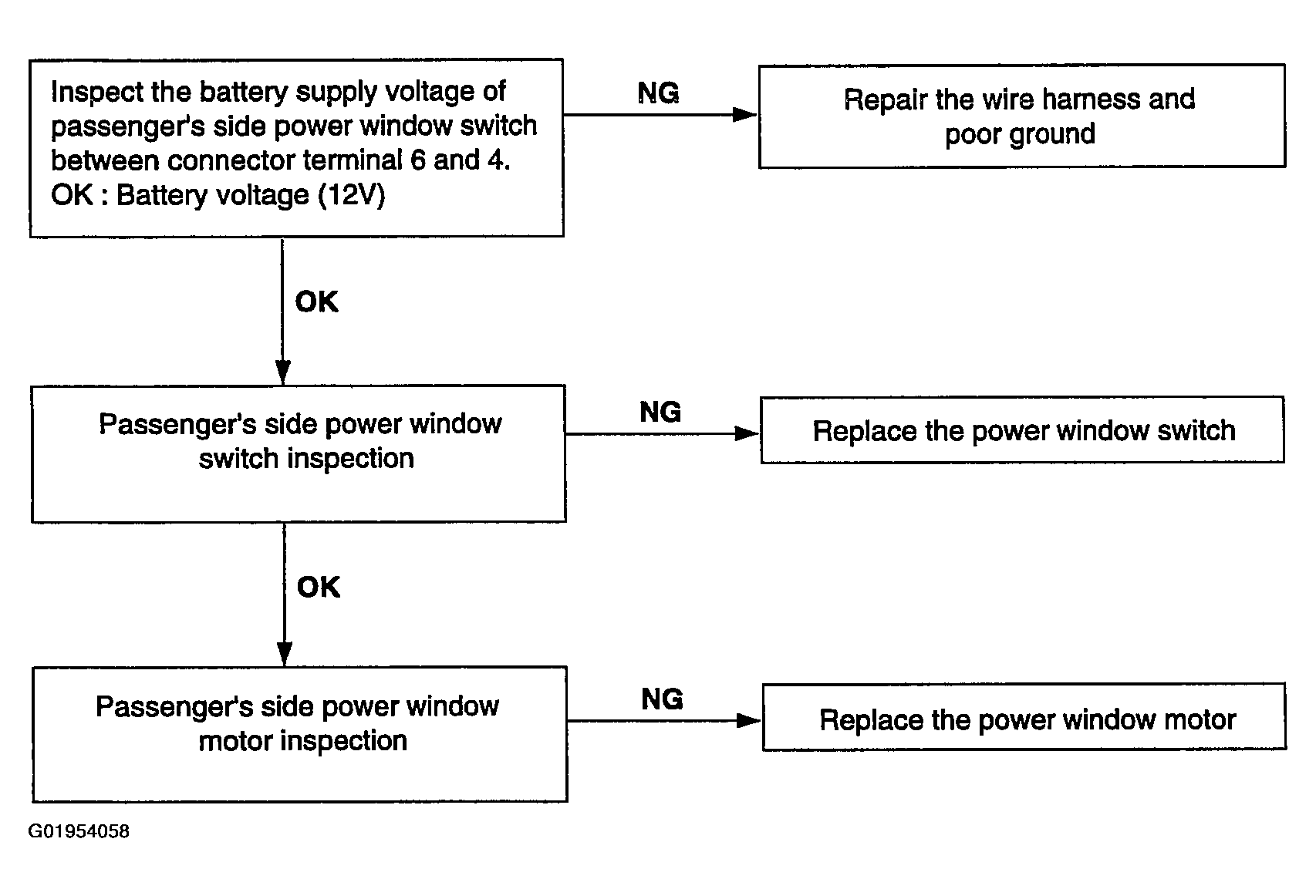

    Fig 3: Passenger's Side Window Does Not Operate Troubleshooting Guide
    G01954058Courtesy of KIA MOTORS AMERICA, INC.
