Camshaft Position Sensor: Removal

  1. Disconnect negative battery cable.
  2. Disconnect electrical connector.
  3. Remove mounting bolts.
  4. Remove sensor from the cylinder head.

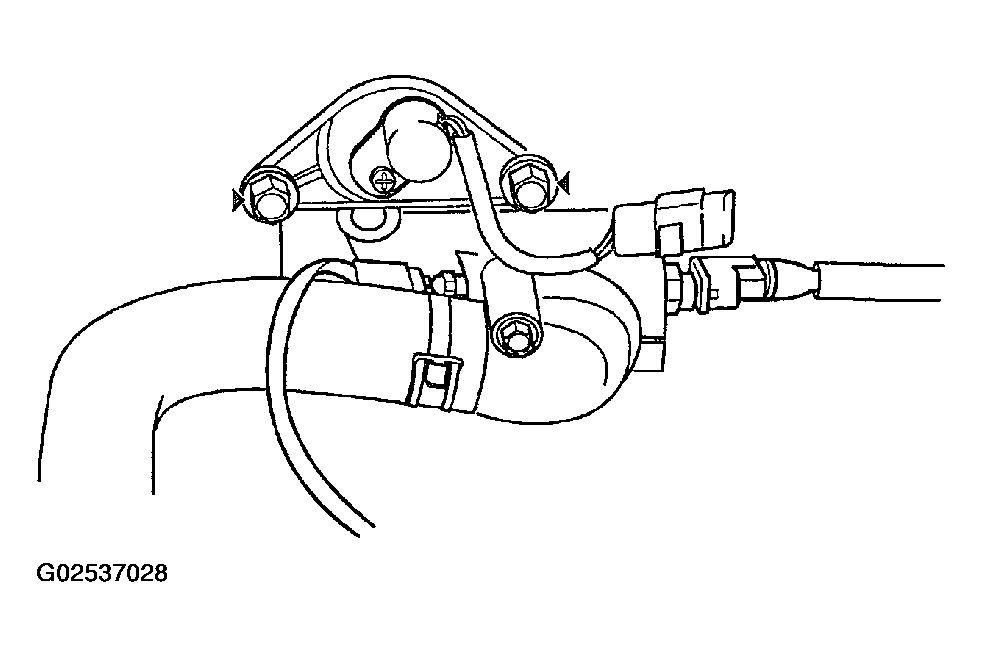

    Fig 1: Removing Sensor From The Cylinder Head
    G02537028Courtesy of KIA MOTORS AMERICA, INC.
