Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

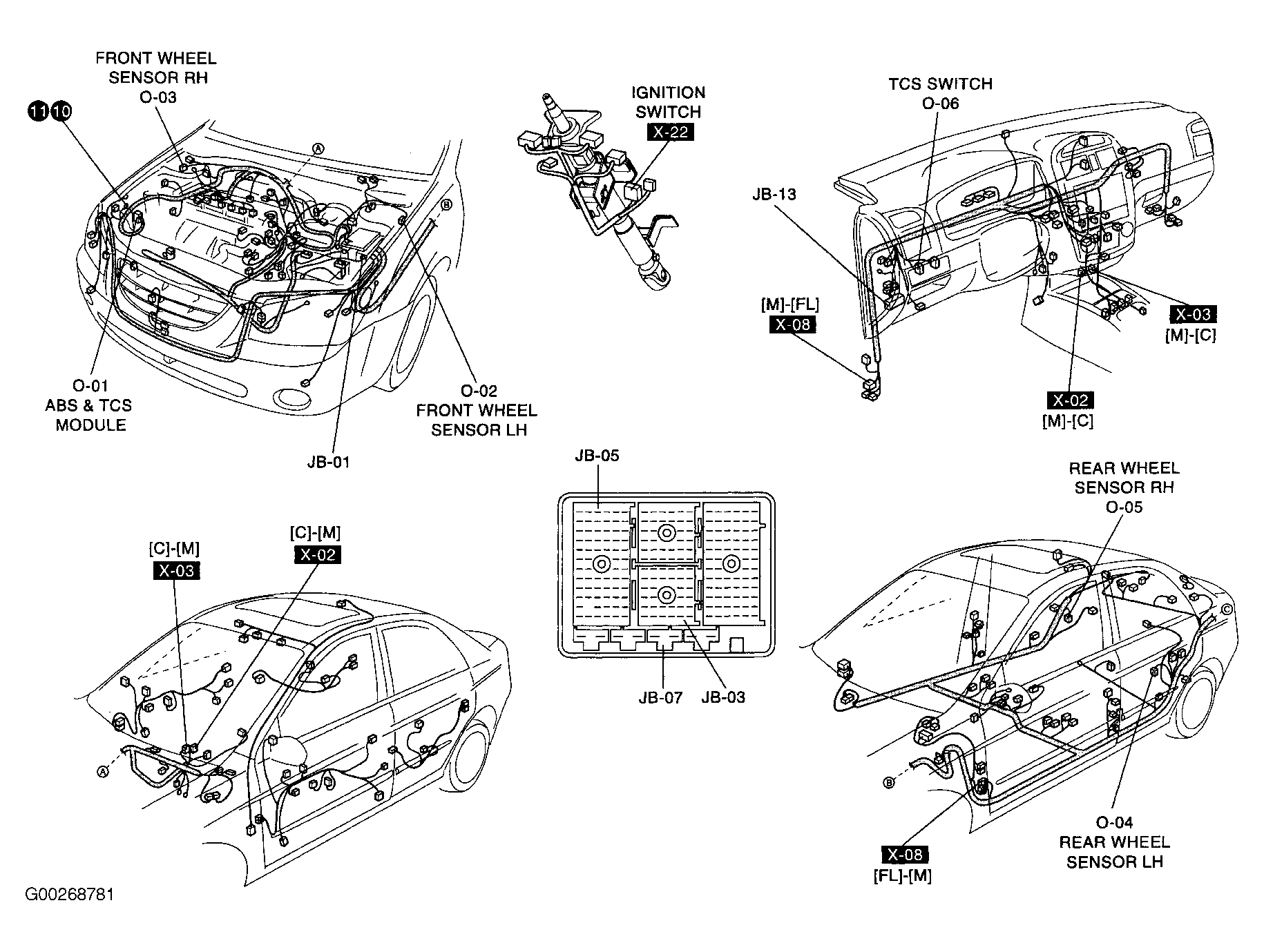

| ABS & TCS Module | At right front of engine compartment. See Figure. |

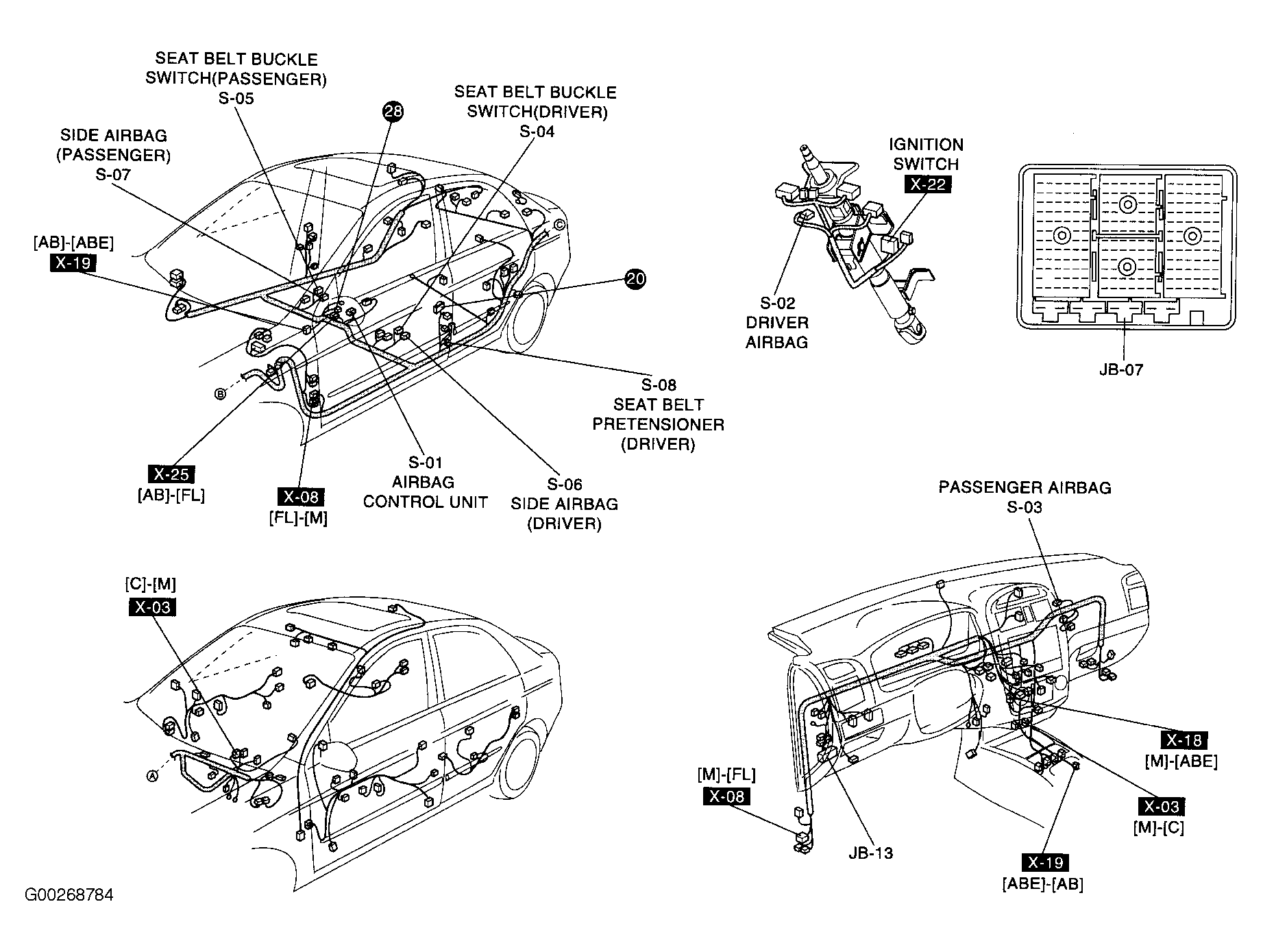

| Airbag Control Unit | Under rear of center floor console. See Figure. |

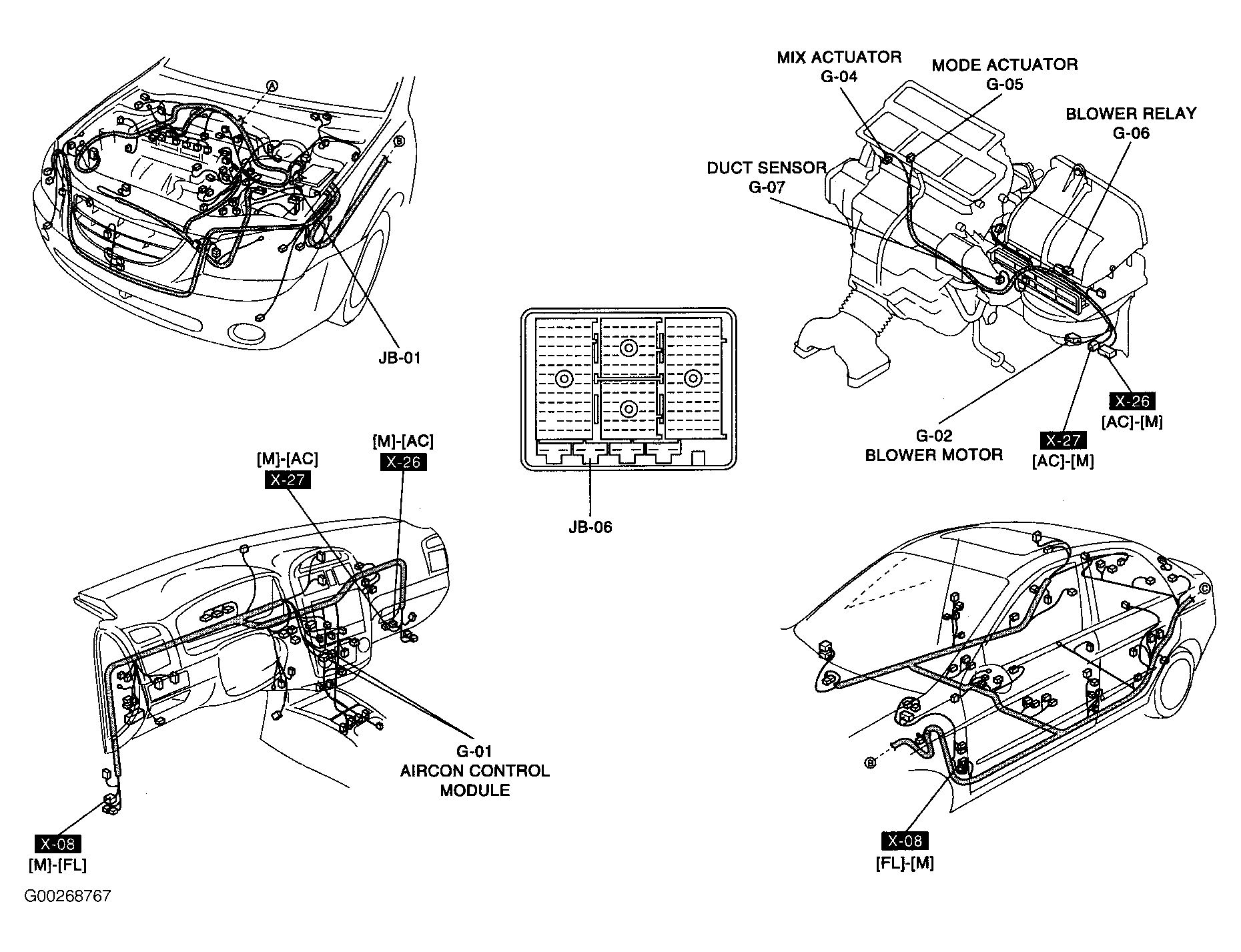

| Aircon Control Module | Behind lower center of dash. See Figure. |

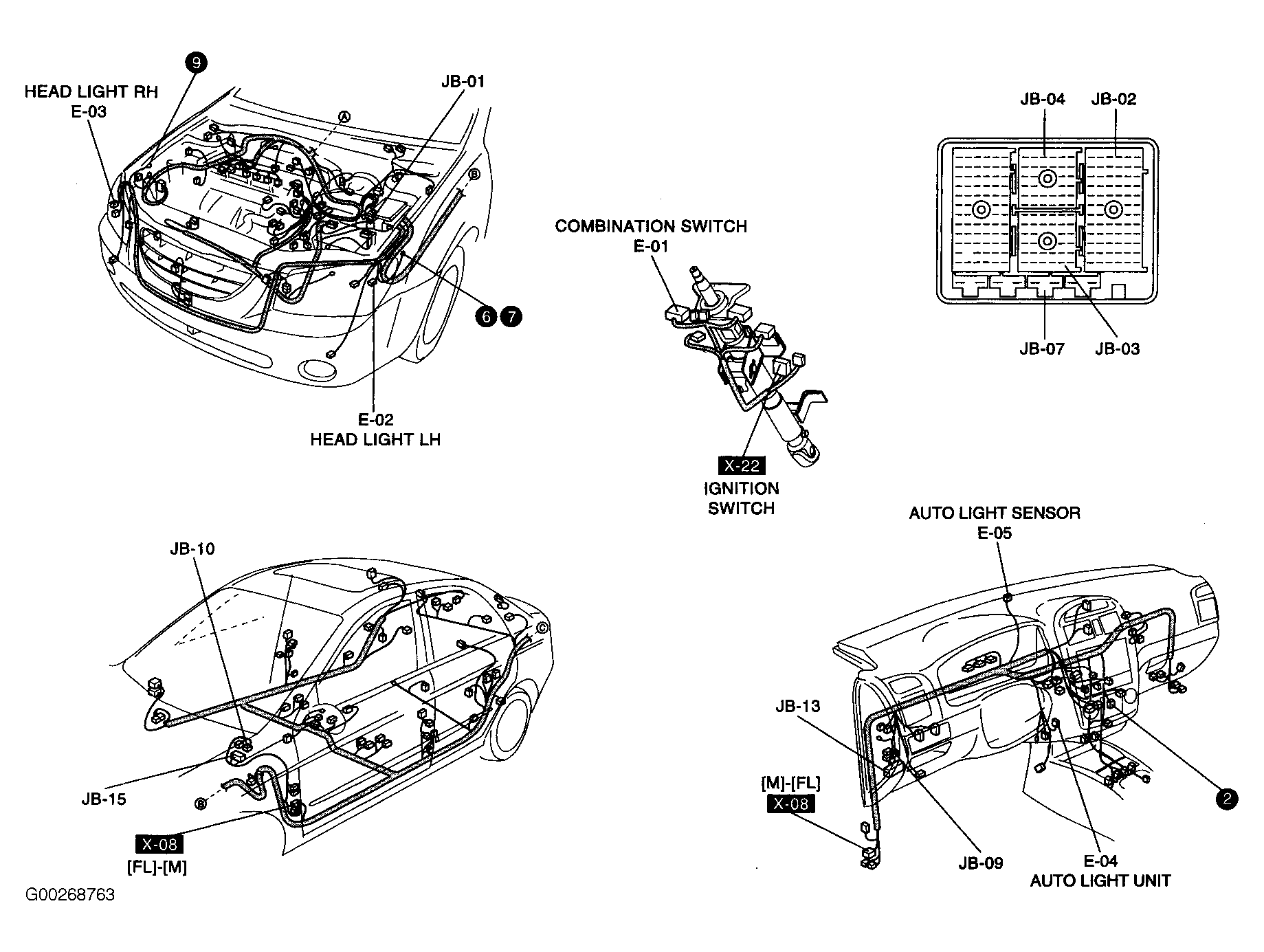

| Auto Light Unit | Under center of dash. See Figure. |

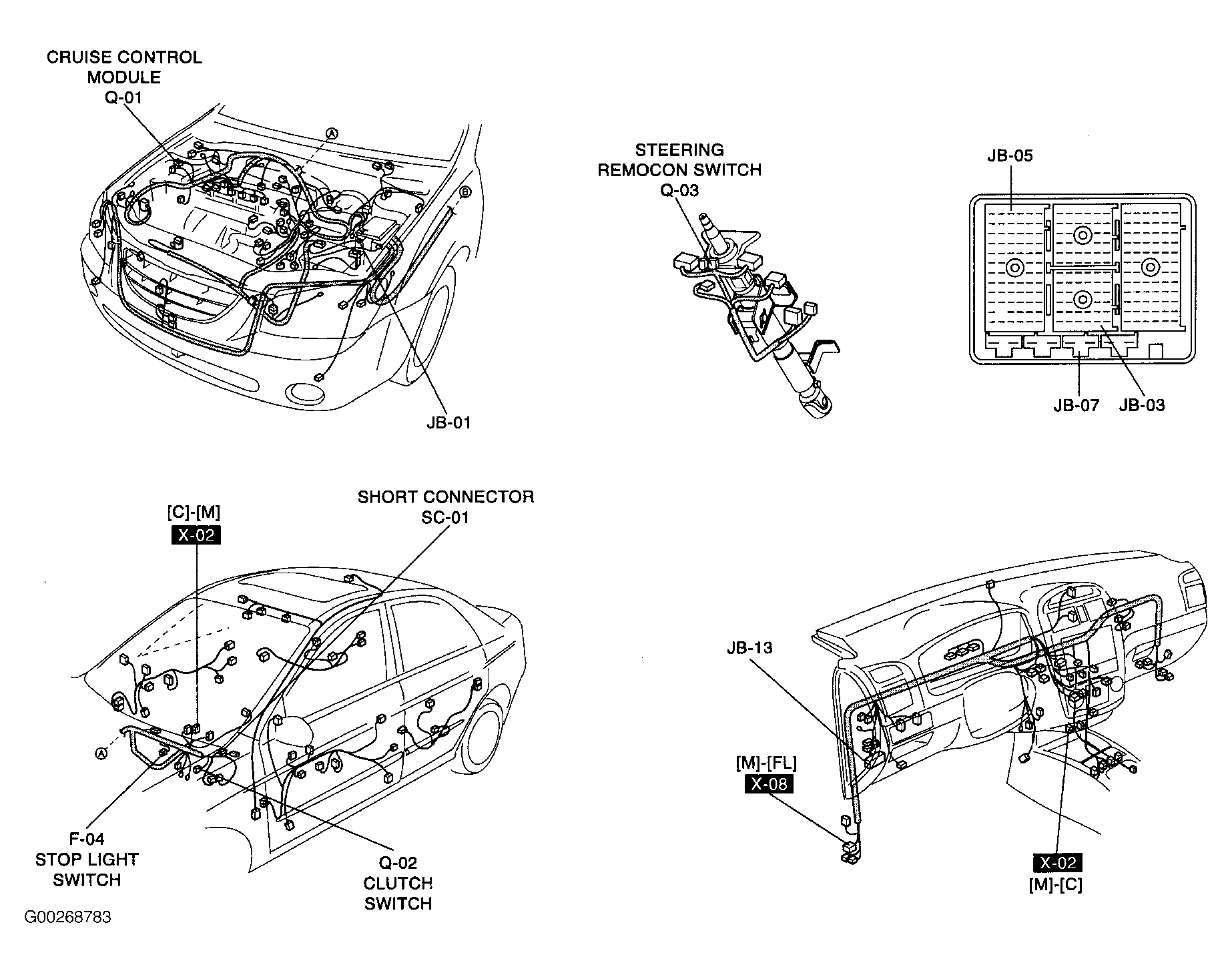

| Cruise Control Module | At right rear of engine compartment. See Figure. |

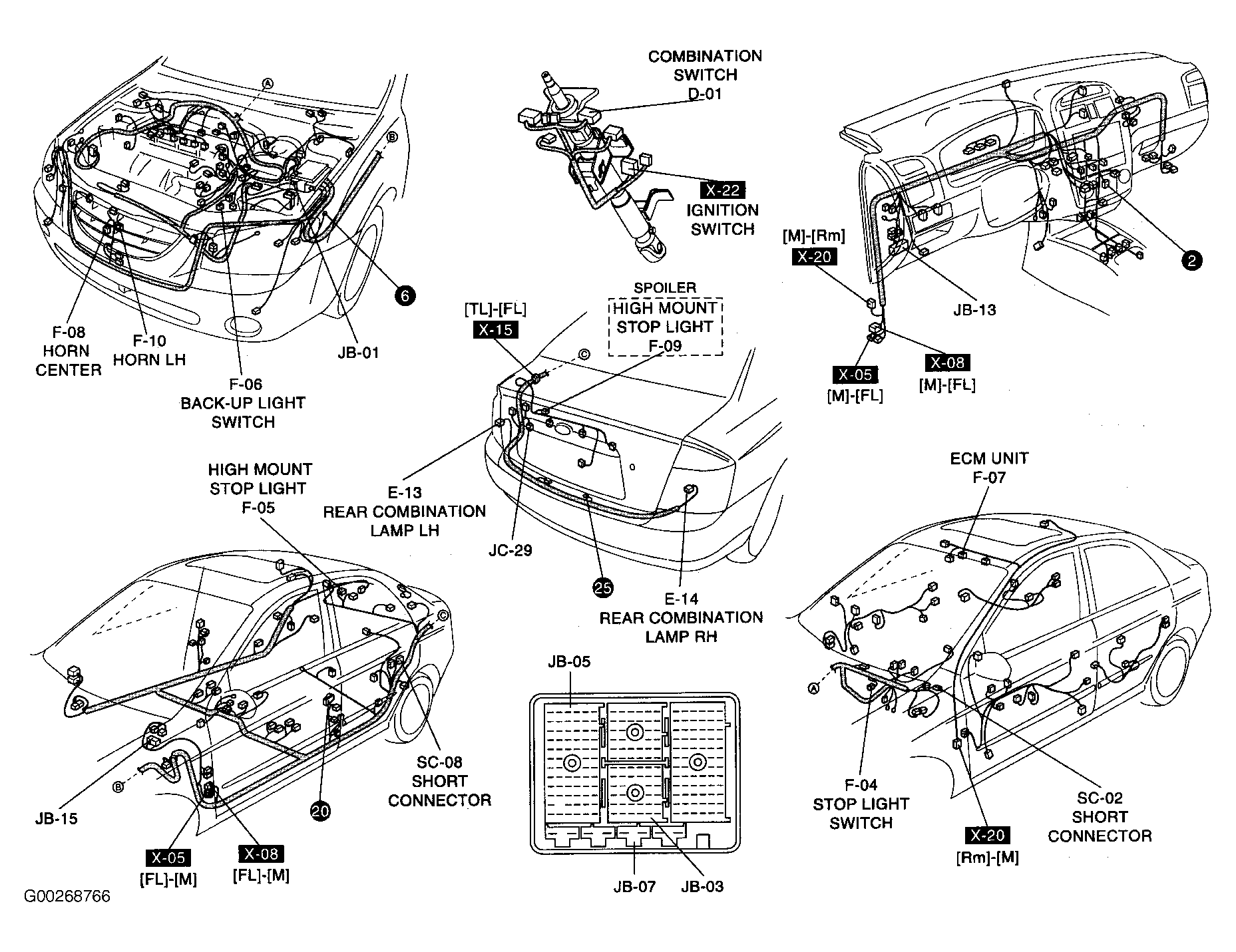

| ECM Unit | At front center of roof. See Figure. |

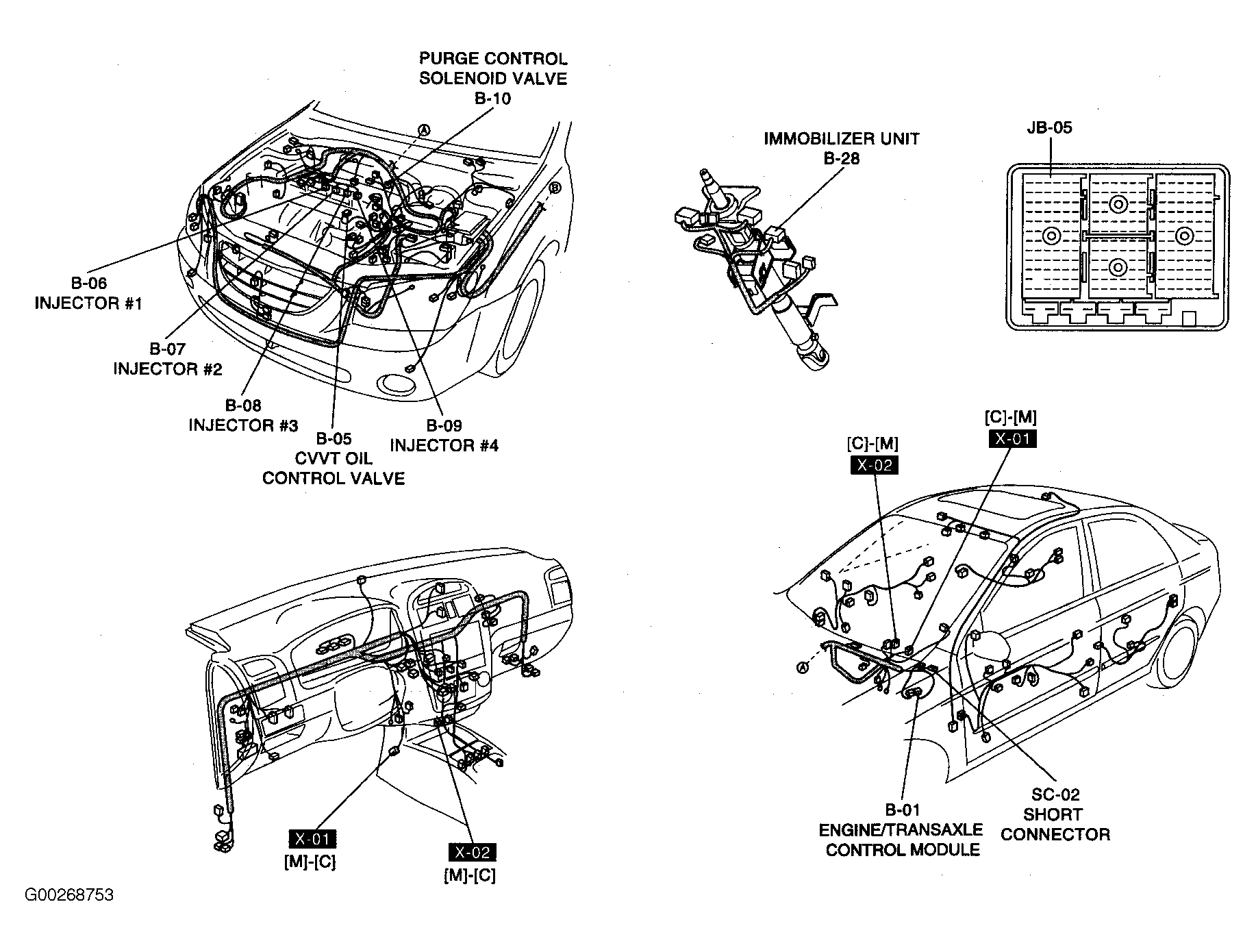

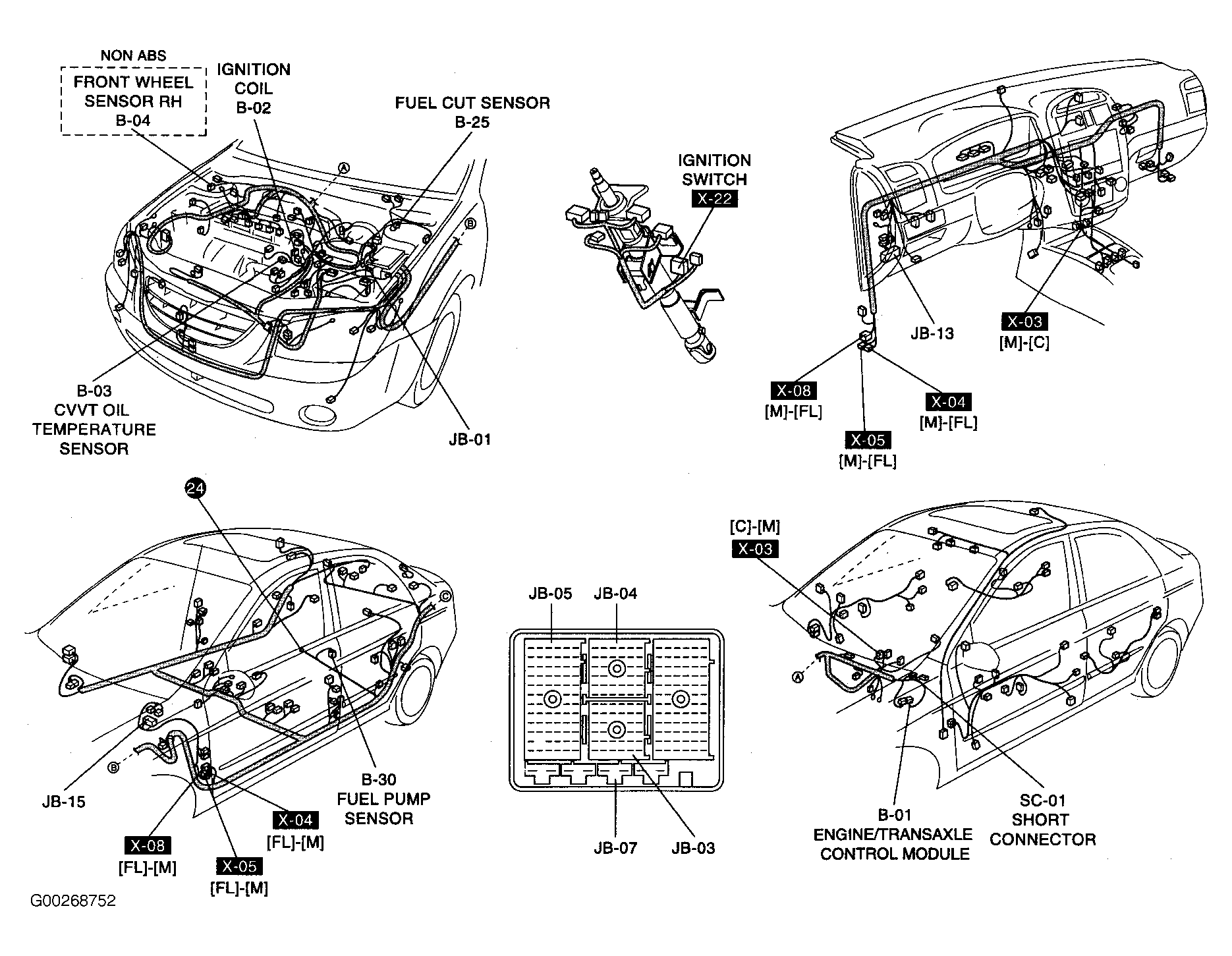

| Engine/Transaxle Control Module | Behind lower center of dash. See Figure. |
| Immobilizer Unit | At top left of steering column. See Figure. |

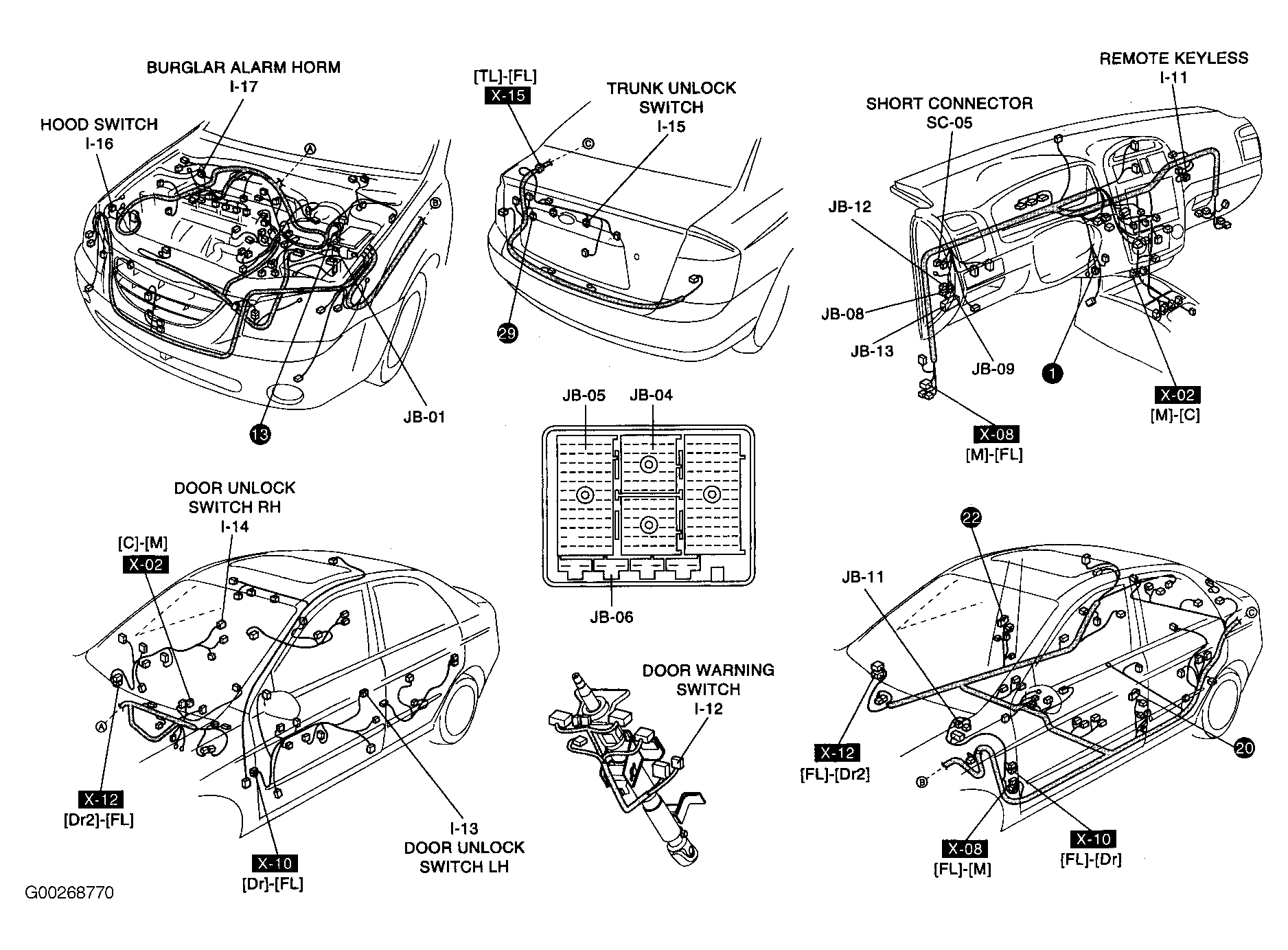

| Remote Keyless | Behind right side of dash. See Figure. |
