Throttle Position (TP) Sensor: Specification

TPS VOLTAGE

Measuring condition Voltage (V)
Fully closed 0.3-0.9V
Fully open 4.0-4.4V

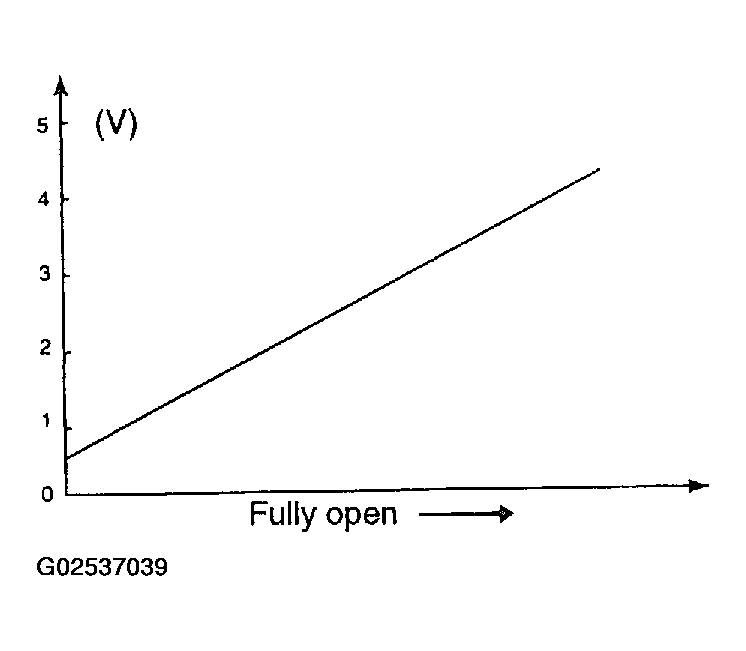

Fig 1: TPS Voltage Chart
G02537039Courtesy of KIA MOTORS AMERICA, INC.
