Home >> Kia >> 2005 >> Amanti >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Gasoline Engine Control System >> Components Location

Components Location

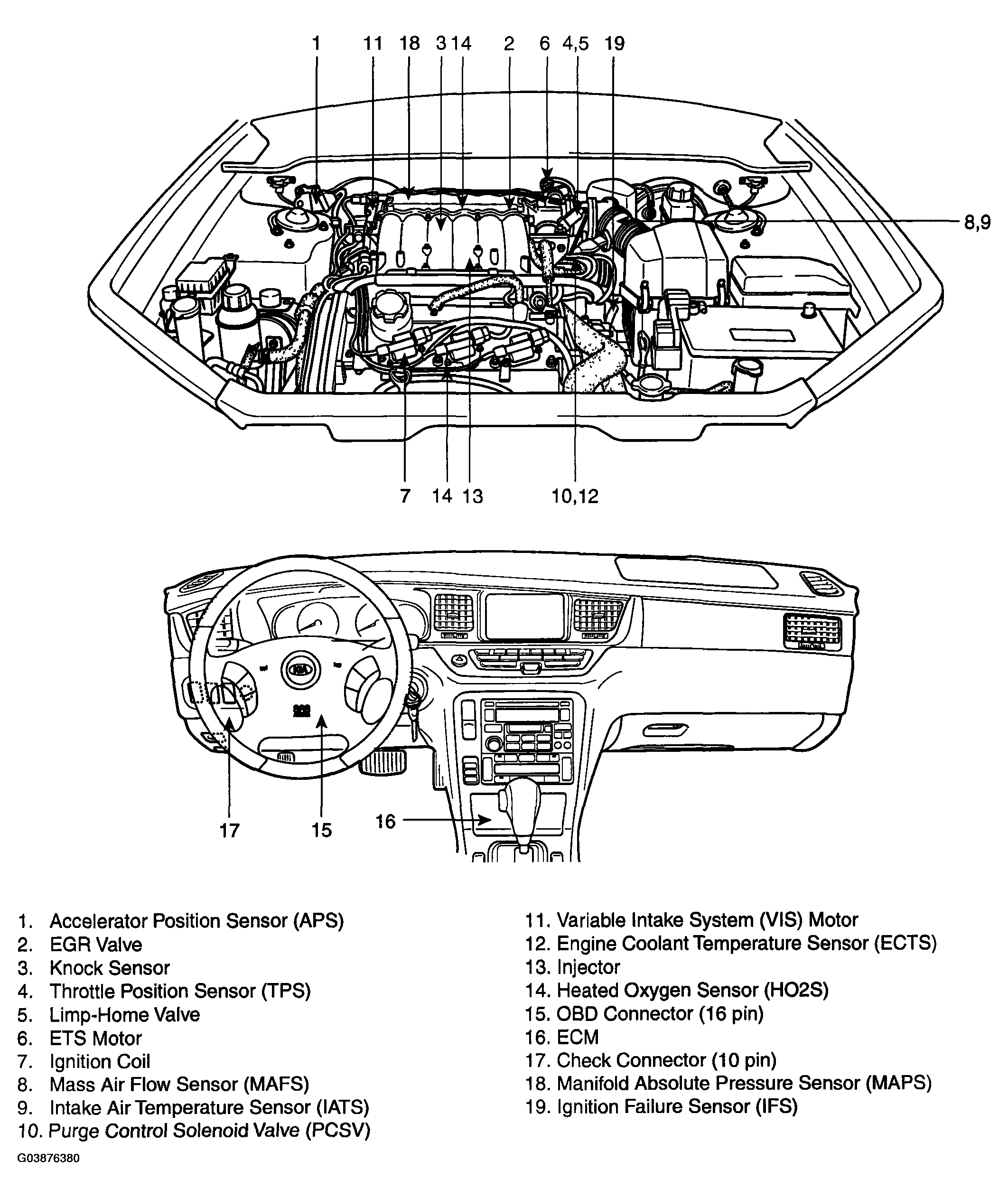

Fig 1: Identifying Gasoline Engine Control System Component Location (1 Of 3)
G03876380Courtesy of KIA MOTORS AMERICA, INC.

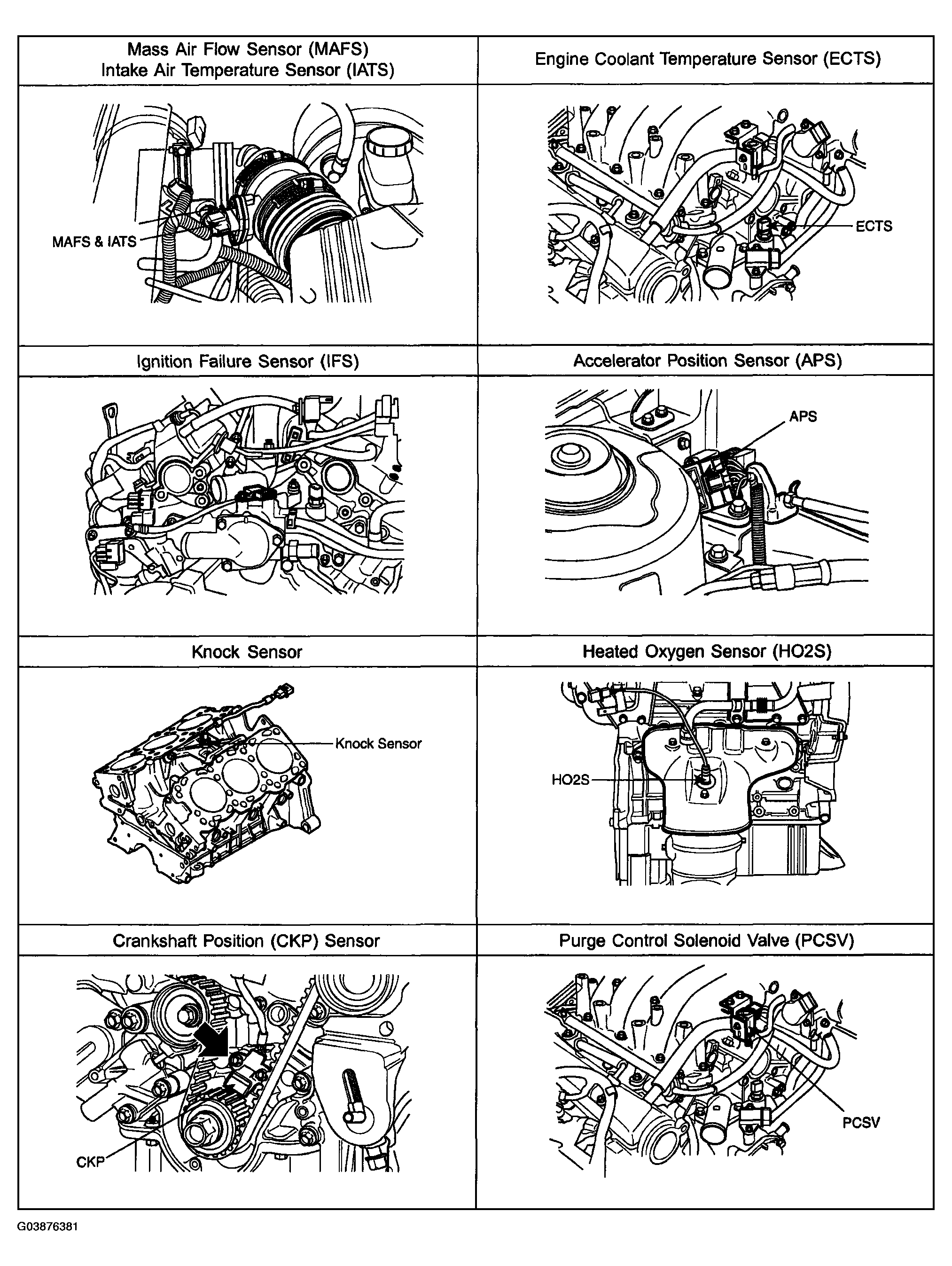

Fig 2: Identifying Gasoline Engine Control System Component Location (2 Of 3)
G03876381Courtesy of KIA MOTORS AMERICA, INC.

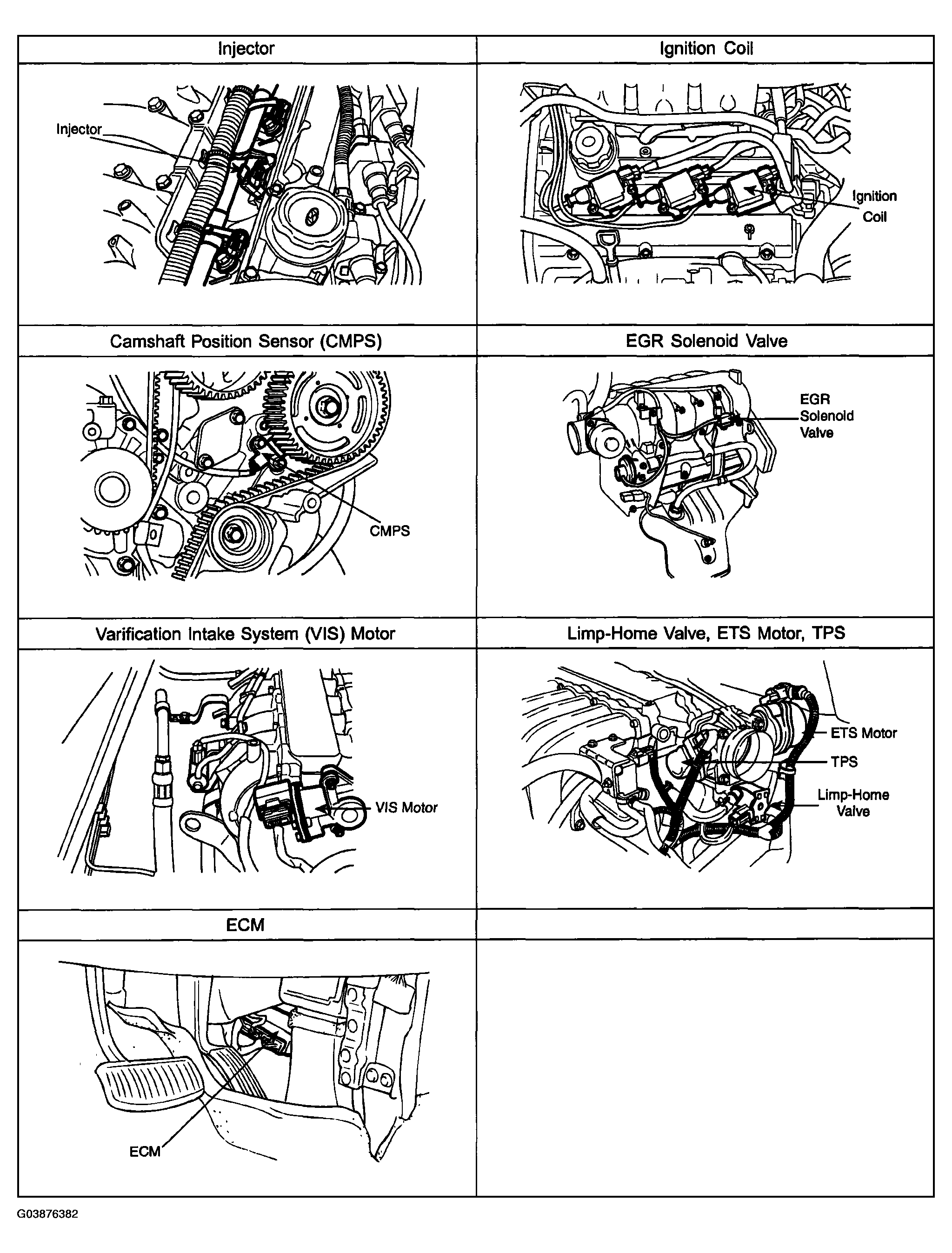

Fig 3: Identifying Gasoline Engine Control System Component Location (2 Of 3)
G03876382Courtesy of KIA MOTORS AMERICA, INC.
