Checking Sport Mode Selection Switch: Check

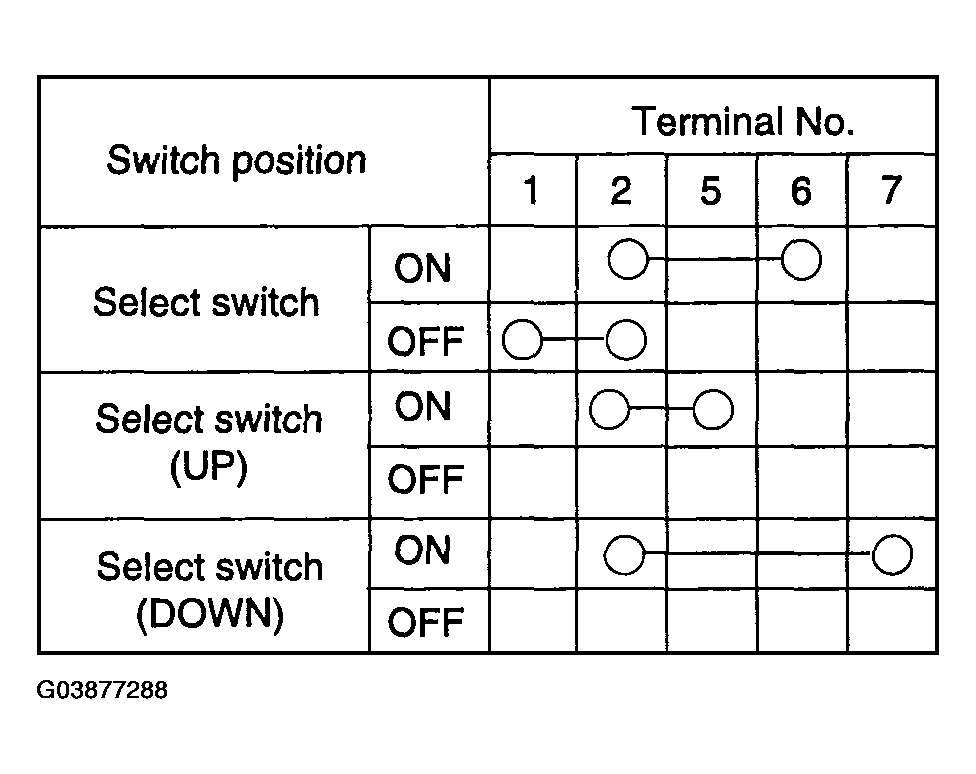

Fig 1: Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

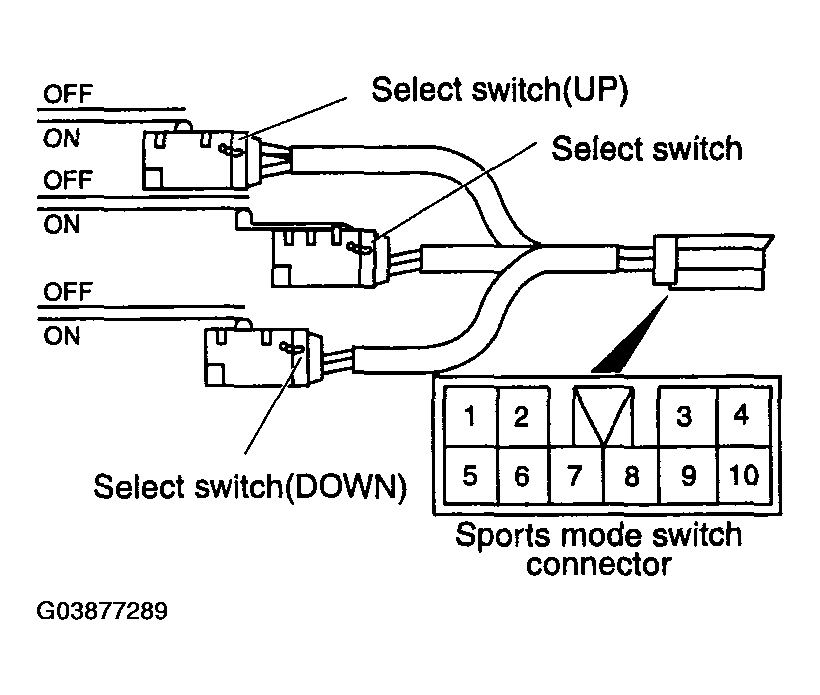

Fig 2: Identifying Sport Mode Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
