Shift Lever: Components

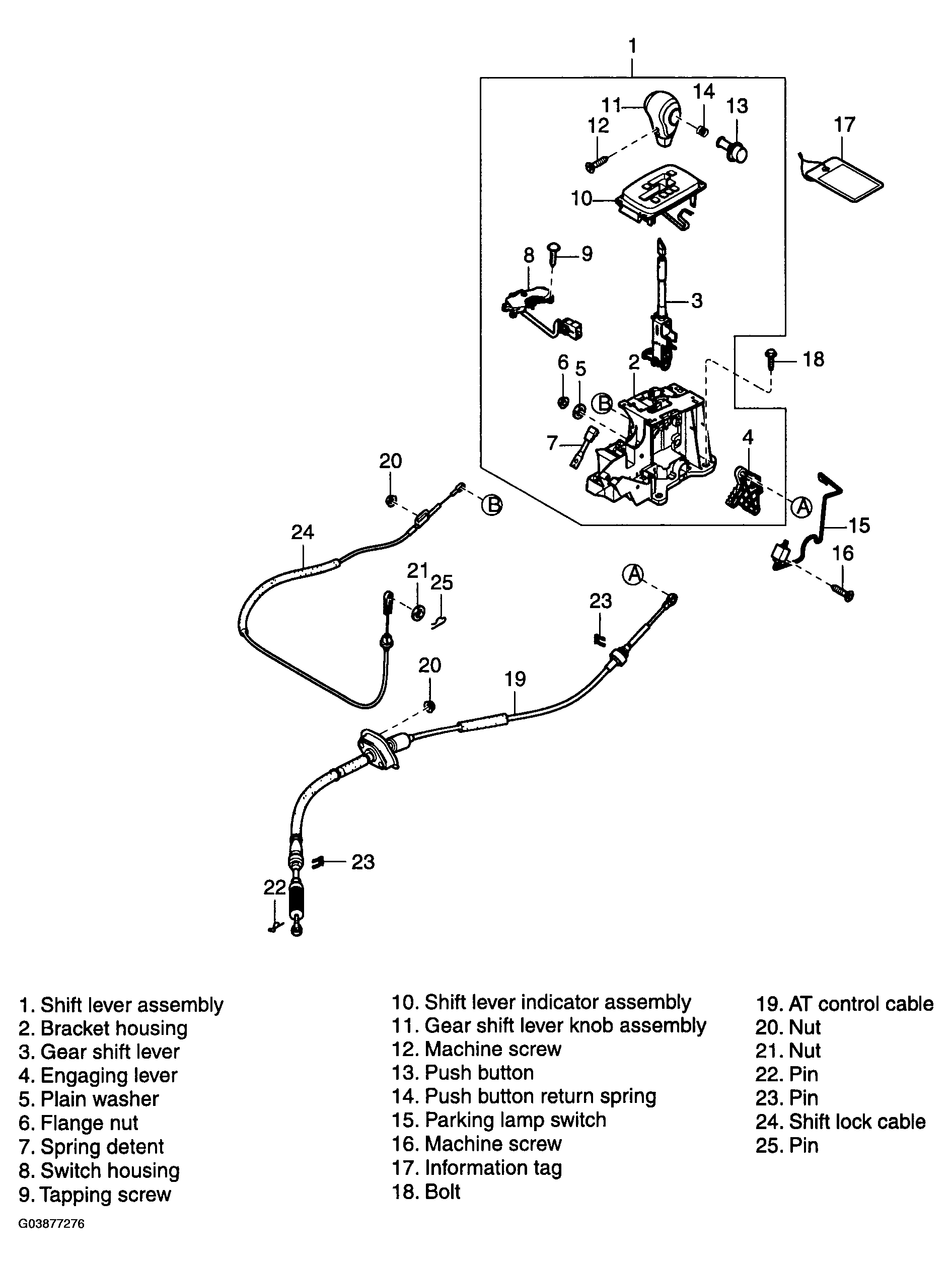

Fig 1: Identifying Shift Lever Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

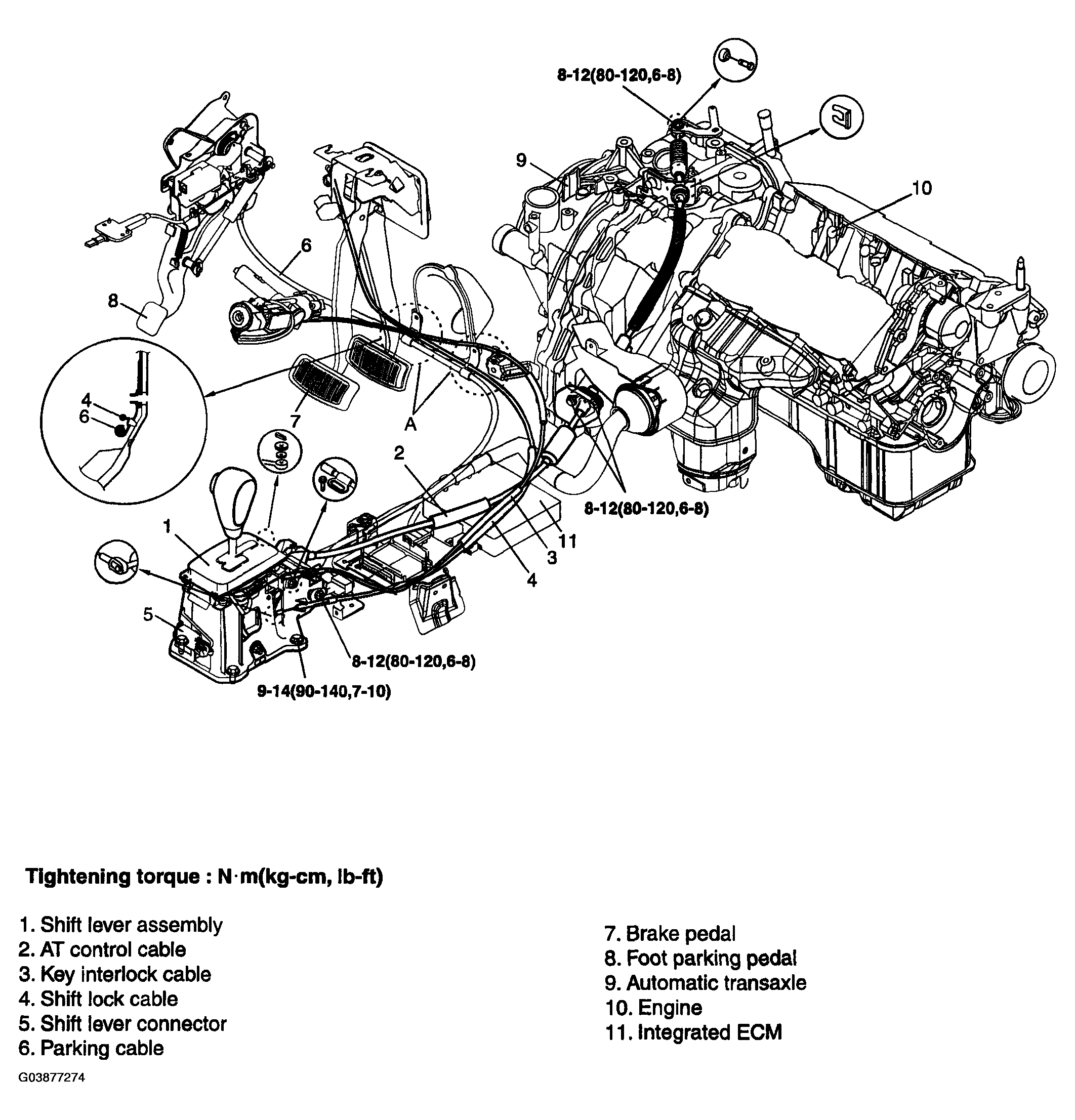

Fig 2: Identifying Shift Lever Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Identifying Shift Lever Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
