TPS Sensor Checking

  1. Remove TPS connector.
  2. Measure the resistance between TPS connector terminal No.1 and No.3.

    Standard value: 1.5 - 3.5 kohm

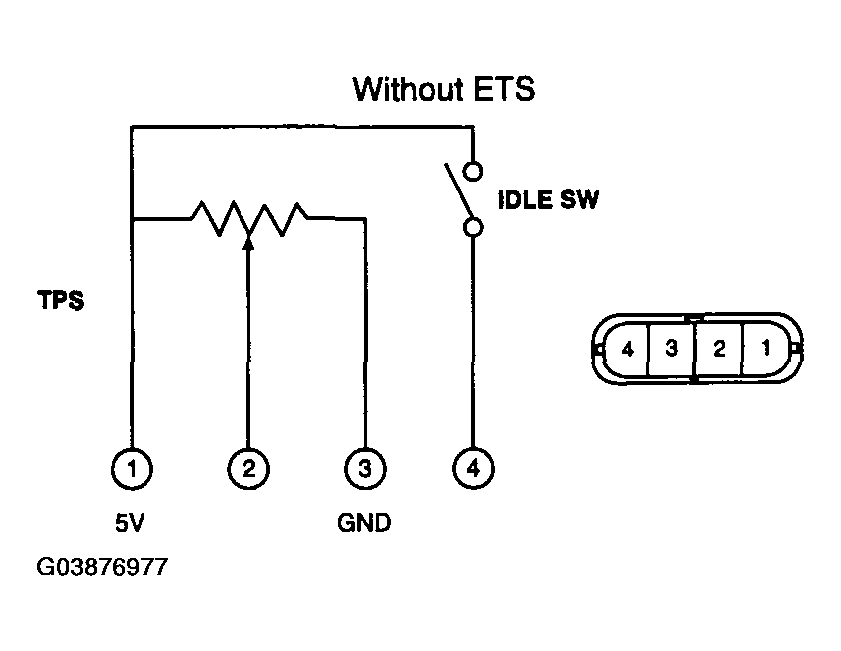

    Fig 1: Measuring Resistance Between TPS Connector Terminal No.1 And No.3
    G03876977Courtesy of KIA MOTORS AMERICA, INC.
  3. Measure the resistance between TPS connector terminal No.2 and No.3.

    At this time, the resistance should be changed smoothly according to the opening angle of throttle valve.

  4. Check ON<-- -->OFF condition of accelerator using Hi-scan tool.

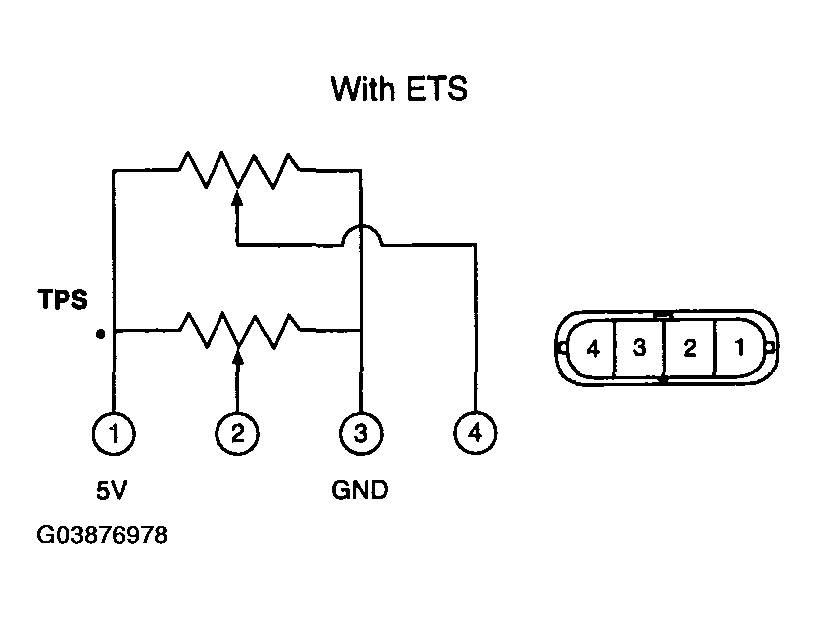

    Fig 2: Measuring Resistance Between TPS Connector Terminal No.2 And No.3
    G03876978Courtesy of KIA MOTORS AMERICA, INC.
  5. In case of vehicle with ETS, check ON<-- -->OFF condition between APS connector terminal No.4 and No.5. At this time, voltage value at the point of changing ON<-- -->OFF should be within 50mV.

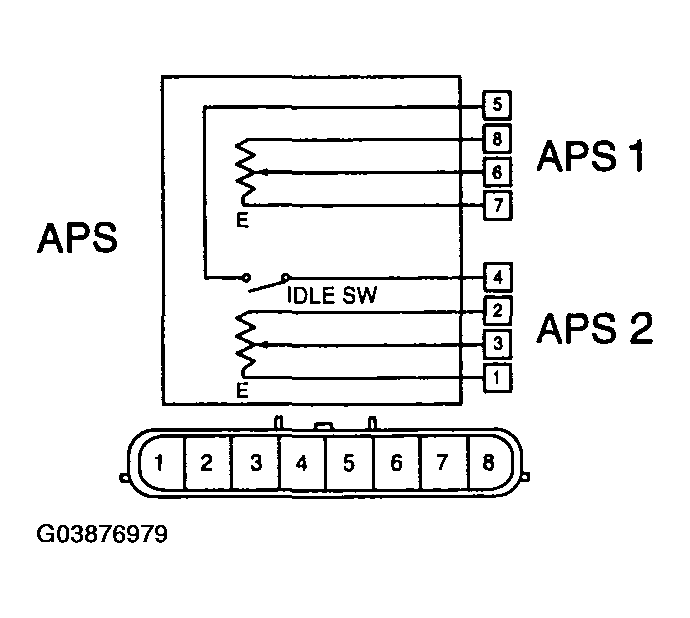

    Fig 3: Checking ON Or OFF Condition Between APS Connector Terminal No.4 And No.5
    G03876979Courtesy of KIA MOTORS AMERICA, INC.
  6. Replace TPS or APS if step  2 .,  3 . and  4 . of this procedure are abnormal.
