Planetary Gear Set: Disassembly

Cock the lock nut only enough to turn.

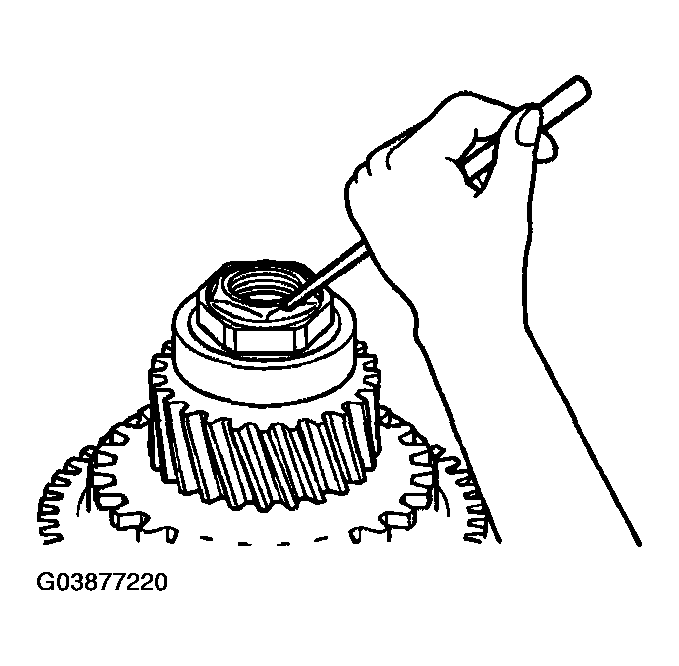

Fig 1: Identifying Cock Lock Nut Only Enough To Turn
Courtesy of KIA MOTORS AMERICA, INC.
Remove the lock nut.
Remove the output gear and the parking brake gear using the special tool(09433 - 21000).

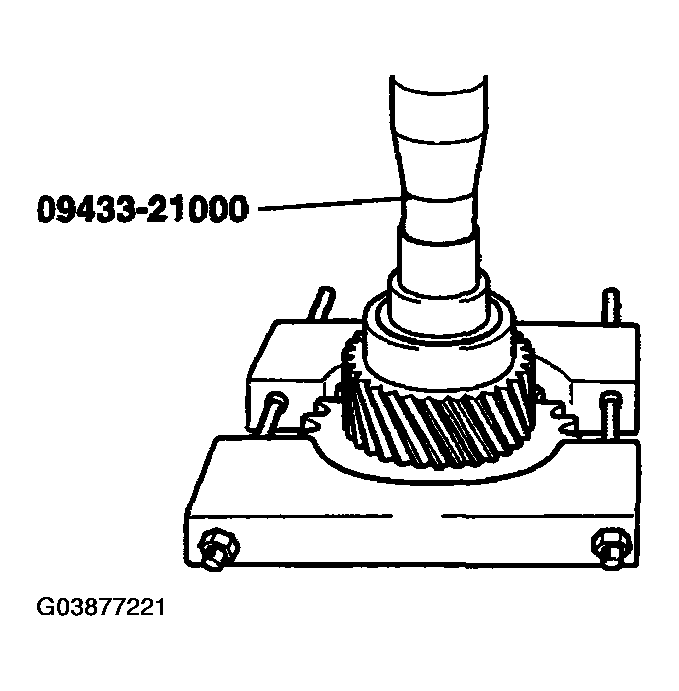

Fig 2: Removing Output Gear And Parking Brake Gear
Courtesy of KIA MOTORS AMERICA, INC.
Remove the taper roller bearing and the transfer driven gear.

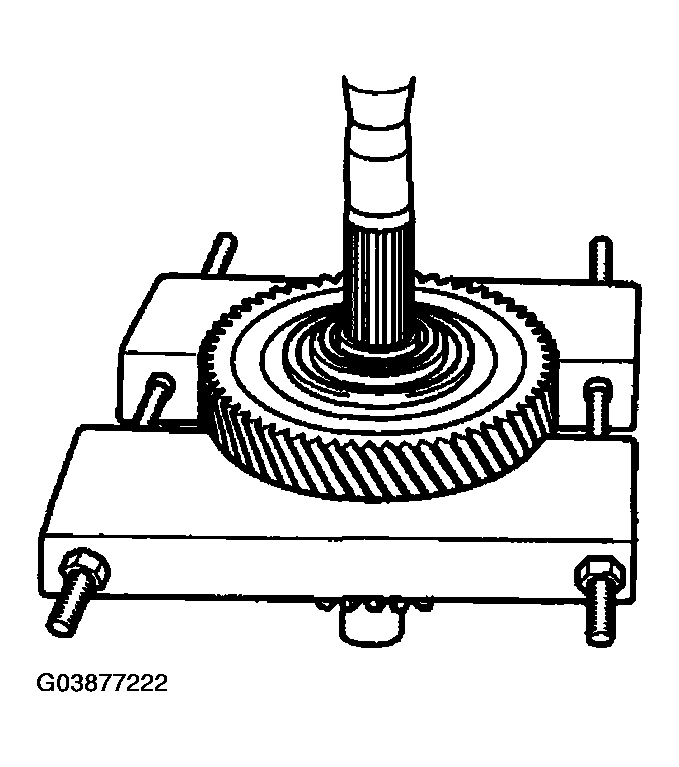

Fig 3: Removing Taper Roller Bearing And Transfer Driven Gear
Courtesy of KIA MOTORS AMERICA, INC.
Remove the inner taper roller bearing.

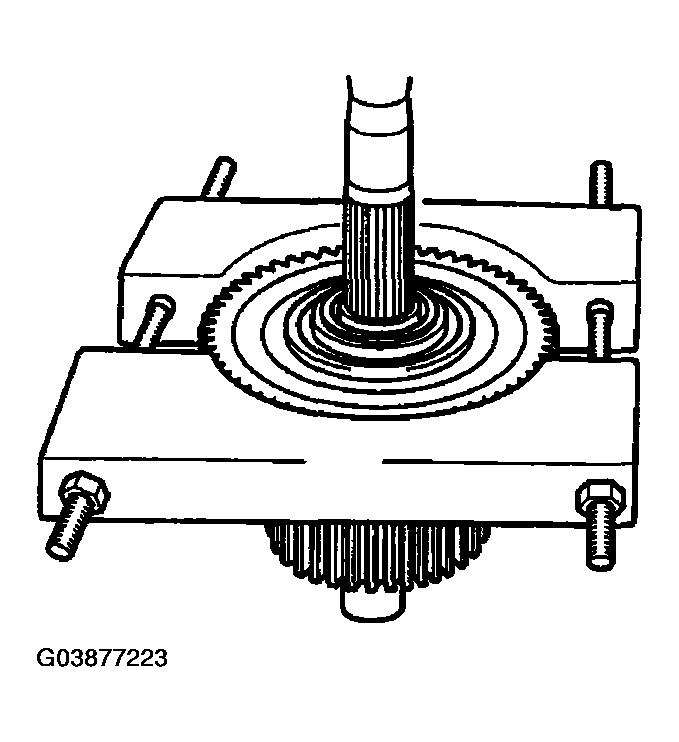

Fig 4: Removing Inner Taper Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.
