Planetary Gear Set: Reassembly

Install the inner taper roller bearing using the special tool(09455 - 33200).

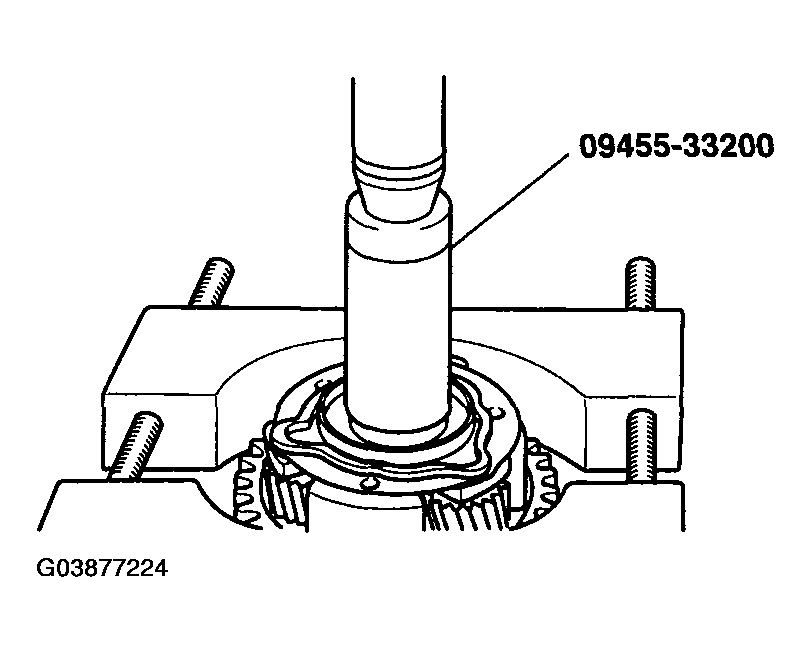

Fig 1: Installing Inner Taper Roller Bearing Using Special Tool
Courtesy of KIA MOTORS AMERICA, INC.
Install the transfer driven gear and the taper roller bearing.

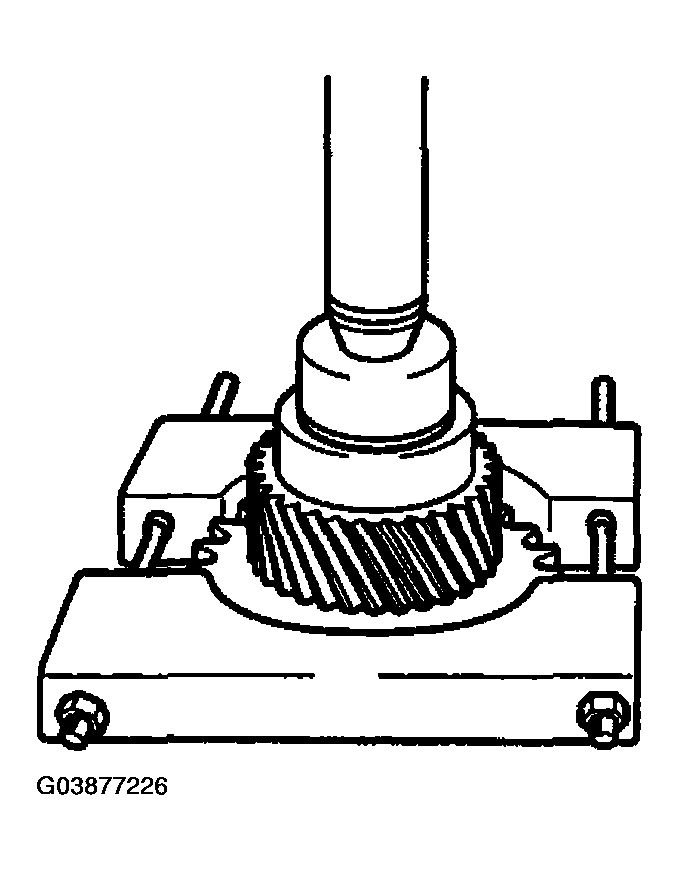

Fig 2: Installing Transfer Driven Gear And Taper Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Install the parking brake gear and the output gear.

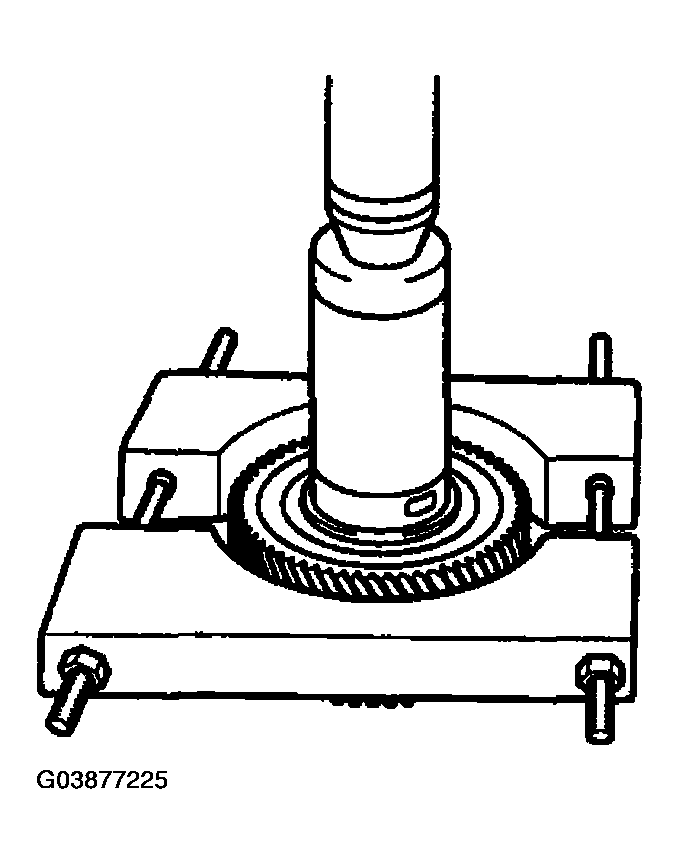

Fig 3: Installing Parking Brake Gear And Output Gear
Courtesy of KIA MOTORS AMERICA, INC.
Install the roller bearing and tighten the lock nut with tightening torque.
Tightening torque:

160 - 180 N.m (1600 - 1800 kg-cm, 110 - 126 lb-ft)

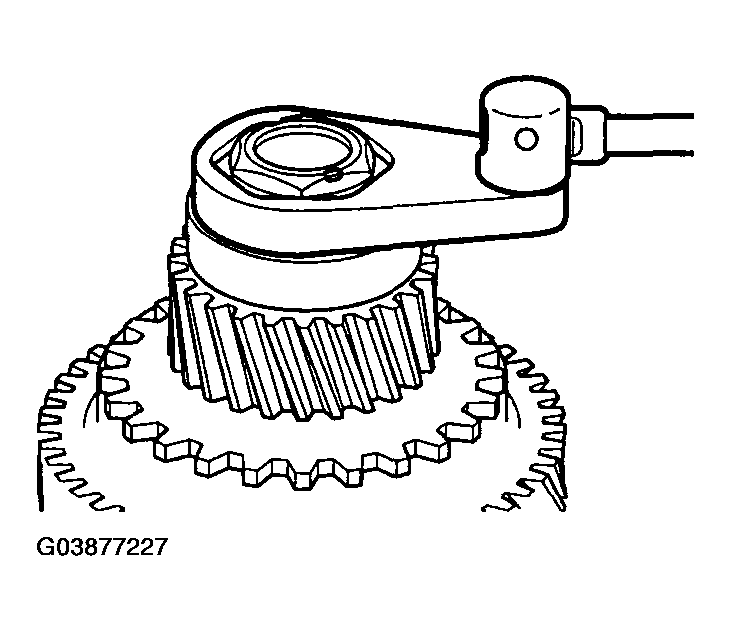

Fig 4: Installing Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Cock the lock nut (two points) not to move.

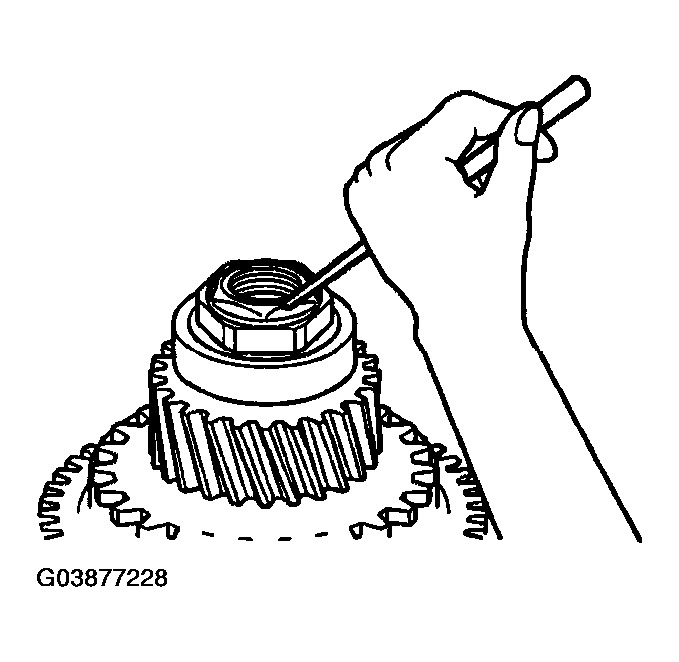

Fig 5: Identifying Cock Lock Nut (Two Points) Not To Move
