Diagnosis Procedure: Notes

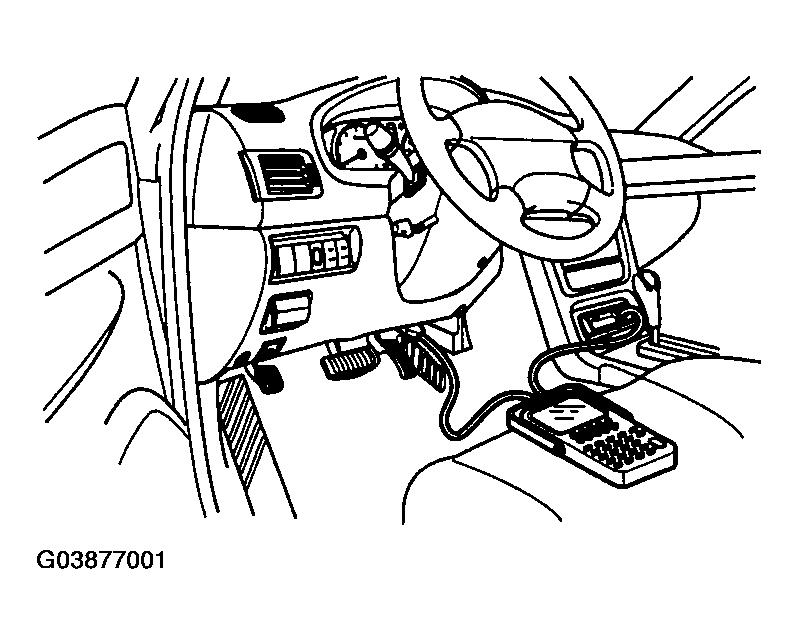

- Connect Hi-Scan with the self-diagnosis connector and the cigar-lighter socket.
Courtesy of KIA MOTORS AMERICA, INC.
- Wait 3 - 4 seconds and select the vehicle model.
- Upon selecting vehicle, press "YES" button.
- Screen will display MENU and then chose diagnosis code or maintenance data item to output.
NOTE:
- Hi-Scan will store max, 8 diagnosis codes and max.3 failsafe items in the order of generation in RAM.
- The same code will not be stored twice or more.
- If codes or failsafe items occur more than RAM capacity, they will be erased in the order of generation.
- Upon disconnecting battery power of all stored codes and failsafe items will be erased. Do not separate battery power before completing the procedure.
- Place shift lever at "P" or "N" and stop the vehicle.
