Home >> Kia >> 2005 >> Amanti >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> UNDERDRIVE Clutch >> Components

UNDERDRIVE Clutch: Components

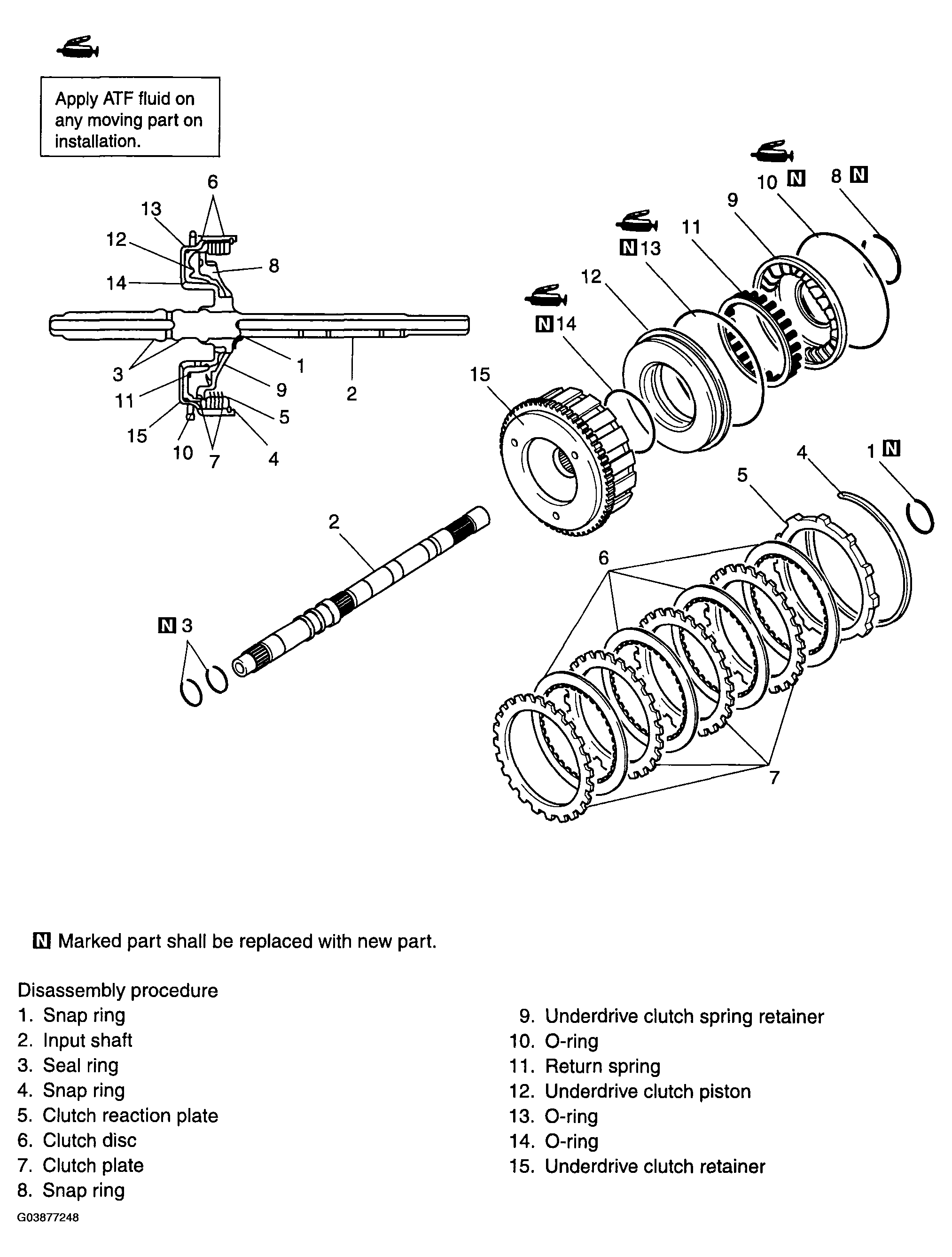

Fig 1: Exploded View Of Underdrive Clutch Components

G03877248

Courtesy of KIA MOTORS AMERICA, INC.
