Home >> Kia >> 2005 >> Amanti >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Valve Body >> Components(A) >> Components(B)

Valve Body: Components(A): Components(B)

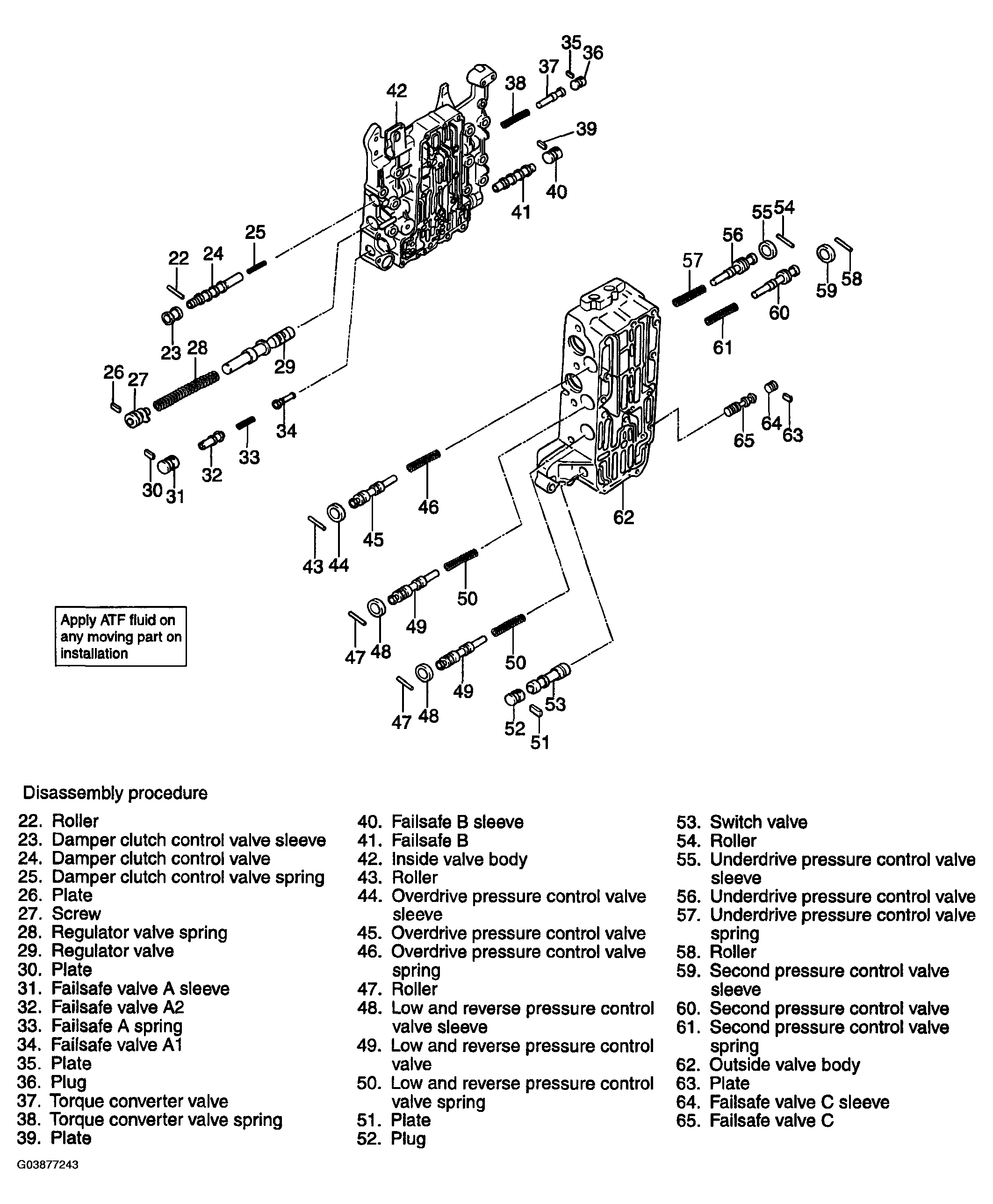

Fig 1: Exploded View Of Valve Body Components(B)

G03877243

Courtesy of KIA MOTORS AMERICA, INC.
